PRODUCT OVERVIEW:
The VL-Series LED Light Duty offers outstanding light output in a functional design which can be easily adjusted with the single bolt bracket. High quality construction and components enable VL-Series LED Light Duty to withstand vibration up to 15.6 Grms. Built-in reverse polarity protection helps prevent accidental damage caused by incorrect installation. VL-Series LED Light Duty work lighting is a high value, versatile range designed for many light duty commercial applications.
KEY FEATURES:
- Ultra Bright Cree LEDs
- 3 Housing Options
- 2 Output Options
- IP67/IP69K
- Ultra Bright Cree LED
- CISPR 25 Class 3 Rated
- Die-Cast Aluminum Housing

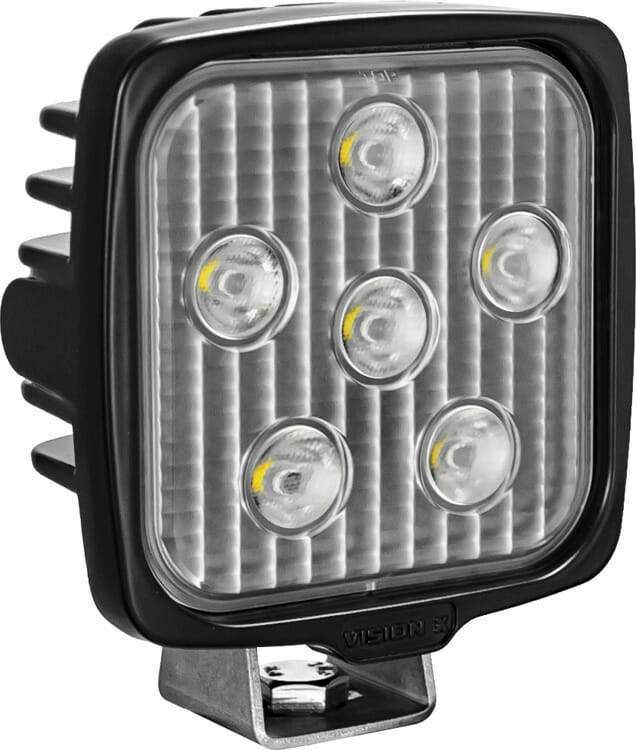

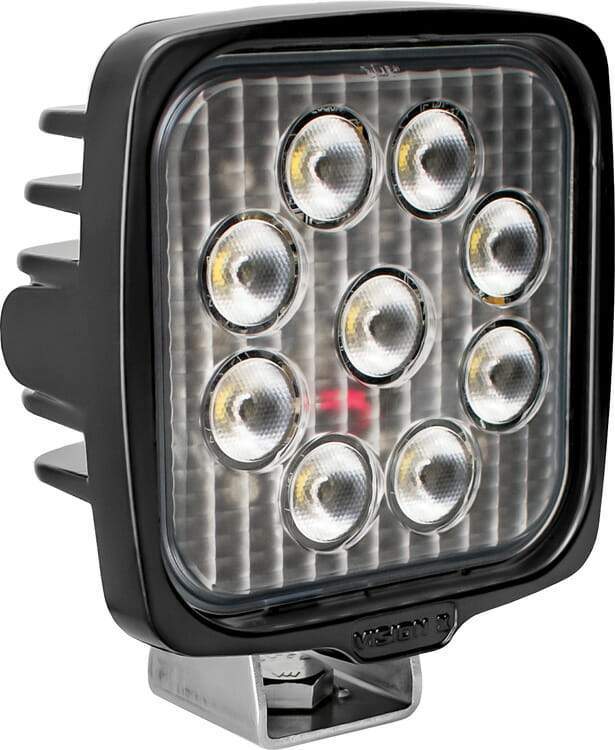

SQUARE SERIES SPECS:
| ITEM # | PART # | BEAM | # OF LIGHTS | HOUSING | RAW LUMENS | INPUT VOLTS | WATTS | AMP DRAW |
| VWS050640 | 9911366 | 40° | 1 | Black | 3,168 lm | 9-32V | 30 | 2.5A |
| VWS050940 | 9911373 | 40° | 1 | Black | 4,752 lm | 9-32V | 45 | 3.75A |
| VLS050640 | 9911304 | 40° | 1 | Black | 3,168 lm | 9-32V | 30 | 2.5A |
| VLS050940 | 9911311 | 40° | 1 | Black | 4,752 lm | 9-32V | 45 | 3.75A |

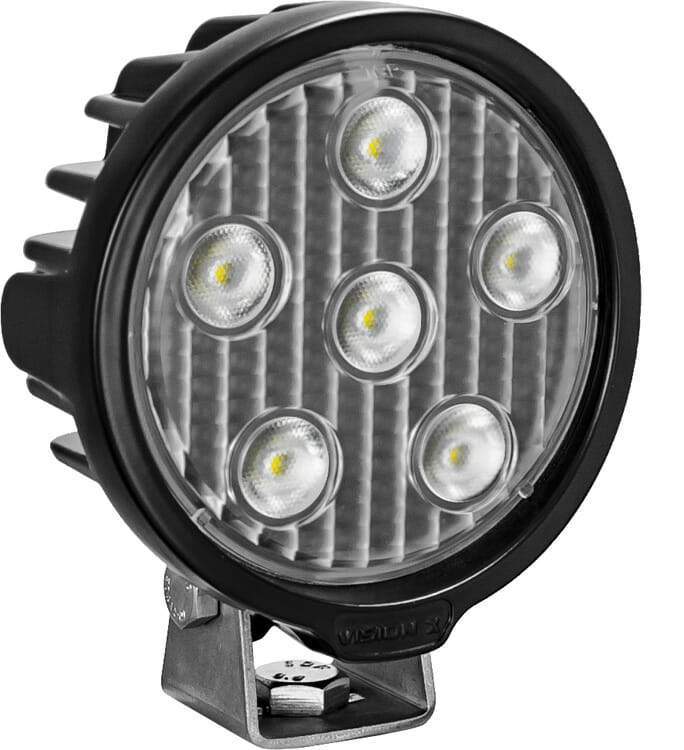

ROUND SERIES SPECS:
| ITEM # | PART # | BEAM | # OF LIGHTS | HOUSING | RAW LUMENS | INPUT VOLTS | WATTS | AMP DRAW |
| VWR050640 | 9911342 | 40° | 1 | Black | 3,168 lm | 11-65V | 30 | 2.5A |
| VWR050940 | 9911359 | 40° | 1 | Black | 4,752 lm | V | 45 | 3.75A |
| VLR050640 | 9911281 | 40° | 1 | Black | 3,168 lm | 11-65V | 30 | 2.5A |
| VLR050940 | 9911298 | 40° | 1 | Black | 4,752 lm | V | 45 | 3.75A |

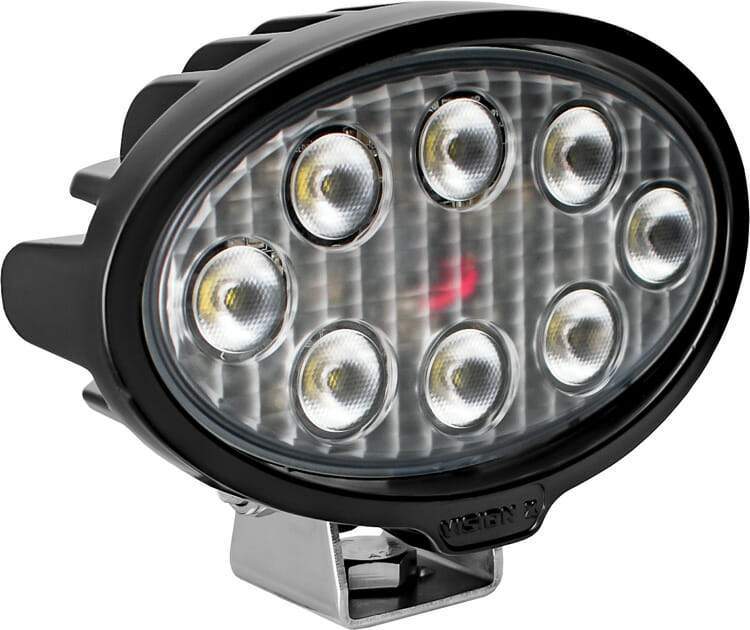

OVAL SERIES SPECS:
| ITEM # | PART # | BEAM | # OF LIGHTS | HOUSING | WEIGHT | INPUT VOLTS | WATTS | AMP DRAW |
| VWO050640 | 9911328 | 40° | 1 | Black | 3,168 lm | 11-65V | 30 | 2.5A |
| VWO050840 | 9911335 | 40° | 1 | Black | 4,224 lm | 11-65V | 40 | 3.33A |
| VLO050640 | 9911267 | 40° | 1 | Black | 3,168 lm | 11-65V | 30 | 2.5A |
| VLO050840 | 9911274 | 40° | 1 | Black | 4,224 lm | 11-65V | 40 | 3.33A |
