Switch Pros SP-9100 8 Switch Panel Power System
Switch Pros SP-9100 8 Switch Panel Power System
MCQUEEN
190 South McQueen Road
Suite 109
Gilbert AZ 85233
United States
Features
- RGB Backlighting
- Built-in Bluetooth module for use with free Switch-Pros App
- Program and operate your panel from any device with access to the iOs or Google Play Store
- Battery Voltage Readout on App screen
- Orange LED switch indicators
- LED Input Status Indicators for easy troubleshooting on power module
Specifications
- 125amp capacity with 8 outputs
- 8 Outputs: 4 rated @ 35A, 4 rated @ 20A
- Adjustable Output Overcurrent Values
- Switch Panel enclosure measures 4” L x 2” W x .375” H

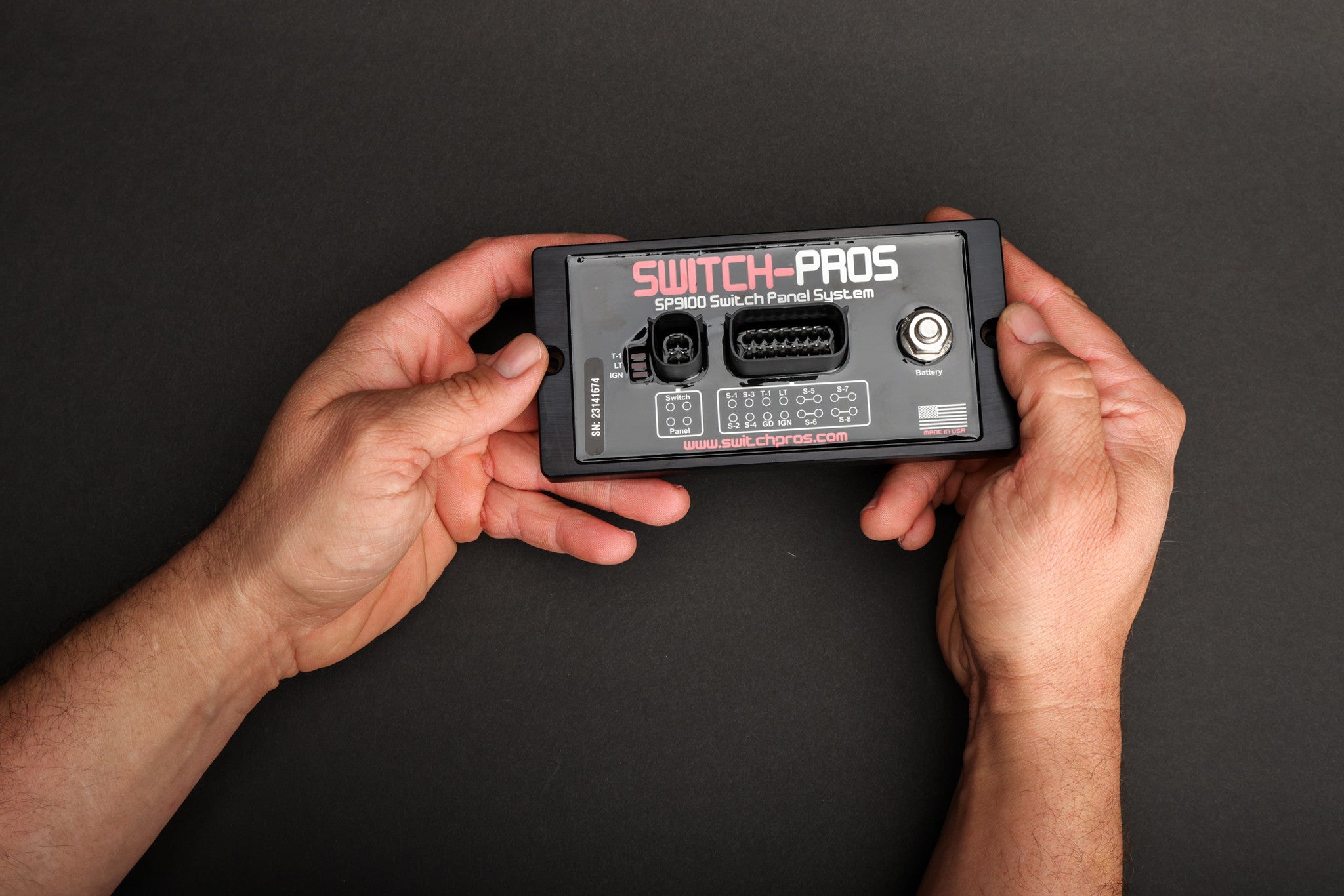

- Power Module Measures 6”L x 3”W x .5”H (excluding connectors)
- Power Module Under Hood rating 125°C to -40°C
- Switch Panel and Power Module Waterproof rating of IP67
Programming & Other Features
- Preset Dimming function WITH MEMORY (100% to 10% brightness)
- Master Mode, with ability to turn up to 7 other switches On AND Off with one touch
- On/Off or Momentary
- Ignition or Battery Input
- Flash or Strobe, with User-Selectable Strobe patterns and One Touch activation
- Automatic Power-Up upon vehicle start up
- Time Delay off
- No bulky relay box
- Two External Trigger inputs can each activate up to four outputs (Active Hi or Active Low)
- Low Voltage Disconnect
- Sleep Mode for minimal power consumption
- Daisy Chain up to 3 Switch Panels to One Power Module

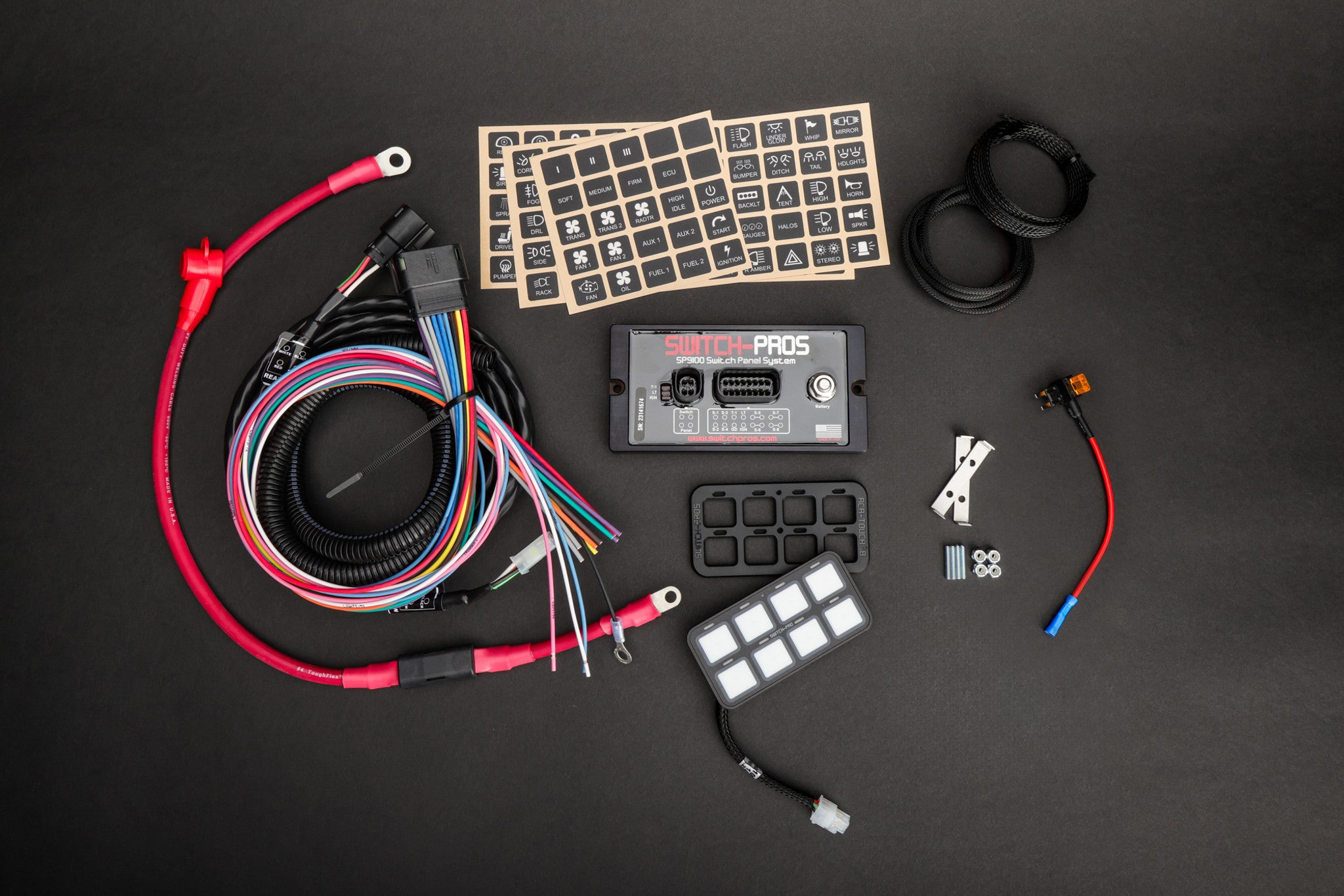

What’s Included?
- Switch Panel and Power Module

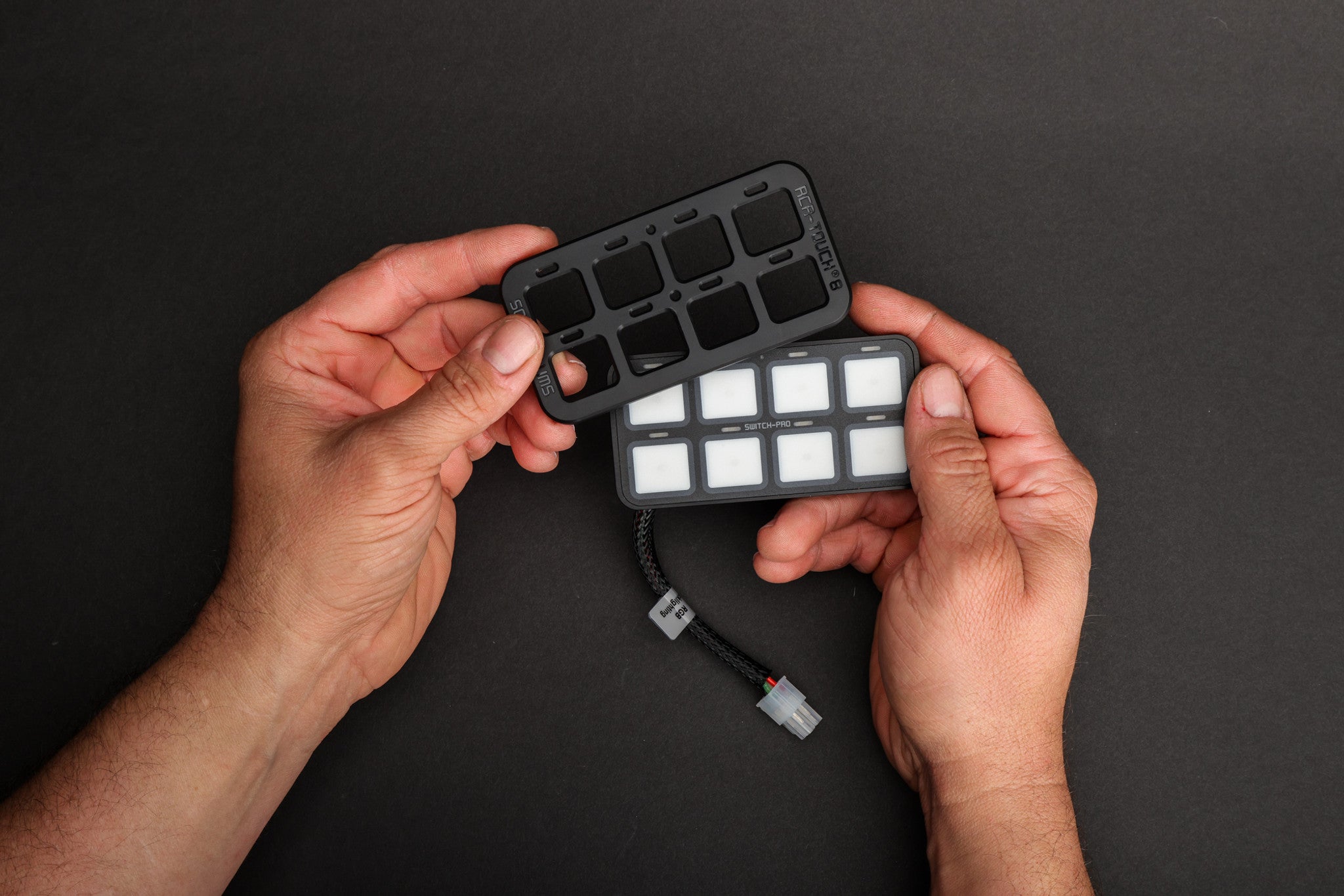

- RCR-Touch®8 cover, snaps on for ease of specific switch selection while wearing gloves or riding rough terrain (United States Design Patent No. US D922,969 S)
- 11’ of Communication Cable between Switch Panel and Power Module
- Power Cable with 125A inline fuse
- 125 User Selectable Legends included (Horizontal orientation)
- Installation brackets and hardware
- 16-pin color coded output harness
- Detailed installation Guide
