PRODUCT OVERVIEW:
Carli Suspension's Billet Extended Control Arms for the 1994-2013 Ram 2500 and 3500 will correct the geometry on your leveled Ram.
Bulletproof Billet construction pairs to in-house machined 17-4 Stainless, dampened, spherical joints to ensure your can rely on these arms for the long-haul!
KEY FEATURES:

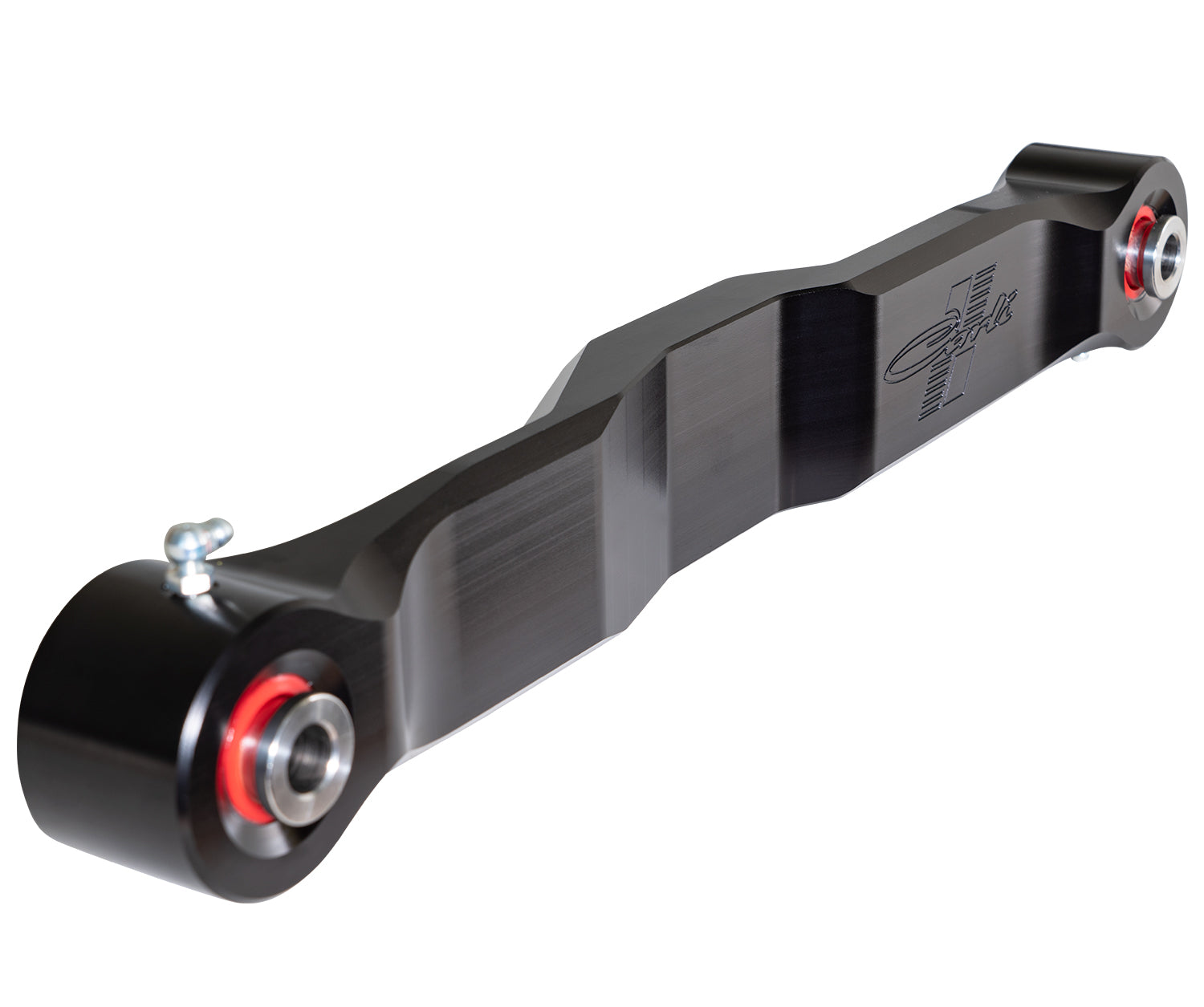

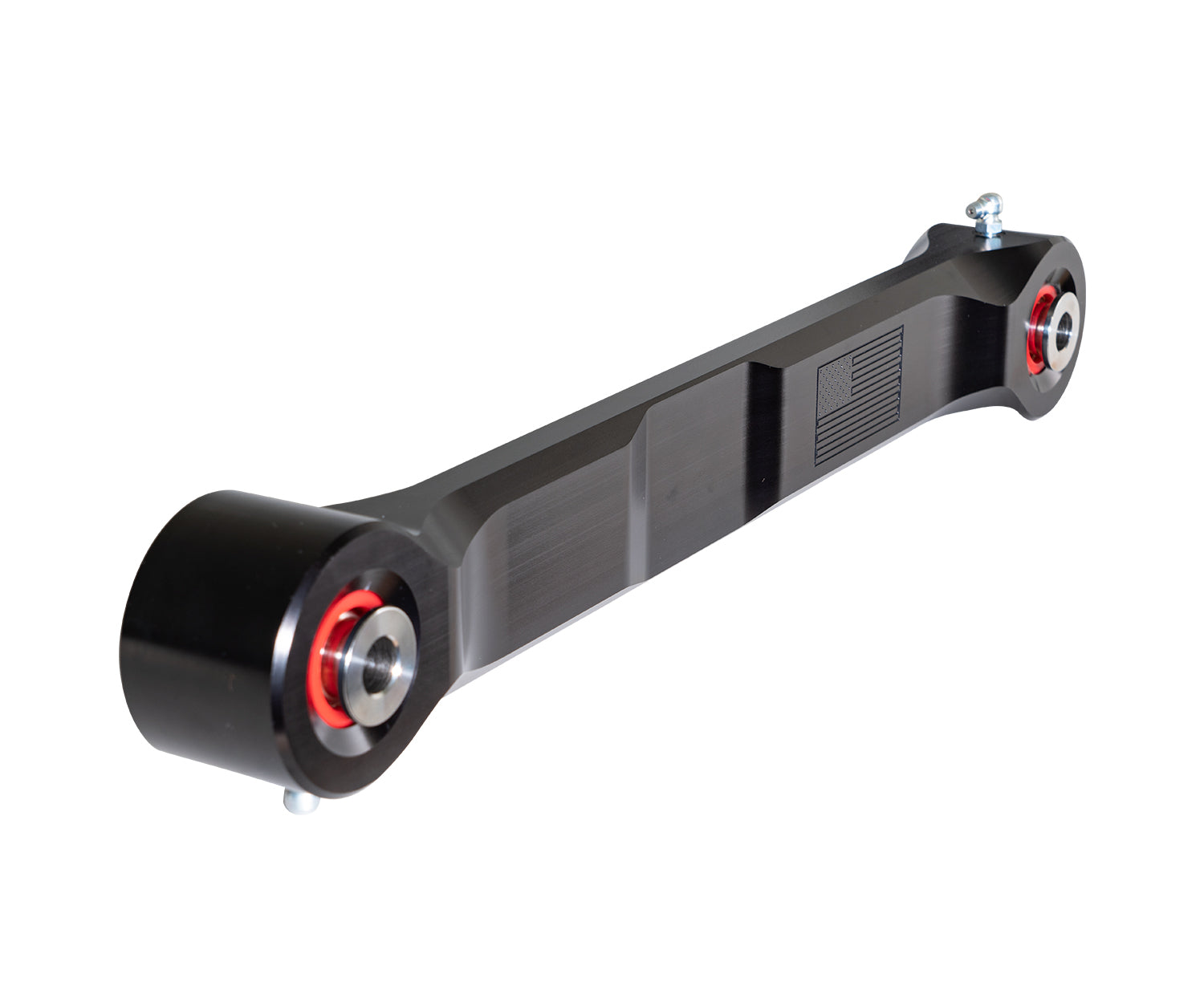

- Includes 4 Arms Pictured, 2 Upper, 2 Lower
- Re-centers front axle on 3" Suspension Systems
- 6061 Billet Construction
- Serviceable, Vibration Damping Joints with Stainless Ball Centers
- 37" Tire Fitment (9" Wide Wheel, 5.75" BS)
FITMENT DETAILS:
- 2003-2009 Ram 2500 - CS-DBCA-03
- 2003-2009 Ram 3500 - CS-DBCA-03
- 2010-2013 Ram 2500 - CS-DBCA-10
- 2010-2012 Ram 3500 - CS-DBCA-10
KIT DETAILS:
The 1994-2013 Ram 2500/3500 utilizes a 5-Link front suspension. Comprising this link system are upper and lower control arms to hold the axle fore/aft while the track bar serves as the lateral link to minimize lateral shift.
When lifting the front end of a straight axle truck, you’re essentially pushing the axle further away from the frame at ride-height. As the travel is not perfectly linear, the new ride height will set the front axle off-center unless the proper linkages are addressed.
The systems Carli designed for these trucks range from 2.5″-3″ of front lift. Three inches of front lift equates to an axle shifted toward the driver’s side ¾” and back toward the cab ½”. Although this is perfectly operable when the factory control arms and track bar are in good condition, we recommend the purchase of an adjustable track bar to shift the axle back toward the passenger side and provide a stronger link with less deflection for the lifted application, and a set of extended control arms to shift the axle forward to its new center of travel.
The construction of these arms starts with a solid chunk of 6061 Billet. We machine these in-house to exacting tolerances providing the most tire clearance of any arm on the market, the most robust construction and the cleanest lines.
