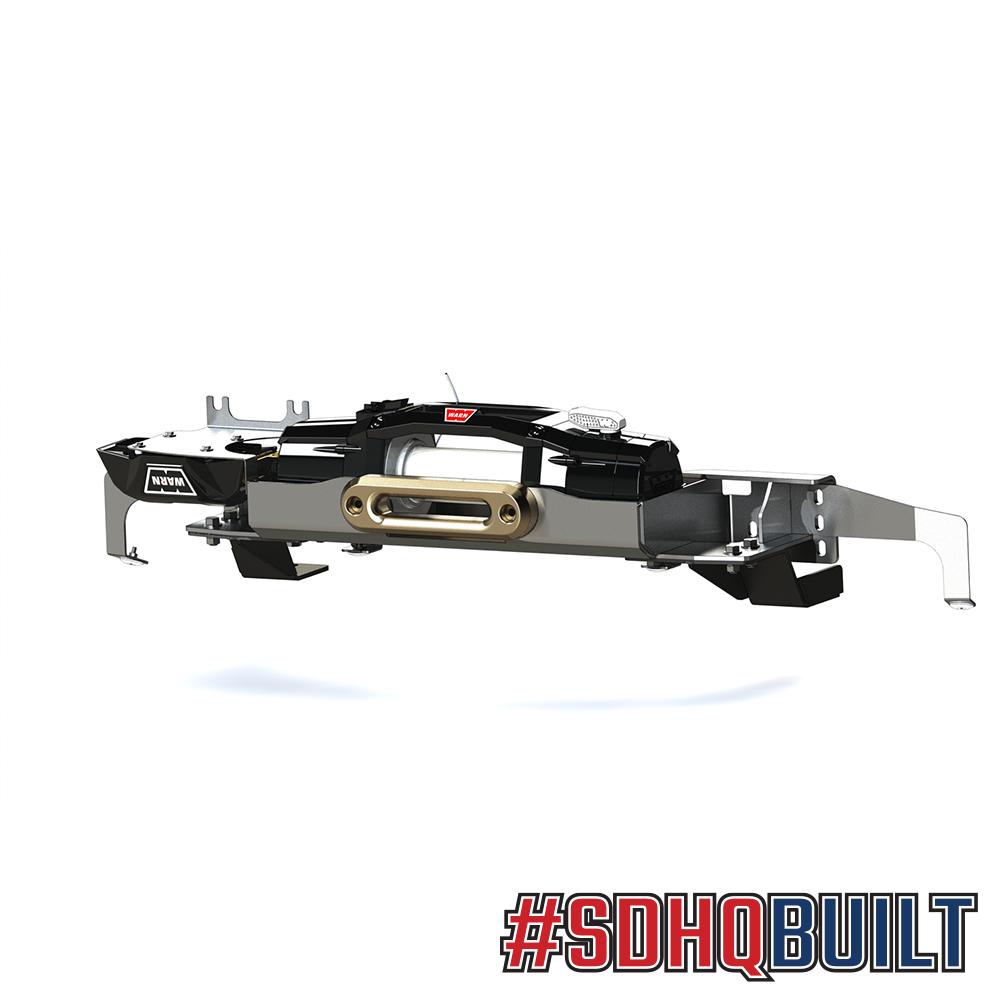

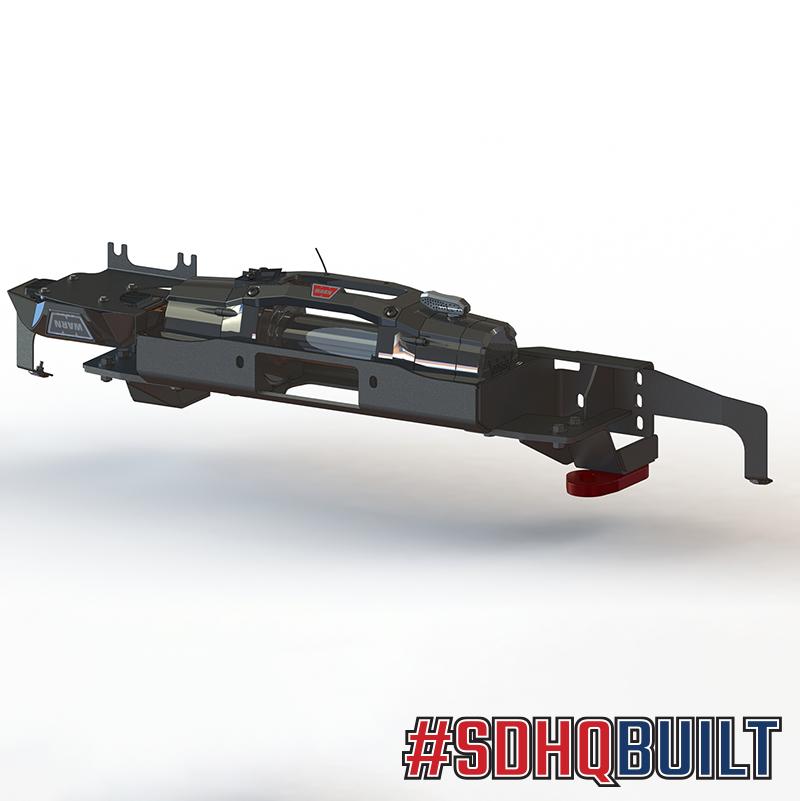

Our SDHQ Built Hidden Winch Mount for 2008-2021 200 Series Toyota Land Cruisers will elevate your Land Cruiser's off-roading capabilities. This winch mount allows Land Cruiser owners to mount a Warn Zeon series winch to the front of their Land Cruiser while providing a direct from the factory look.
Our winch mount is fabricated and gusseted from ¼” steel, bolts directly to the Land Cruiser's frame, and includes all the necessary components for a clean install.
- 2008-2021 200 Series Toyota Land Cruiser
Our #SDHQBuilt winch mount is designed to work with the following Warn Winches.
- 3D CAD designed, engineered & built in-house for our typical SDHQ Built quality, fit, and finish
- Bolts directly to frame in (12) locations using factory hardware
- Main winch mount fabricated and gusseted from ¼” steel for strength and durability.
- Bumper supports in several locations for OEM Quality bumper fitment
- The Lower support mounts are fabricated and gusseted from ¼” steel and bolt to the main winch mount using (6) ½” Grade 8 Bolts
- (1) SDHQ Built 1.5" Fairlead is included with our mount. This fairlead sits flush with the OEM bumper for high angle recoveries.

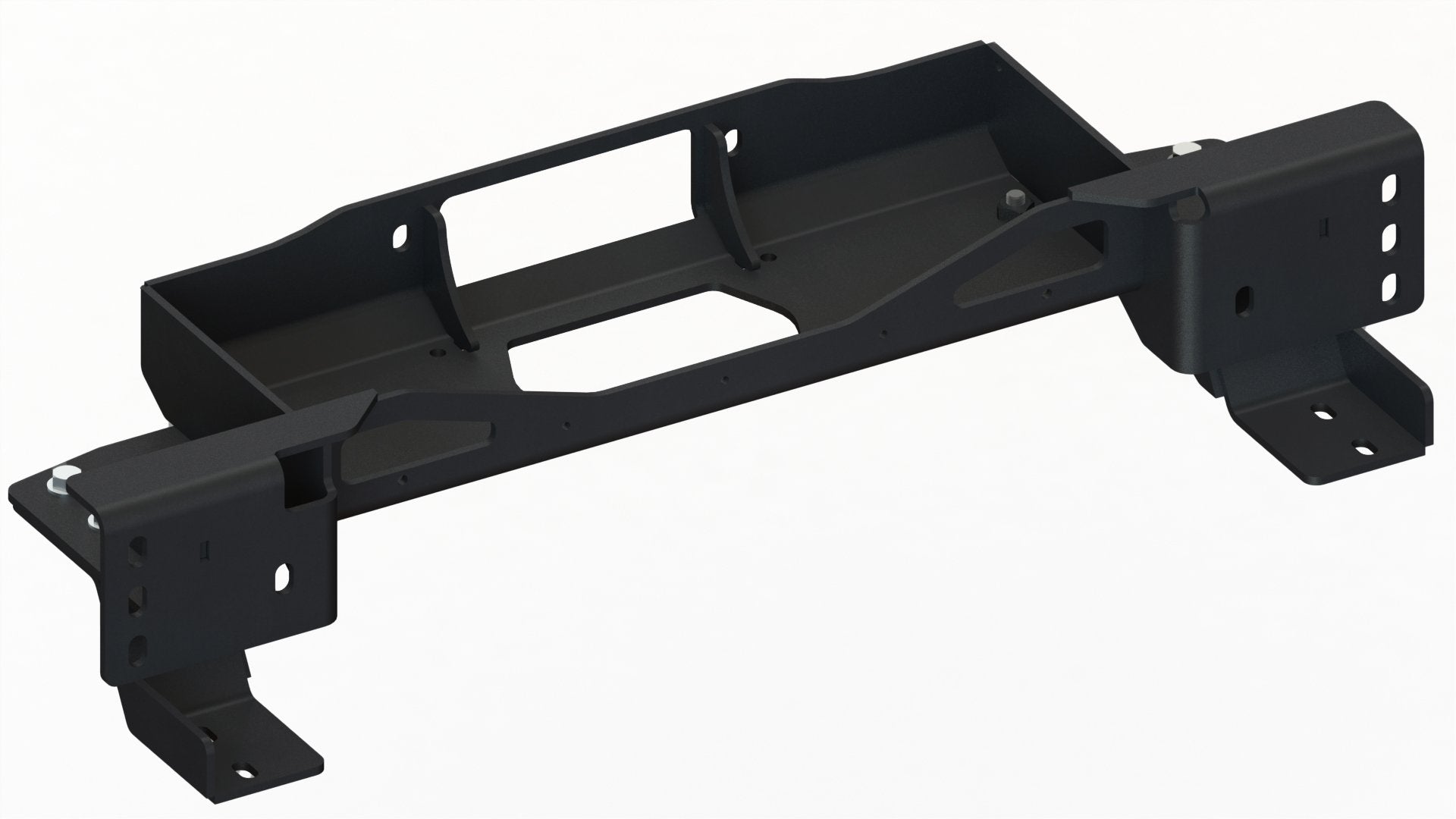

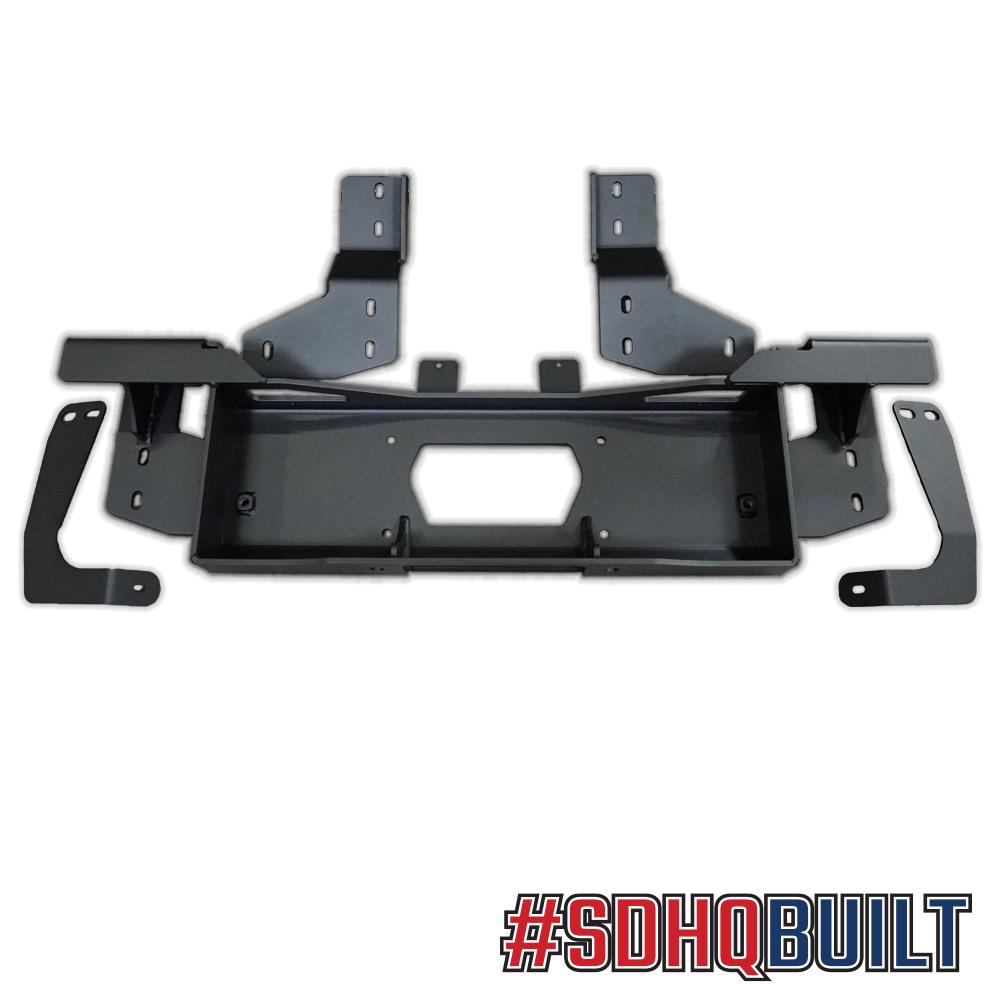

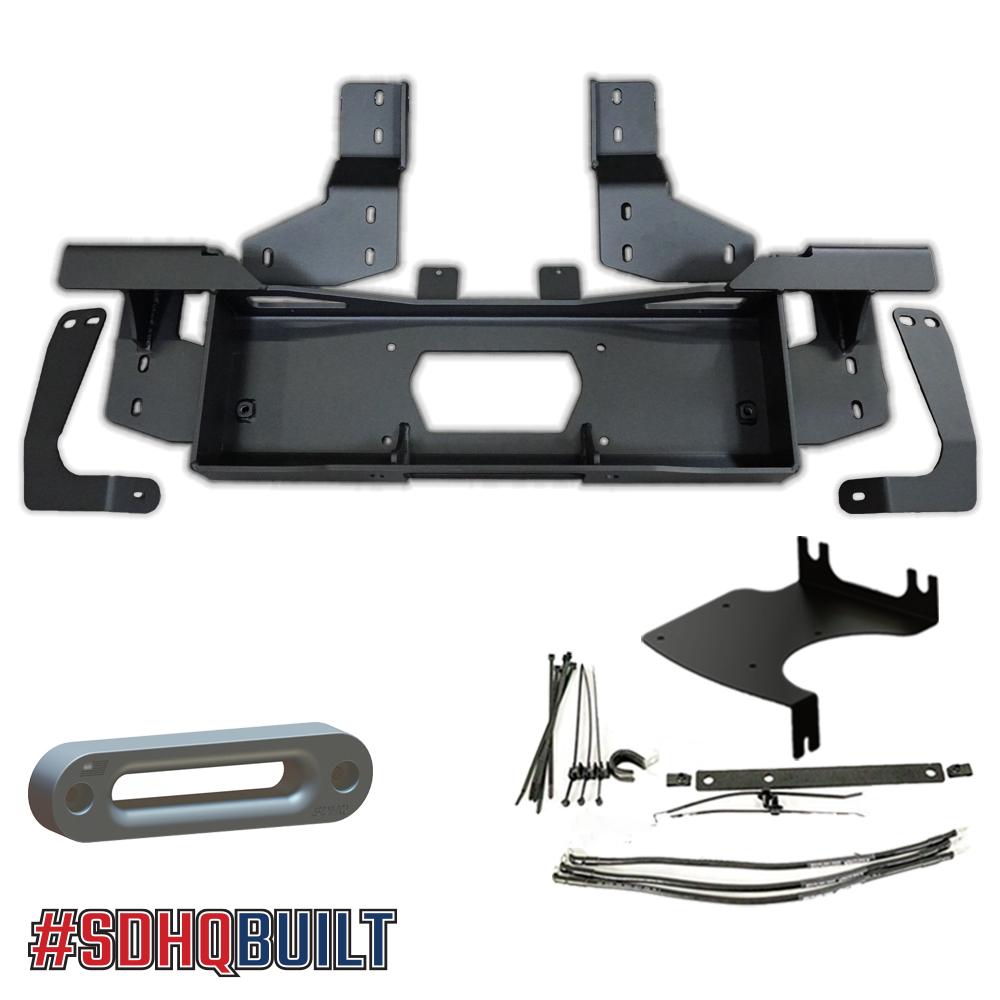

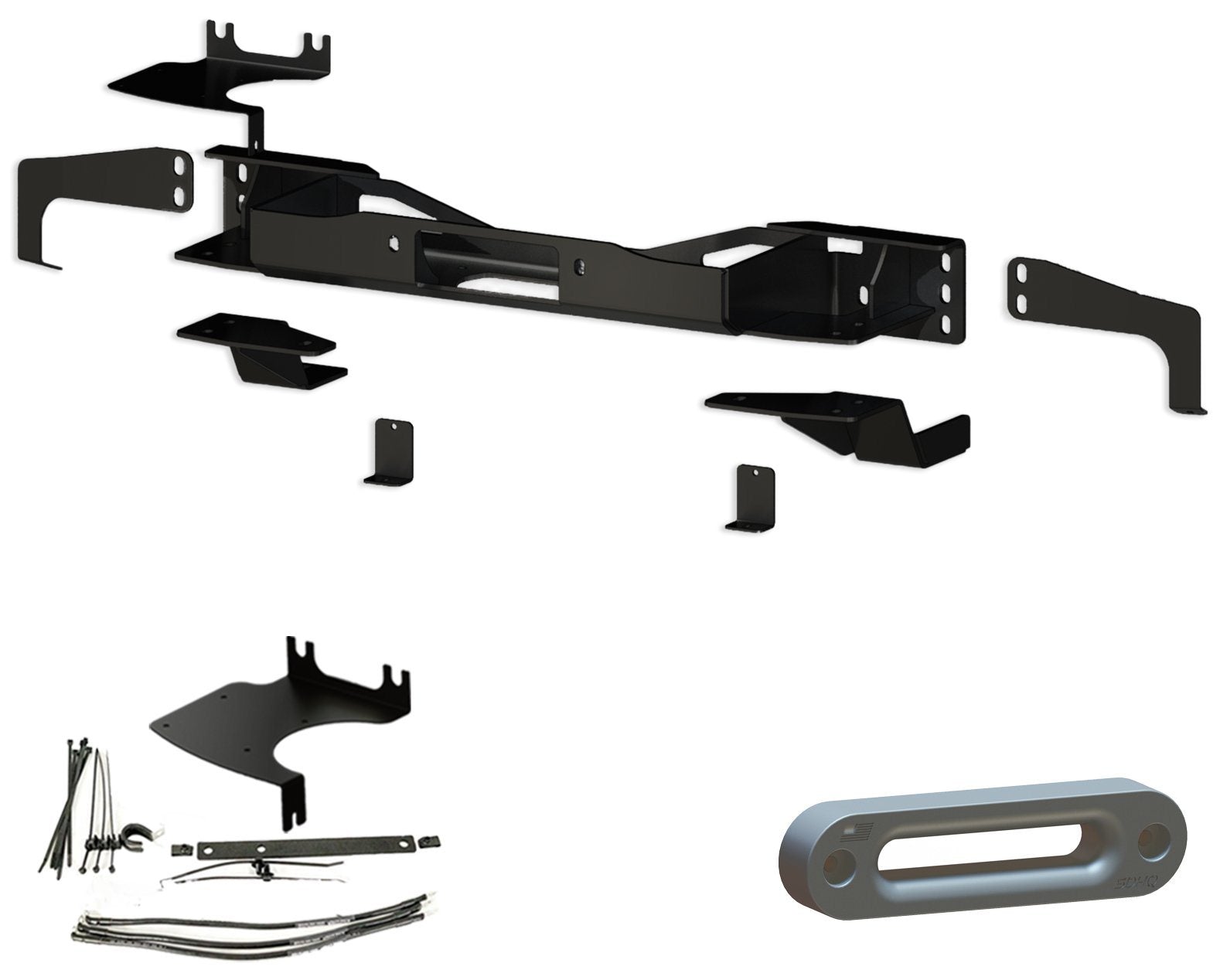

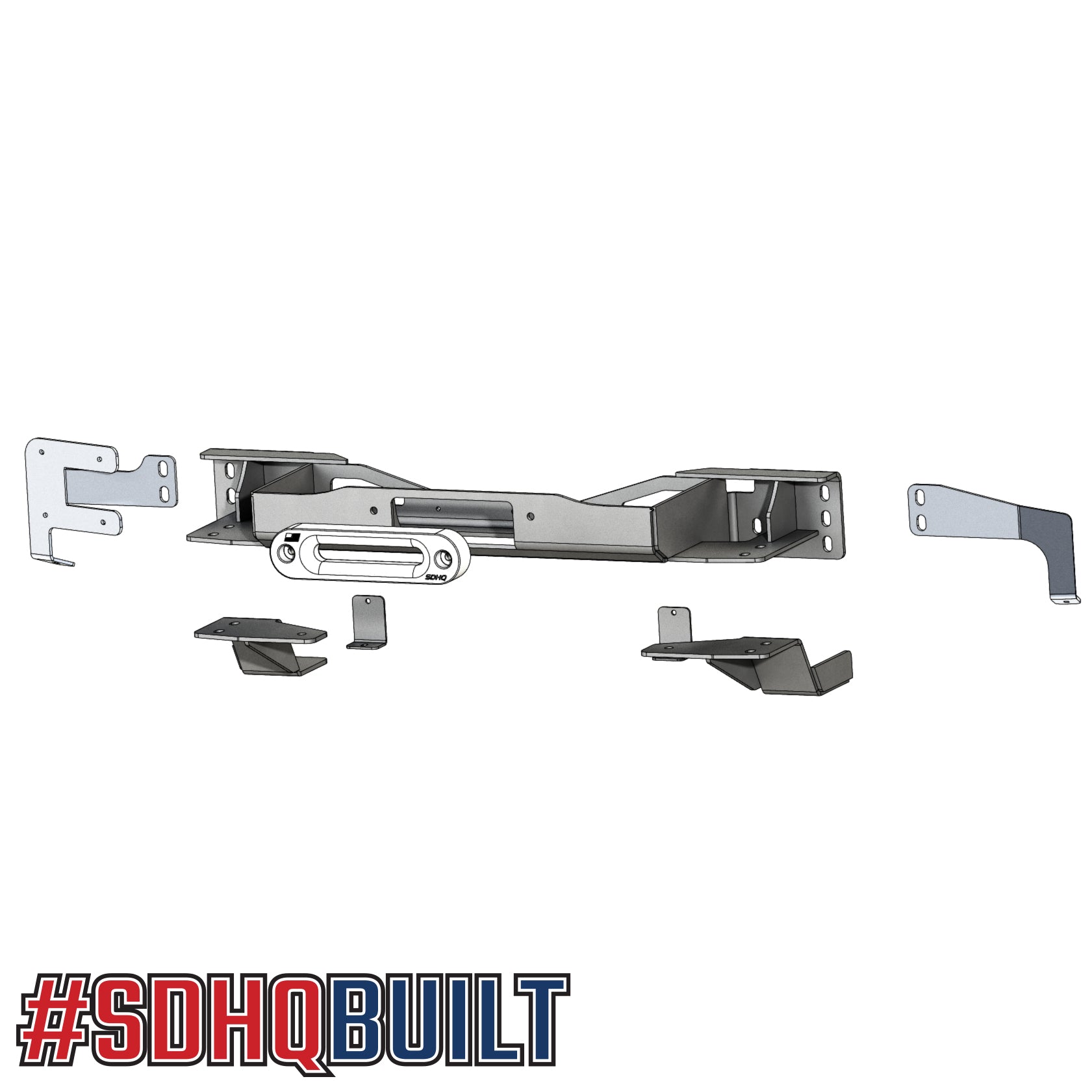

- Main winch mount
- Outer bumper supports with integrated Warn Zeon relocation bracket included
- (1) #SDHQBUILT 1.5" Fairlead
- Lower bumper supports
- Lower support mounts
- Trimming of stock bumper is required
- Using a winch with an synthetic rope is highly recommended
- Zeon Control Box Relocation Bracket included (SDHQ-52-1660-200)
- Compatible with Harrop Superchargers (purchase of relocation kit is required for install) LEARN MORE
- Currently does not fit Magnuson Superchargers
