Carli Suspension

'07-17 Jeep JKU 2.0 Commuter System-3" Lift

$3,220.00
SKU: CS-JKU-C20-07
Quantity:

STATE OF CALIFORNIA CONSUMER WARNING: Some products may contain chemicals such as DEHP, which can cause cancer, birth defects or other reproductive harm.

PRODUCT OVERVIEW:

Carli Suspension's 2.0 Commuter System for the 2007-2017 Jeep JKU uses Carli-Specific front and rear Fox 2.0” internal reservoir shocks that provide 3.0" of front lift. These Carli Signature Fox shocks are tuned to deliver all around comfort and ride quality designed for on-road, in town, highway, and low-shaft-speed trail use.

LIFT HEIGHT:
The front linear rate Carli springs will lift your Jeep JKU 3.0” while the rear is lifted 2.5” utilizing progressive coil springs.

The Fox 2.0s are fully rebuildable, built with hour-glass bushings and boast extruded aluminum construction with a clear anodizing for corrosion resistance. Fox builds these shocks with their legendary red shock oil that flows well down to -55* F

SPECS:

  • Front Lift: 3.0"
  • Rear Lift: 2.5"
  • Front Travel: 8.6"
  • Rear Travel: 9.1"
  • Shock Diameter: 2.0
  • Tire Fitment: 35"x12.50

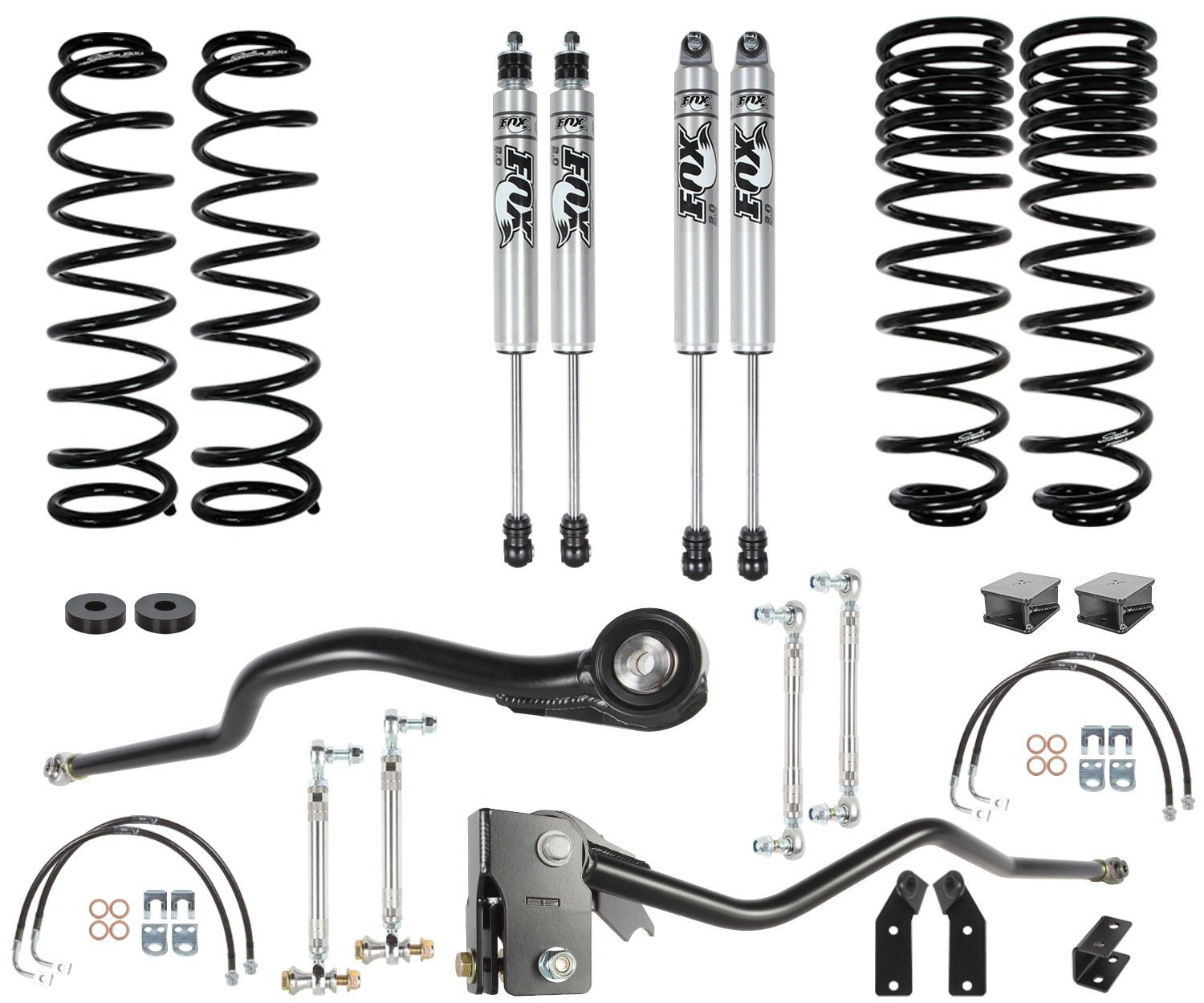

BASE KIT INCLUDES:

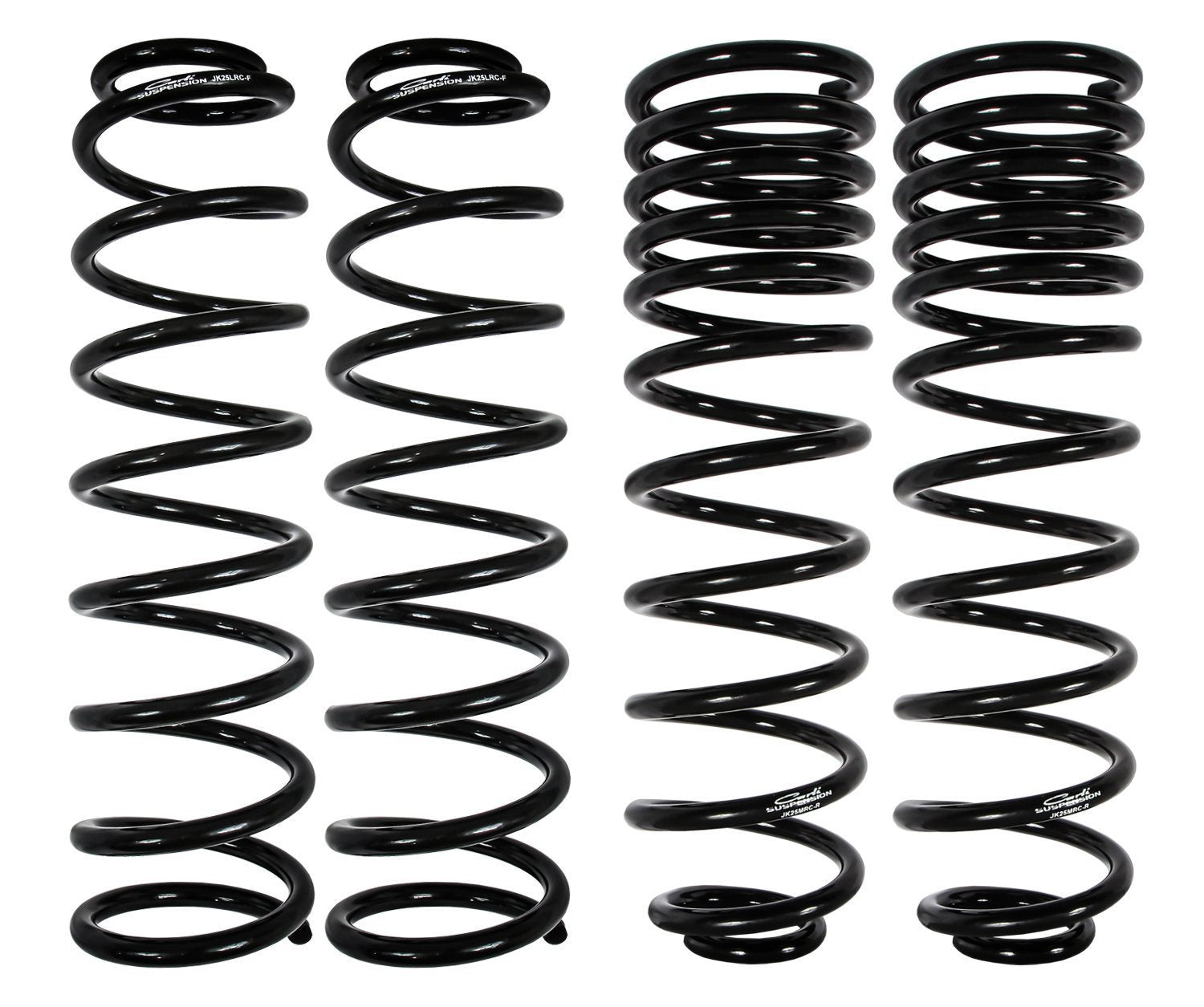

  • CS-JK25LRC-F-07: 2.5" Lift - Linear Rate Coils
  • CS-JK25MRC-R-07: 3.0" Lift - Multi Rate Coils

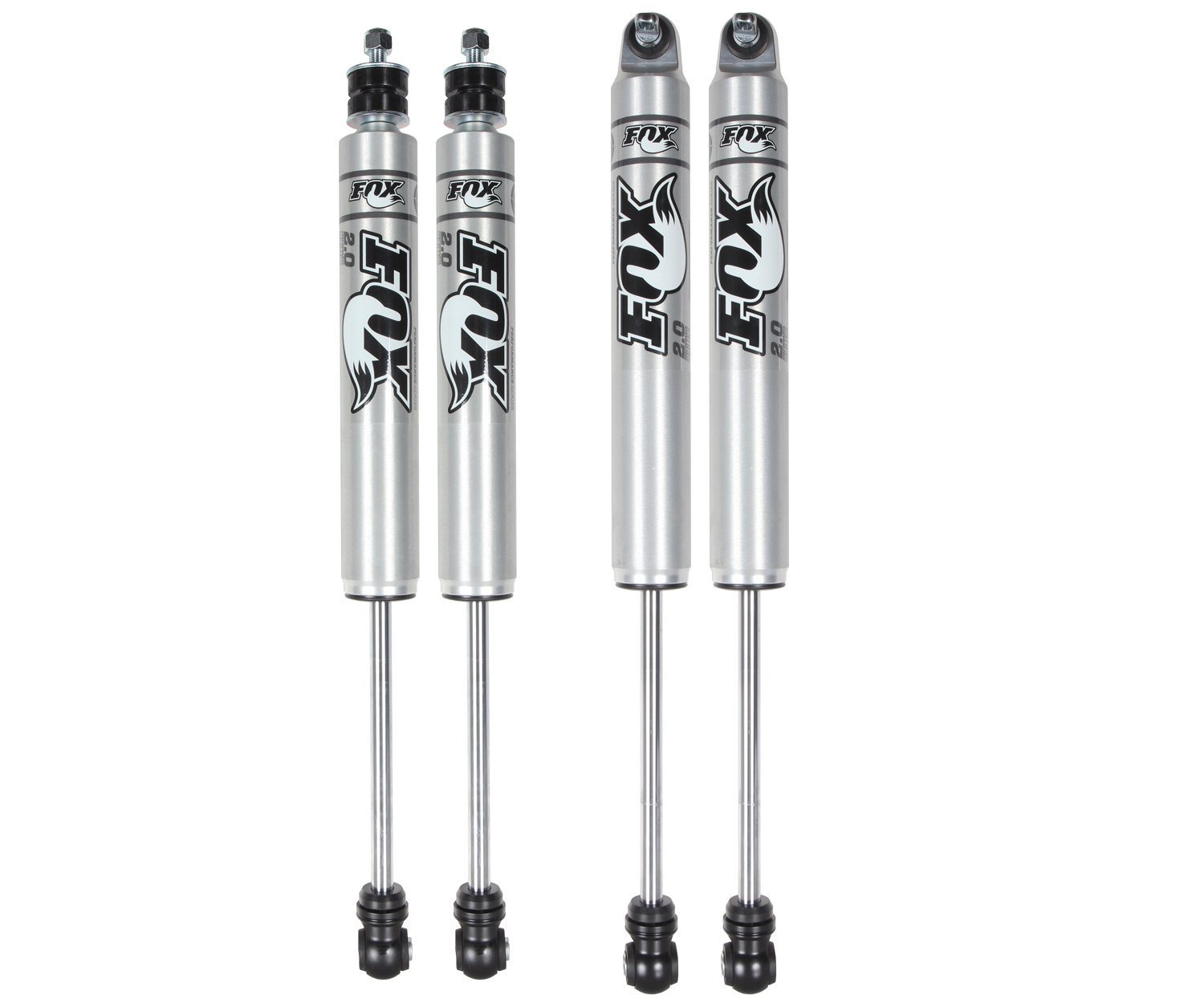

  • CS-JKU-C20SPKG-25-07: Carli Commuter Shock Package - Fox 2.0 IFP

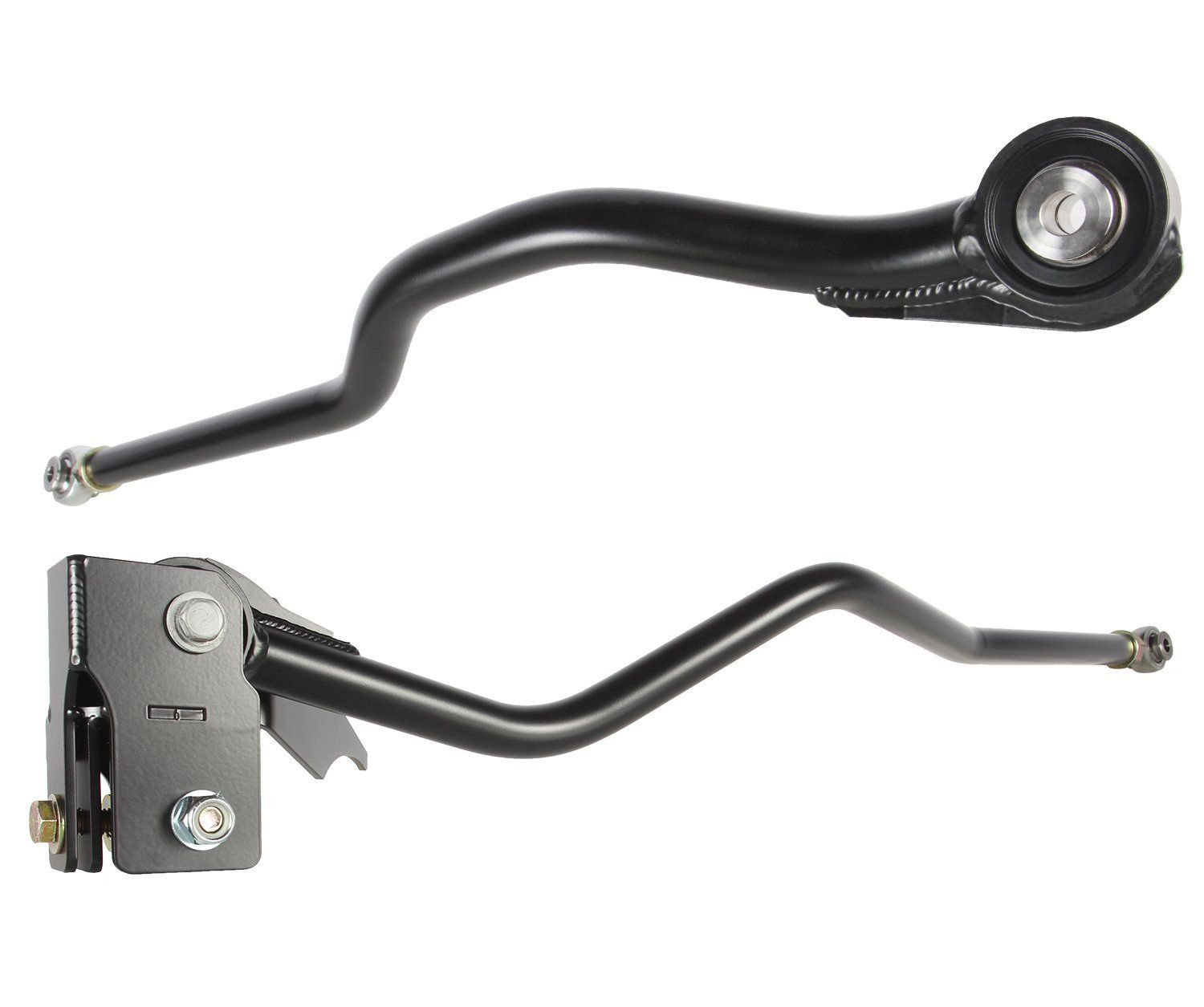

  • CS-JATB-07-F: Front Adjustable Track Bar
  • CS-JATB-07-R: Rear Adjustable Track Bar
  • CS-JATB-07-R-RISER: Rear Adjustable Track Bar Riser

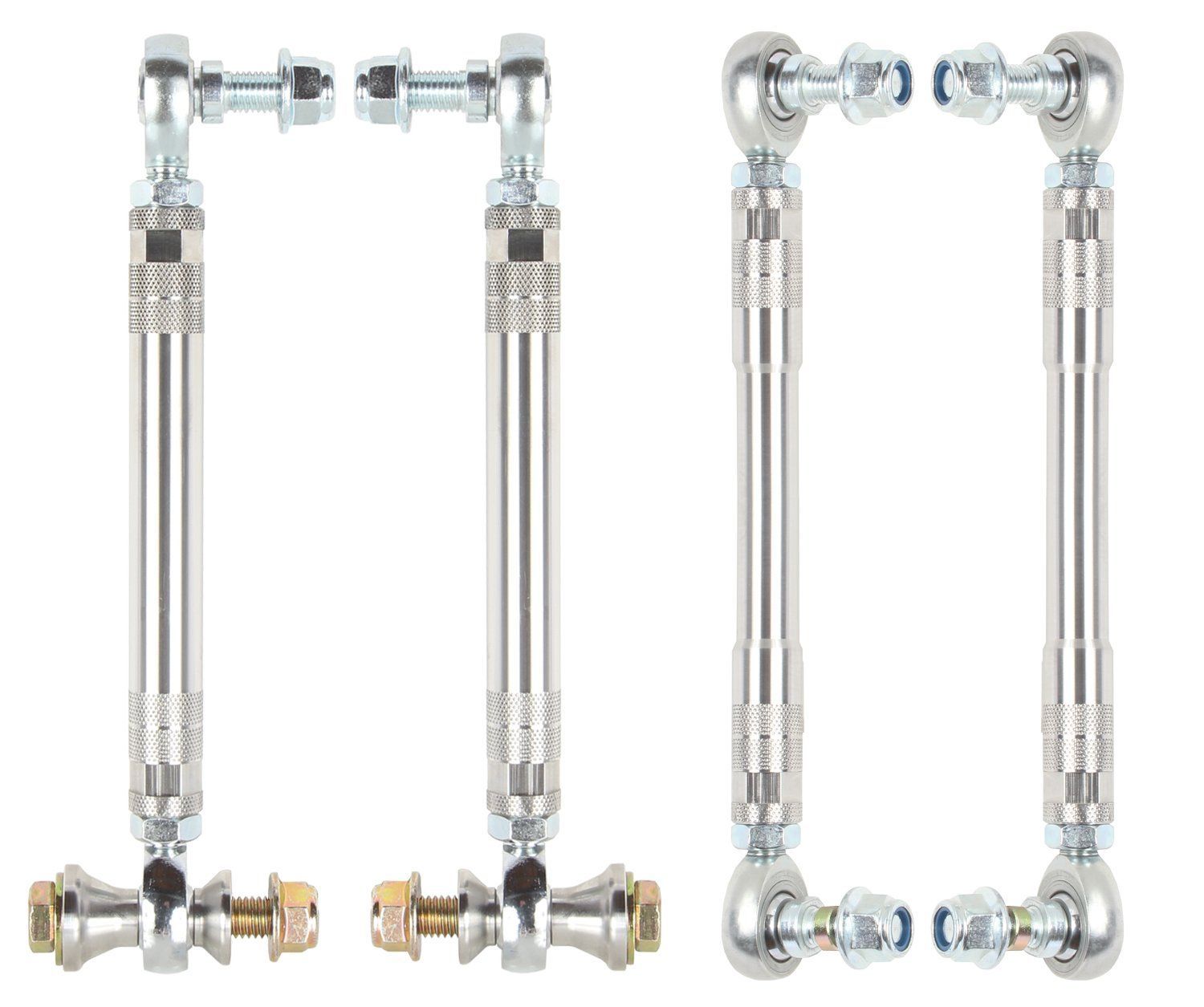

  • CS-JEL-07-F: Front Sway Bar End Links
  • CS-JEL-07-R: Rear Sway Bar End Links

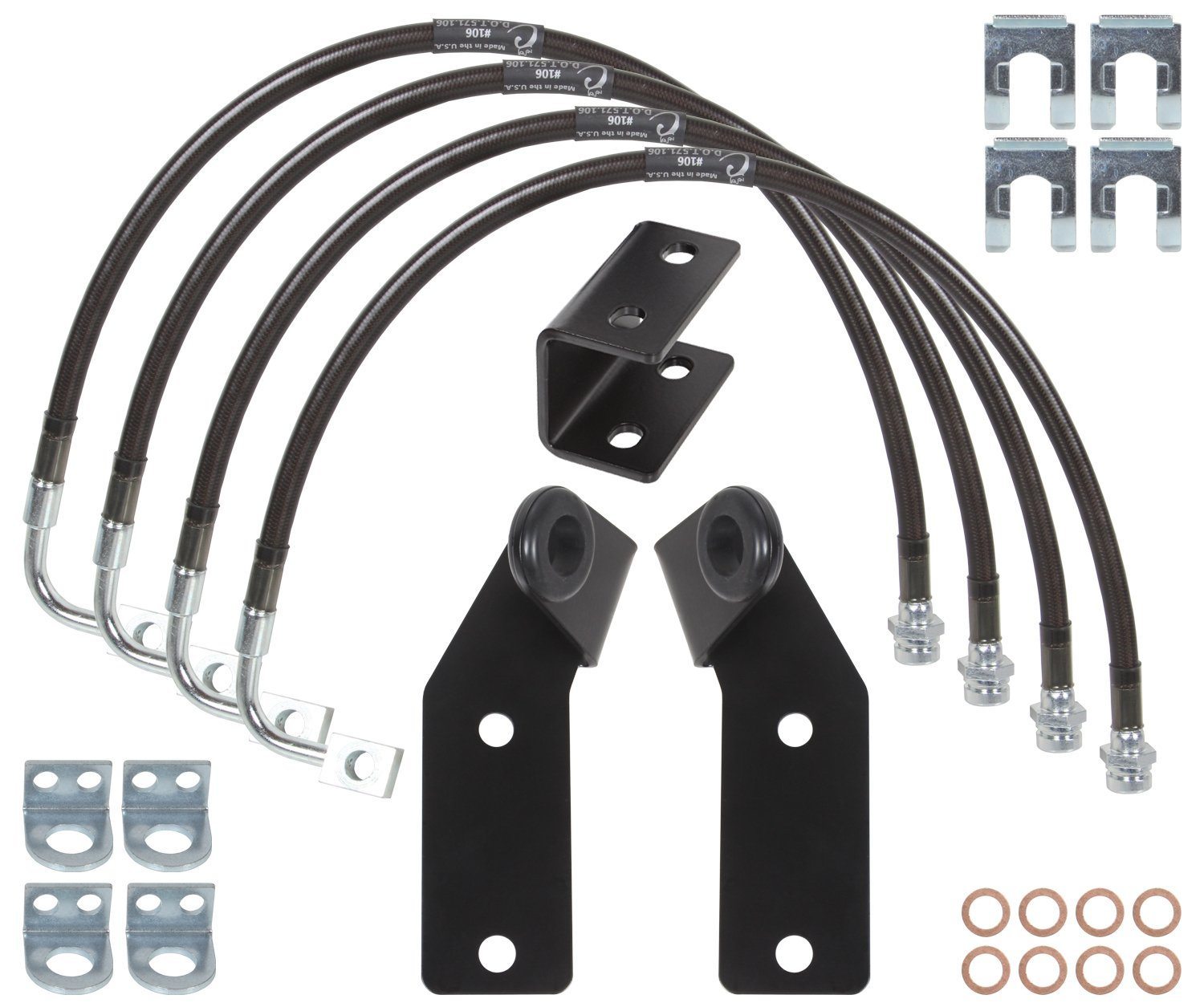

  • CS-JBBLKIT-07: Extended Brake Lines, Guides and E-Brake Drop

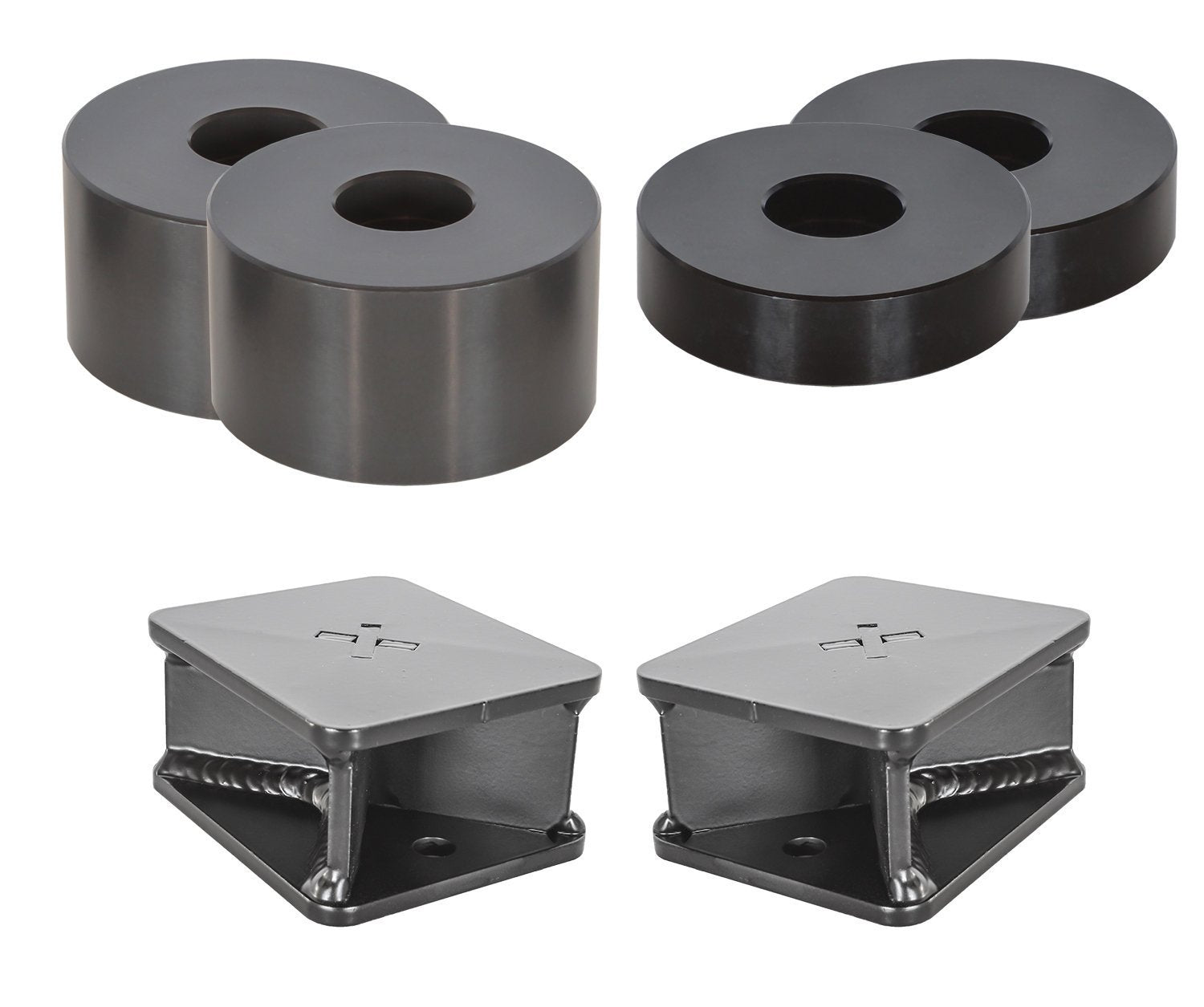

  • CS-JBSF-07-SHORT: Front Bump Riser, Short
  • CS-JBSR-07: Rear Bump Riser

KIT DETAILS:

When lifting the front end of a straight axle vehicle, the front axle is pulled off-center unless the proper linkages are addressed. This system includes an Adjustable Track Bar that’s designed to extend – we provide this measurement – to correct the driver’s side axle shift. Included in the system, we provide extended sway bar end links with spherical bearings to accommodate the extended travel and maintain the factory Rubicon Sway Bar Disconnect. The last piece of the puzzle; extended stainless brake lines ensure the bottom of the new travel stroke can be reached without ancillary component stress. A short billet bump riser is included to match the front shock travel.

To match the front, the rear is lifted 2.5” with a multi-rate coil spring ensuring a supple ride and reasonable carry capacity. The rear geometry being similar to the front, everything is included to support flawless operation of all components. A rear Track Bar Riser and adjustable track bar correct the axle position and minimize yaw (side to side movement of the body as the axle travels), Extended Sway Bar Links are included to accommodate the extended travel stroke as are Stainless Brake Lines and Brake Line Routing Bracket guiding the longer brake lines clear of all moving components. Fabricated rear bump risers.
