Factor 55

Factor 55 - XTV Hawse Fairleads

$48.75
SKU: F55-00024
Bolt Pattern:

Bolt Pattern
Quantity:

Factor 55 - XTV Hawse Fairleads

4.875"

MCQUEEN

190 South McQueen Road
Suite 109
Gilbert AZ 85233
United States

+14806332929

STATE OF CALIFORNIA CONSUMER WARNING

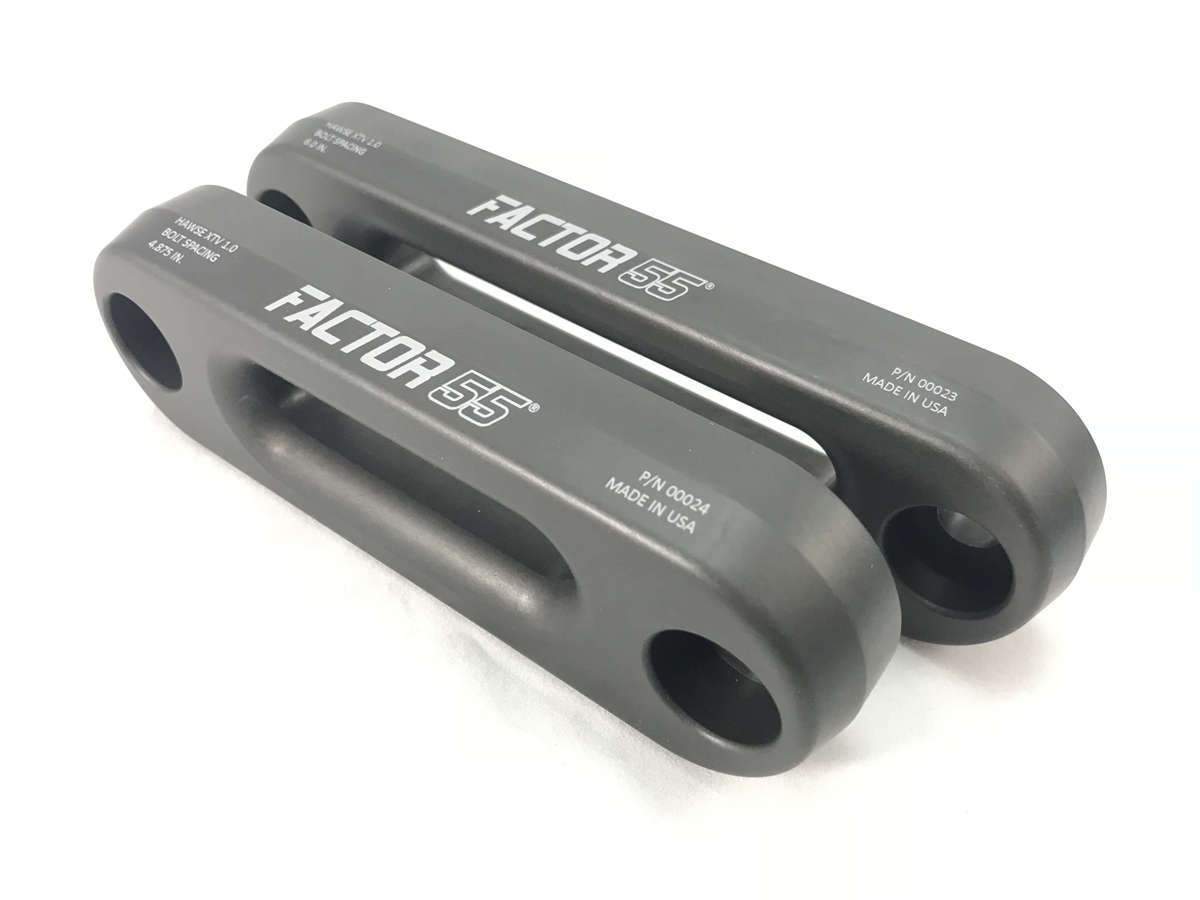

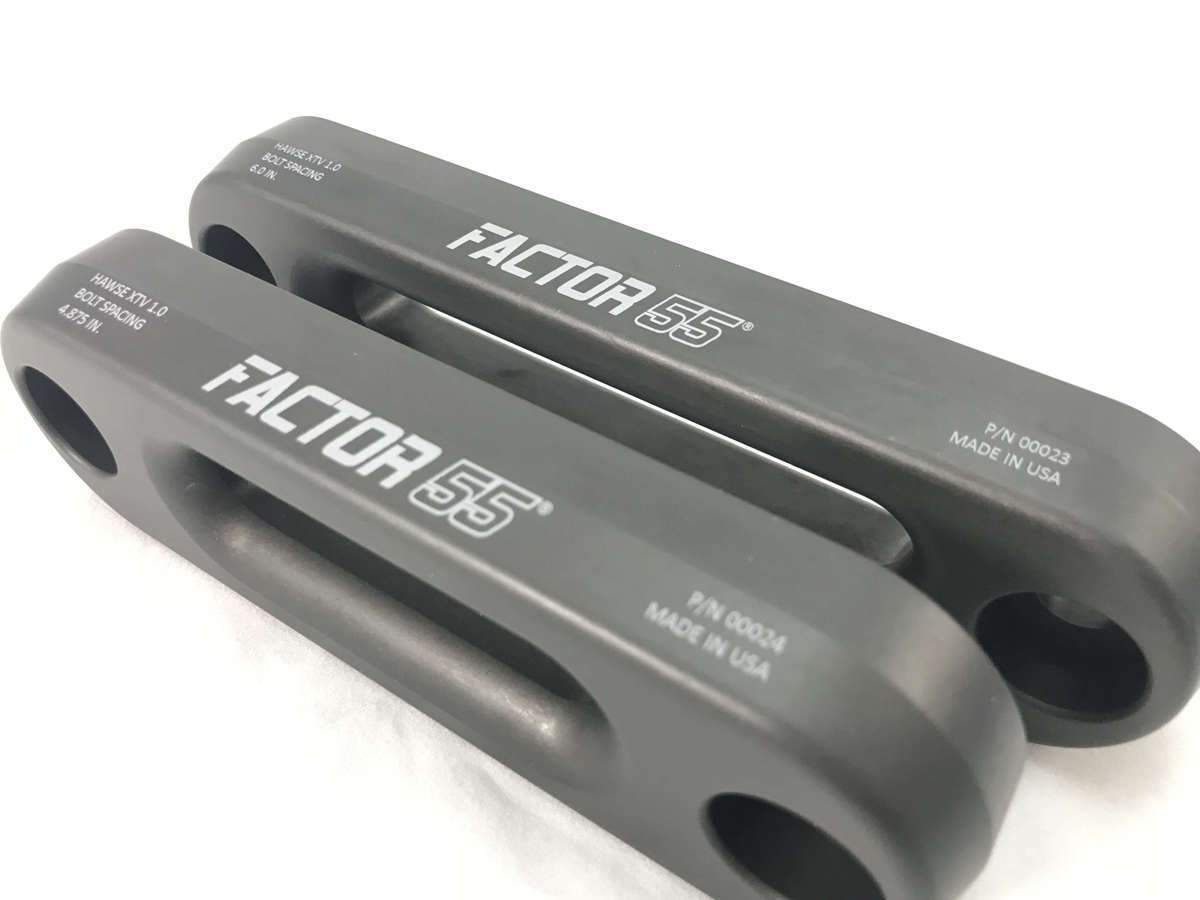

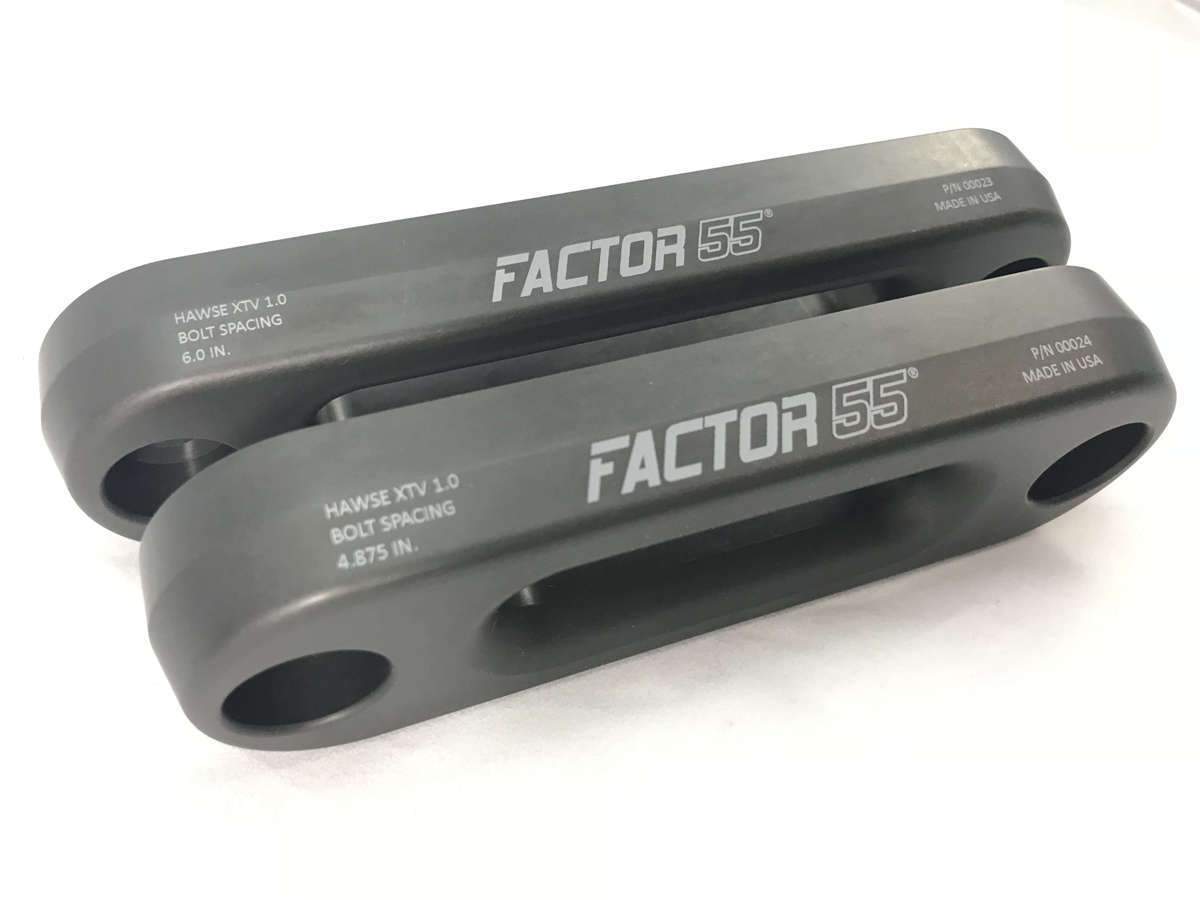

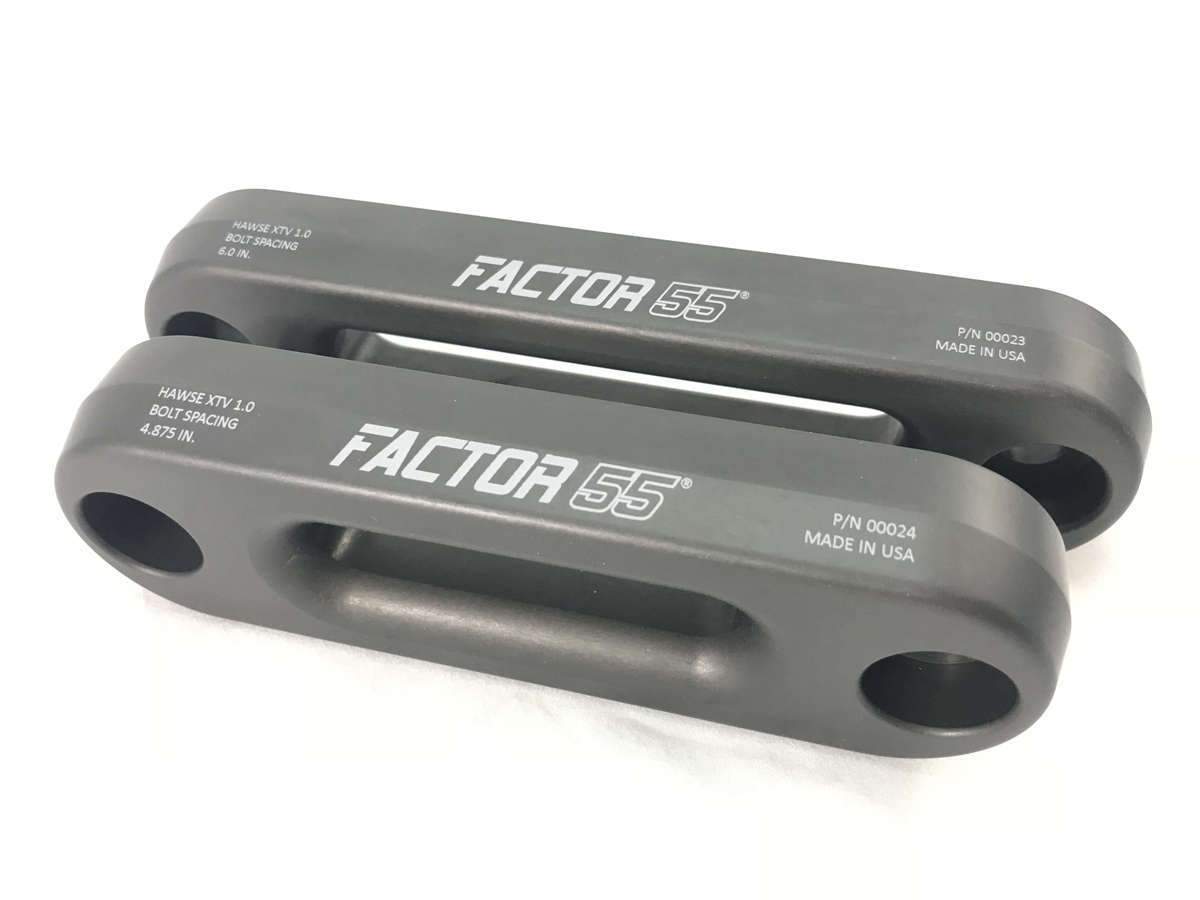

Factor 55's line of Aluminum Hawse Fairleads for the Powersports UTV/ATV market.  2 new fairleads offered in the common 4.875″ and 6″ mounting bolt spacing for Powersport UTV/ATV winches.

The 4.875″ and 6″ fairleads are CNC machined from 1 inch thick USA 6000 series aluminum bar. The industry standard fairlead thickness is .50 inches thick.

The thicker aluminum bar results in a larger outer fillet radius for the synthetic rope to slide against. This results in less stress on the rope fibers during high angular pulls, increasing the life of your synthetic rope.

These fairleads come in a durable MIL-A-8625F TYPE III gun metal gray hard anodized finish with a laser engraved logo.

What is the best surface finish for Hawse aluminum fairleads?  Without a doubt it is a Type III hard anodized coating. Not cosmetic Type II anodized finishes, not powder coated, and not raw or polished aluminum.  Why?  Because a hard coating can resist the abrasion damage from a dirty/gritty synthetic winch rope rubbing across it.   Especially during extreme side pulls where rope fiber stresses are extremely high.  A Mil-A-8625 Type III hard anodized finish leaves a .002” thick Al2O3 ceramic coating that is in the top 5 hardest materials known to mankind (See chart under Corundum/Sapphire).  Not too far away from diamond hardness actually.  Another valuable material property from hard anodized coatings are the low coefficients of friction.  Low friction = lower rope heat.  Only drawback?  Hard anodizing is not offered in typical bright and fancy anodized colors.  All Factor 55 fairleads only come in Mil-A-8625 hard gray finishes. Not fancy, but it is the proper finish to extend the life of your synthetic rope.

SPECS:
  • Overall Dimension of 4.875″: 6.25″ x 1.95″
  • Overall Dimension of  6″: 7.4″ x 1.95″
  • For synthetic winch rope only.
  • *NOTE- Fairleads DO NOT come with mounting hardware.
