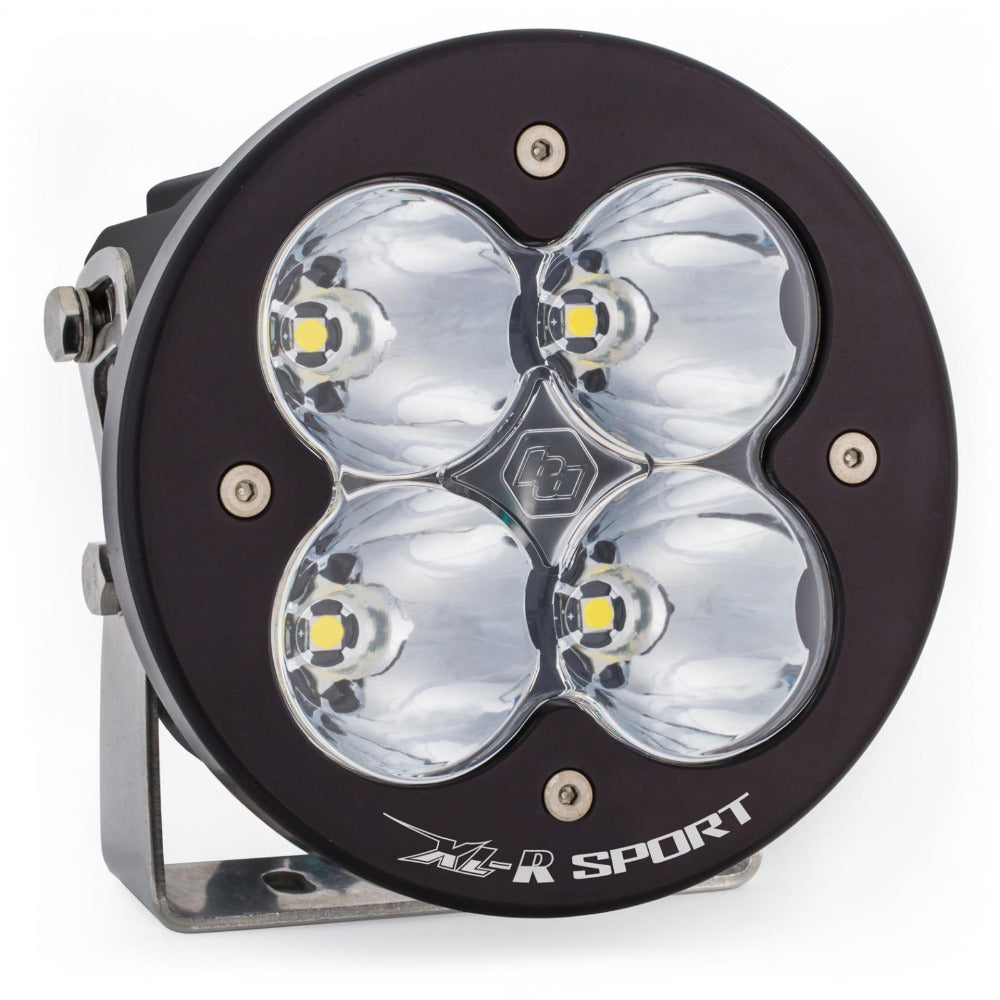

XL Sport-R LED Light Lighting Baja Designs Clear Spot Display

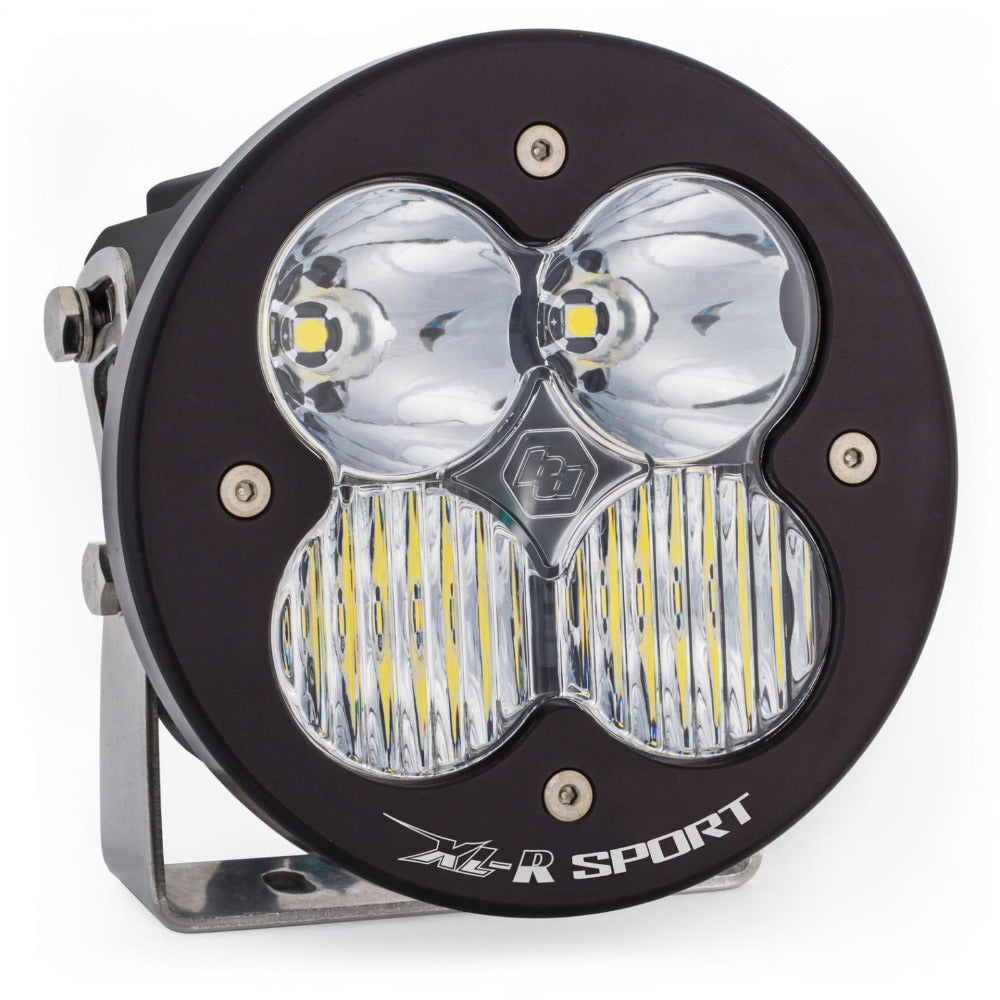

XL Sport-R LED Light Lighting Baja Designs Clear Driving/Combo display

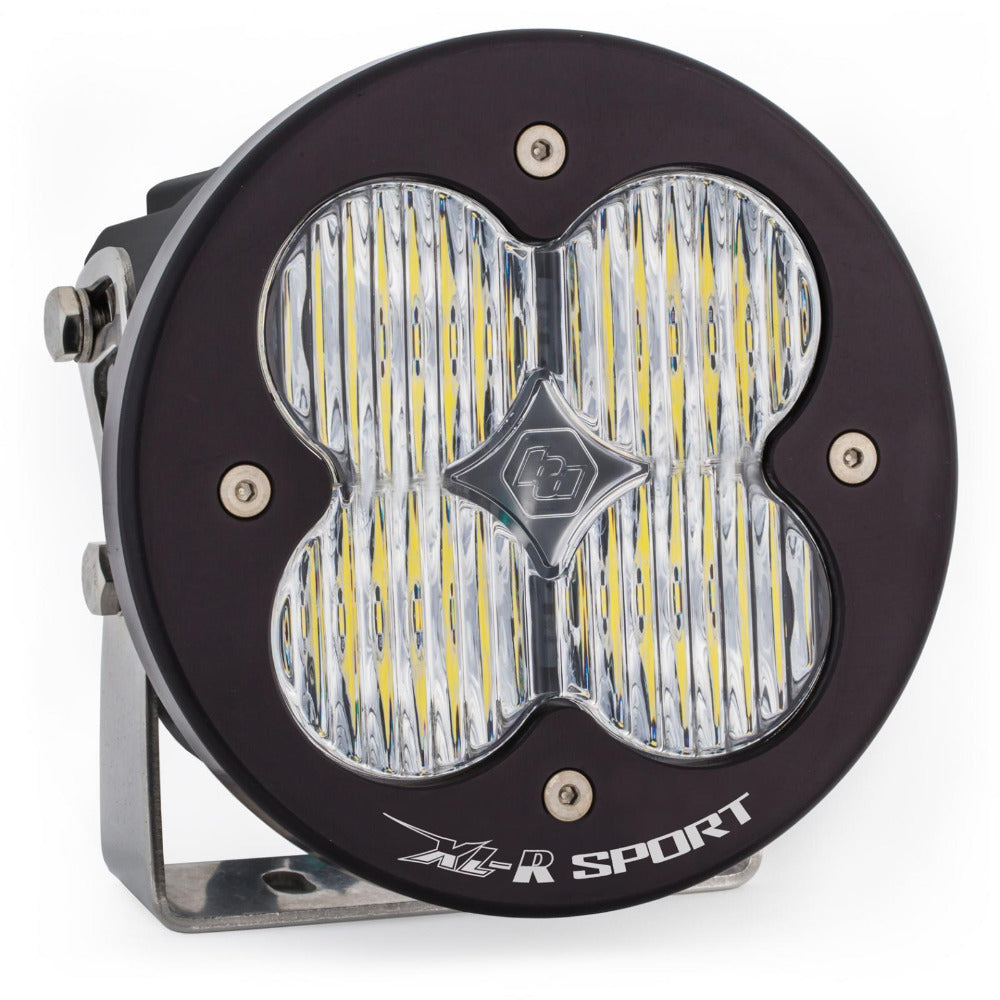

XL Sport-R LED Light Lighting Baja Designs Clear Wide Cornering Display

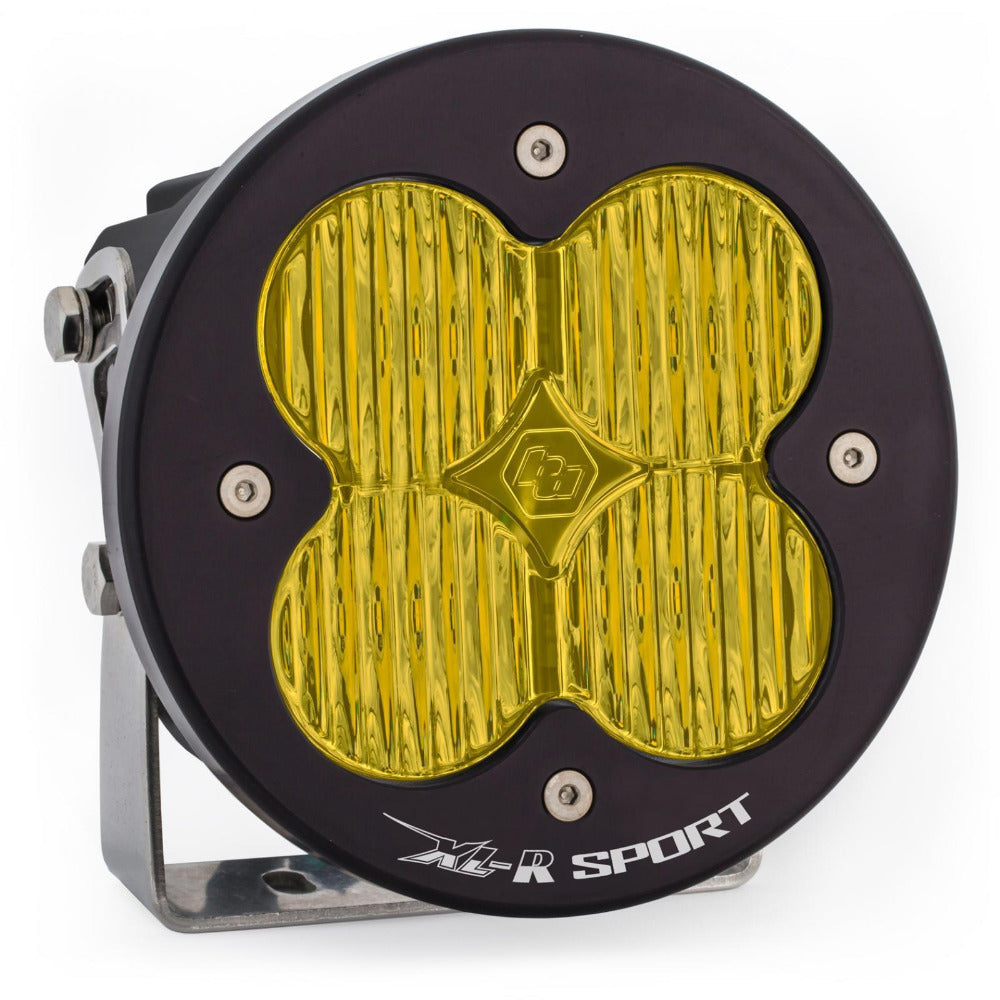

XL Sport-R LED Light Lighting Baja Designs Amber Wide Cornering Display

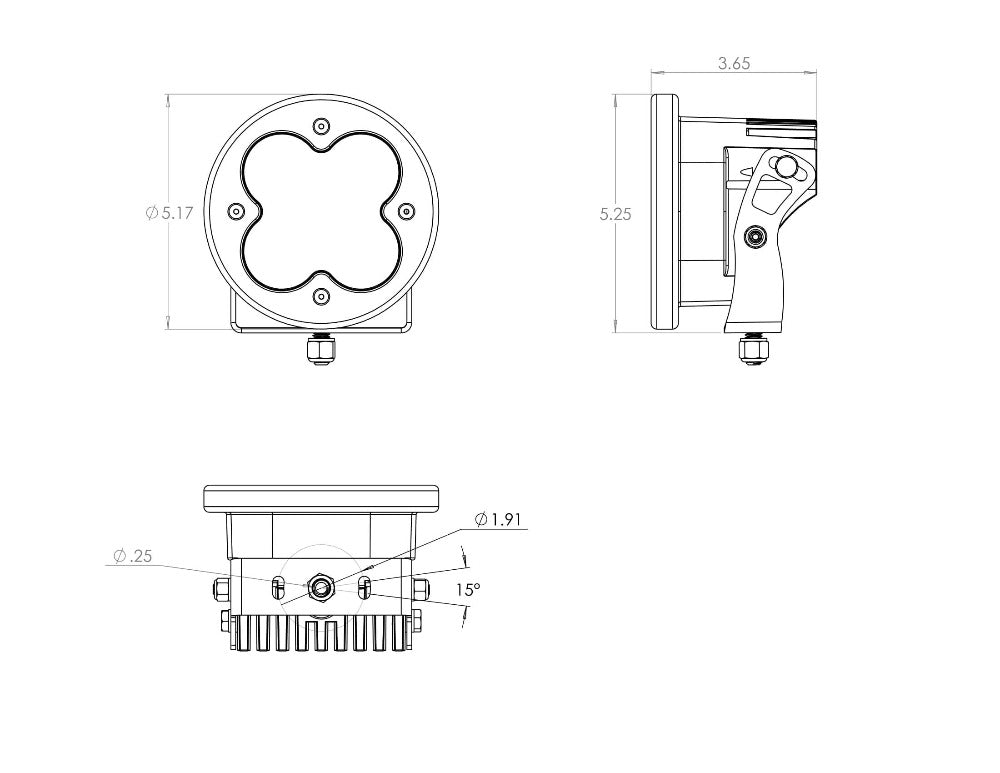

XL Sport-R LED Light Lighting Baja Designs Diagram of Measurements

Baja Designs

XL Sport-R LED Light

$205.95
SKU: BAJA-570001
Lense Color:

Lense Color
Beam Pattern:

Beam Pattern
Quantity:

XL Sport-R LED Light

Clear / Spot

MCQUEEN

190 South McQueen Road
Suite 109
Gilbert AZ 85233
United States

+14806332929
AFFORDABLE TOP LINE PERFORMANCE:

The XL-R Sport makes it easy to light up your world in style, with the perfect combination of affordability and performance. The XL-R Sport LED light utilizes our trademarked High Speed Spot reflectors providing for a longer beam pattern. The XL-R Sport provides the same top of the line performance and aesthetics you expect from BD in an affordable solution.

WHAT'S INCLUDED:
  • XL-R Sport LED Light
  • Mounting Bracket
SPECS:
  • Lumens: 3,150 Utilizing 4 LEDs
  • Wattage/Amps: 26W / 2A
  • Dimensions: 5.24" x 3.65" x 5.24"
  • LED Life Expectancy: 49,930 Hours
  • Front Lens: Hard Coated Polycarbonate
  • Housing: Powder Coated Cast Aluminum
  • Bezel: Billet Machined Aluminum
  • Hardware & Bracket Material: Stainless Steel
  • Exceeds MIL-STD810G (Mil-Spec Testing)
  • Built-In Overvoltage Protection
  • IP69K (Waterproof, Submersible to 9ft)
  • IK10 Compliant (Mechanical Impact Testing)
BEAM PATTERNS:
  • Driving/Combo: Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Driving (42°) and spot (9°) optics to provide you with a smooth blend of light for both near field applications and distance
  • Wide Cornering: BD was the first to develop a pattern specifically for cornering, dust and/or fog conditions. The Wide Driving pattern offers a 42° flattened horizontal beam for the ultimate in comfort lighting.
  • Spot: A longer and narrower 9° beam focus for illumination further down the trail or road. The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights.
TECH NOTES:
  • A Skene dimmer must be purchased separately to enable the high/low feature.
