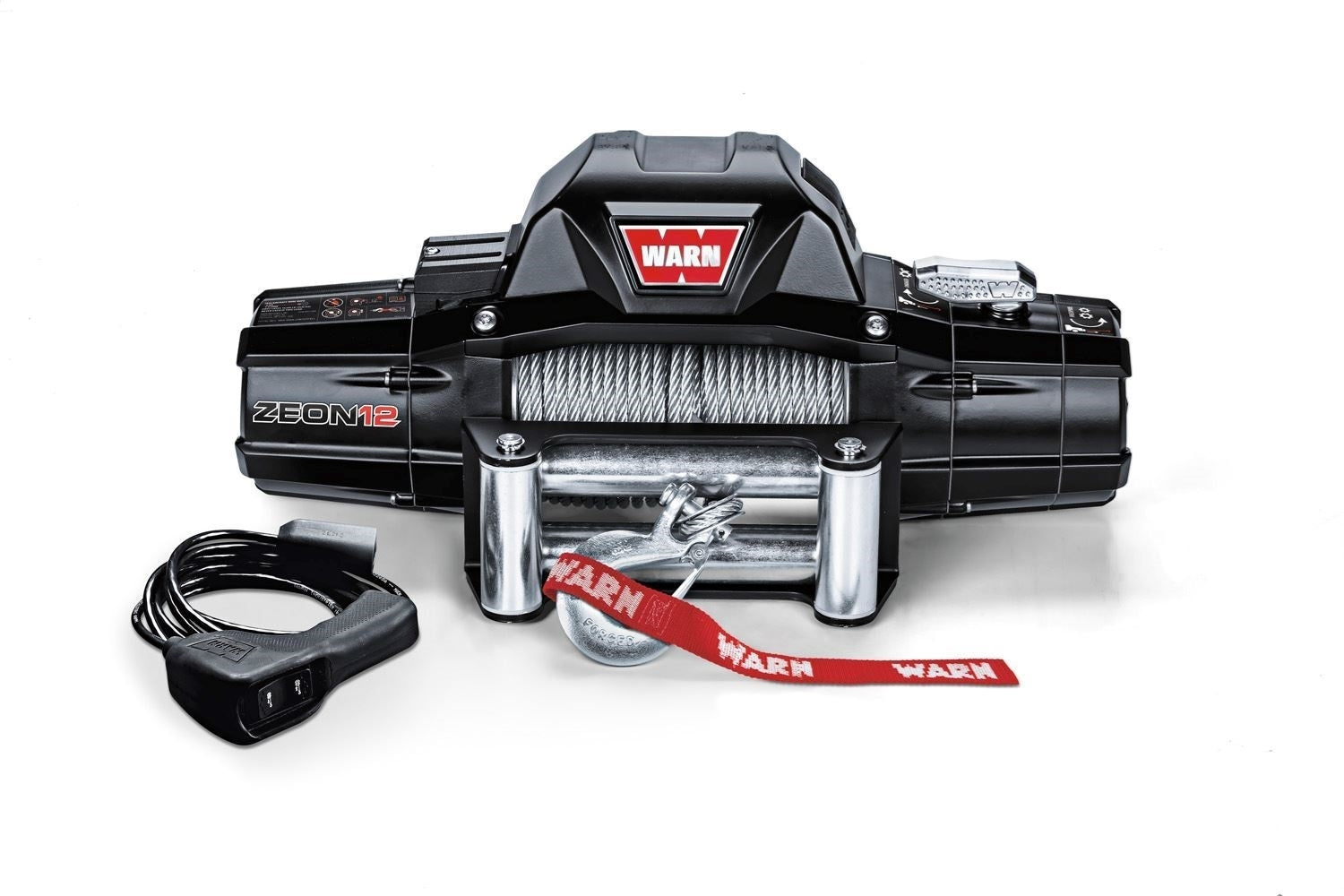

ZEON 12 Winch w/ Steel Rope
ZEON 12 Winch w/ Steel Rope
ZEON 12 Winch w/ Steel Rope

Warn Industries

ZEON 12 Winch w/ Steel Rope

$1,517.63
SKU: Warn-89120
Quantity:

ZEON 12 Winch w/ Steel Rope

MCQUEEN

190 South McQueen Road
Suite 109
Gilbert AZ 85233
United States

+14806332929

STATE OF CALIFORNIA CONSUMER WARNING

Ready for anything and everything

A top choice for those with heavily-loaded off-road vehicles, the ZEON 12 features innovative design, increased performance and durability, steel rope, and a hefty 12,000 lb. single-line pulling capacity. The ZEON 12 is a pulling machine you can rely on to rescue you-or your buddies, from nearly anything.

Key Features:
  • 12,000 lb. (5443 kg) single-line pulling capacity.
  • Includes 80 ft of durable 3/8 in galvanized steel wire rope.
  • Convertible control pack can be attached to the winch or remotely mounted, allowing for various winch mounting options and looks (Relocation kit required and sold separately).
  • Gear train and motor deliver reliable pulling power that is fast, and quieter than ever.
  • Satin-black powder-coated finish with stainless steel fasteners and clutch lever looks great and inhibits corrosion. Improved winch sealing to keep the elements out.
  • Large diameter winch drum reduces rope wear, is light weight, and has an integrated rope anchor for easy rope installation.
  • Backed by the WARN Limited Lifetime Warranty.
  • Control Pack Relocation Kit. Required to mount control box remotely from winch. PN 89970 (Short kit), PN 89960 (Long kit)

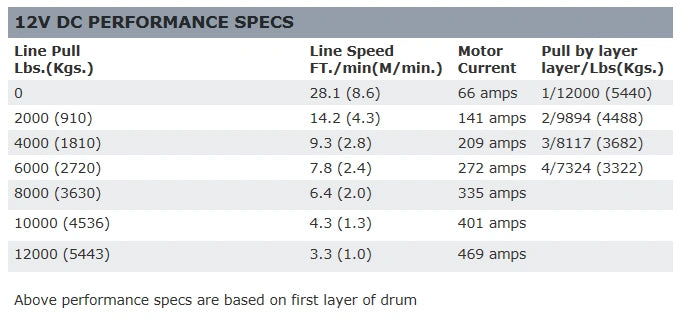

ZEON 12 Specs
  • Part number: 89120 (12V)
  • Part number: 90666 (24V) does not include wire rope
  • Rated line pull: 12,000 lbs. (5443 kg) single-line
  • Motor: series wound, 12V DC, 24V DC
  • Electrical controls: Contactor
  • Remote Control: Remote switch, 12 ft (3.7m) lead
  • Geartrain: 3-stage planetary
  • Gear ratio: 216:1
  • Clutch (freespooling): Rotating ring gear
  • Brake: Automatic mechanical cone

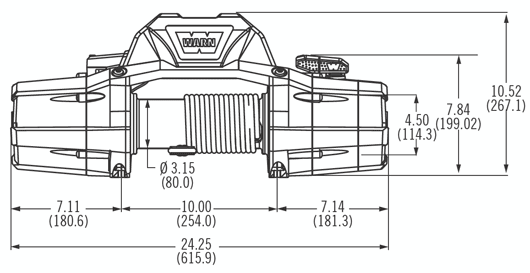

  • Drum diameter/Length: 3.15 inch/9.0 inch (80mm/229mm)
  • Weight (kit shipping): 98 lbs. (44 kg)
  • Rope: 3/8 inch x 80 ft (9.52mm x 24.38m) steel
  • Fairlead: Roller
  • Recommended Battery: 650 CCA minimum for winching
  • Battery leads: 2 gauge, 72 inch (1.83m)
  • Finish: Satin-black powder coat
  • Warranty: Limited lifetime
