Warn Industries
M12000 Heavy Weight Winch
M12000 Heavy Weight Winch
MCQUEEN
190 South McQueen Road
Suite 109
Gilbert AZ 85233
United States
a reliable workhorse

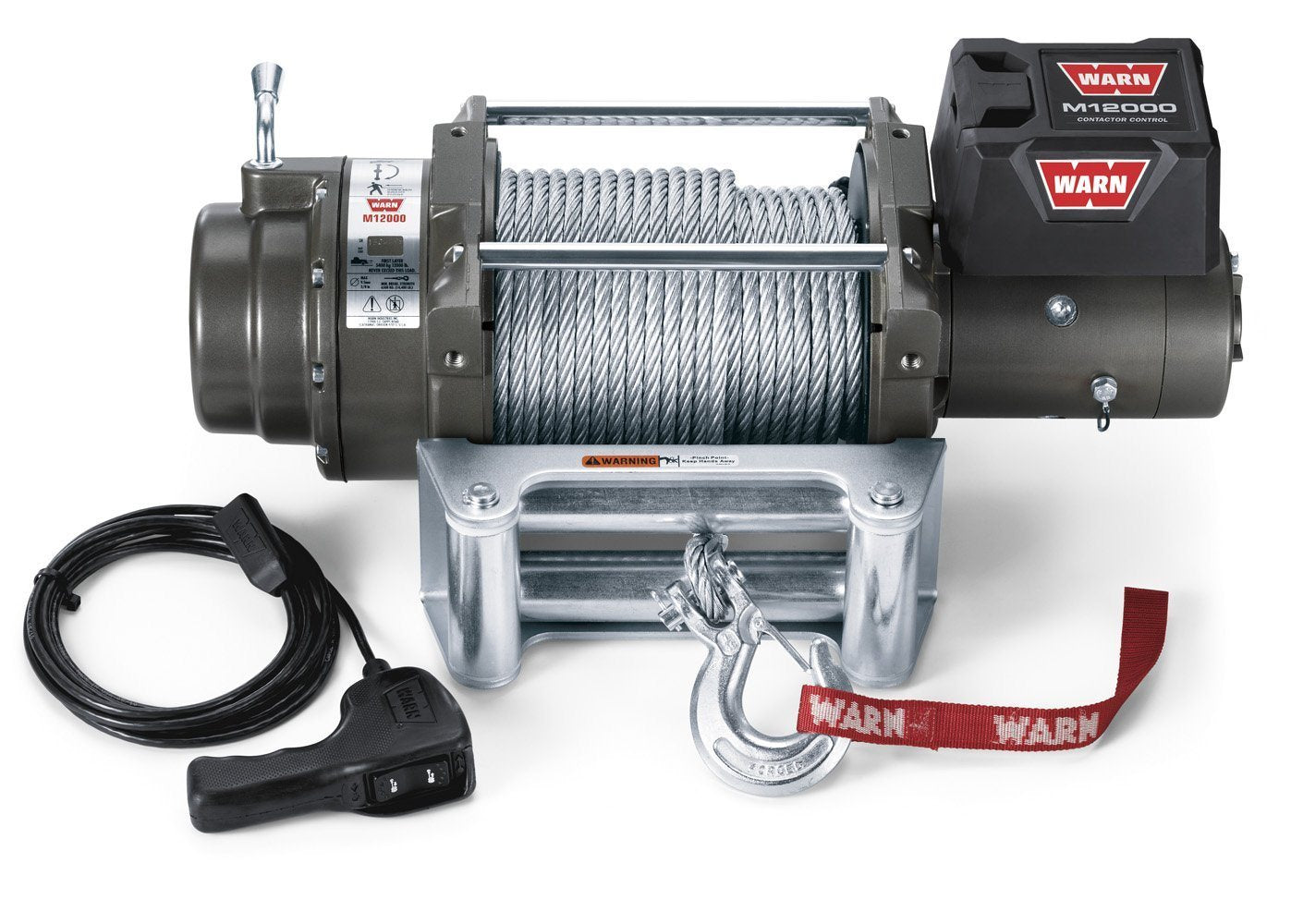

The Warn M12000 heavy weight winch is a reliable workhorse to meet heavy winching needs Champion workhorse for heavy-duty winching. 3-stage planetary gear train combined with a 4.6hp series wound motor produce 12,000 lbs. of pulling power. Design is low profile so it fits where you want it.
Features:
- 12,000 lb. (5,440 kg) pulling capacity (single line)
- Large frame winch design is designed to handle heavier winch loads
- Series-wound, high-speed motor provides fast line speed and strong pulls
- Brake provides superior control while winching
- Remote-mount control box allows for various mounting options
- Durable 3-stage planetary geartrain for smooth, reliable, operation
- Remote control with 12 ft (3.7m) lead
- Chip-resistant powder-coated finish
- 125 ft of 3/8 inch (38m of 9.5mm) diameter wire rope
M12000 Specs:
- Part Number: 17801 (12V)
- Rated line pull: 12000 lbs., (5440 kgs.) single-line
- Motor: Series Wound, 12V 4.6 hp, 24V 2.5 hp
- Electrical controls: Contactor
- Remote Control: Remote switch, 12 inch (3.7m) lead
- Geartrain: 3-Stage Planetary
- Gear ratio: 261:1
- Clutch (freespooling): Rotating Ring Gear
- Brake: Automatic mechanical cone
- Drum diameter/Length: 3.5 inch/8.2 inch (9cm/21cm)
- Weight: 136 lbs. (62kgs.)
- Wire rope: 125 ft , 3/8 inch diameter (38m, 9.5mm diam.)
- Fairlead: Roller
- Recommended Battery: 650 CCA minimum for winching
- Battery leads: 2 gauge, 72 inch (1.83m)
- Finish: Argent Gray Powder Coat

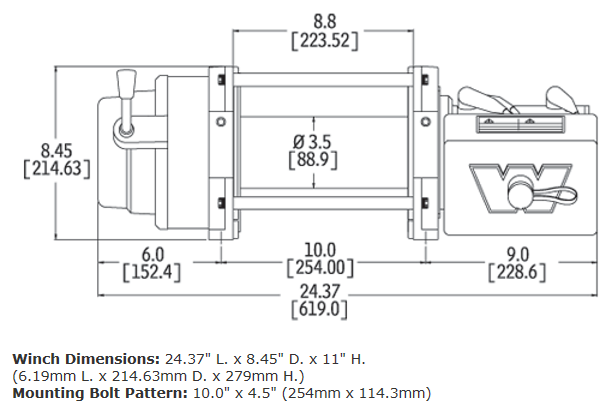

- Winch Dimensions: 24.37 inch L. x 8.45 inch D. x 11 inch H. (619mm L. x 214.63mm D. x 279mm H.)
- Mounting Bolt Pattern: 10.0 inch x 4.5 inch (254mm x 114.3mm)
