Warn Industries

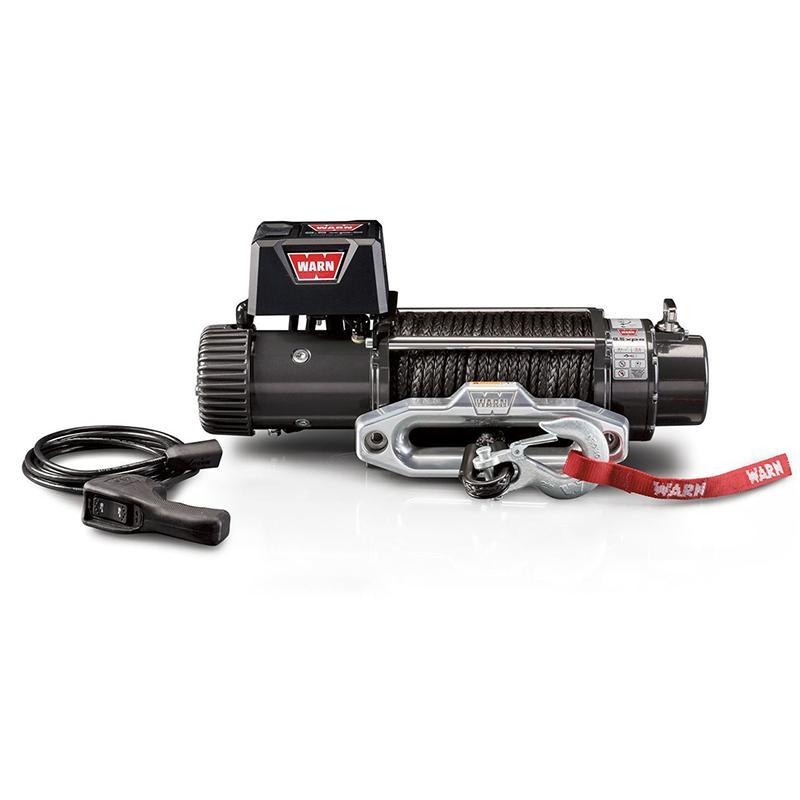

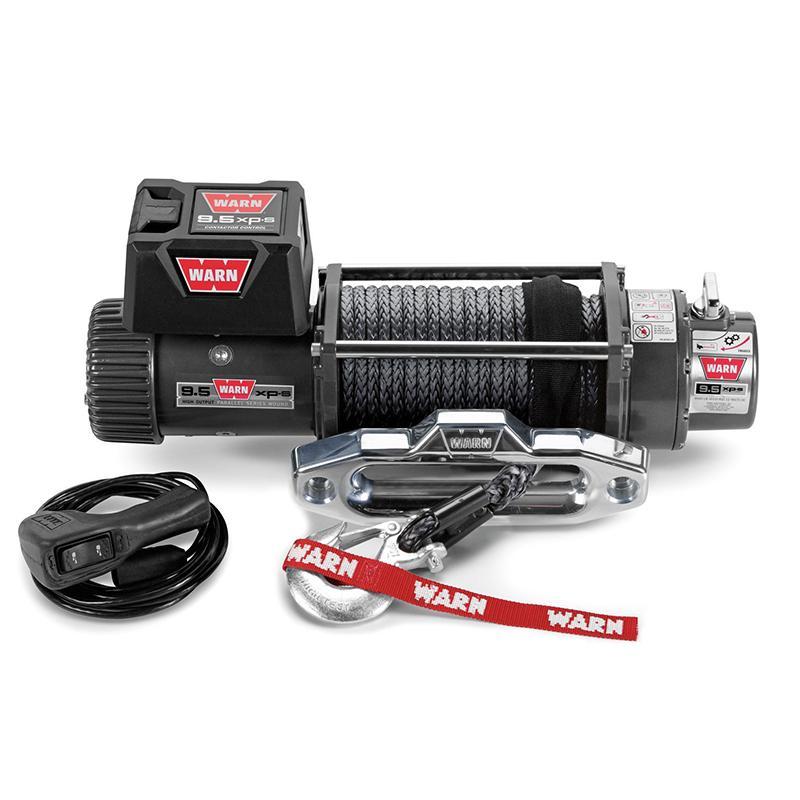

Warn 9.5xp-s Ultimate Performance Winch 9,500 Lb Capacity W/Synthetic Rope

  • VENDOR: Warn Industries
  • PART#: Warn-87310
  • YOUR PRICE: Regular price $1,796.99


The Warn 9.5xp-s is fast, powerful and reliable - for extreme conditions. The fast, powerful 9.5xp Extreme Performance winch is designed for the serious off-roader who demands a winch that will perform under the most extreme conditions in the world. With 9,500 lbs. of pulling power and the fastest line speed of any WARN winch under load, the 9.5xp delivers extreme performance that eats up the competition-even in competition.


  • PN 87310
  • Now available with WARN Spydura synthetic rope with polished aluminum hawse fairlead
  • High-output parallel series wound winch motor is the strongest and most durable in the industry
  • Extreme-duty winch sealing. Enables superior water resistance
  • Exclusive brake design. Provides superior operator control when winching
  • Extended-duty control pack delivers long duty cycle to help you tackle the most demanding pulls
  • 3-Stage planetary geartrain. Proven to be the most reliable efficient and durable design
  • Remote-mount, next-generation control box allows for various mounting options
  • Remote control with 12 ft (3.7m) lead
  • High gloss, chip-resistant powder coat finish. Provides superior corrosion resistance
  • 100 ft of WARN Spydura synthetic rope

9.5xp-s Specs:

  • Winch model: 9.5xp-s
  • (9.5xp-s, synthetic rope, 12V, currently not CE compliant)
  • Rated Line Pull: 9,500 lbs. (4310 kgs) single-line
  • Motor: 12V 6 hp (4.48kw), High output parallel series wound
  • Electrical controls: Contactor
  • Remote Control: Remote switch, 12 ft (3.7m) lead
  • Geartrain: 3-stage planetary
  • Gear ratio: 156:1
  • Clutch (freespooling): Sliding ring gear
  • Brake: Automatic mechanical cone brake
  • Rope: Spydura synthetic -- 100 ft, 3/8 inch diameter (30m, 9.5mm diam.)
  • Fairlead: Polished aluminum hawse fairlead
  • Recommended battery: 650 CCA minimum for winching
  • Battery leads: 2 gauge, 72 inch (1.83m)
  • Finish: High-gloss powder coat over primer undercoating
  • Drum diameter/Length: 2.625 inch/9.0 inch (6.67cm/23cm)
  • Weight: 68 Lbs. (30.8 kg)
