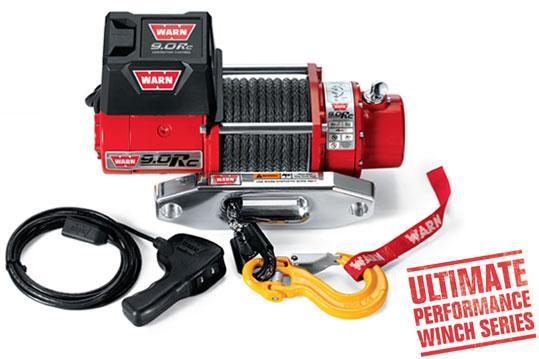

The Warn 9.0c is a compact, lightweight winch for rock sports. This ultimate performance winch has a 9,000 lb pulling capacity. Competitive rock crawling means tackling tough climbs, intense approach angles and tight turns. That is why rock crawling rigs need a low-profile, lightweight winch like the WARN 9.0Rc that delivers maximum power in a compact, 54-lb. unit. The 9.0Rc is a winch built for rock crawlers looking for efficiency, reliability and legendary WARN performance.
Features:
- 4.8 hp series wound motor delivers 9,000 lbs. of pulling capacity, and fast line speed under load
- Next-generation control pack delivers long duty cycles
- New-style remote control
- 50 ft of 3/8 inch(15 m of 9.5 mm) diameter synthetic rope combined with a rugged, 360-degree swivel hook and thimble
- Ballistic nylon sliding sleeve that provides extra rope protection against abrasion and wear
- Aluminum hawse fairlead
- Exclusive multi-segment cam actuated brake for positive operator control during winching
- Gloss red paint with primer undercoat gives superior corrosion resistance
9.0Rc Specs:
- Winch Model: WARN 9.0Rc
- PN: 71550
- Rated Line Pull: 9,000 lbs. (4080 kgs) single-line
- Motor: Series Wound, 12V 4.8 hp
- Electrical controls: Contactor
- Remote Control: Remote switch, 12 ft (3.7m) lead
- Geartrain: 3-Stage Planetary
- Gear ratio: 216:1
- Clutch (freespooling): Sliding Ring Gear
- Brake: Automatic mechanical cone brake
- Drum diameter/Length: 2.75 in/4.75 in (7.0cm/12cm)
- Weight: 54 lbs. (24.8kgs.)
- Rope: 50 ft, 3/8 inch (15m, 9.5mm) Spydura synthetic Rope
- Fairlead: Polished Aluminum Hawse
- Recommended Battery: 650 CCA minimum for winching
- Battery leads: 2 gauge, 72 inch (1.83m)
- Finish: Gloss red paint over primer undercoating
