Warn 16.5ti Heavy Weight Winch 16,500 Lb Capacity Winch Warn Industries

Warn Industries

16.5ti Heavy Weight Winch

$3,341.17
SKU: Warn-68801
Quantity:

16.5ti Heavy Weight Winch

MCQUEEN

190 South McQueen Road
Suite 109
Gilbert AZ 85233
United States

+14806332929

STATE OF CALIFORNIA CONSUMER WARNING

a reliable workhorse

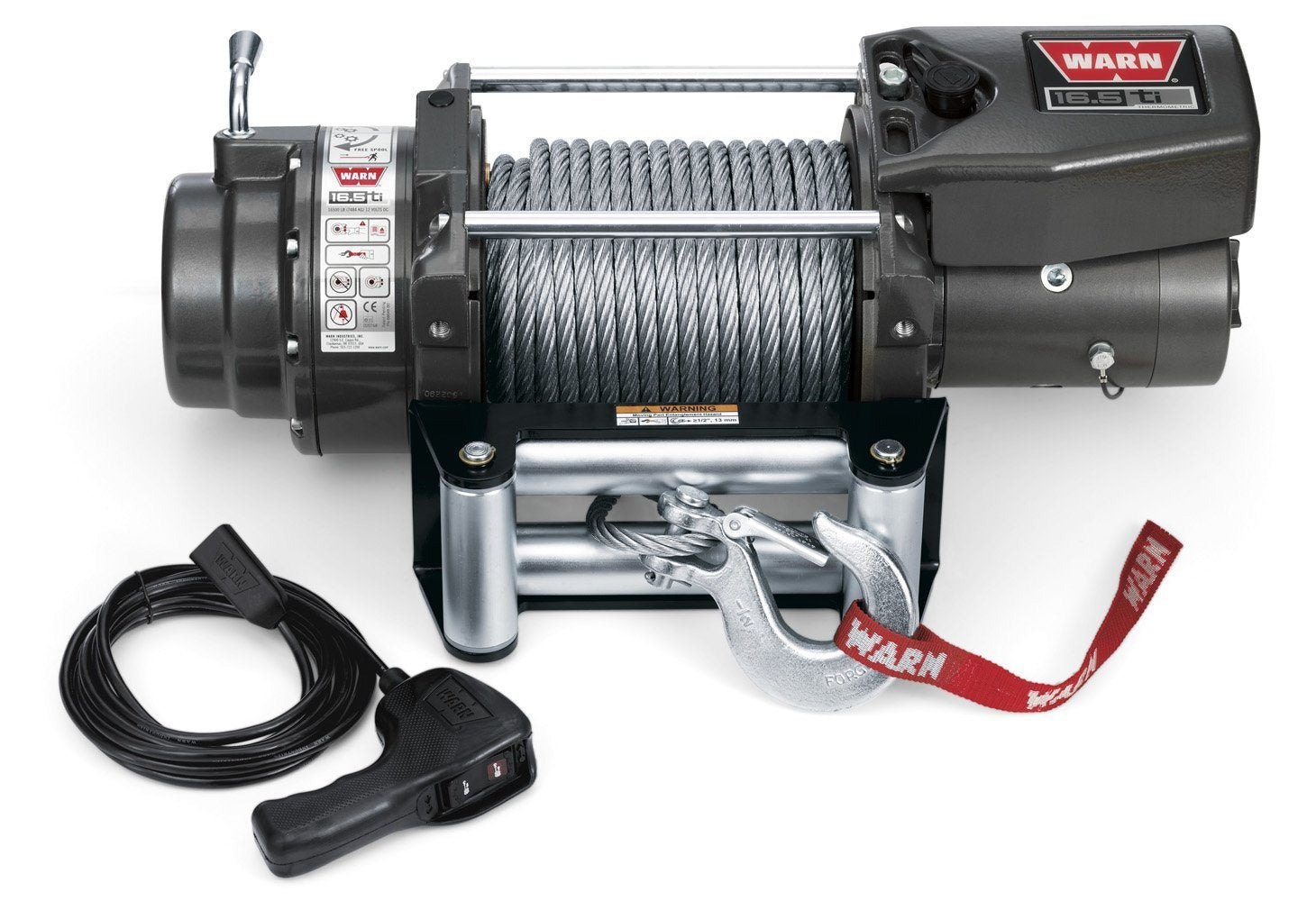

The Warn 16.5ti, highest capacity, most technologically advanced winch for big trucks. The 16.5ti features the full diagnostic ability of WARN thermometric technology, plus the extreme sealing, durability, and reliability that the WARN ti-series of winches are known for. Series-wound motor combined with a 3-stage planetary geartrain delivers 16,500 lbs. of pulling power. Thermometric indicator LED provides operator feedback on motor temperature.

Details
  • Extreme-duty sealing helps protect the winch from the outside elements
  • Series-wound, high-speed motor provides fast line speed and strong pulls
  • Exclusive brake design provides superior control while winching
  • Aluminum control box cover for added protection of the electronics
  • Durable 3-stage planetary geartrain for smooth, reliable, operation
  • Remote control with 12 ft (3.7m) lead and thermometric LED indicator for operator feedback
  • Chip-resistant powder-coated finish with primer undercoating for superior corrosion protection
  • 90 ft of 7/16 inch (27m of 11mm) diameter wire rope
  • Backed by the WARN Limited Lifetime Warranty
16.5ti Specs:
  • Rated Line Pull: 16,500 lbs. (7484 kgs) single-line
  • Motor: 12V 4.6 hp, Gen II, Series Wound
  • Electrical Control: Solenoid Control Pack
  • Remote control: Remote switch, with LED indicator 12 ft (3.7m) lead
  • Geartrain: 3-stage planetary
  • Gear ratio: 315:1
  • Clutch (freespooling): Rotating ring gear
  • Brake: Automatic direct drive cone
  • Wire rope: 90 ft, 7/16 inch diameter (27m, 11mm diam.)
  • Fairlead: Roller
  • Recommended battery: 650 CCA minimum for winching
  • Battery leads: 2 gauge, 72 inch (1.83m)
  • Finish: High-gloss powder coat over primer undercoating
  • Drum diameter/length: 3.5 inch/8.2 inch (9cm/21cm)
  • Weight: 138 lbs. (63 kgs.)
  • Above performance Specs are based on first layer of drum
