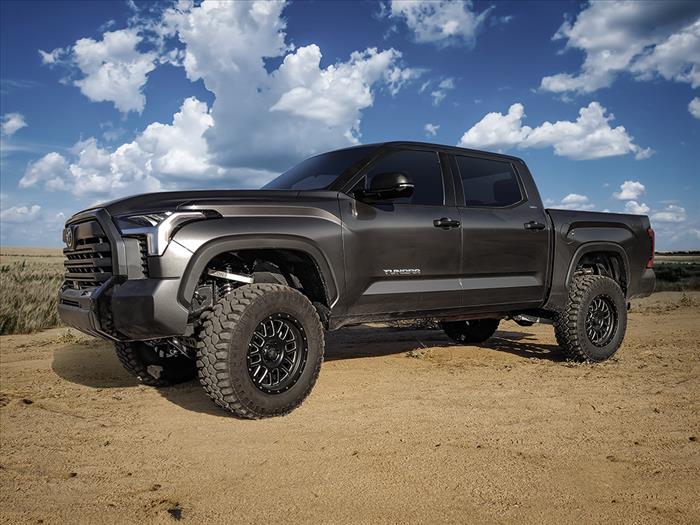

22-23 TOYOTA TUNDRA 6" STAGE 1 SUSPENSION SYSTEM
22-23 TOYOTA TUNDRA 6" STAGE 1 SUSPENSION SYSTEM

Icon Vehicle Dynamics

22-23 TOYOTA TUNDRA 6" STAGE 1 SUSPENSION SYSTEM

Sale price$3,569.55
SKU: K53271
Quantity:
FEATURES & BENEFITS
  • Optimized design to fit 37" tires with full articulation (larger tires may fit but fender trimming and modifications will be required)
  • Maintains factory track width
  • Front coilover spacer kit with heavy duty steel construction
  • Provides 6" front suspension lift with only 4" of crossmember drop
  • Single piece high-strength ductile iron steering knuckles with built-in 4" drop
  • Hight clearance front crossmembers and front skid plate, CNC Laser Cut and brake-formed from 1/4-inch steel plate
  • Included sway bar drop brackets reduce bind in OE sway bar links
  • Front and rear heavy-duty bump stop brackets
  • High angle outer tie-roads feature durable, metal on metal greaseable tie rod ends
  • 2.0 Aluminum Series rear shocks to improve rear suspension performance
  • Rear coil spring spacer kit to provide lift while retaining factory rear coil springs
  • Improved rear sway bar links and mounts, and rear track bar bracket to reduce bind in the rear suspension
TECH INFO:
  • OEM Wheels & Tires Fitment: No
  • Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.625” Backspace / 16mm Offset
  • Recommended Aftermarket Tires: 37" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)
  • APPLICATION NOTE #85: Advertised Lift Height Ranges Are For A Stock Equipped Vehicle. Increasing Weight Of Vehicle Due To Accessories Will Alter Lift Range.
  • APPLICATION NOTE #142: Not Compatible With Tundras Equipped With Load-Leveling Rear Height Control Air Suspension.
  • APPLICATION NOTE #144: Not Compatible With Trd Pro
  • APPLICATION NOTE #153: Not Compatible With Adaptive Variable Suspension (Avs) Equipped Vehicles
  • APPLICATION NOTE #154: Not Compatible With Tundra Sr5 Equipped With Trd Sport Package
  • APPLICATION NOTE #155: May Require Recalibration Of Toyota Safety Sense System After Install
  • TECH NOTE: Requires minimum of 20" diameter wheels

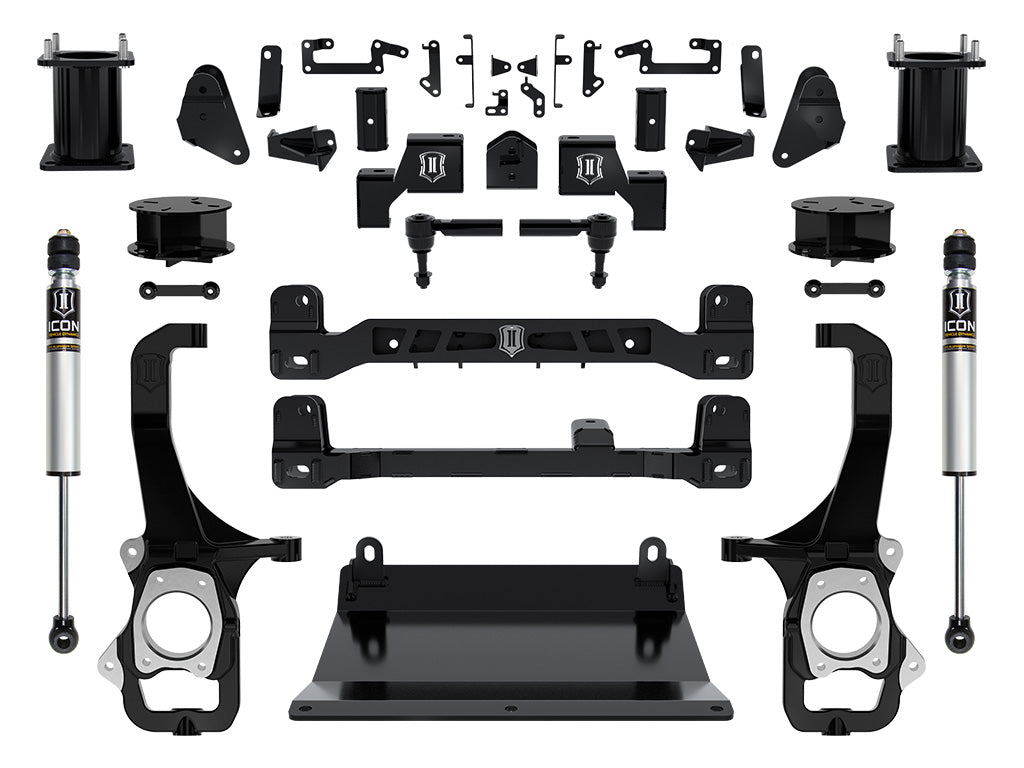

SYSTEM COMPONENTS:
  • 51010 (QTY: 1) | 22-23 TUNDRA FRONT BOX KIT 1
  • 51011 (QTY: 1) | 22-23 TUNDRA FRONT BOX KIT 2
  • 51012 (QTY: 1) | 22-23 TUNDRA REAR BOX KIT
  • 51014 (QTY: 1) | 22-23 TUNDRA FRONT KNUCKLE KIT
  • 51015 (QTY: 1) | 22-23 TUNDRA / 23 SEQUOIA 6" COILVER SPACER KIT
  • 51016 (QTY: 1) | 22 TUNDRA REAR COIL SPACER KIT
  • 51017 (QTY: 1) | 22-23 TUNDRA FRONT SKID PLATE
  • 56517 (QTY: 2) | 22-23 TUNDRA 3.5" REAR 2.0 VS IR
