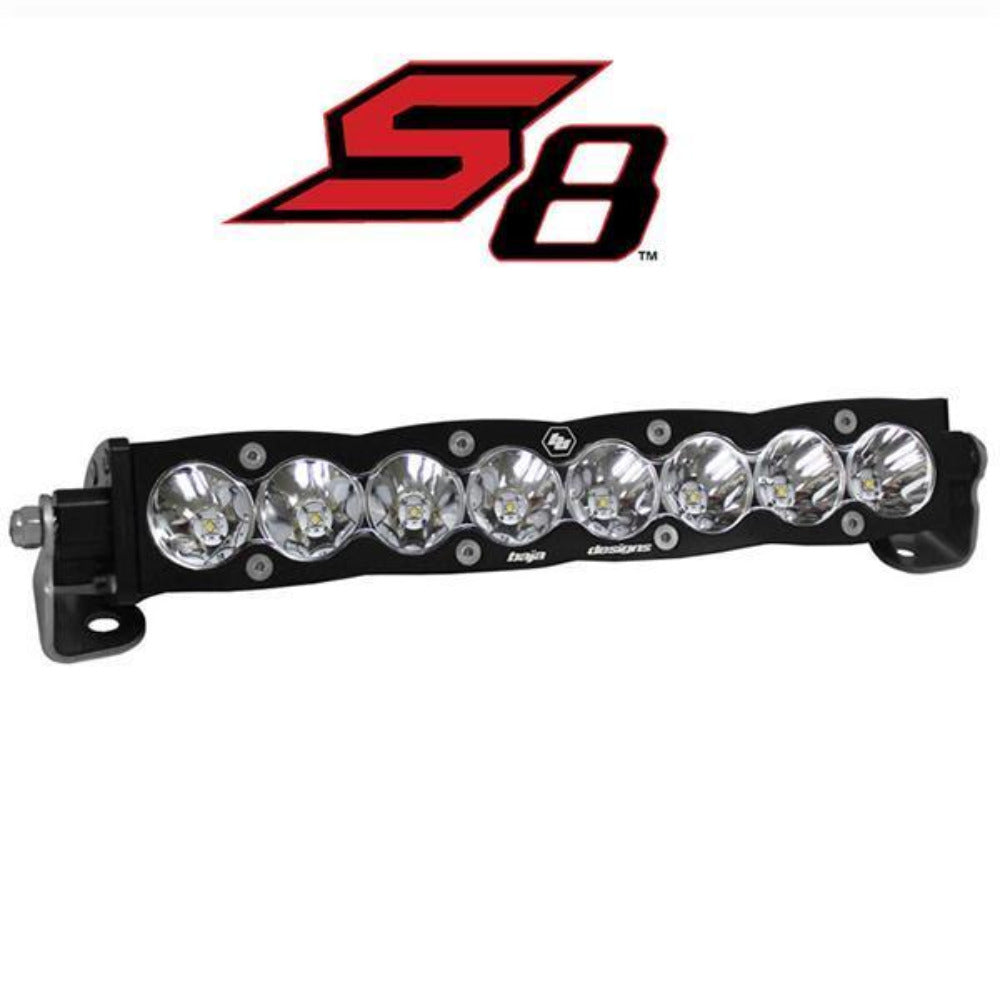

S8 Series LED Light Bar Lighting Baja Designs 10" Clear Spot Display

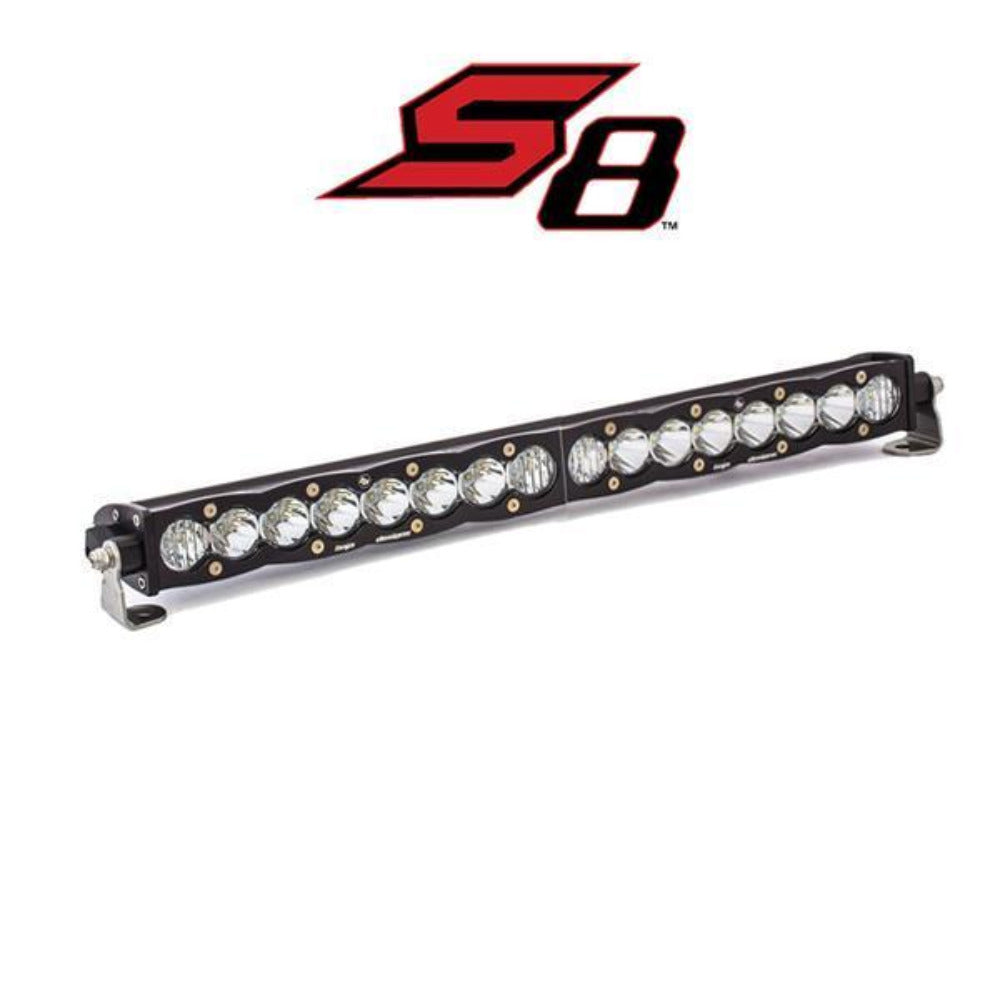

S8 Series LED Light Bar Lighting Baja Designs 20" Clear Spot Display

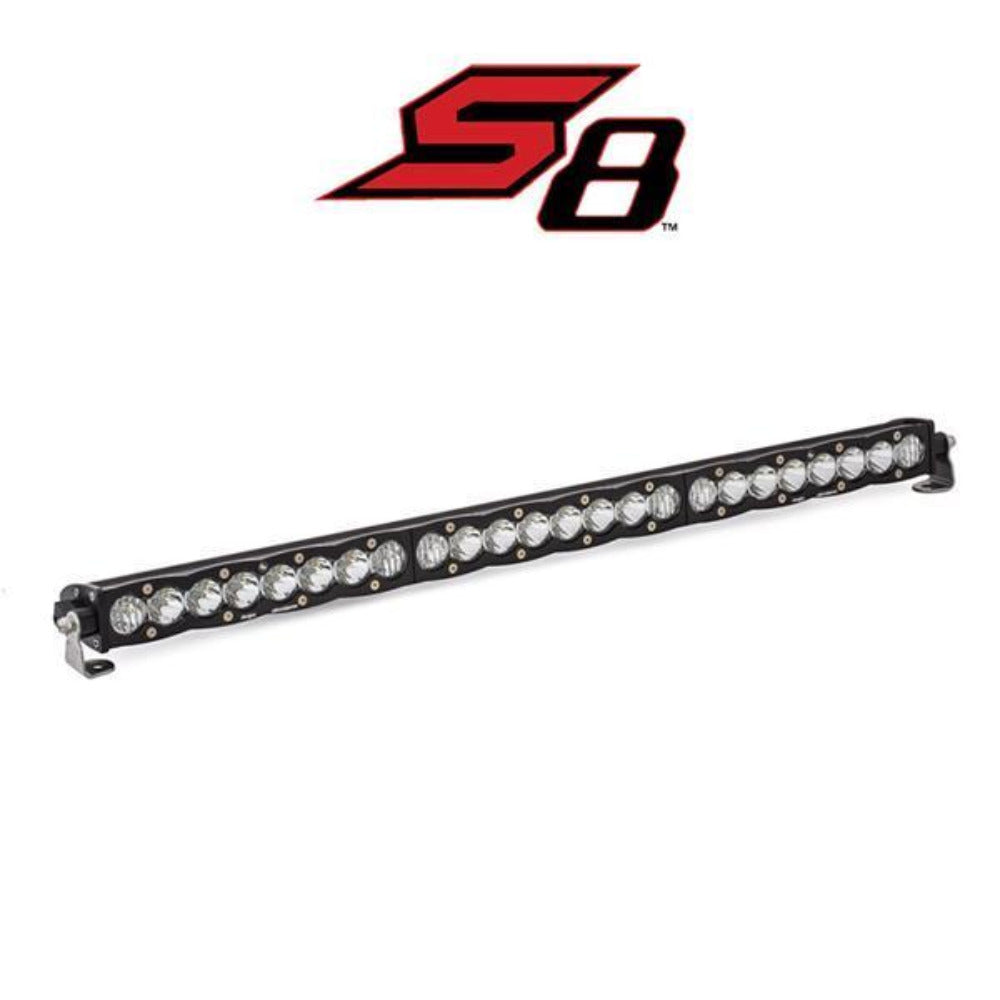

S8 Series LED Light Bar Lighting Baja Designs 30" Clear Spot Display

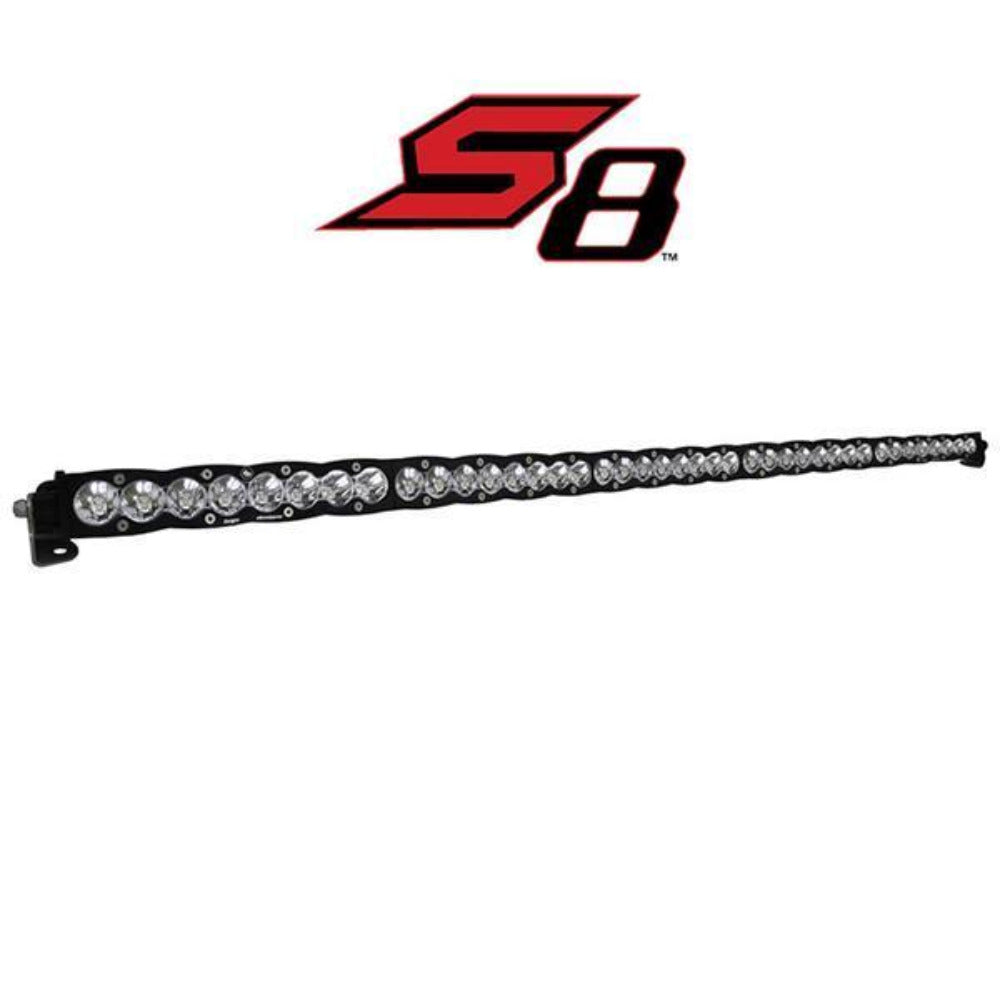

S8 Series LED Light Bar Lighting Baja Designs 50" Clear Spot Display

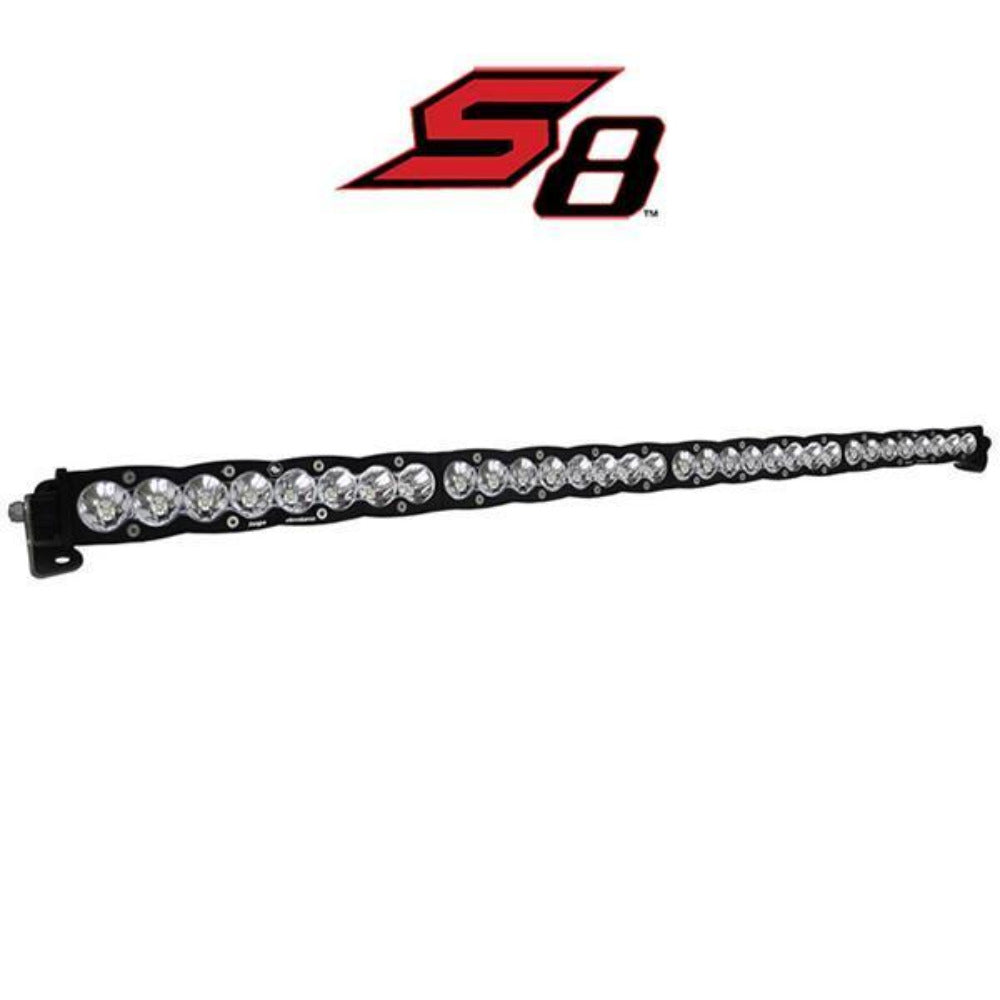

S8 Series LED Light Bar Lighting Baja Designs 40" Clear Spot Display

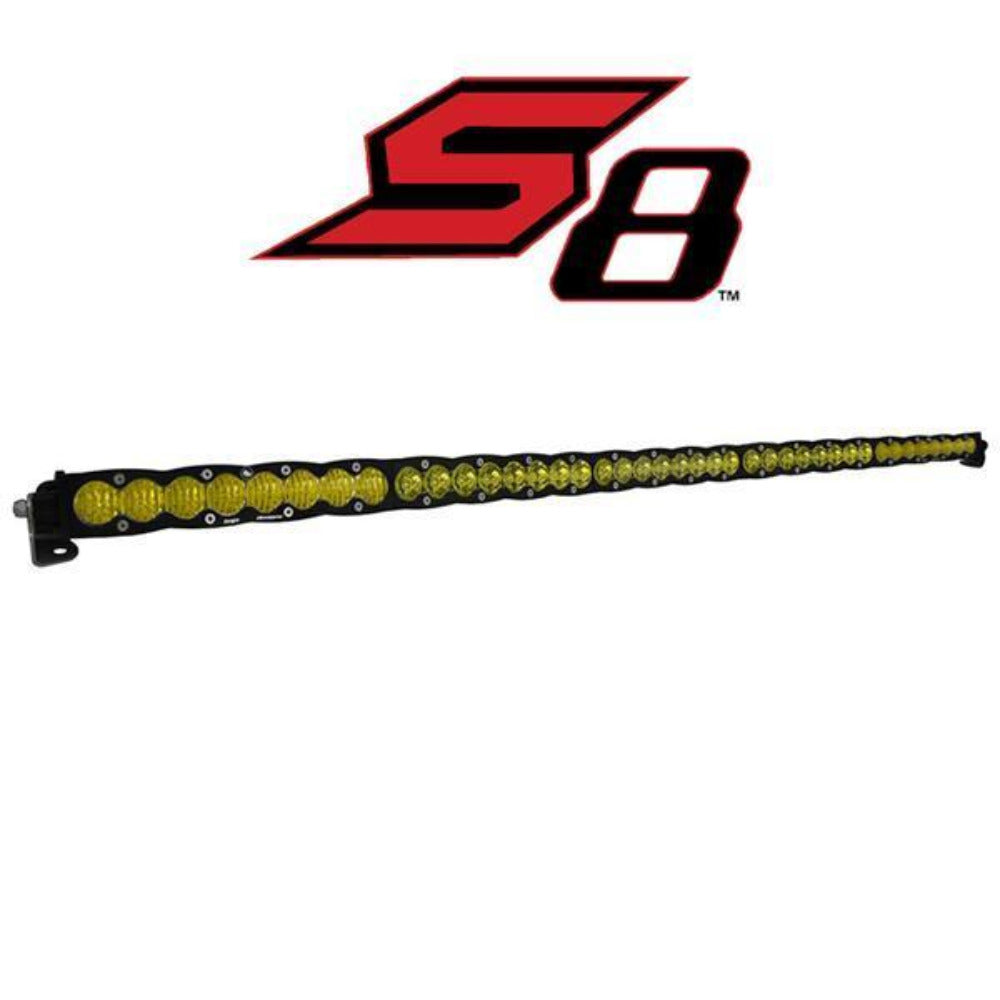

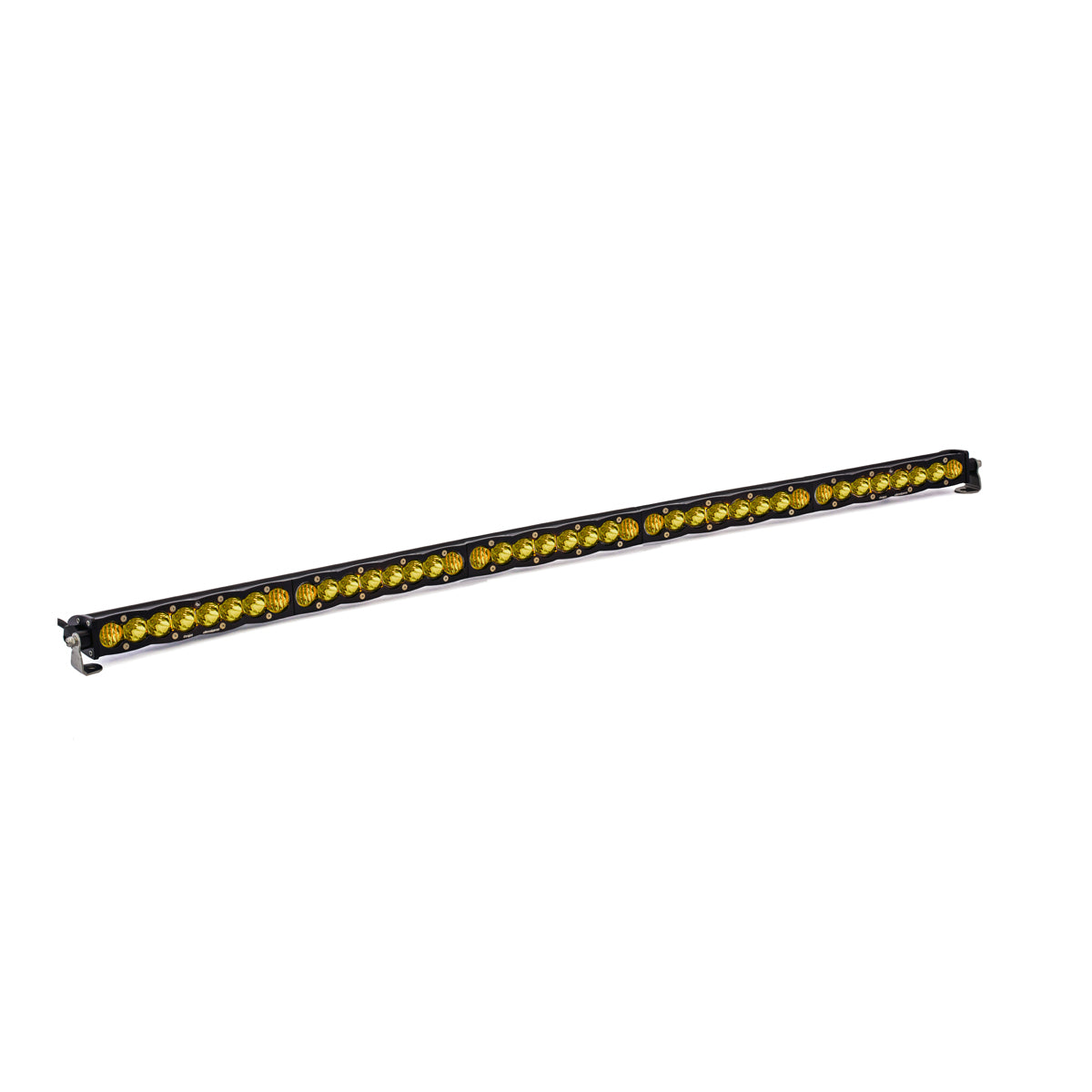

S8 Series LED Light Bar Lighting Baja Designs 50" Amber Driving/Combo Display

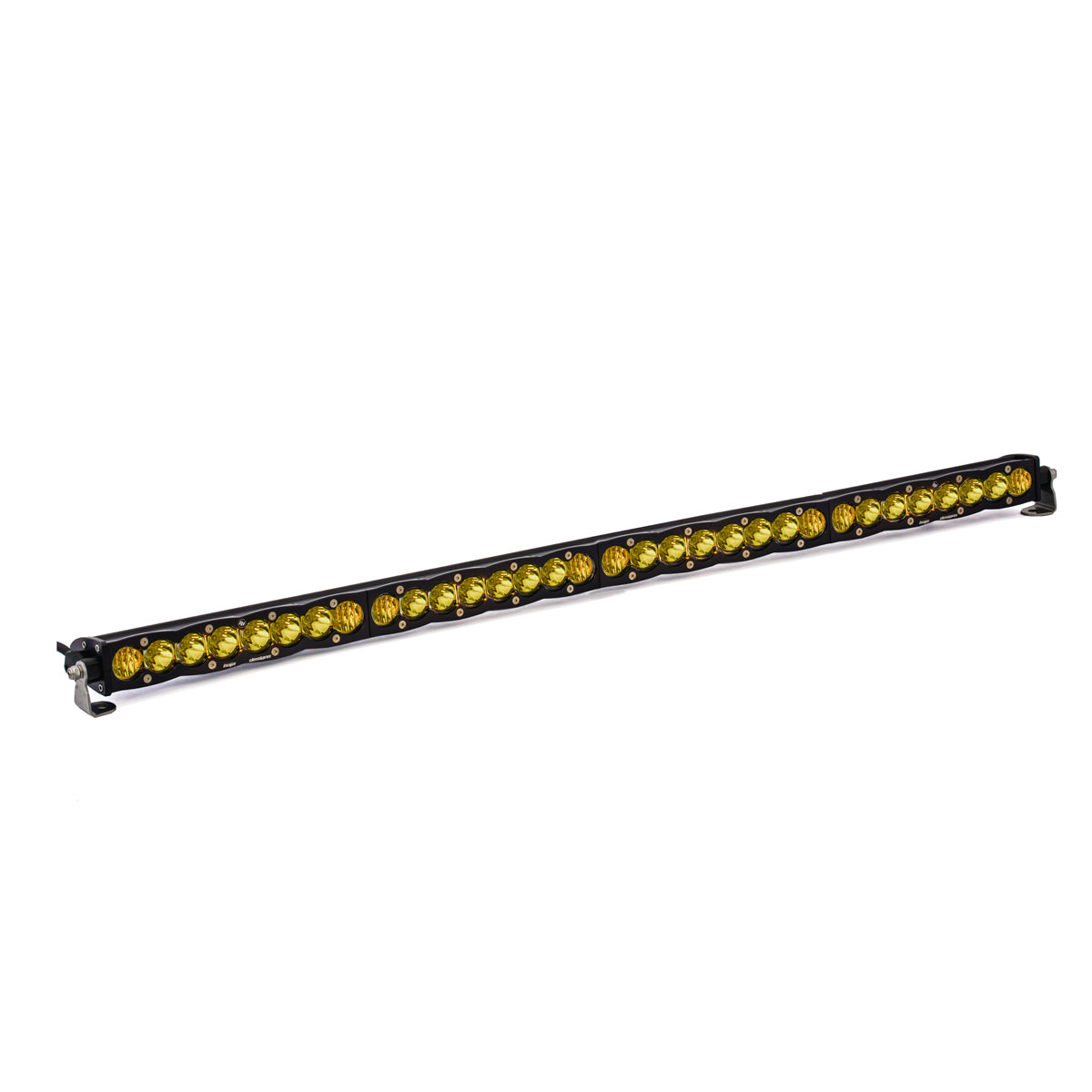

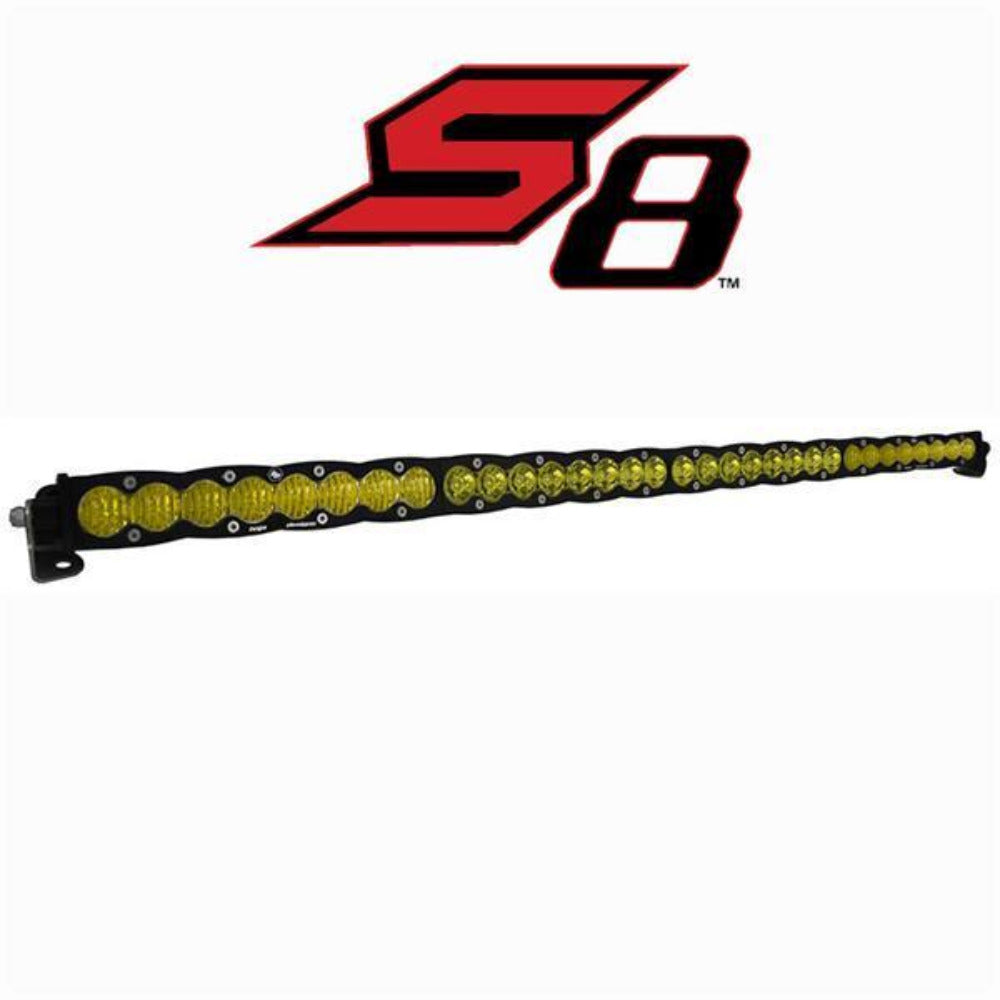

S8 Series LED Light Bar Lighting Baja Designs 40" Amber Driving/Combo Display

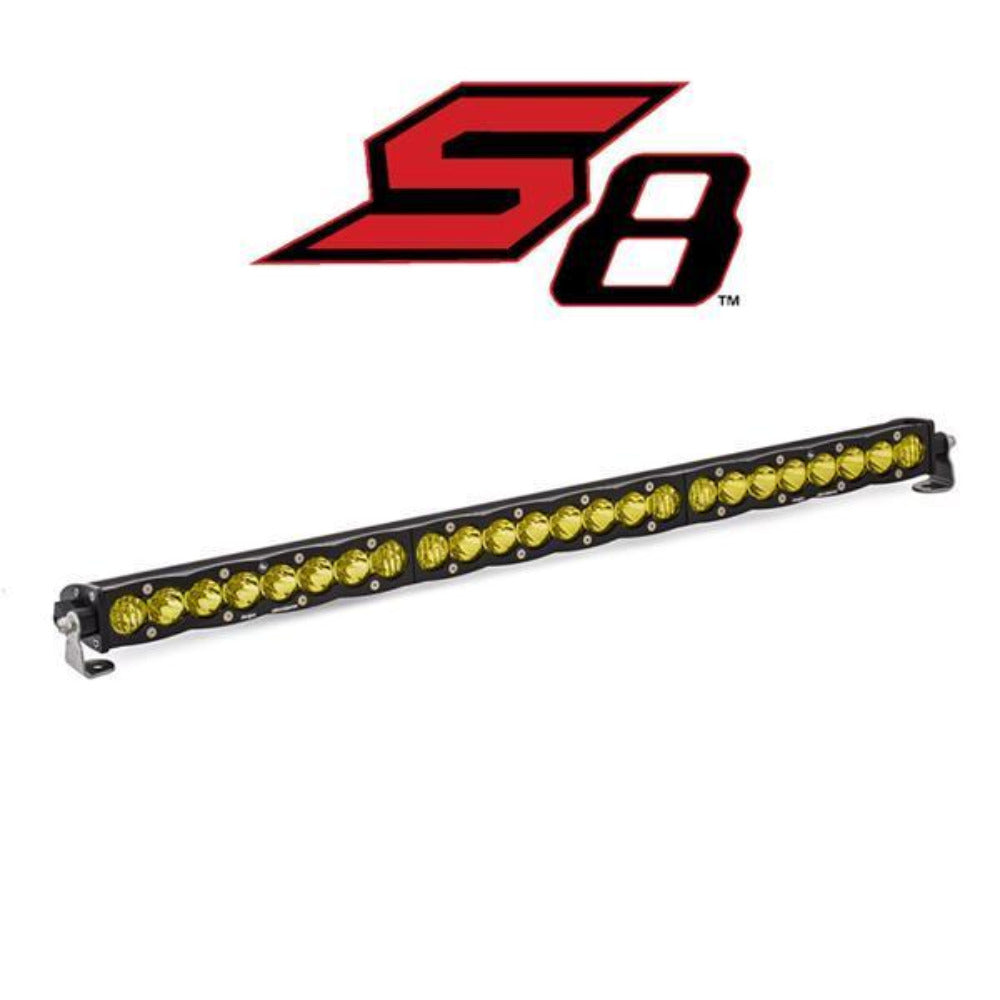

S8 Series LED Light Bar Lighting Baja Designs 30" Amber Driving/Combo Display

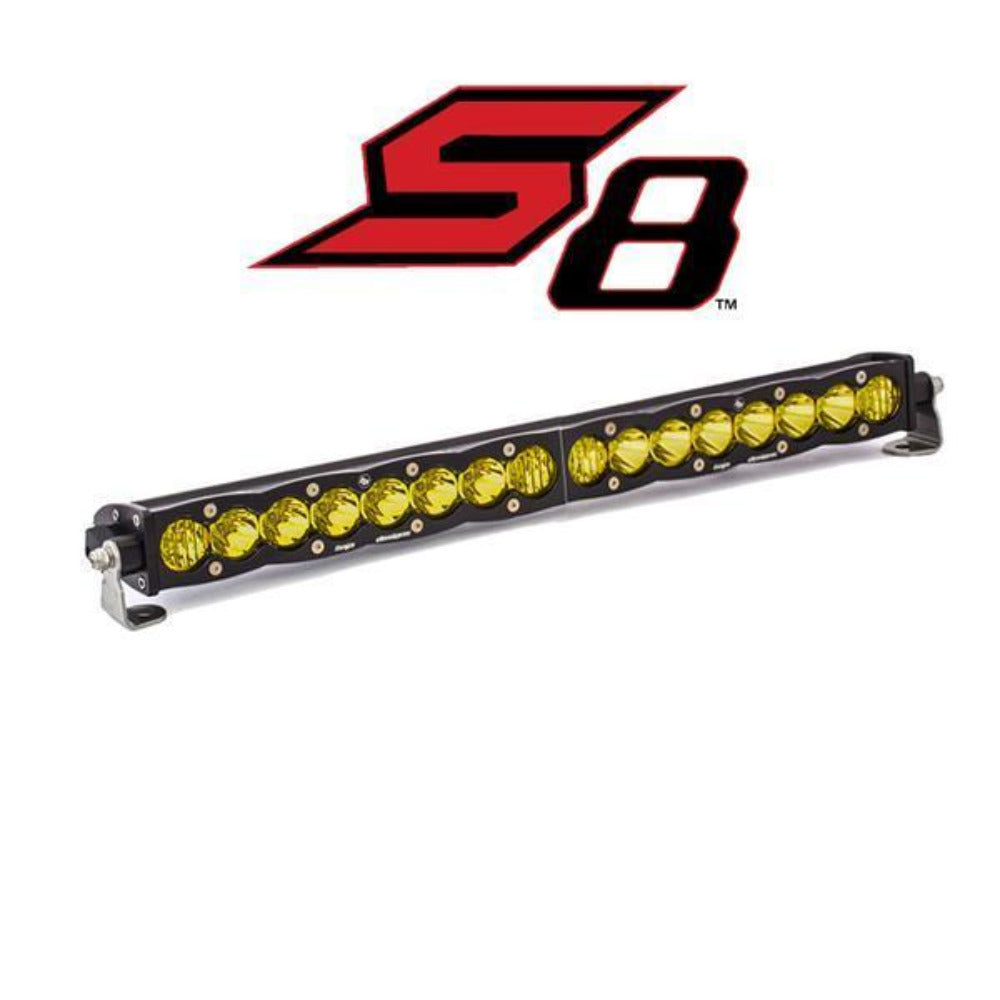

S8 Series LED Light Bar Lighting Baja Designs 20" Amber Driving/Combo Display

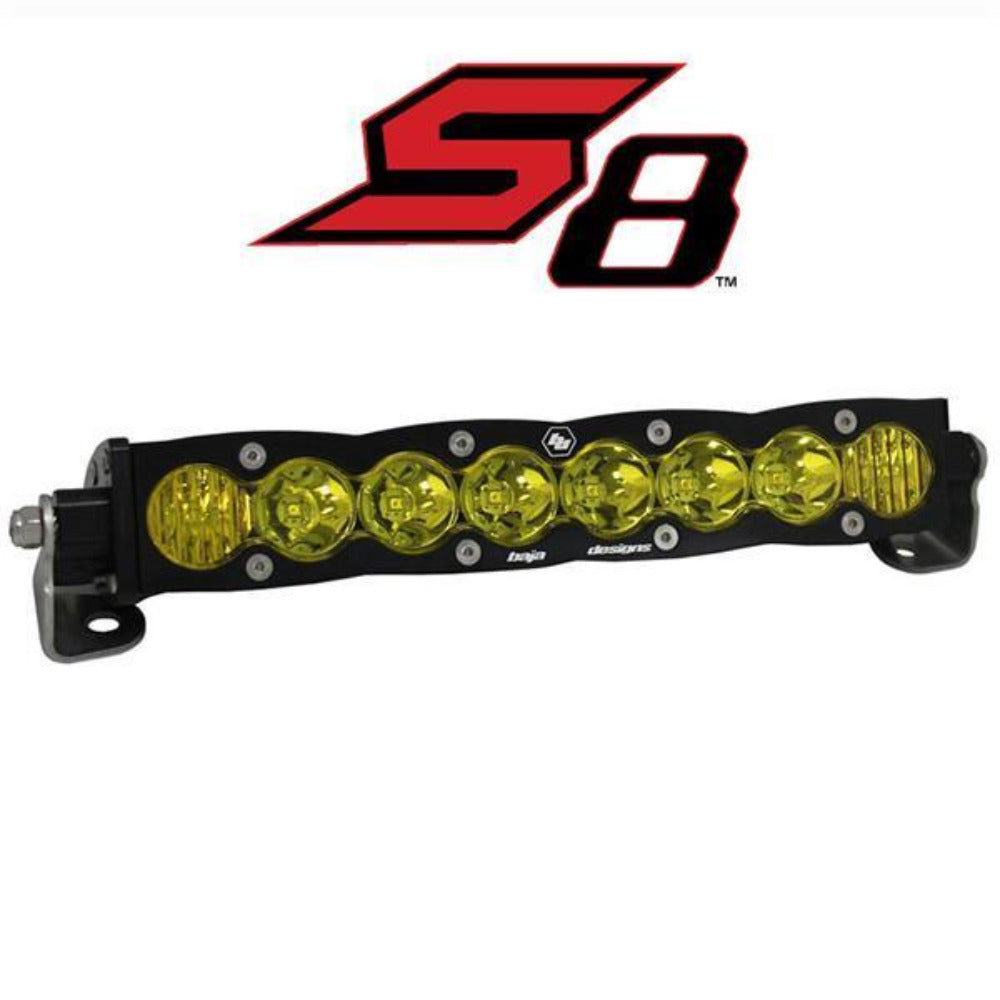

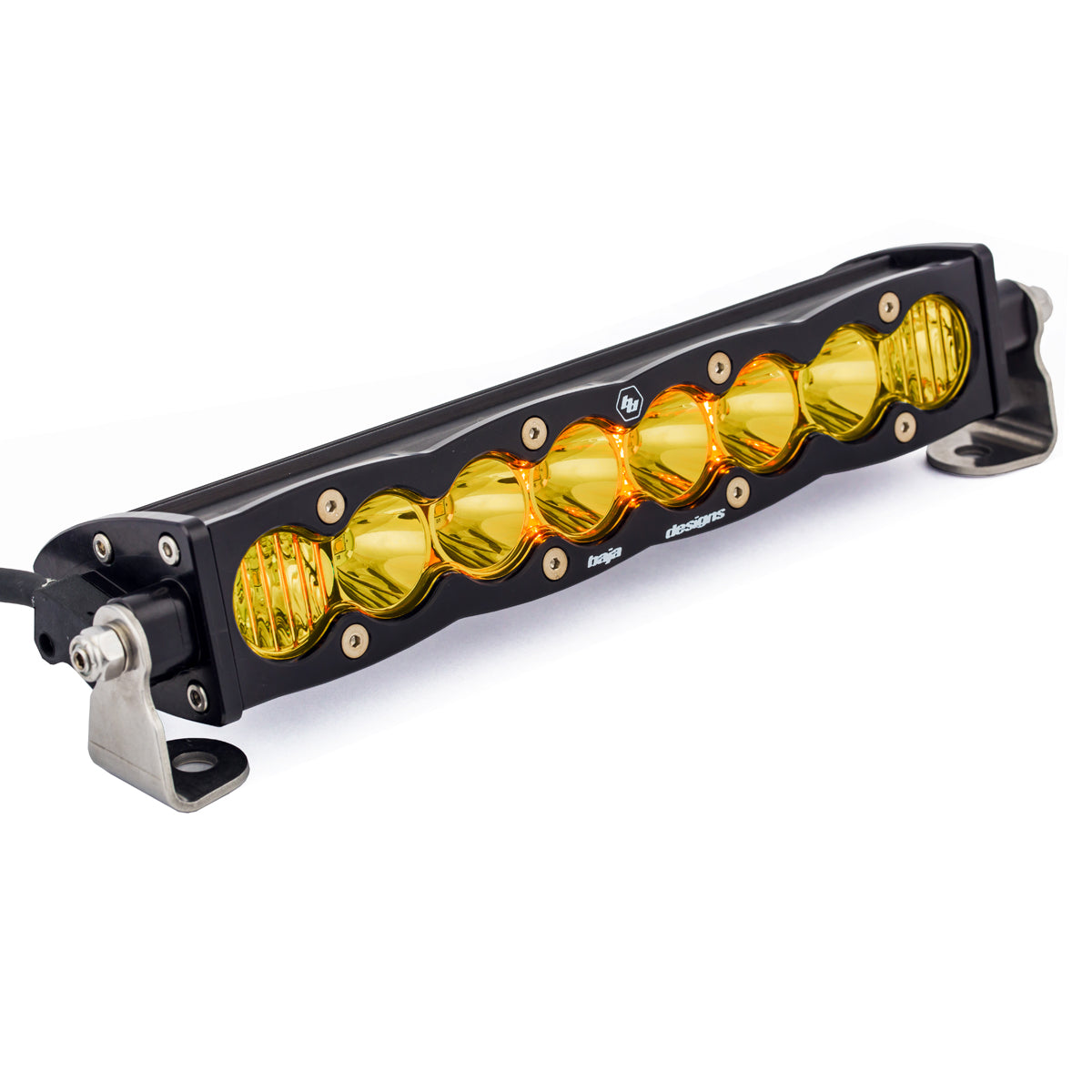

S8 Series LED Light Bar Lighting Baja Designs 10" Amber Driving/Combo Display
S8 Series LED Light Bar Lighting Baja Designs Display
Baja Designs - S8 Series LED Light Bar Amber Driving Combo Display
Baja Designs - S8 Series LED Light Bar Clear Spot Display

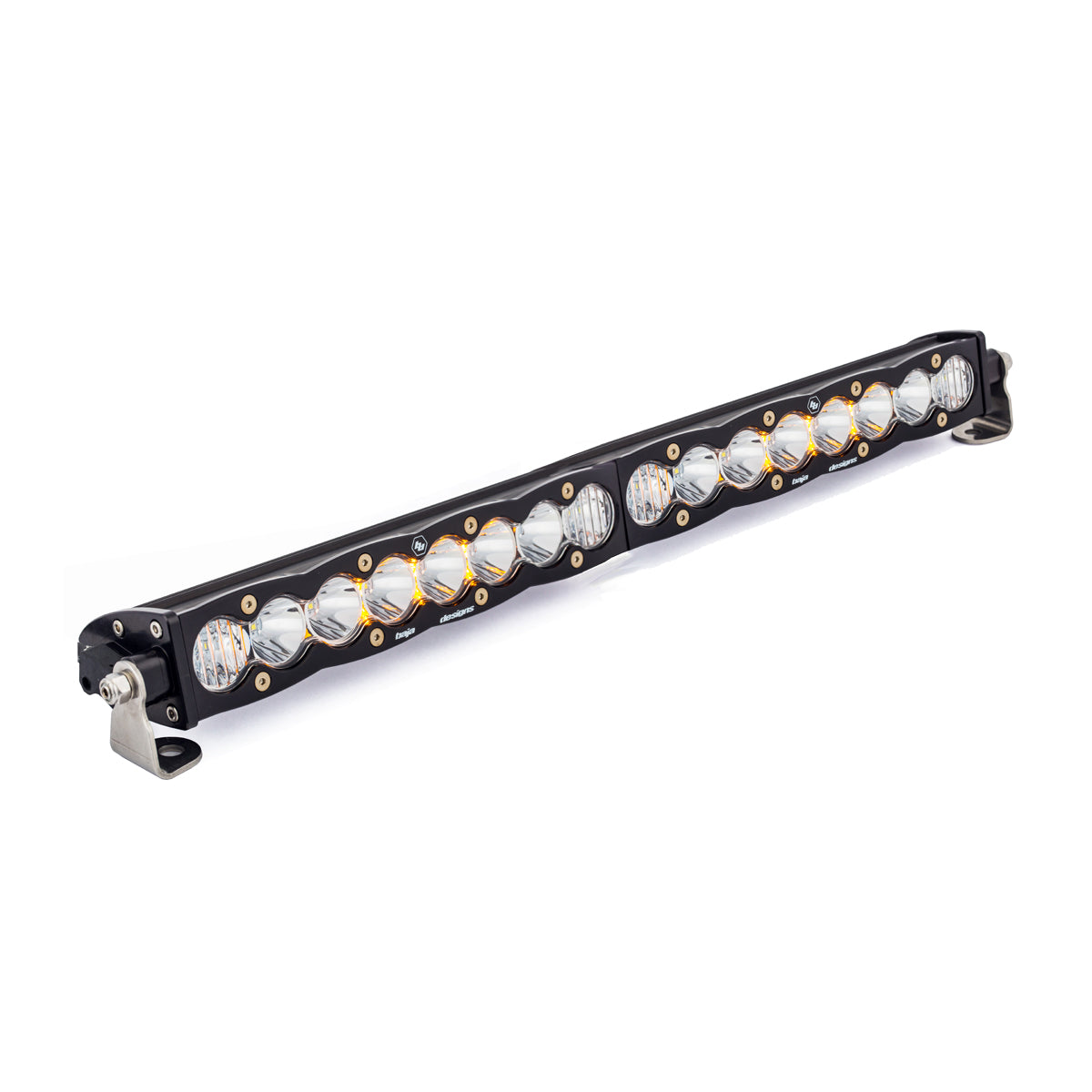

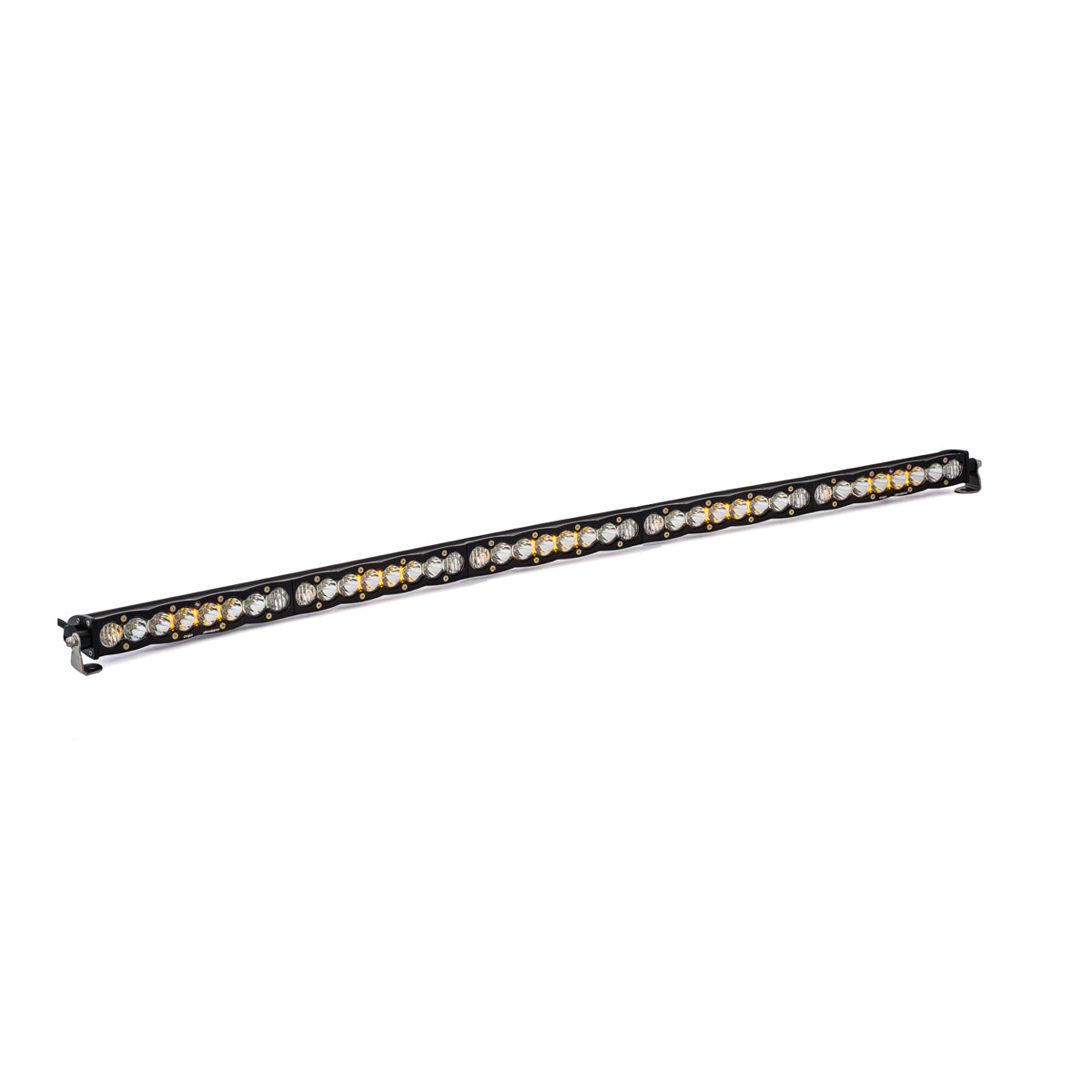

Baja Designs - S8 Series LED Light Bar Clear Driving Combo Display

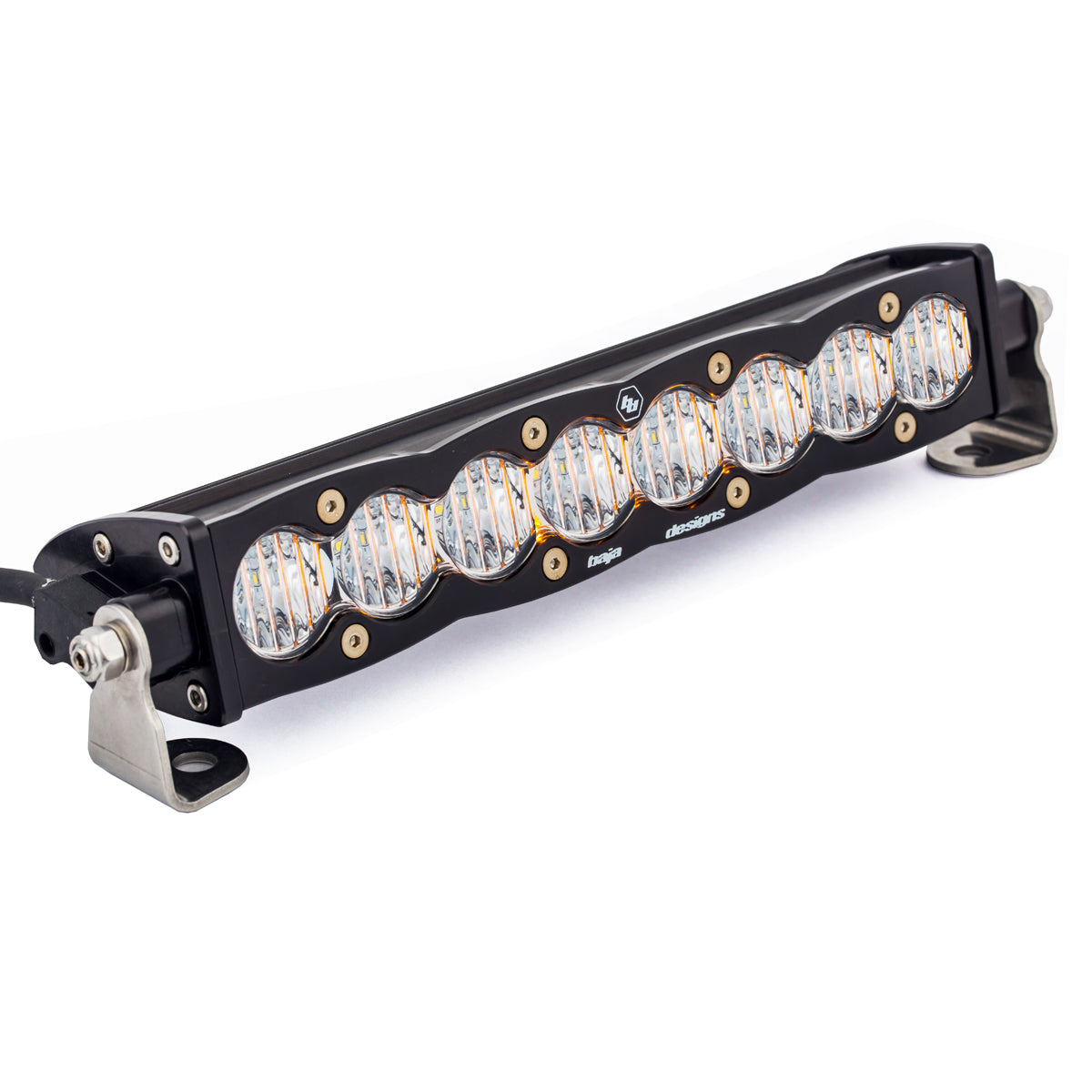

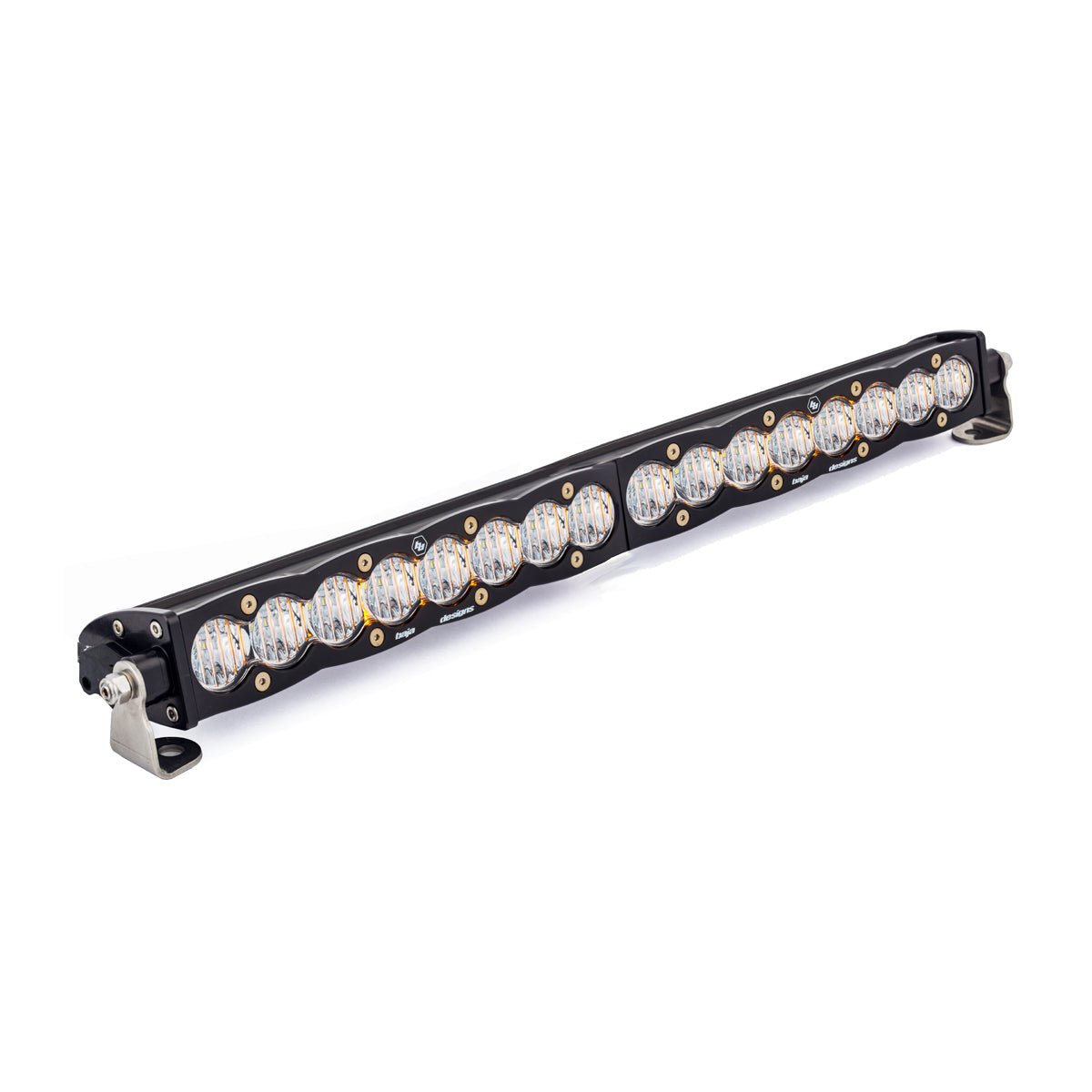

Baja Designs - S8 Series LED Light Bar Clear Wide Driving Display
Baja Designs - S8 Series LED Light Bar Clear Spot Display

Baja Designs

Baja Designs - S8 Series LED Light Bar

$271.16 $338.95
Save $67.79
SKU: BAJA-701001
Bar Length:

Bar Length
Lens Color:

Lens Color
Beam Pattern:

Beam Pattern
Quantity:

Baja Designs - S8 Series LED Light Bar

10" / Clear / Spot

MCQUEEN

190 South McQueen Road
Suite 109
Gilbert AZ 85233
United States

+14806332929
HIGH PERFORMANCE LIGHT BAR:

Baja Designs' S8 Series LED Light bar is a lightweight single row LED light bar, draws low amps, and is designed to last up to 50,000 hours of use.

The S8 also features high performance, proprietary reflectors, an amber backlit feature, and a unique scalloped housing design.

WHAT'S INCLUDED:
  • S8 10-50” LED Light Bar
  • Mounting Brackets
SPECS:
Light Bar Length (in.) Lumens Wattage/Amps
10" 6,350 Utilizing 8 Cree LEDs 60W / 4.00A
20" 12,700 Utilizing 16 Cree LEDs 120W / 8.00A
30" 19,050 Utilizing 24 Cree LEDs  180W / 12A
40" 25,400 Utilizing 32 Cree LEDs  240W / 16A
50" 31,750 Utilizing 40 Cree LEDs  300W / 20A



KEY FEATURES:
  • LED Life Expectancy: 49,930 Hours
  • Front Lens: Hard Coated Polycarbonate
  • Housing: Aircraft Grade Aluminum w/Mil-Spec Hard Anodize
  • Bezel: Billet Machined Aluminum
  • Hardware & Bracket Material: Stainless Steel
  • Exceeds MIL-STD810G (Mil-Spec Testing)
  • Built-In Overvoltage Protection
  • IP69K (Waterproof up to 9ft & Pressure Washable)
  • IK10 Compliant (Mechanical Impact Testing)
BEAM PATTERNS:
  • Driving/Combo: Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Driving (42°) and spot (9°) optics to provide you with a smooth blend of light for both near field applications and distance
  • Wide Cornering: BD was the first to develop a pattern specifically for cornering, dust and/or fog conditions. The Wide Driving pattern offers a 42° flattened horizontal beam for the ultimate in comfort lighting.
  • Spot: A longer and narrower 9° beam focus for illumination further down the trail or road. The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights.

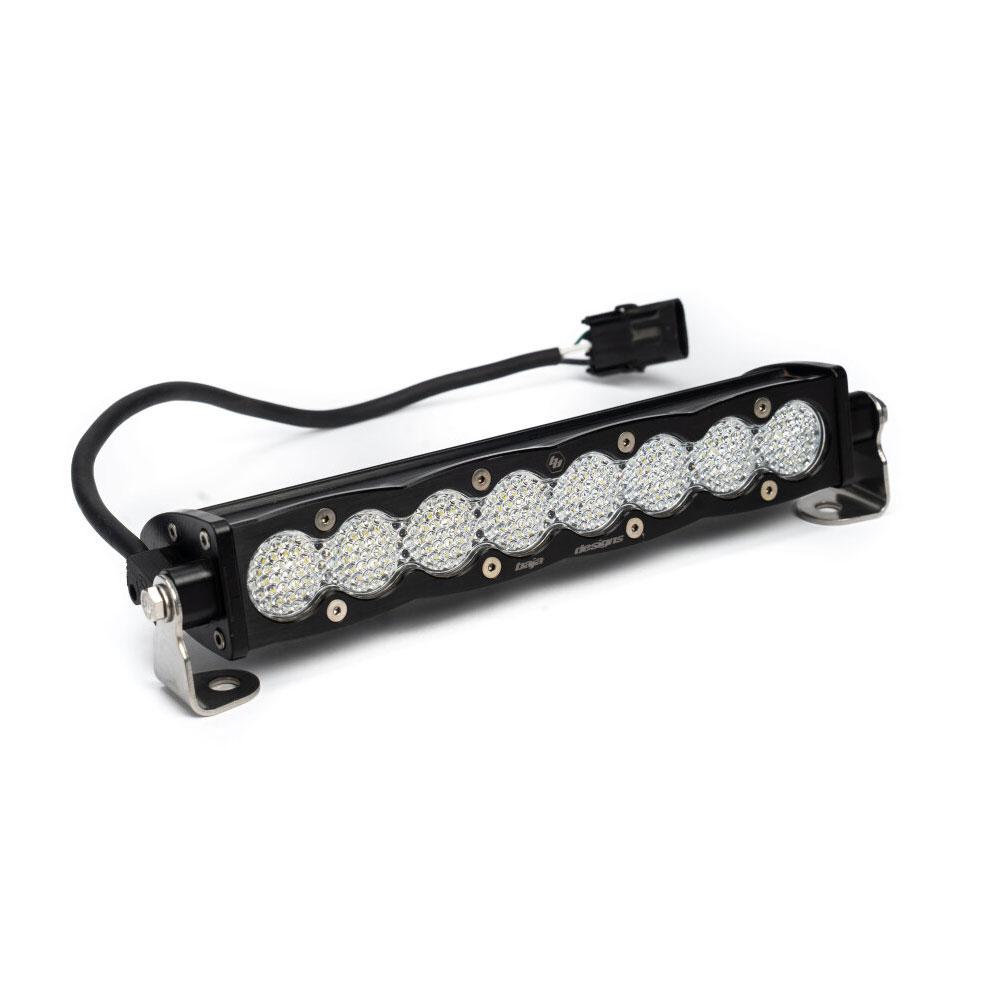

  • Work/Scene: Excellent work light or “scene light” with an extremely smooth 120° circle that projects about 40ft. This pattern is not suitable for driving.
