PRODUCT OVERVIEW:

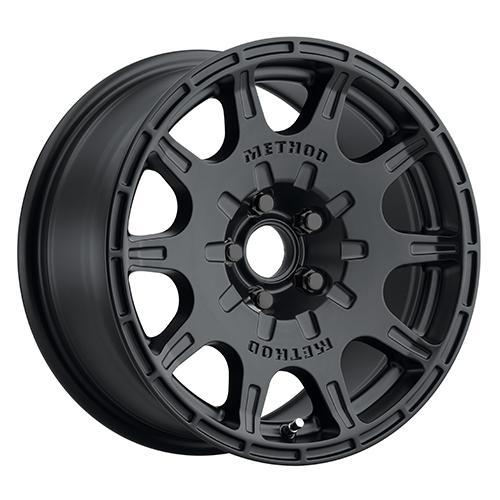

The MR502 Rally VT-Spec is the wheel that started our venture into rally racing. Developed as a low-offset 15” gravel wheel for their new car, Subaru Rally Team USA’s David Higgins and Craig Drew won a 2014 Rally America Championship on this exact wheel. Unnecessary weight has been cut out due to strategically placed pockets in low-stress points around the wheel, including the 'I-Beam' inner-lip technology. Matte black paint and steel lug nut inserts come standard on the VT-Spec providing a hardened clamping surface able to withstand rigorous race conditions. The 502 comes in at 19.4 lbs with a stout 2,100lb load rating. With a +15mm offset, 5x100 and 5x114.3 bolt patterns, fitment is ideal for Subaru and Mitsubishi vehicles.
This wheel will clear:
- Subaru WRX 4-pot (up to 2014)
- AP Racing CP6720 calipers
- Most brake packages with rotors up to 300mm in diameter
* * VT-Spec wheels will not clear the factory installed Subaru STI brakes. * *
BRAKE FITMENT TECHNICAL DRAWING
| WHEEL DIAMETER (IN) | WHEEL WIDTH (IN) | BOLT PATTERN | BOLT HOLE | BOLT DIAMETER | OFFSET (MM) | BACKSIDE SPACING (IN) | ATV OFFSET B+F | HUB BORE (MM) | MAX LOAD (LBS) | COLOR/FINISH | PART NUMBER |
| 15 | 7.0 | 5x100 | 5 | 100 | 15 | 4.60 | N/A | 56.1 | 2100 | Matte Black | MR50257051515SC |

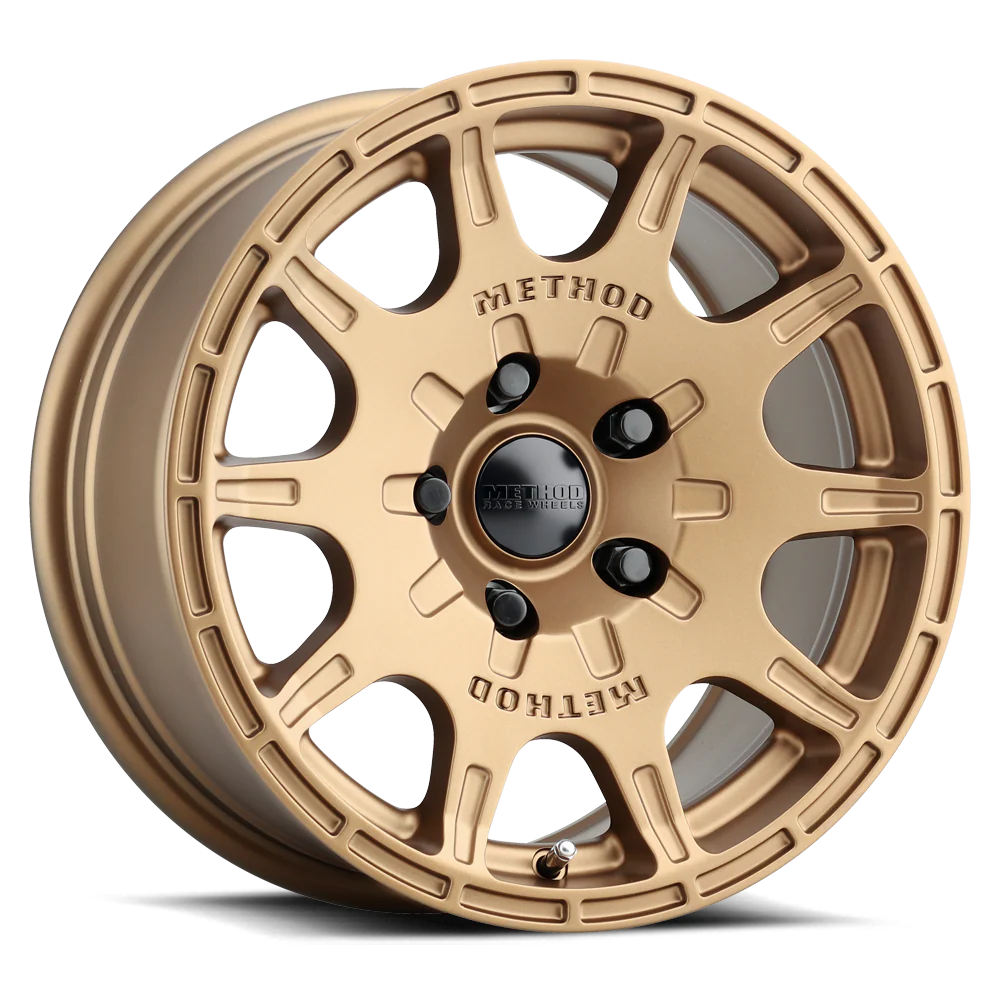

| 15 | 7.0 | 5x100 | 5 | 100 | 15 | 4.60 | N/A | 56.1 | 2100 | Method Bronze | MR50257051915SC |
| 15 | 7.0 | 5x4.5 | 5 | 4.5 | 15 | 4.60 | N/A | 56.1 | 2100 | Matte Black | MR50257012515SC |
| 15 | 7.0 | 5x4.5 | 5 | 4.5 | 15 | 4.60 | N/A | 56.1 | 2100 | Method Bronze | MR50257012915SC |
