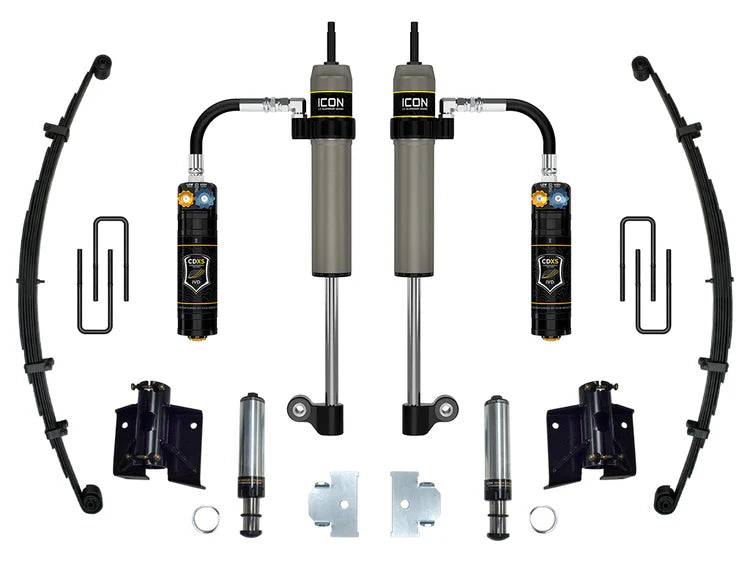

ICON 2005-2023 Toyota Tacoma, Stage 2 RXT Suspension System, CDXS
ICON 2005-2023 Toyota Tacoma, Stage 2 RXT Suspension System, CDXS

Icon Vehicle Dynamics

ICON 2005-2023 Toyota Tacoma, Stage 2 RXT Suspension System, CDXS

$3,786.56
SKU: K53162D

ICON 2005-2023 Toyota Tacoma, Stage 2 RXT Suspension System, CDXS

MCQUEEN

190 South McQueen Road
Suite 109
Gilbert AZ 85233
United States

+14806332929

STATE OF CALIFORNIA CONSUMER WARNING

Description:

The 2005-2023 Toyota Tacoma is an extremely reliable truck that has served as a versatile platform for drivers seeking the ultimate off-road adventure. From the brutal deserts of the Southwest, to the slickrock of Moab, to the wooded trails of the East coast ICON suspension systems have been put to the test and performed flawlessly for this popular Toyota. ICON Vehicle Dynamics’ engineers have pushed this vehicle to extremes in order to develop the most sophisticated suspension components on the market. Unable to leave “well-enough” alone, ICON is once again aiming to raise the bar in Tacoma performance with the introduction of the RXT Rear Suspension System.

Through thousands of miles of accelerated testing in our R&D program, ICON has spent over a year identifying limiting factors in OE components and seeking to further extrapolate performance out of this vehicle. In a push to provide unparalleled performance for everything from high-speed desert running to off the grid expedition, the RXT Rear Suspension System was born. The RXT Rear Suspension System includes three all-new 2.5 Aluminum Series rear shock options and a multi-rate leaf spring that work in conjunction with the ICON rear bump stop kit. Installation of this system replaces the aforementioned “limiting factors” and completely redefines the potential of the 2005-2023 Toyota Tacoma with a 20% increase in wheel travel and the ability to adjust the leaf spring rate to compensate for varying vehicle setups.

Key Features
  • ICON RXT Multi-Rate Leaf Spring: 3 user-adjustable spring rates for unique vehicle configurations
  • ICON RXT Rear Shock: Corrosion resistant, one-piece impact extruded aluminum shock bodies with 7/8" shafts
  • ICON RXT Rear Shock: ICON CDXS equipped for independent adjustability of high speed and low speed compression force for handling response and aggressiveness
  • ICON RXT Rear Shock: 10” aluminum reservoirs provide generous oil and nitrogen volume for consistent damping as shock temperature increases
  • ICON RXT Rear Shock: Shocks are fully rebuildable and revalveable
  • ICON RXT Rear Shock: Simple and straightforward installation

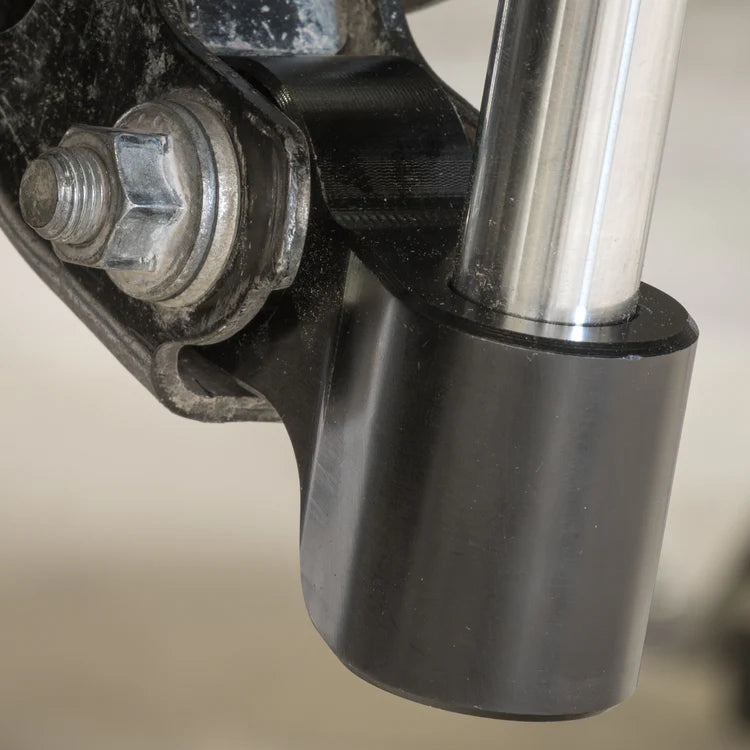

  • ICON Hydraulic Rear Bump Stop Kit: 2.5” travel bump stop reduces rear end ‘kick’ and improves overall performance
  • ICON Hydraulic Rear Bump Stop Kit: Position sensitive technology exponentially increases bottom-out resistance
  • ICON Hydraulic Rear Bump Stop Kit: Vehicle specific bump stop tune to provide smooth engagement and best ride quality
  • ICON Hydraulic Rear Bump Stop Kit: Direct bolt-in to OEM bump stop location makes for an easy and straightforward install
  • ICON Hydraulic Rear Bump Stop Kit: Heavy duty 1 ¼” CNC machined nitro steel shaft
  • ICON Hydraulic Rear Bump Stop Kit: Multi-stage CAD plated body for maximum corrosion resistance
  • ICON RXT Multi-Rate Leaf Spring: Military wrap front eyelet for increased durability
  • ICON Hydraulic Rear Bump Stop Kit: Double sealed high pressure Schrader valve Operating range of 50 – 250 PSI
  • ICON Hydraulic Rear Bump Stop Kit: Replaceable noise reducing striker pad
  • ICON Hydraulic Rear Bump Stop Kit: Fully serviceable
Specifications
Brand ICON Vehicle Dynamics
UPC 840103436548
Shipping Width 40.00 in
Shipping Length 55.00 in
Shipping Depth 19.00 in
Shipping Weight 199.0000 LB
Technical Notes
  • OEM Wheels & Tires Fitment: Yes
  • Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 4.75” Backspace / 0mm Offset
  • Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.00” Backspace / 0mm Offset
  • Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.00” Backspace / 0mm Offset
  • Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)
  • APPLICATION NOTE #17: These are stand-alone kits and are not to be used in conjunction with any other aftermarket kits
  • APPLICATION NOTE #55: Shocks are fully serviceable. coilover heights indicated are for a stock equipped vehicle
  • APPLICATION NOTE #87: Installation of complete ICON system required to attain advertised wheel travel. Use of any other manufacturers components will not provide advertised wheel travel and could cause unknown damage.
  • APPLICATION NOTE #155: Requires recalibration of Advanced Driver Assistance Systems (ADAS) after install
  • APPLICATION NOTE #185: Will not fit 2WD Tacoma with 5 wheel lug studs
  • APPLICATION NOTE #246: Most Tacoma submodels withh have rear lift height range of 1.875-2.625", depending on rear spring configuration and rear weight
  • APPLICATION NOTE #247: 2017-2023 Tacoma TRD Pro models will have 1.375-2.125" of rear lift over stock, depending on rear spring configuration and rear weight
