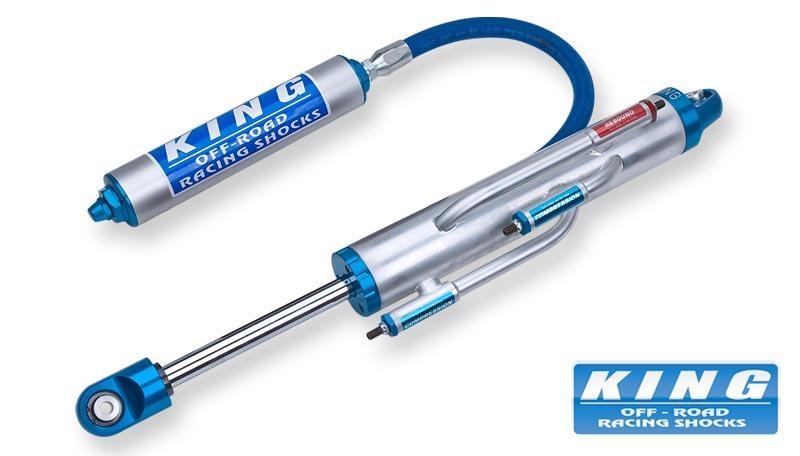

4.0 Race Series 1.25" Shaft Bypass Shock Suspension King Off-Road Shocks 3 Tube 12 IN Remote Reservoir

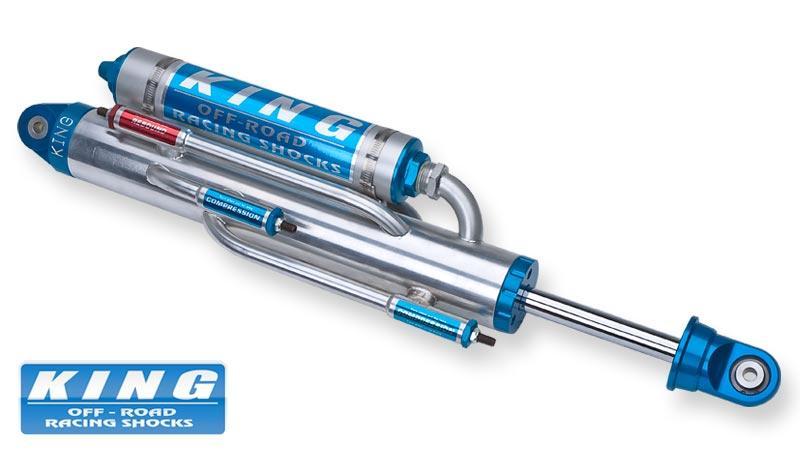

4.0 Race Series 1.25" Shaft Bypass Shock Suspension King Off-Road Shocks 3 Tube 12 IN Piggyback Reservoir

King Off-Road Shocks

4.0 Race Series 1.25" Shaft Bypass Shock

$2,174.55
SKU: King-RS4012-BP3H
Bypass (Tube) Count:

Bypass (Tube) Count
Shock Travel (in.):

Shock Travel (in.)
Shock Configuration:

Shock Configuration

4.0 Race Series 1.25" Shaft Bypass Shock

3 Tube / 12 IN / Remote Reservoir

MCQUEEN

190 South McQueen Road
Suite 109
Gilbert AZ 85233
United States

+14806332929

STATE OF CALIFORNIA CONSUMER WARNING

Our large 1" and 1.25" diameter shock shafts are induction hardened to 60-65 on the Rockwell scale, hard chrome plated and then micro-polished to a 3 RMS mirror finish. The incredible hardness protects against rock bruising and the mirror finish creates a highly effective seal that does not weep. Our rod end attachment method has been in use for 13 years without a single failure. We hydraulically press the shaft through a threaded bung then tig weld the bung to the end of the shaft. The rod end is then threaded onto the bung. This design removes all threads from the external portion of the shaft end giving it unbelievable strength. Shocks are mounted on both ends through replaceable Teflon lined steel spherical bearings.

King Pure Race series reservoirs feature threaded end caps to withstand higher pressures and ease maintenance. Their lightweight aluminum construction aids in heat dissipation and will not rust due to condensation or gas charging contamination. We use only the best Aeroquip hoses and high quality fittings with our remote reservoirs. The Aeroquip hoses are extremely durable with the highest temperature and pressure ratings and are able to bend tighter without kinking like braided steel lines.

Part# Description Type Compressed length Extended length
RS4012-BP3H 4.0x12" 3 Tube Bypass Hose Reservoir 21.810 33.810
RS4014-BP3H 4.0x14" 3 Tube Bypass Hose Reservoir 24.375 38.375
RS4016-BP3H 4.0x16" 3 Tube Bypass Hose Reservoir 27.125 43.125
RS4018-BP3H 4.0x18" 3 Tube Bypass Hose Reservoir 30.060 48.060
RS4020-BP3H 4.0x20" 3 Tube Bypass Hose Reservoir 32.06 52.06
RS4026-BP3H 4.0x26" 3 Tube Bypass Hose Reservoir 38.06 64.06
RS4012-BP3P 4.0x12" 3 Tube Bypass Piggyback Reservoir 21.810 33.810
RS4014-BP3P 4.0x14" 3 Tube Bypass Piggyback Reservoir 24.375 38.375
RS4016-BP3P 4.0x16" 3 Tube Bypass Piggyback Reservoir 27.125 43.125
RS4018-BP3P 4.0x18" 3 Tube Bypass Piggyback Reservoir 30.060 48.060
RS4020-BP3P 4.0x20" 3 Tube Bypass Piggyback Reservoir 32.06 52.06
RS4026-BP3P 4.0x26" 3 Tube Bypass Piggyback Reservoir 38.06 64.06
RS4014-BP4H 4.0x14" 4 Tube Bypass Hose Reservoir 24.375 38.375
RS4016-BP4H 4.0x16" 4 Tube Bypass Hose Reservoir 27.125 43.125
RS4018-BP4H 4.0x18" 4 Tube Bypass Hose Reservoir 30.060 48.060
RS4020-BP4H 4.0x20" 4 Tube Bypass Hose Reservoir 32.06 52.06
RS4026-BP4H 4.0x26" 4 Tube Bypass Hose Reservoir 38.06 64.06
RS4014-BP4P 4.0x14" 4 Tube Bypass Piggyback Reservoir 24.375 38.375
RS4016-BP4P 4.0x16" 4 Tube Bypass Piggyback Reservoir 27.125 43.125
RS4018-BP4P 4.0x18" 4 Tube Bypass Piggyback Reservoir 30.060 48.060
RS4020-BP4P 4.0x20" 4 Tube Bypass Piggyback Reservoir 32.06 52.06
RS4026-BP4P 4.0x26" 4 Tube Bypass Piggyback Reservoir 38.06 64.06
RS4014-BP5H 4.0x14" 5 Tube Bypass Hose Reservoir 24.375 38.375
RS4016-BP5H 4.0x16" 5 Tube Bypass Hose Reservoir 27.125 43.125
RS4018-BP5H 4.0x18" 5 Tube Bypass Hose Reservoir 30.060 48.060
RS4020-BP5H 4.0x20" 5 Tube Bypass Hose Reservoir 32.06 52.06
RS4026-BP5H 4.0x26" 5 Tube Bypass Hose Reservoir 38.06 64.06
RS4014-BP5P 4.0x14" 5 Tube Bypass Piggyback Reservoir 24.375 38.375
RS4016-BP5P 4.0x16" 5 Tube Bypass Piggyback Reservoir 27.125 43.125
RS4018-BP5P 4.0x18" 5 Tube Bypass Piggyback Reservoir 30.060 48.060
RS4020-BP5P 4.0x20" 5 Tube Bypass Piggyback Reservoir 32.06 52.06
RS4026-BP5P 4.0x26" 5 Tube Bypass Piggyback Reservoir 38.06 64.06
