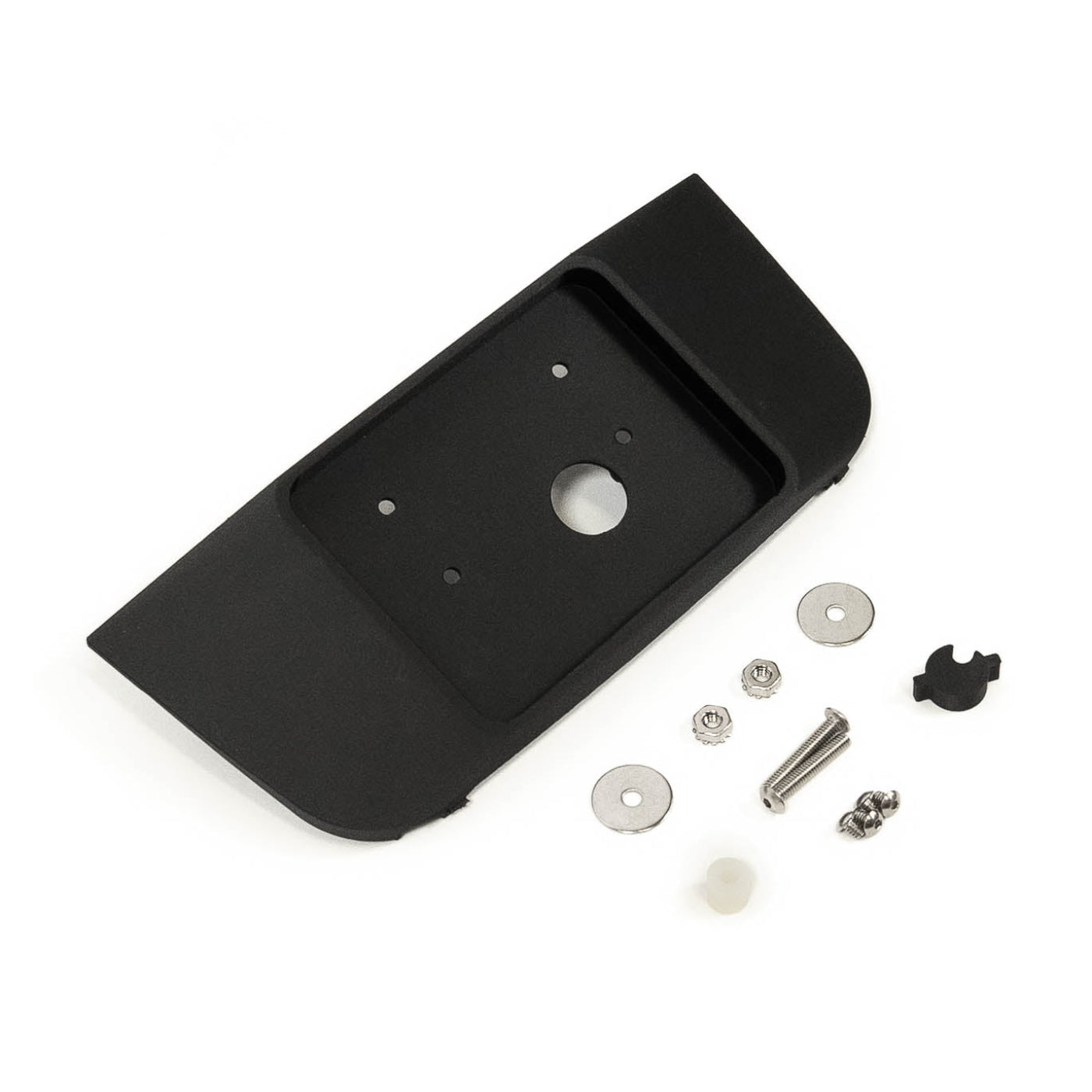

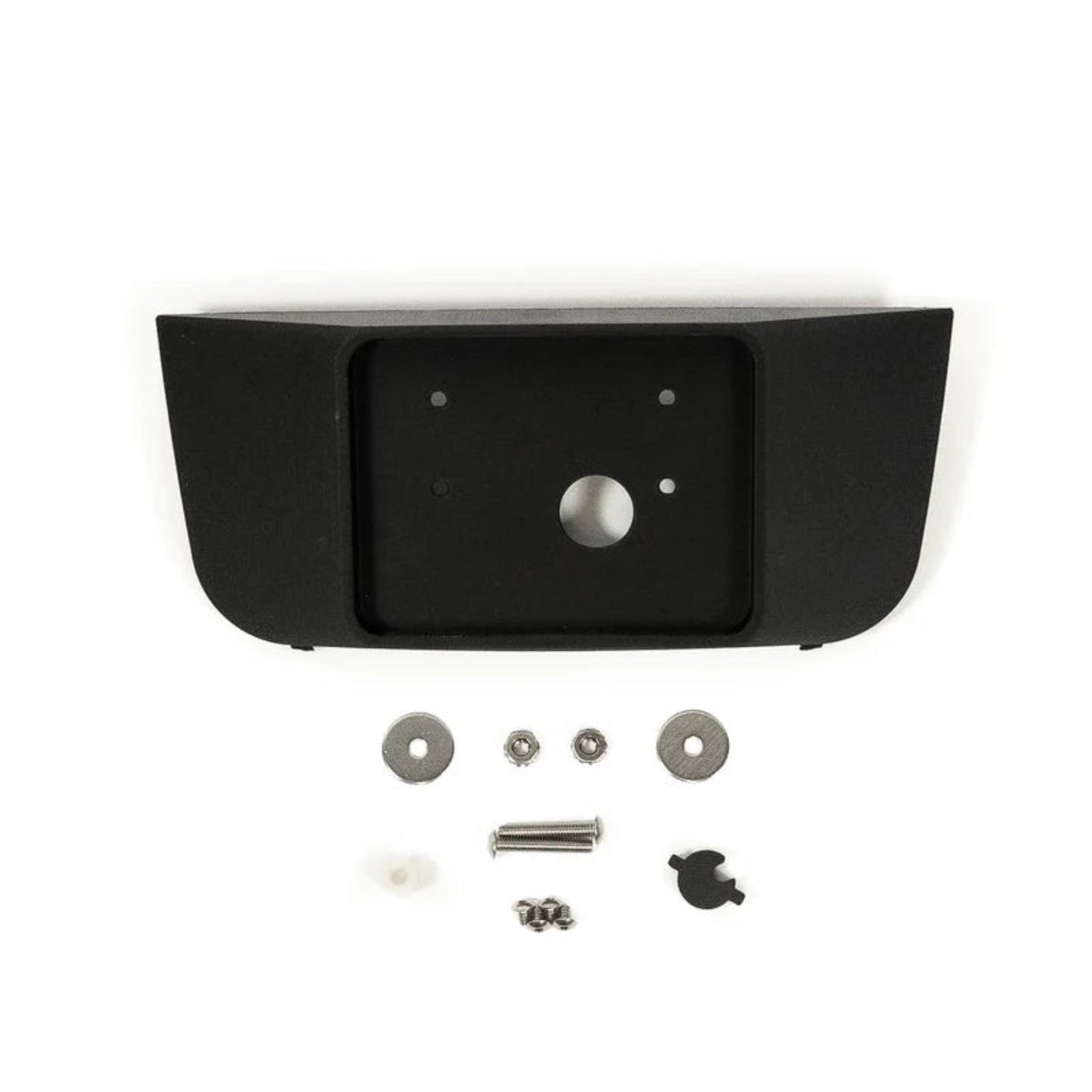

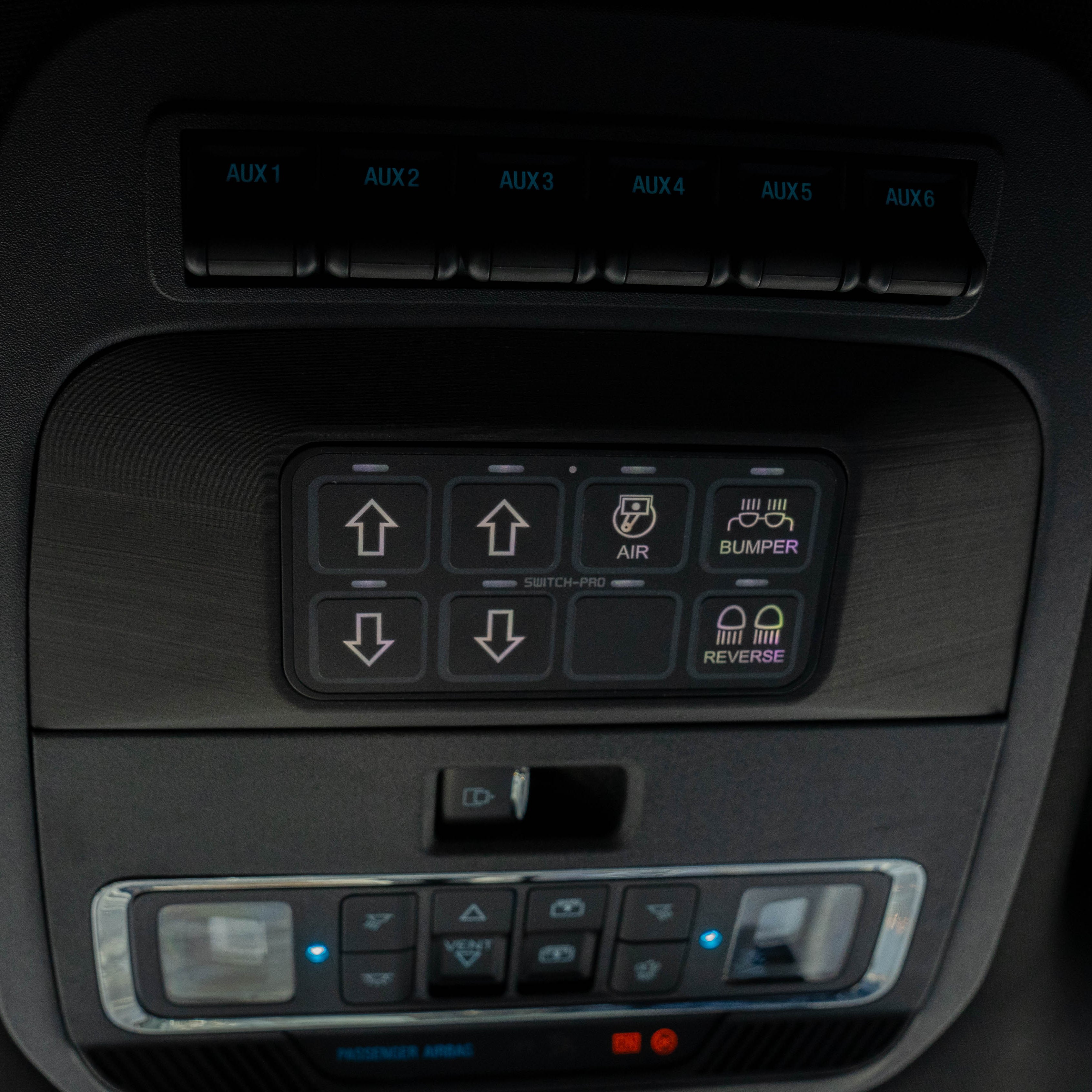

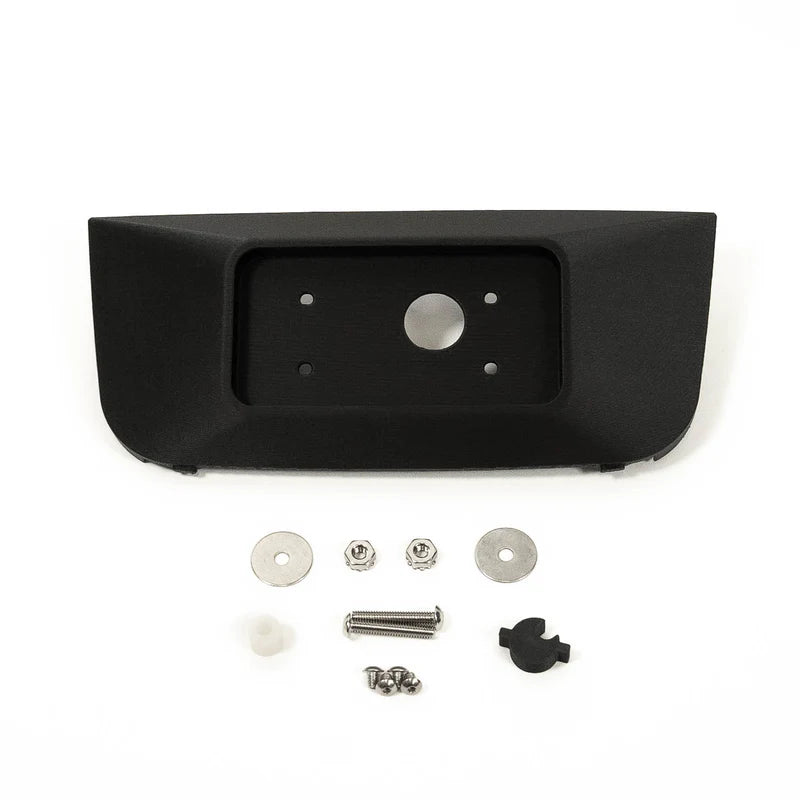

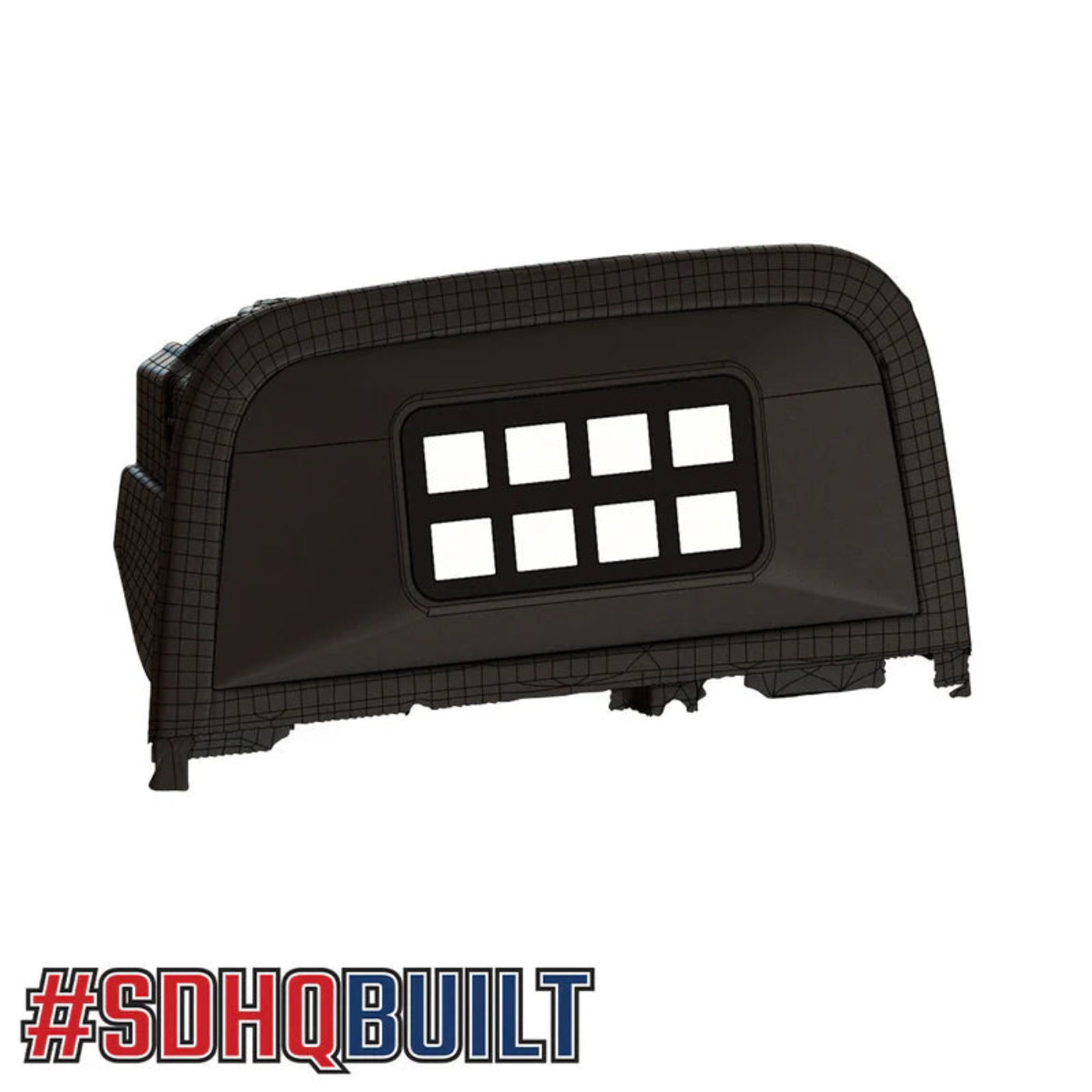

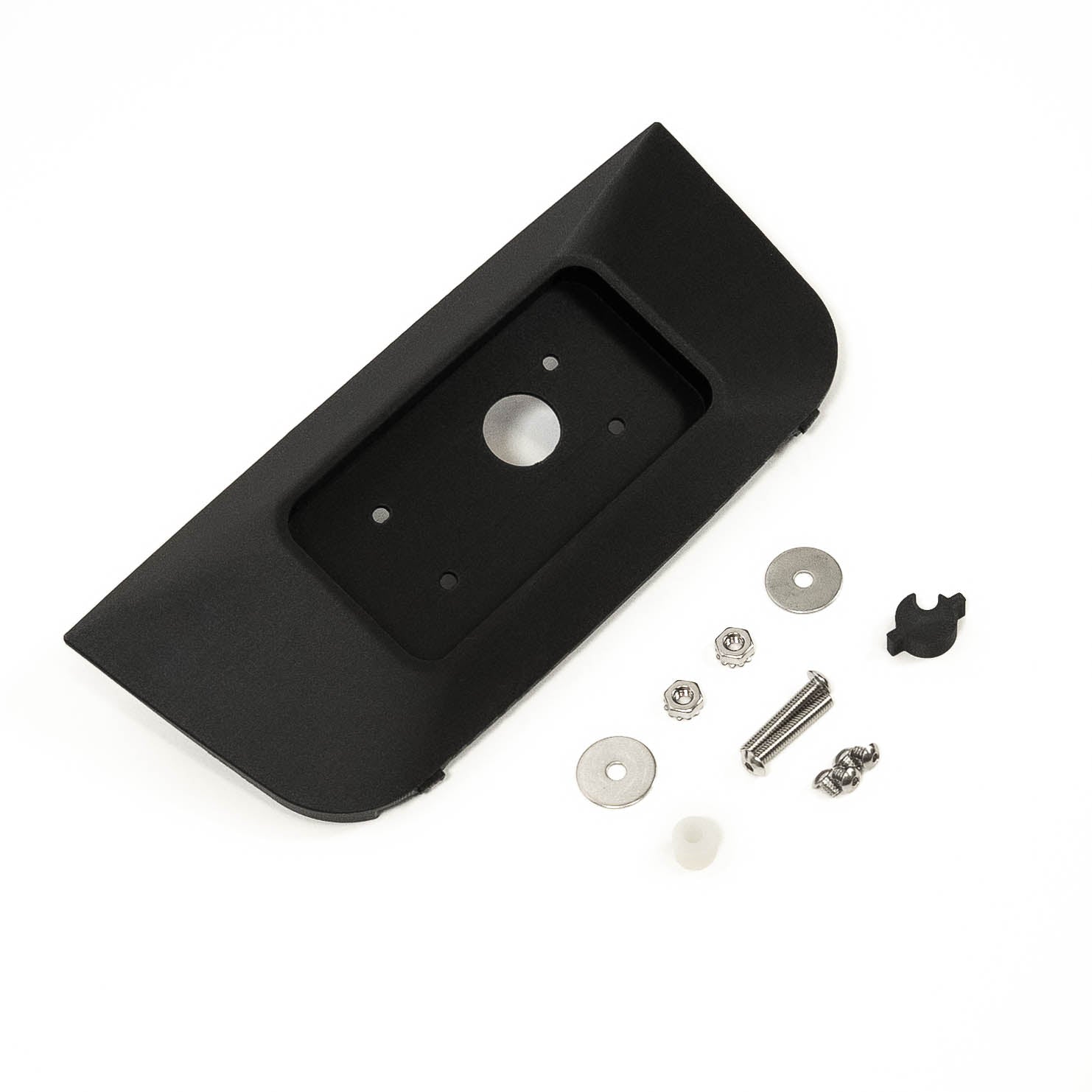

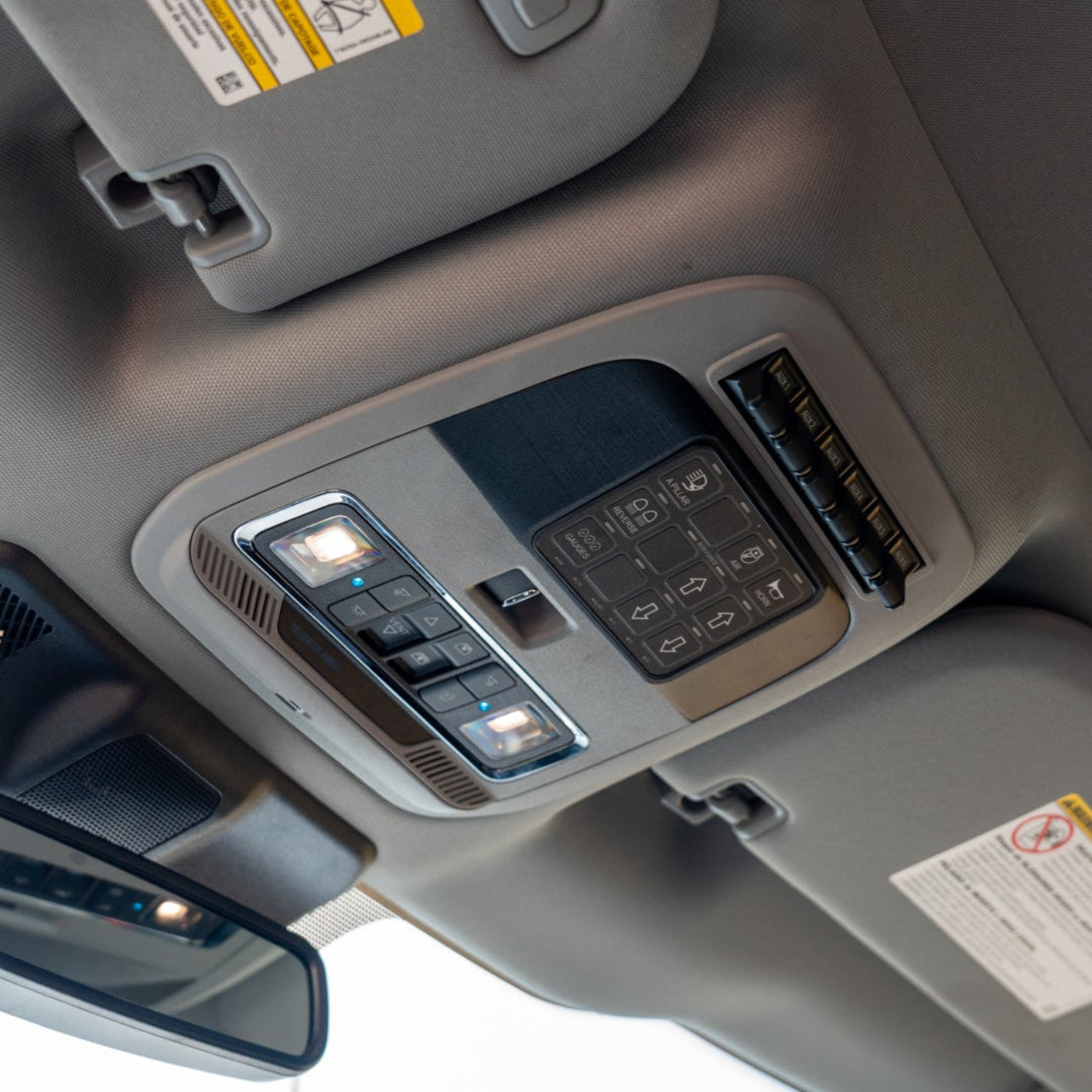

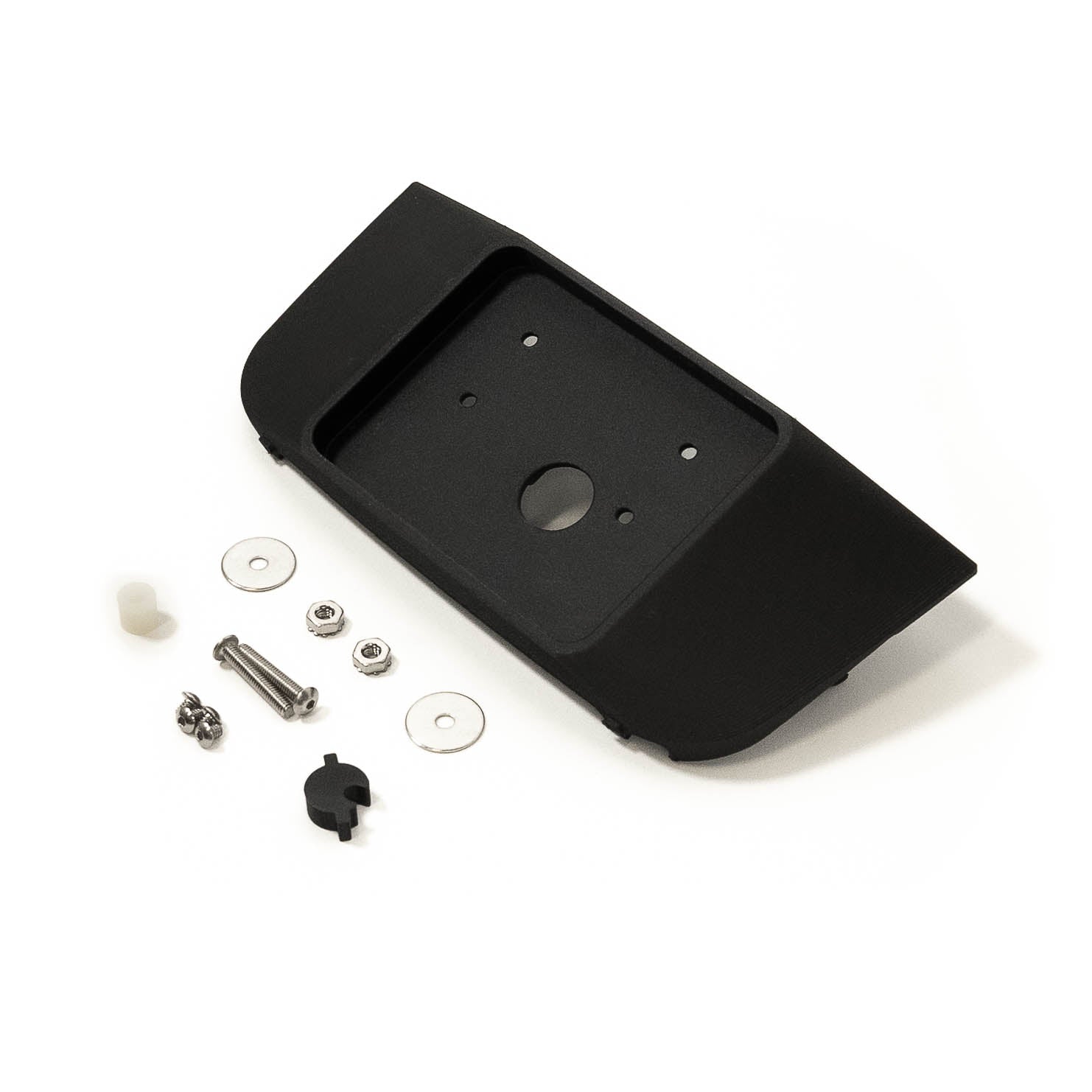

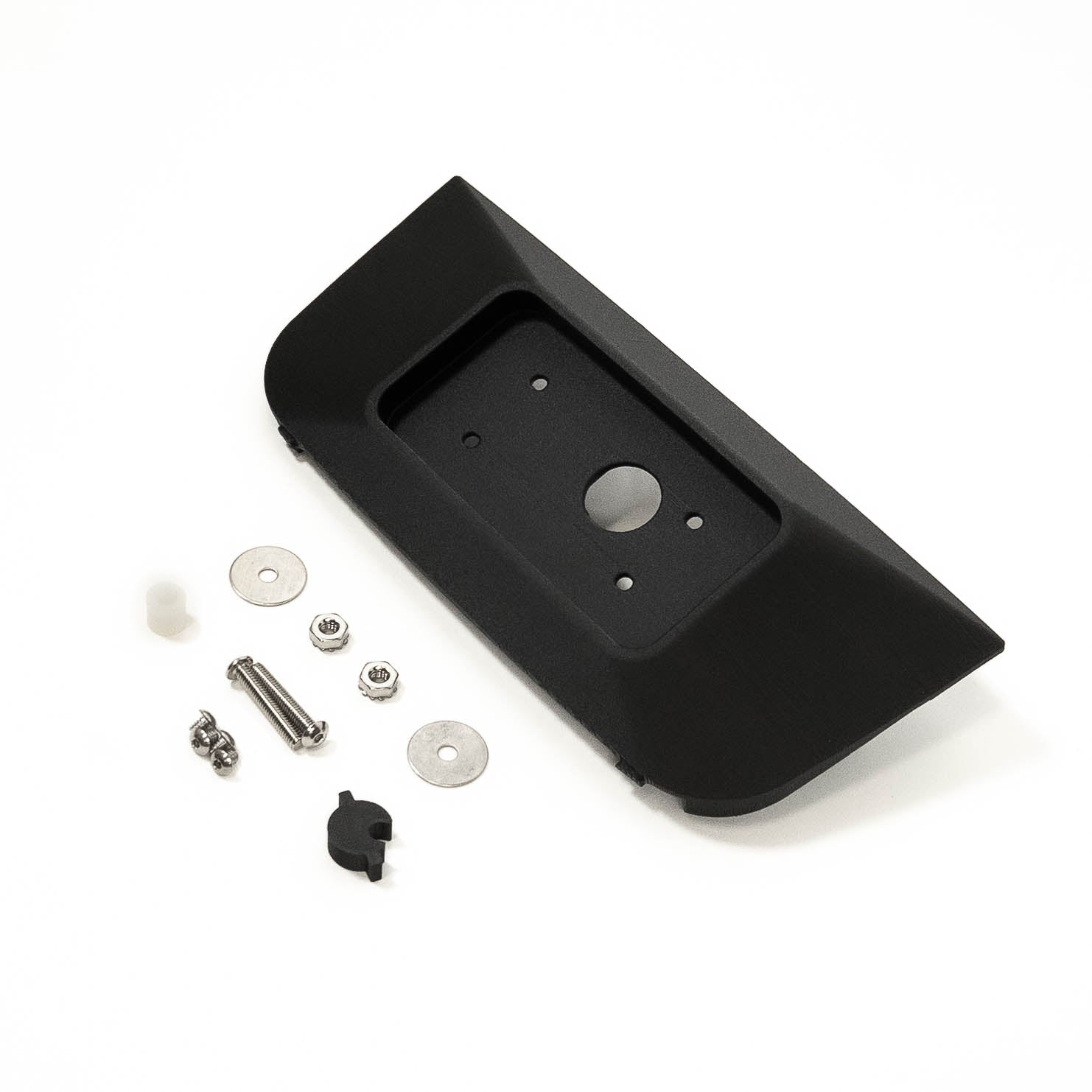

Our SDHQ Built Switch-Pros Keypad Keypad Conversion Mount for the 23-24 Ford F250/F350 allows you to convert the sunglass holder into a mount for the keypad component of the Switch-Pros SP-9100 or RCR-Force-12 in a secure and easy-to-reach location, allowing you to control your off-road lighting and accessories with ease.
This SDHQ Built keypad mount is 3D printed giving this keypad mount a direct from the factory level of fitment and quality. *Switch-Pros Not Included*
KEY FEATURES:
- 3D CAD Designed for a precise fit and finish.
- Fits both non-upfitters and upfitters overhead consoles
- Fits: 2023+ Super Duty
- Fitments allows for 9100 and RCR12
- Direct replacement of overhead sunglass holder.
- Drilling ¾” hole required to route switch pro wire

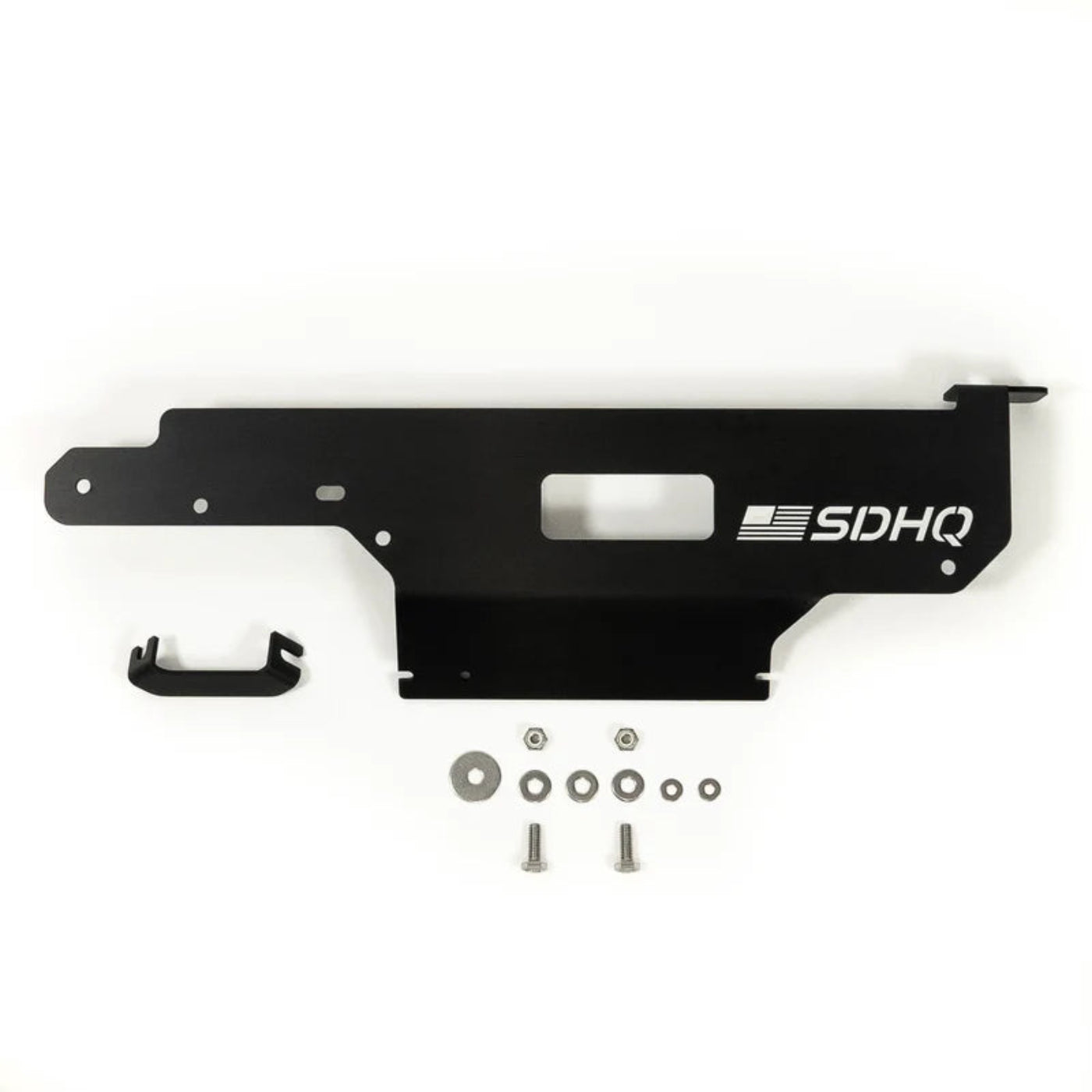

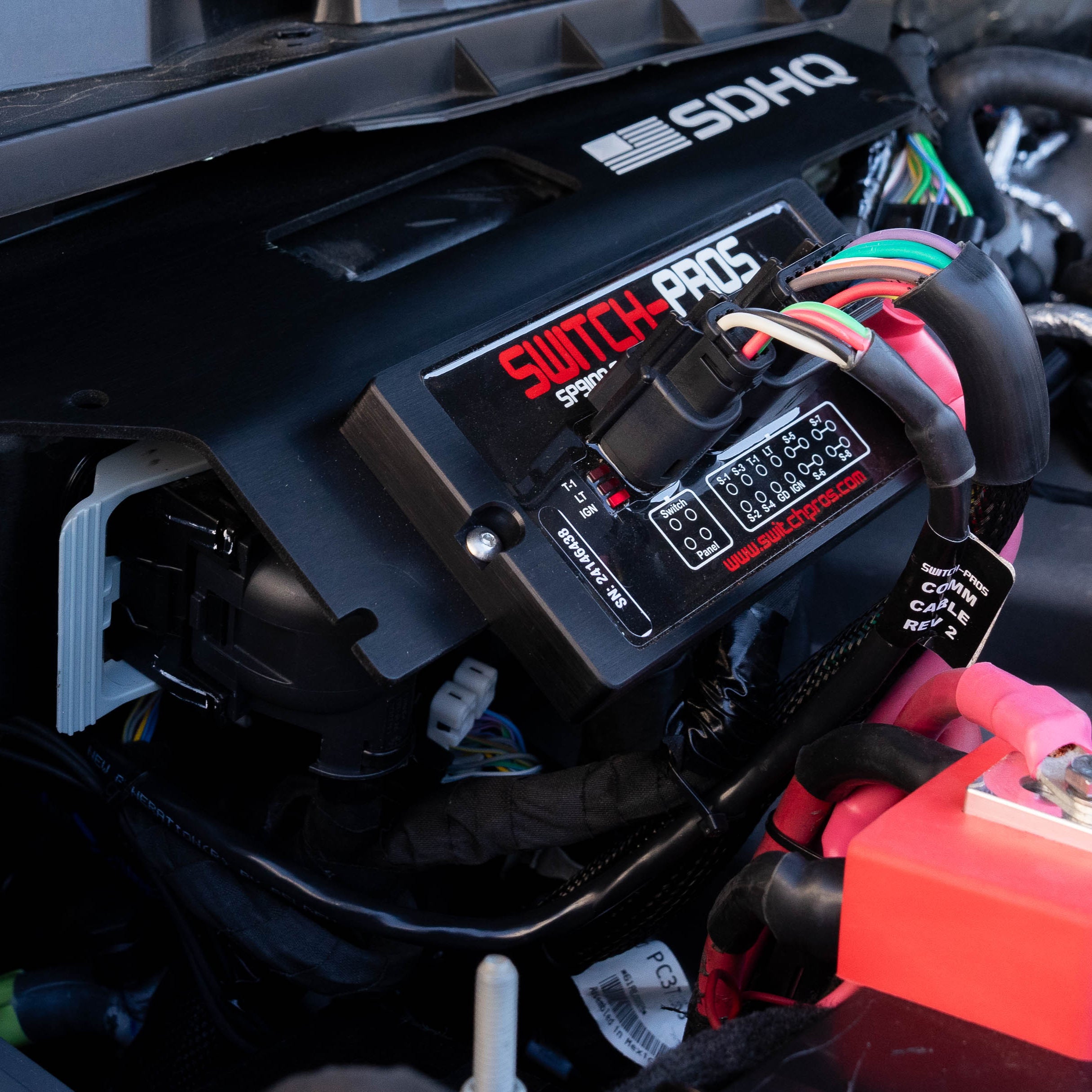

Power Module Mount Overview:

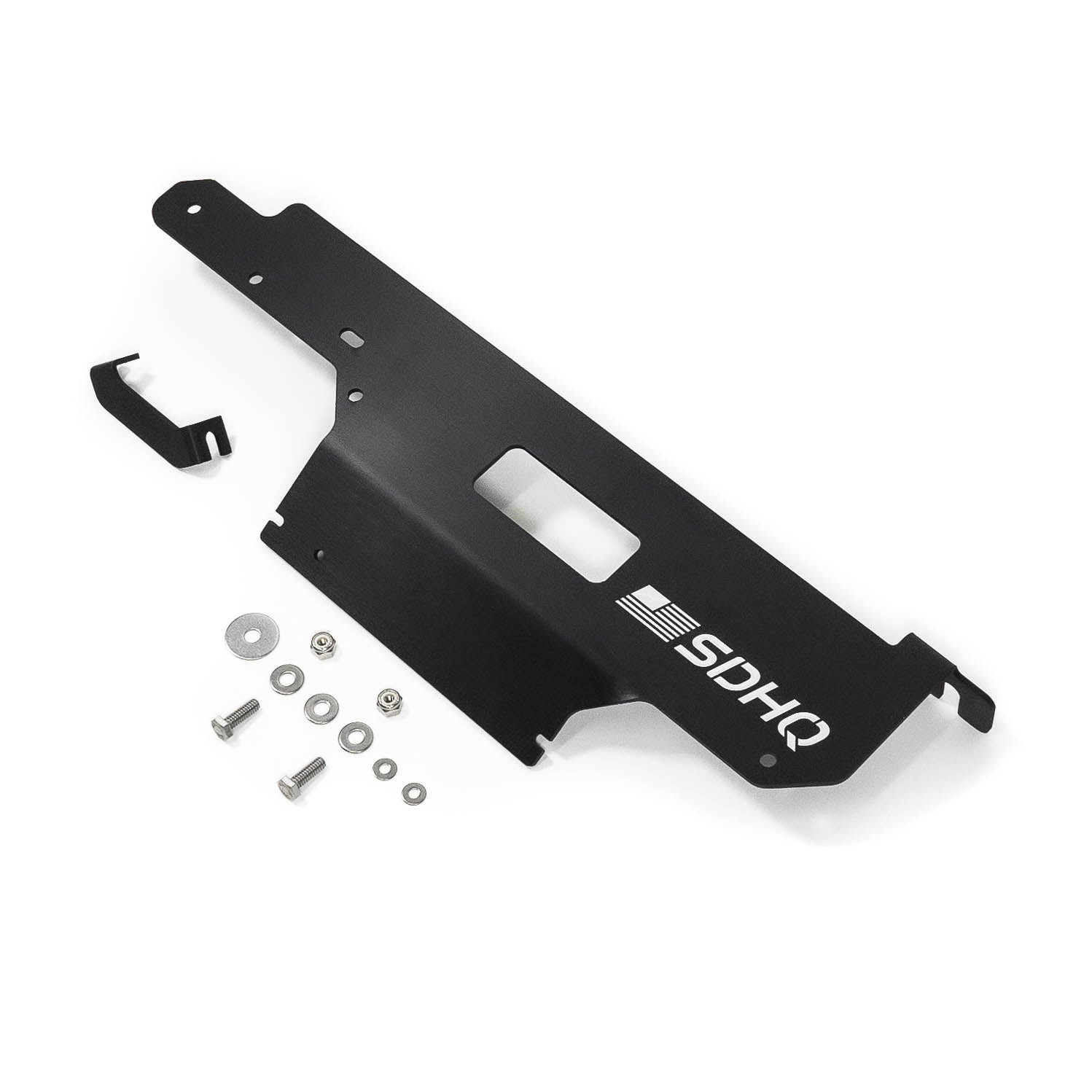

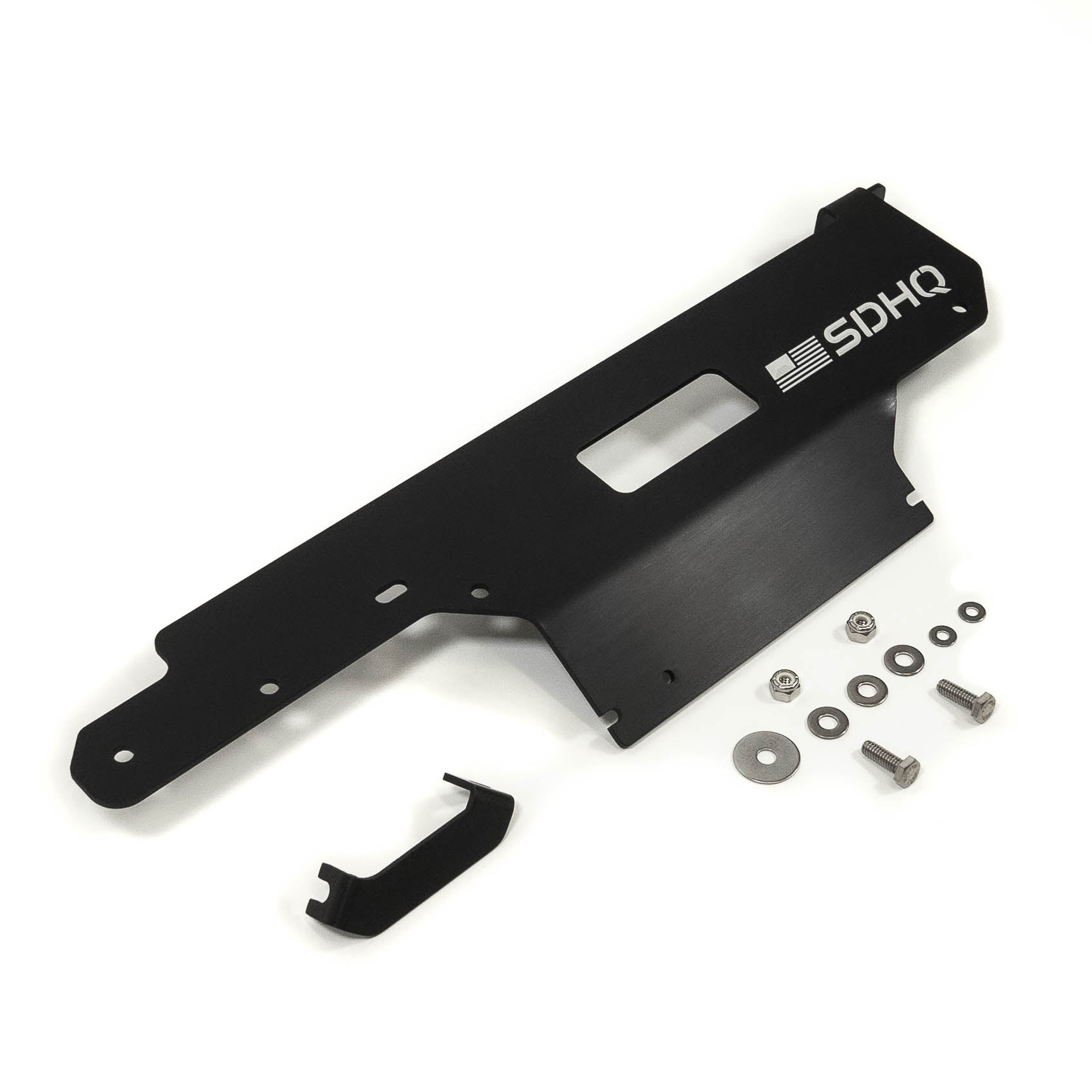

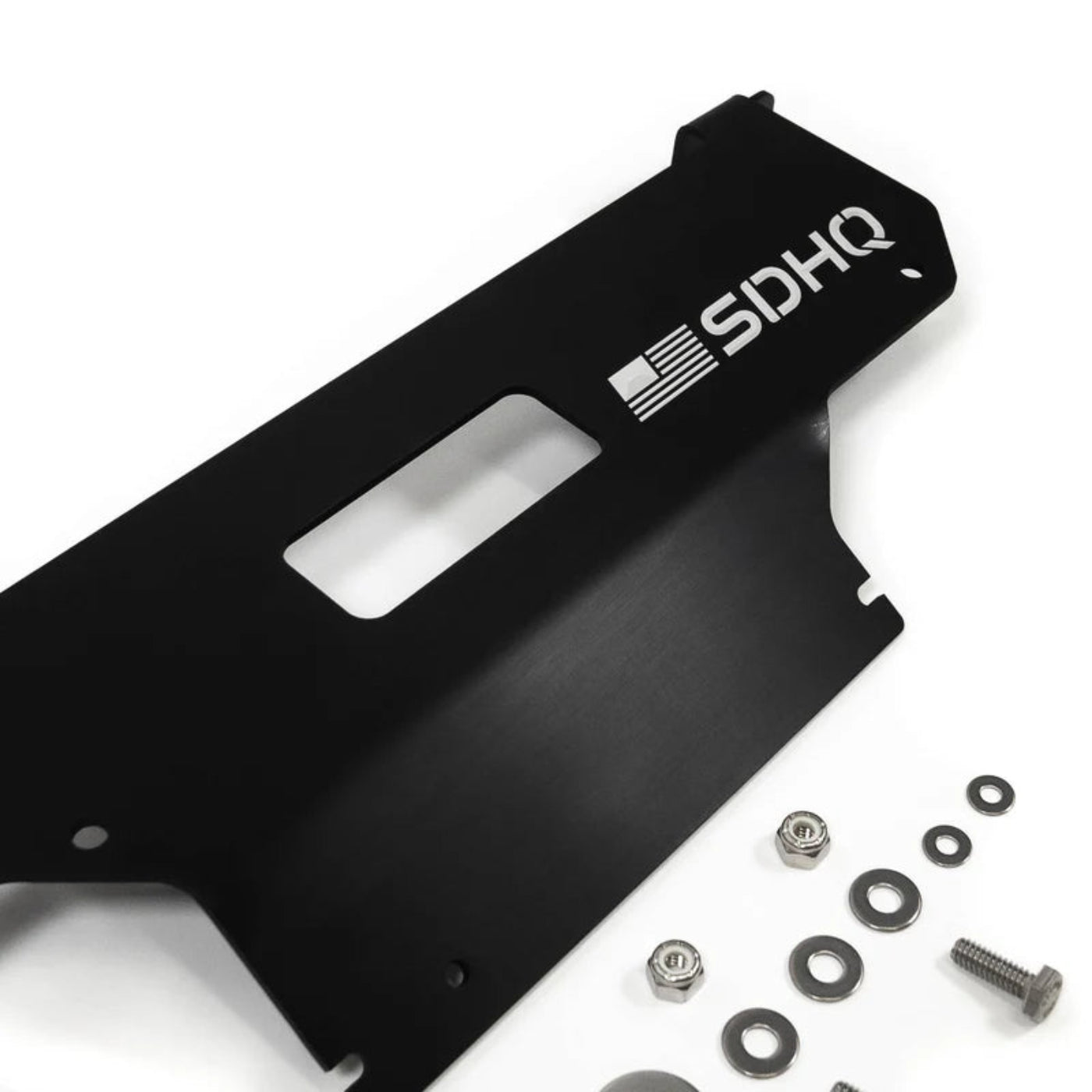

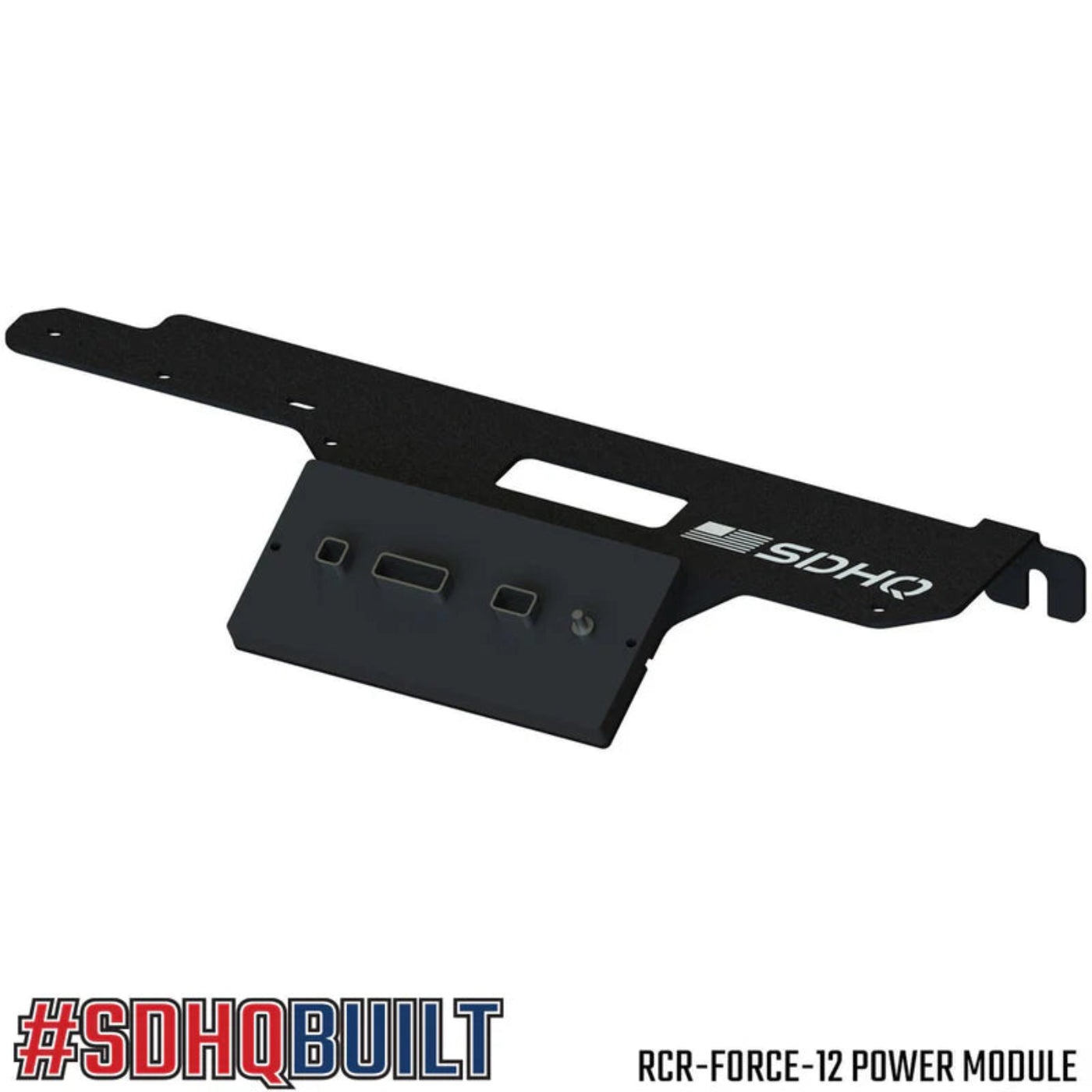

The #SDHQBuilt under the hood power module mount for the 2017-2024 Ford F250 and F350 is specifically tailored to provide a seamless integration of the Switch-Pros power module components into your vehicle. With an emphasis on preserving the truck's original design and minimizing installation complexity, this mounting solution is ideal for those who prioritize both aesthetics and function.
Key Features:
- In-House Engineering: As with other SDHQ products, this mount is designed, engineered, and built within their own facilities, ensuring a product that meets their high standards for fit and finish.
- No Modification Needed: The mount is designed to fit without the need for cutting or drilling, making the installation process reversible and maintaining the integrity of the vehicle.

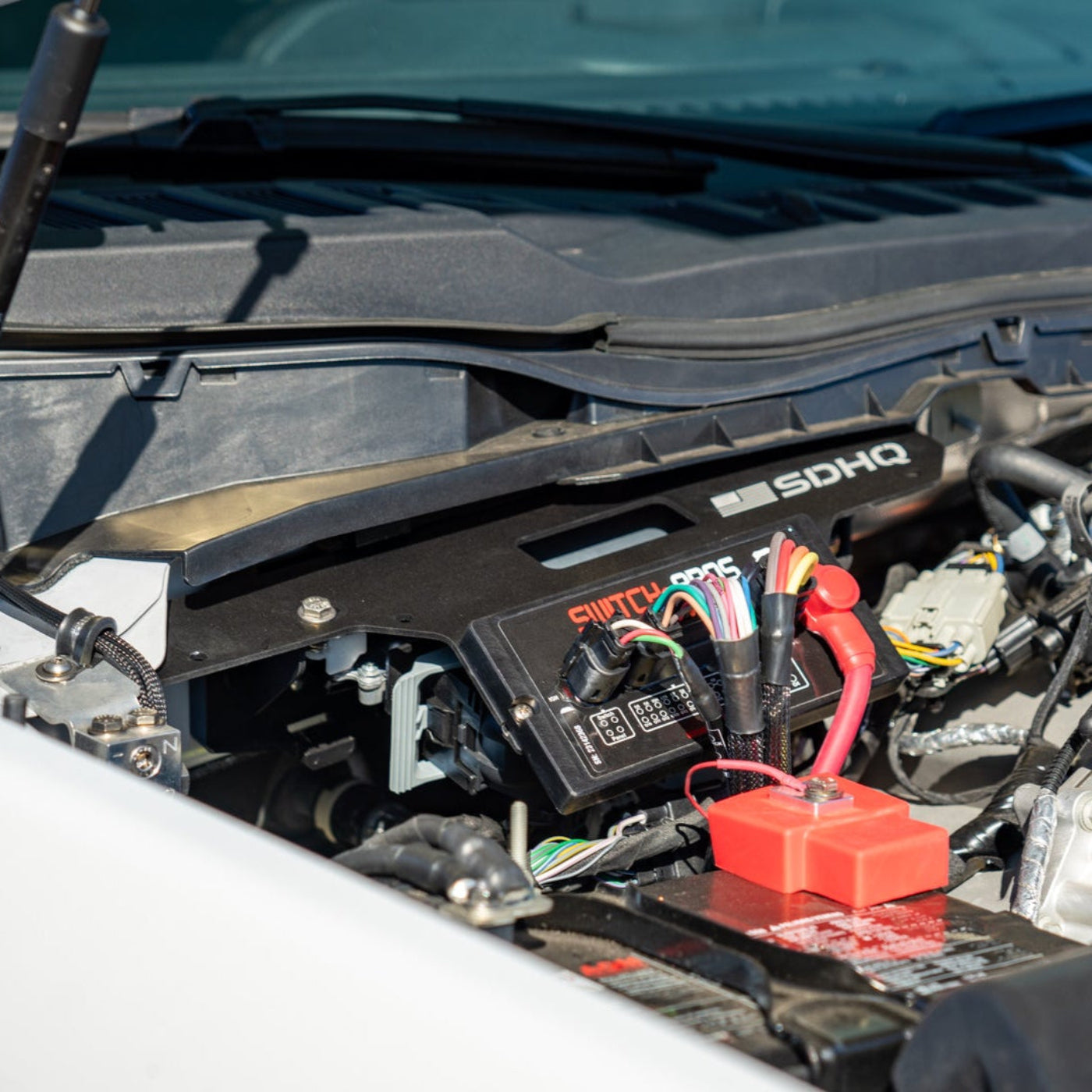

- Strategic Location: By mounting above the Power Control Module (PCM), it allows for easy access to the power module for maintenance or adjustments, as well as a straightforward wire transfer.
- Secure Mounting: Utilizes Switch-Pros hardware for a secure fit to the mounting plate, ensuring the power module stays in place even under rough conditions.
- Clean Installation: Offers a neat and tidy solution for adding additional control systems to your truck without cluttering the engine bay or the vehicle's interior.

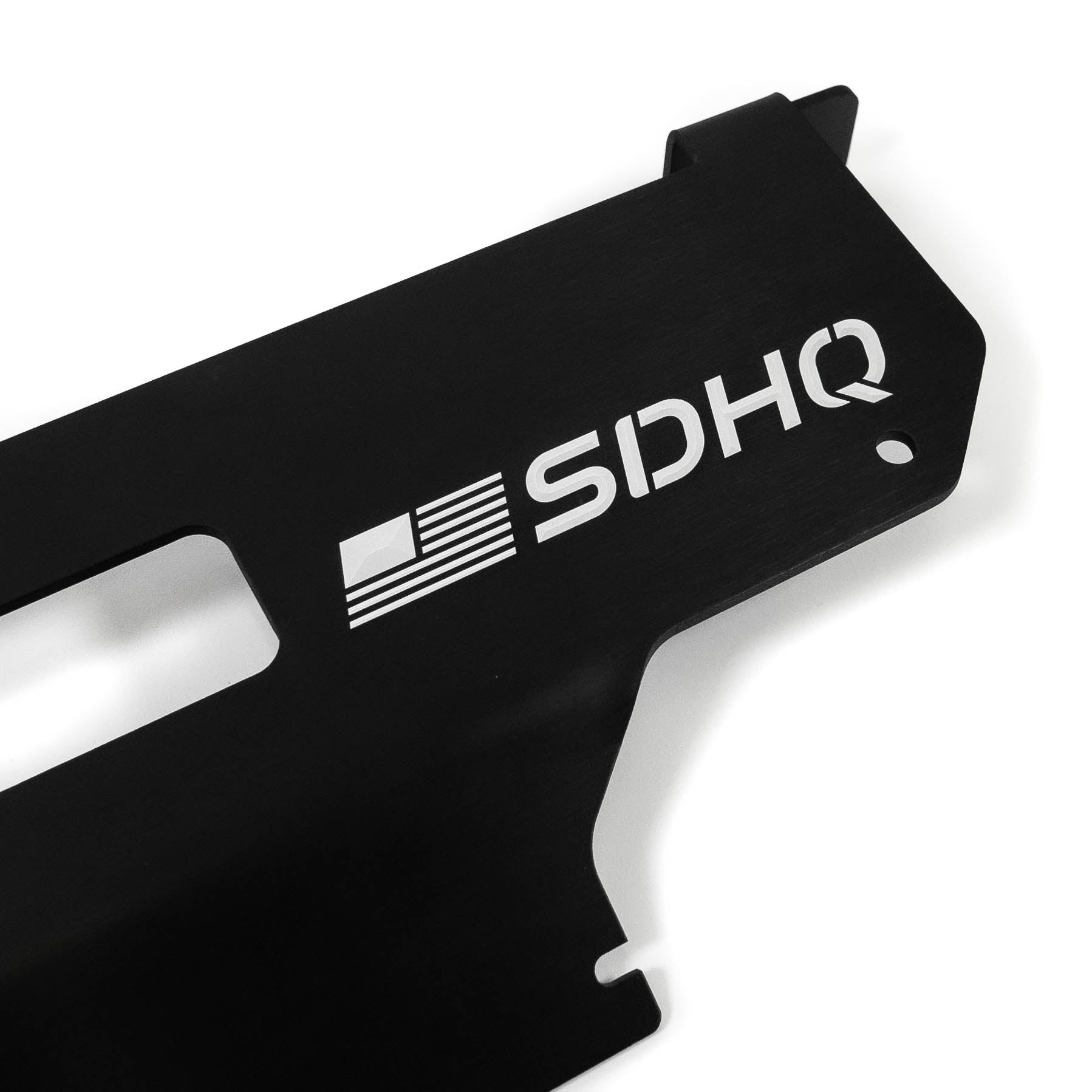

- Aesthetic Finish: The black anodized finish not only provides corrosion resistance but also matches the underhood aesthetics for an OEM-quality appearance.
Compatible Switch-Pros Products:
- Switch-Pros SP-9100: The 8-button keypad can be integrated seamlessly with this mount.
- Switch-Pros RCR-Force-12: Even the larger 12-button keypad is compatible, offering more control options for users who need it.
Tech Info:
- Component Exclusion: This product comes without the Switch-Pros components; those must be purchased separately.
- Compatibility: Designed to house either the SP-9100 or the RCR-Force-12, providing flexibility depending on the user's preference or pre-existing equipment.
This mounting kit is a great option for F250 and F350 owners who want to upgrade their trucks with Switch-Pros systems without compromising the vehicle's functionality or aesthetic. Its user-friendly design facilitates a straightforward DIY installation process that doesn't require special tools or permanent alterations to the vehicle.
🔧 INSTALL INSTRUCTIONS 🔧

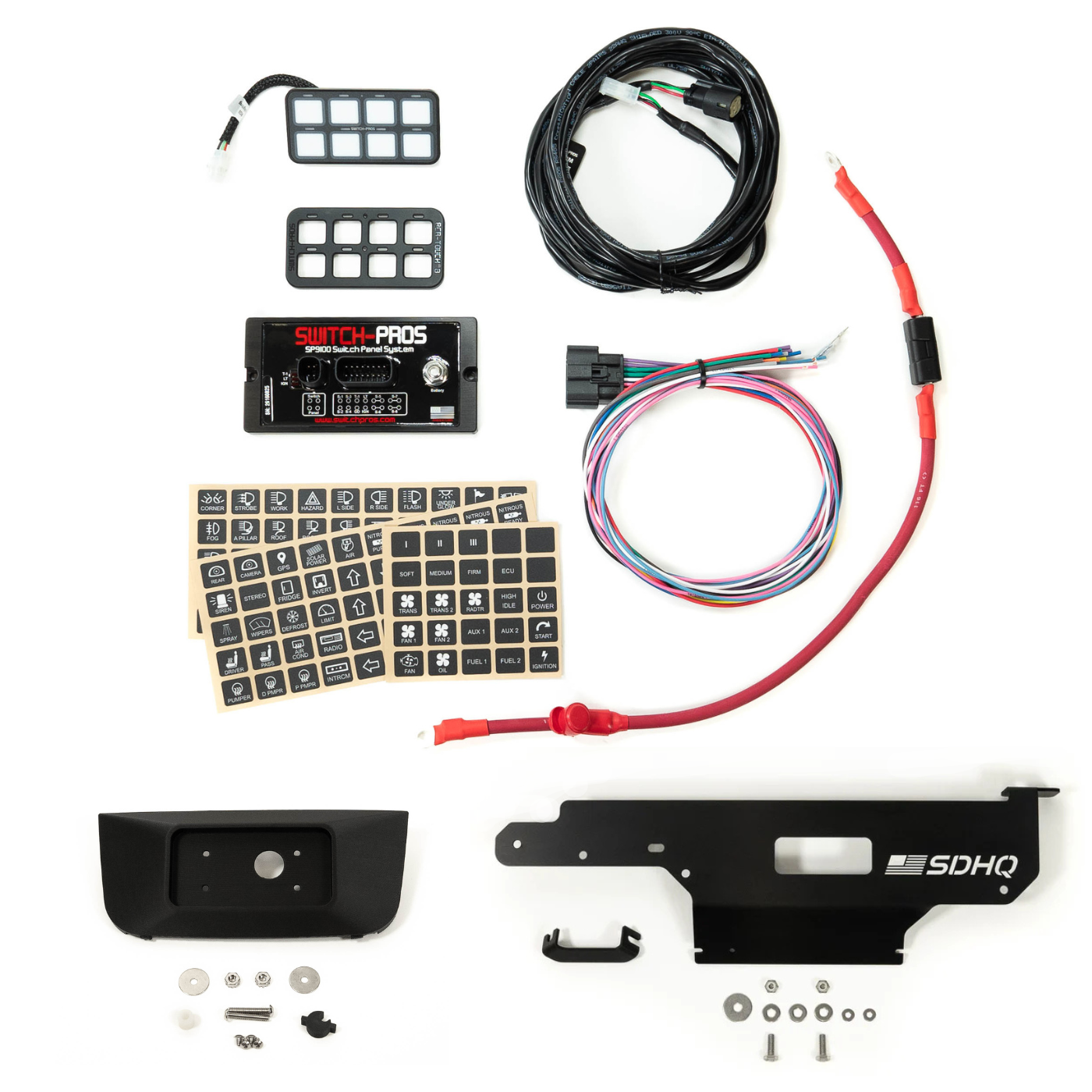

SP9100 Features
- RGB Backlighting
- Built-in Bluetooth module for use with free Switch-Pros App
- Program and operate your panel from any device with access to the iOs or Google Play Store
- Battery Voltage Readout on App screen
- Orange LED switch indicators
- LED Input Status Indicators for easy troubleshooting on power module
Specifications
- 125amp capacity with 8 outputs
- 8 Outputs: 4 rated @ 35A, 4 rated @ 20A
- Adjustable Output Overcurrent Values
- Switch Panel enclosure measures 4” L x 2” W x .375” H
- Power Module Measures 6”L x 3”W x .5”H (excluding connectors)
- Power Module Under Hood rating 125°C to -40°C
- Switch Panel and Power Module Waterproof rating of IP67
Programming & Other Features
- Preset Dimming function WITH MEMORY (100% to 10% brightness)
- Master Mode, with ability to turn up to 7 other switches On AND Off with one touch
- On/Off or Momentary
- Ignition or Battery Input
- Flash or Strobe, with User-Selectable Strobe patterns and One Touch activation
- Automatic Power-Up upon vehicle start up
- Time Delay off
- No bulky relay box
- Two External Trigger inputs can each activate up to four outputs (Active Hi or Active Low)
- Low Voltage Disconnect
- Sleep Mode for minimal power consumption
- Daisy Chain up to 3 Switch Panels to One Power Module

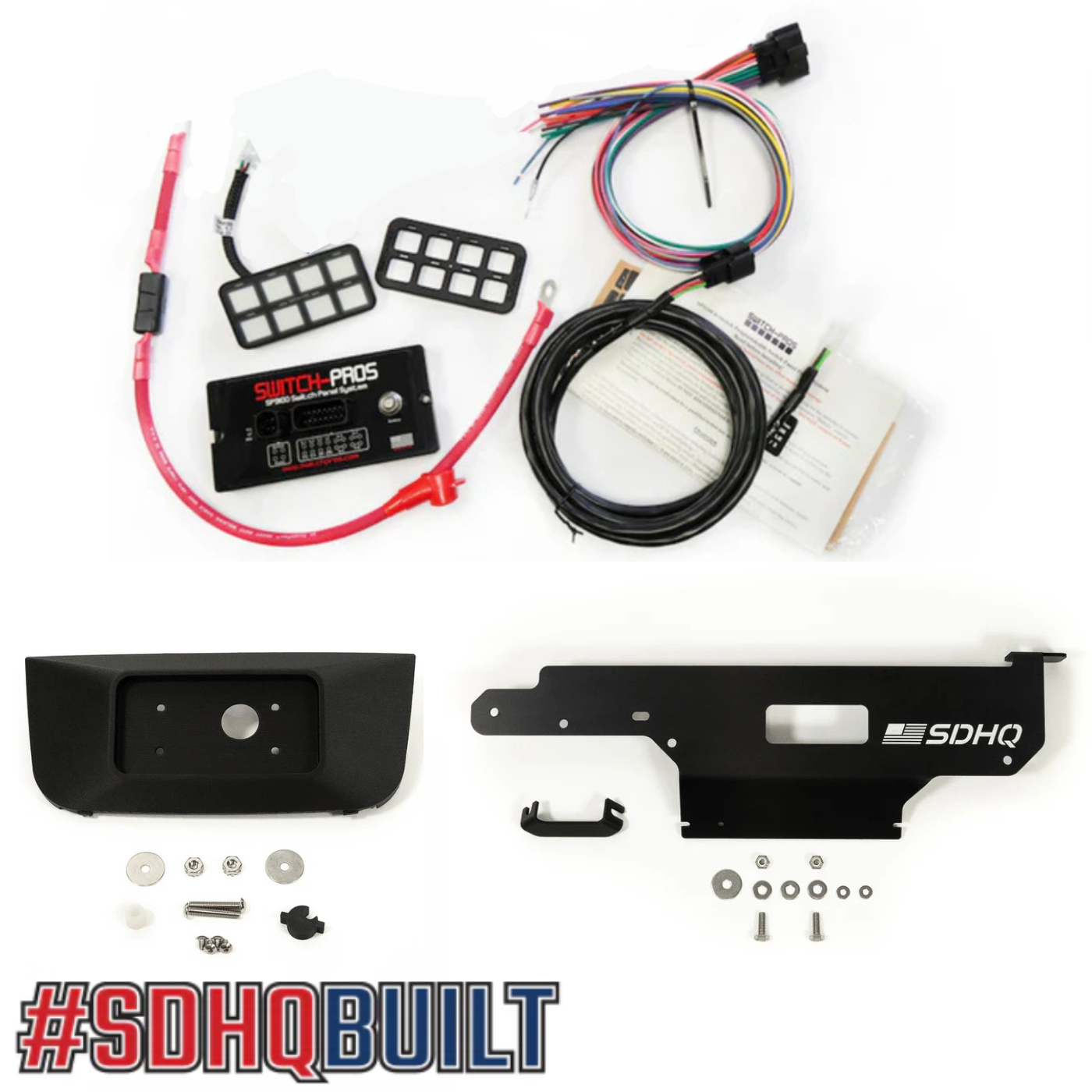

What’s Included?
- Switch Panel and Power Module
- RCR-Touch®8 cover, snaps on for ease of specific switch selection while wearing gloves or riding rough terrain (United States Design Patent No. US D922,969 S)
- 11’ of Communication Cable between Switch Panel and Power Module
- Power Cable with 125A inline fuse
- 125 User Selectable Legends included (Horizontal orientation)
- Installation brackets and hardware
- 16-pin color coded output harness
- Detailed installation Guide

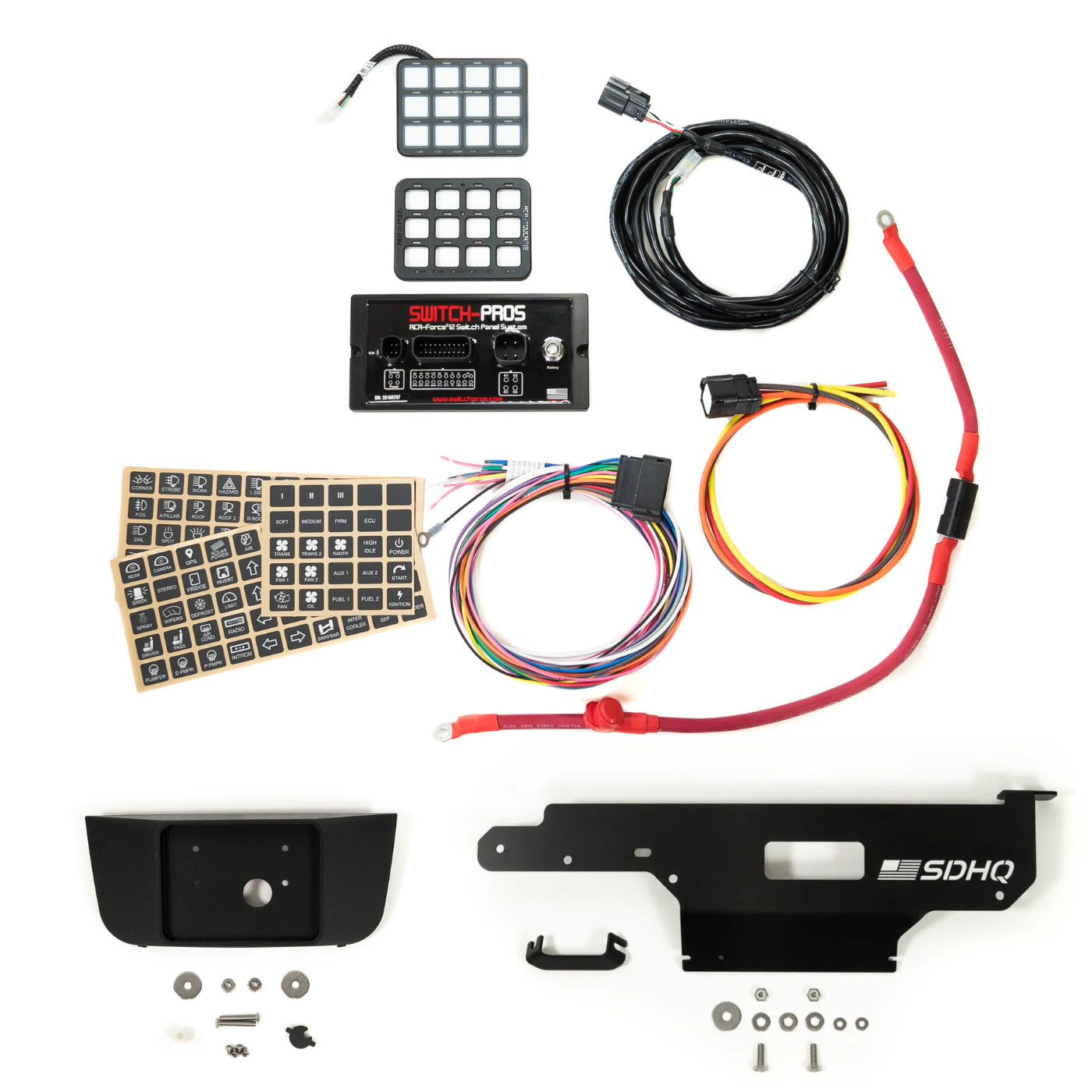

RCR Force 12 overview
The Switch-Pros RCR-FORCE-12 includes twelve tactile switches, in a three-row configuration that is user-programmable, with the same style of the previous Switch-Pros systems. The twelve circuit, 170 amp power module will control up to seventeen outputs, using a combination of direct and trigger inputs. Five of the circuits can handle inductive loads, and one circuit is a low side driver.
The RCR-FORCE-12 Kit includes everything required for installation, plus the all-new RCR-Touch snap on bezel, which will help the driver select switches with precision even while traveling rough terrain or wearing gloves.
KEY FEATURES:
- 12 user-programmable switches
- RCR-TOUCH™ switch cover
- Waterproof, solid state power module
- 150amp capacity with 17 outputs
- 4 rated @ 35A and 1 rated @ 30A
(High In-Rush circuits) - 11 rated @ 15A, which can be combined for larger loads
- 1 Low Side driver switch, rated @ 2A
- 4 rated @ 35A and 1 rated @ 30A
- Built-in Bluetooth module
- Program and operate accessories with phone or tablet
- System can be used to start vehicle
- No bulky relay box
- RGB Backlighting with unlimited color options
- Three External Trigger inputs can each activate up to four outputs (Active Hi or Active Low)
- Sleep Mode for minimal power consumption
- Color coded output wires
- Daisy Chain up to 3 Switch Panels to One Power Module
- Free app for iOs and Android platforms
- Splash proof switch panel with Polycarbonate overlay faceplate
- LED Input Status Indicators for easy troubleshooting
- Battery Voltage Readout on App screen
SWITCH PANEL SPECS:
- RCR-Touch™ cover, snaps on for ease of specific switch selection while wearing gloves or riding rough terrain
- Switch Panel enclosure measures
4” L x 3” W x .375” H - Splash proof with Polycarbonate overlay faceplate
- Pre-machined for factory- look installation
- RGB backlighting
- Orange LED switch indicators
- 6 Programmable LED Status indicators
POWER MODULE SPECS:
- 17 Outputs: 4 rated @ 35A, 1 rated @ 30A, 11 rated @15A, 1 Low Side rated @ 2A
- 150A maximum rating
- 7”L x 3.5”W x .5”H (excluding connectors)
- Waterproof and Solid State
- Underhood rated 125° to -40°C
- LED Ignition Input Status Indicator

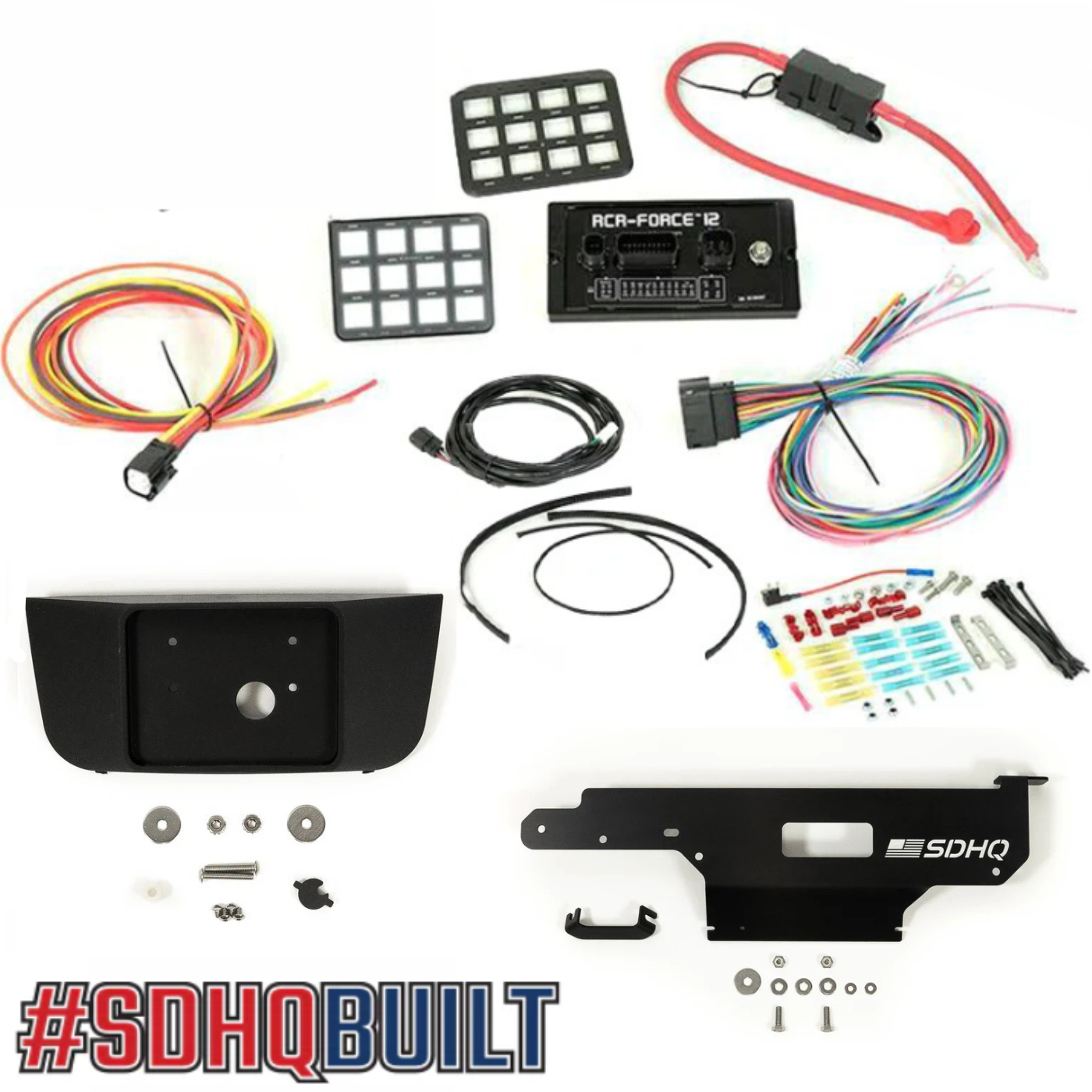

KIT INCLUDES:
- Switch Pros RCR-Force-12 Panel
- Switch Pros RCR-Force-12 Power Module
- RCR-TOUCH™ switch cover
- 11’ of Communication Cable between Switch Panel and Power Module
- Power Cable with 150A inline Circuit protection
- 100 User Selectable Legends included (Horizontal orientation)
- Installation brackets and hardware
- Color Coded Output wires
- Wire harness with waterproof, sealed automotive grade connectors
SWITCH PROGRAMABLE FEATURES:
- Preset Dimming function WITH MEMORY (100% to 10% brightness)
- Master Mode, with ability to turn multiple outputs On AND Off with one touch
- Every Master Switch can control up to 4 other switch outputs
- On-On-Off logic
- Touch Panel lockout
- On/Off or Momentary
- Ignition or Battery Input
- Flash or Strobe, with User-Selectable Strobe patterns and One Touch activation
- Automatic Power-Up upon vehicle start up
- Safety Lockout for specific switches
- Time Delay off
