'23-24 Colorado WT/LT/Z71 2.5 Series Remote Reservoir Coilover Kit
'23-24 Colorado WT/LT/Z71 2.5 Series Remote Reservoir Coilover Kit
'23-24 Colorado WT/LT/Z71 2.5 Series Remote Reservoir Coilover Kit

Icon Vehicle Dynamics

'23-24 Colorado WT/LT/Z71 2.5 Series Remote Reservoir Coilover Kit

$1,559.96 $1,949.95
Save $389.99
SKU: 71671
Quantity:

'23-24 Colorado WT/LT/Z71 2.5 Series Remote Reservoir Coilover Kit

MCQUEEN

190 South McQueen Road
Suite 109
Gilbert AZ 85233
United States

+14806332929

STATE OF CALIFORNIA CONSUMER WARNING

overview

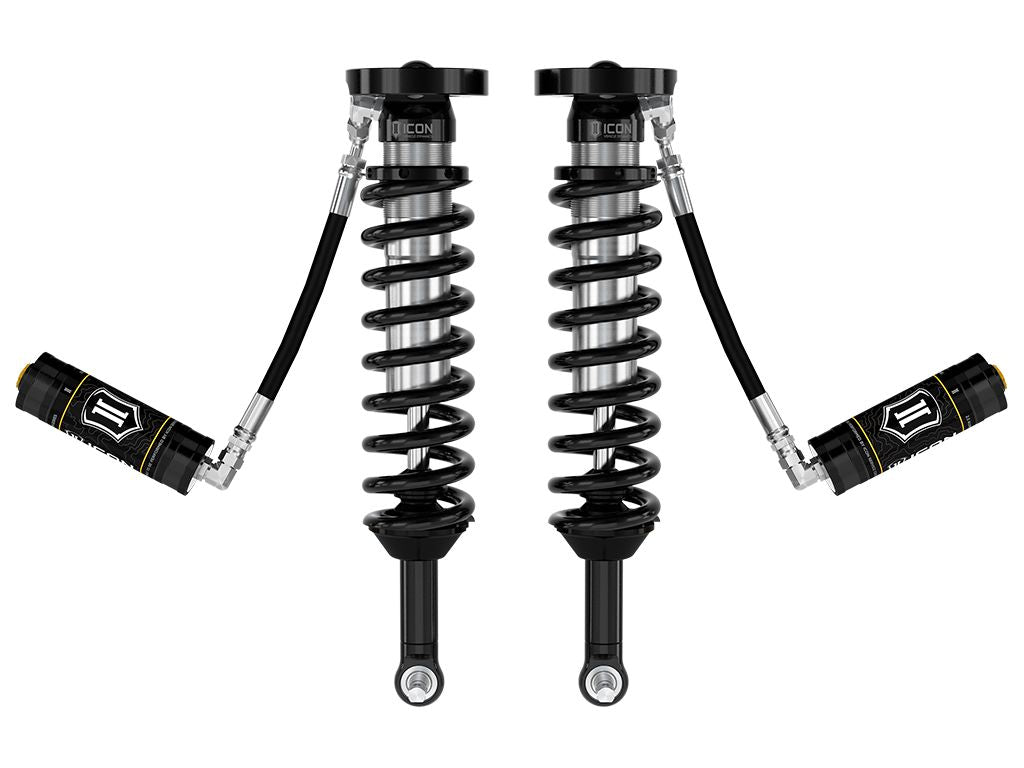

ICON Vehicle Dynamics V.S. Series 2.5” coilover shocks are an incredible upgrade for the front-end of 2023-2024 Chevrolet Colorado WT, LT, and Z71 trucks. Specifically designed for the narrower track width of these Colorado submodels, their longer length offers a 20% increase in total front wheel travel compared to stock, for a total of 9.5” of front wheel travel. ICON’s Vehicle-specific valving provides a sport tuned feel on and off-road while 1.75-2.5” of lift height adjustability allows the use of larger, more aggressive wheel and tire combinations. The larger 2.5” diameter shock body and increased piston area over stock components provides improved damping ability and outstanding ride characteristics across varying types of terrain. Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. When paired with ICON rear 2.0 Aluminum Series or 2.5 Series shocks vehicle control will be balanced front to rear, resulting in the best overall driving experience for your 2023-2024 Chevrolet Colorado WT, LT, and Z71.

features & Benefits
  • 20% increase in front wheel travel and improved ride quality over stock
  • High strength alloy CNC machined lower bar pin and application specific mounting hardware
  • Fully rebuildable and re-tunable
  • 100% Bolt-on - no drilling, cutting, or welding necessary for installation
  • Vehicle specific tuned for superior shock damping and control
  • Adjustable for 1.75-2.5" of front lift height over stock
  • Remote reservoirs maintain cooler operating temperatures during extended off-road use
  • ICON engineered coil springs
  • Corrosion resistant CAD plated 2.5” diameter shock bodies
  • 7/8" diameter hardened chrome plated shafts
  • 6061 Aircraft grade aluminum CNC machined components
  • PTFE lined spherical bearings for extended longevity and minimal deflection
Tech Info:
  • Factory Wheels & Tires Fitment: Yes
  • Recommended Aftermarket Wheels: 17x8.5" w/ 5.46” Backspace / 18mm Offset
  • Recommended Aftermarket Tires: 33" x 12.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
  • APPLICATION NOTE #55: Shocks are fully serviceable. Lift heights indicated are for a stock equipped vehicle.
  • APPLICATION NOTE #152: ICON Delta Joint Pro upper control arms required
  • APPLICATION NOTE #160: Will not fit GMC Canyon. Will not fit Chevrolet Colorado Trail Boss or ZR2.
