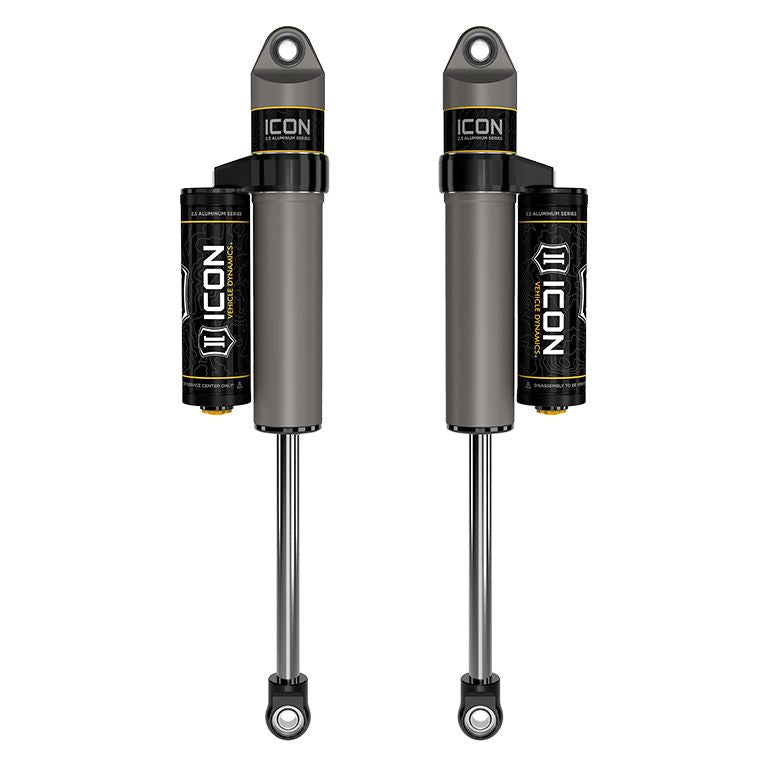

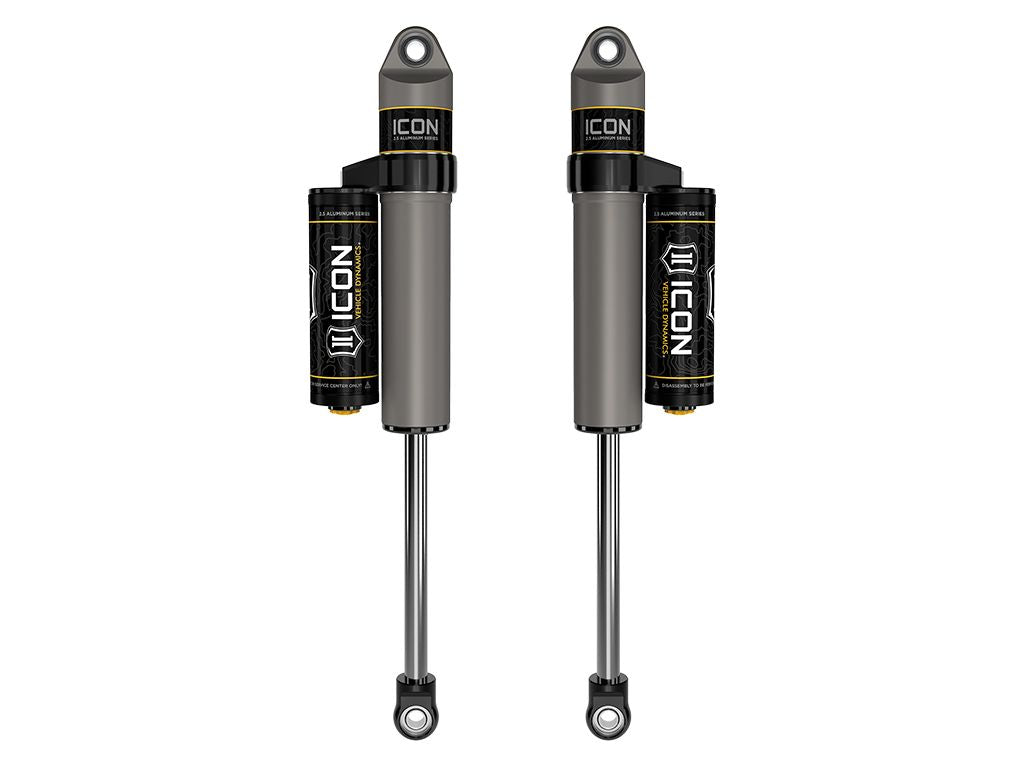

'23-24 Colorado WT/LT/Z71 2.5 Series Piggyback Reservoir Shocks
'23-24 Colorado WT/LT/Z71 2.5 Series Piggyback Reservoir Shocks
'23-24 Colorado WT/LT/Z71 2.5 Series Piggyback Reservoir Shocks

Icon Vehicle Dynamics

'23-24 Colorado WT/LT/Z71 2.5 Series Piggyback Reservoir Shocks

$899.96 $1,124.95
Save $224.99
SKU: 77751P
Quantity:

'23-24 Colorado WT/LT/Z71 2.5 Series Piggyback Reservoir Shocks

MCQUEEN

190 South McQueen Road
Suite 109
Gilbert AZ 85233
United States

+14806332929

STATE OF CALIFORNIA CONSUMER WARNING

overview

ICON Vehicle Specific (V.S.) 2.5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Like all ICON'S Shock Absorbers, V.S. 2.5 Aluminum Series shocks are 100% rebuildable and 100% revalveable. For piggyback and specific remote reservoir applications, ICON'S unique use of a 6061 billet aluminum manifold a few inches below the top cap of the shock creates an internal Bump Zone that when used creates an additional 20% of damping force. This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. If you are looking for a more user defined tune, consider looking into the Compression Damping Control Valve (CDCV) shocks.

features & Benefits
  • ICON’s internal “Bump Zone” increases damping by 20% to provide more control as the shock approaches full compression
  • All ICON 2.5 Series Piggyback and Remote Reservoir shocks can be upgraded to ICON’s Compression Damping Control Valve (CDCV)
  • 100% Rebuildable
  • 100% Revalveable
  • Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use
  • Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
  • Nitrogen charged monotube design with piggyback reservoir
  • One piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
  • 7/8” diameter induction hardened, chrome plated shock shaft
  • PTFE lined spherical bearings and application specific mounting hardware
  • 6061 aircraft grade aluminum CNC machined components
  • One-piece impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish
Tech Info:
  • TECH NOTE: Compatible with 0-1" rear lift over stock on GMC Canyon & Chevrolet Colorado Trail Boss
  • TECH NOTE: Compatible with 0-2" rear lift over stock on Chevrolet Colrado WT, LT, and Z71
  • TECH NOTE: Will not fit Chevrolet Colorado ZR2 or GMC Canyon AT4X
