PRODUCT OVERVIEW:
Our SDHQ Built complete Switch-Pros RCR-12 Mounting kit allows you to mount the keypad and power module components of your Switch Pros RCR-Force-12 in your 2022-Current Toyota Tundra without piecing different components together.
Our complete kit includes the Switch-Pros RCR-FORCE-12 Switch Panel Power System, our SDHQ Built Under the Hood Power Module Mount, and our Switch-Pros RCR-FORCE-12 Keypad Mount.
FITMENT DETAILS
- VEHICLE FITMENT: 2022-Current Toyota Tundra
- KEYPAD MOUNTING LOCATION: Driver's left hand side under the OEM switch panel
- UNDER THE HOOD POWER MODULE MOUNTING LOCATION: Locates the Switch-Pros SP-9100 or RCR-Force-12 to the front of the battery
- SWITCH-PROS FITMENT: Switch-Pros RCR-FORCE-12 (12 button) keypad
- REDARC SOLAR REGULATOR: Locates the REDARC Solar Regulator to the top of the battery
- NOTE: DOES NOT FIT Switch-Pros RCR-Touch 8 Cover
- NOTE: Minor drilling into your Tundra's OEM Panel is required
KEY FEATURES:
- SDHQ Built Switch-Pros Keypad and Power Module Mounts are 3D CAD designed, engineered & built in-house for our typical SDHQ Built quality, fit, and finish
- Designed as a complete kit
- 3D printed from carbon-fiber filled nylon, a high strength, tough and chemical resistant material
- Built specifically for the Switch-Pros RCR-FORCE-12
- Clean and straightforward install
- All components are made in the USA

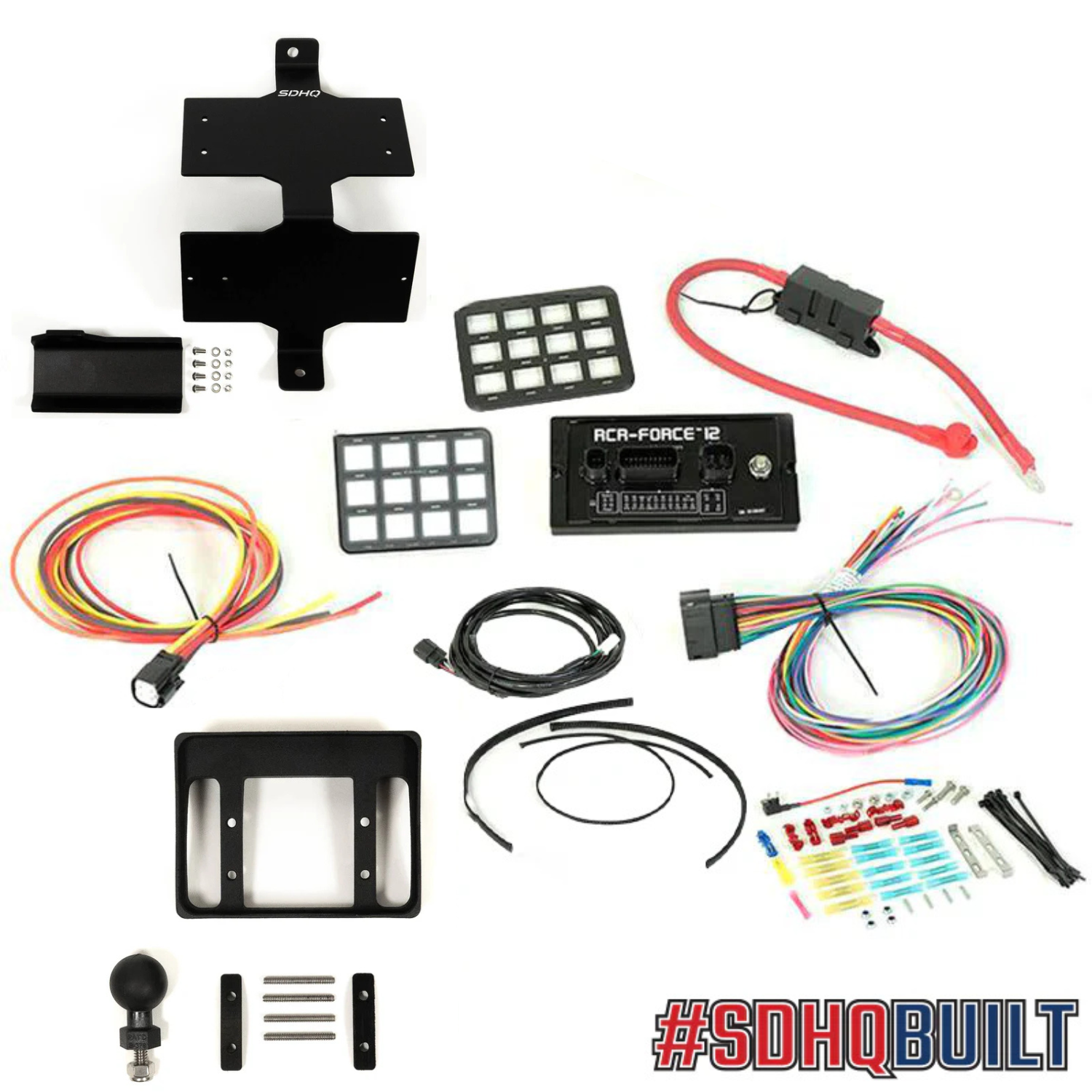

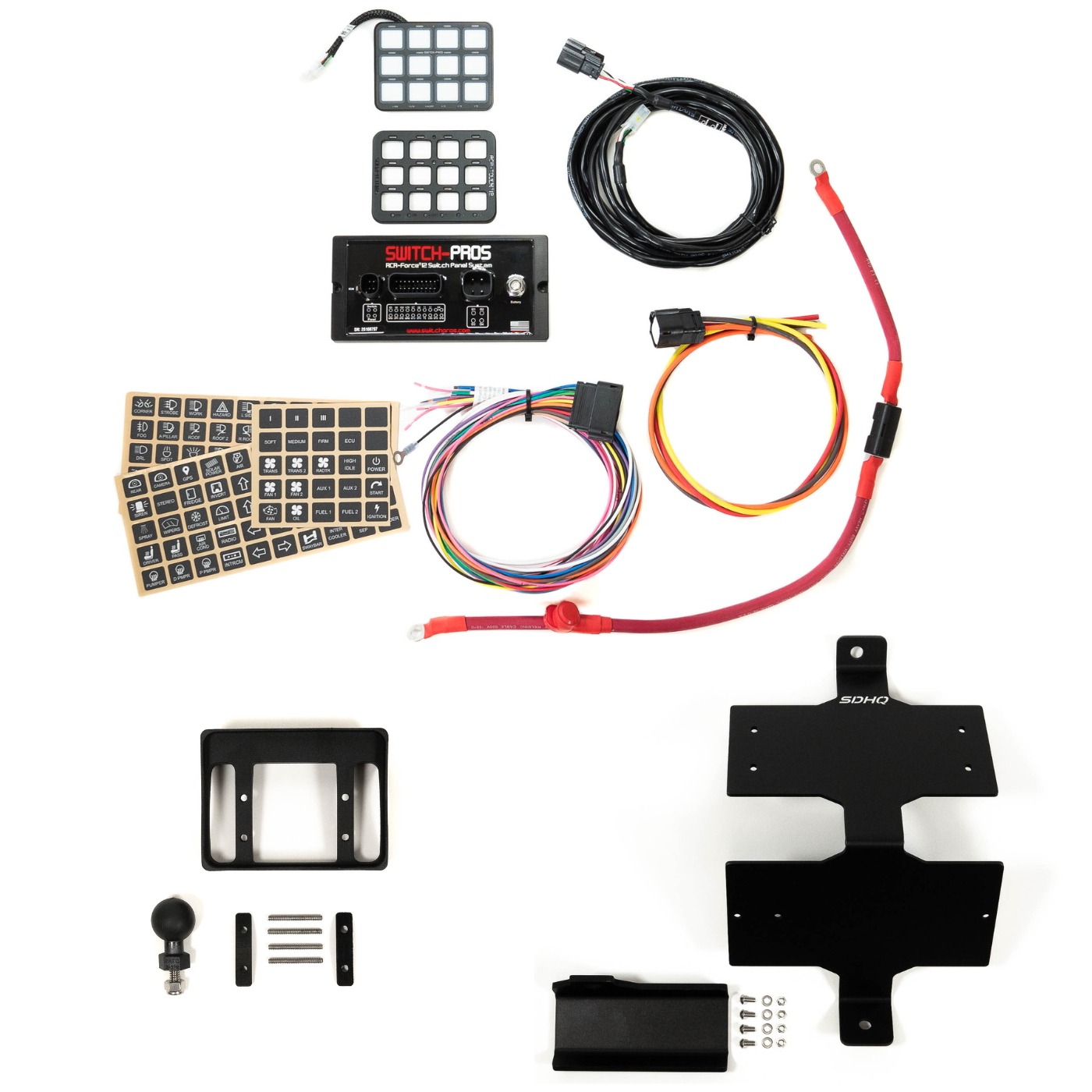

WHAT'S INCLUDED:
- SWITCH PROS RCR-FORCE-12 12 Switch Panel Power System
- '22-Current Toyota Tundra SDHQ Built Switch-Pros RCR-Force-12 Keypad Mount
- '22-Current Toyota Tundra SDHQ Built Switch-Pros Power Module Mount
COMPATIBLE SWITCH-PROS PRODUCTS:
- Switch-Pros RCR-FORCE-12 (12 button keypad)
COMPONENT OVERVIEW:
-
SWITCH PROS RCR-FORCE-12 12 SWITCH PANEL POWER SYSTEM:
The RCR FORCE-12 includes twelve tactile switches, in a three-row configuration, with the same style of the previous Switch-Pros systems. The twelve circuit, 170 amp power module will control up to seventeen outputs, using a combination of direct and trigger inputs. Five of the circuits can handle inductive loads, and one circuit is a low side driver.
KEY FEATURES: - 12 user-programmable switches
- Waterproof, solid state power module
- 150amp capacity with 17 outputs
- 4 rated @ 35A and 1 rated @ 30A (High In-Rush circuits)
- 11 rated @ 15A, which can be combined for larger loads
- 1 Low Side driver switch, rated @ 2A
-

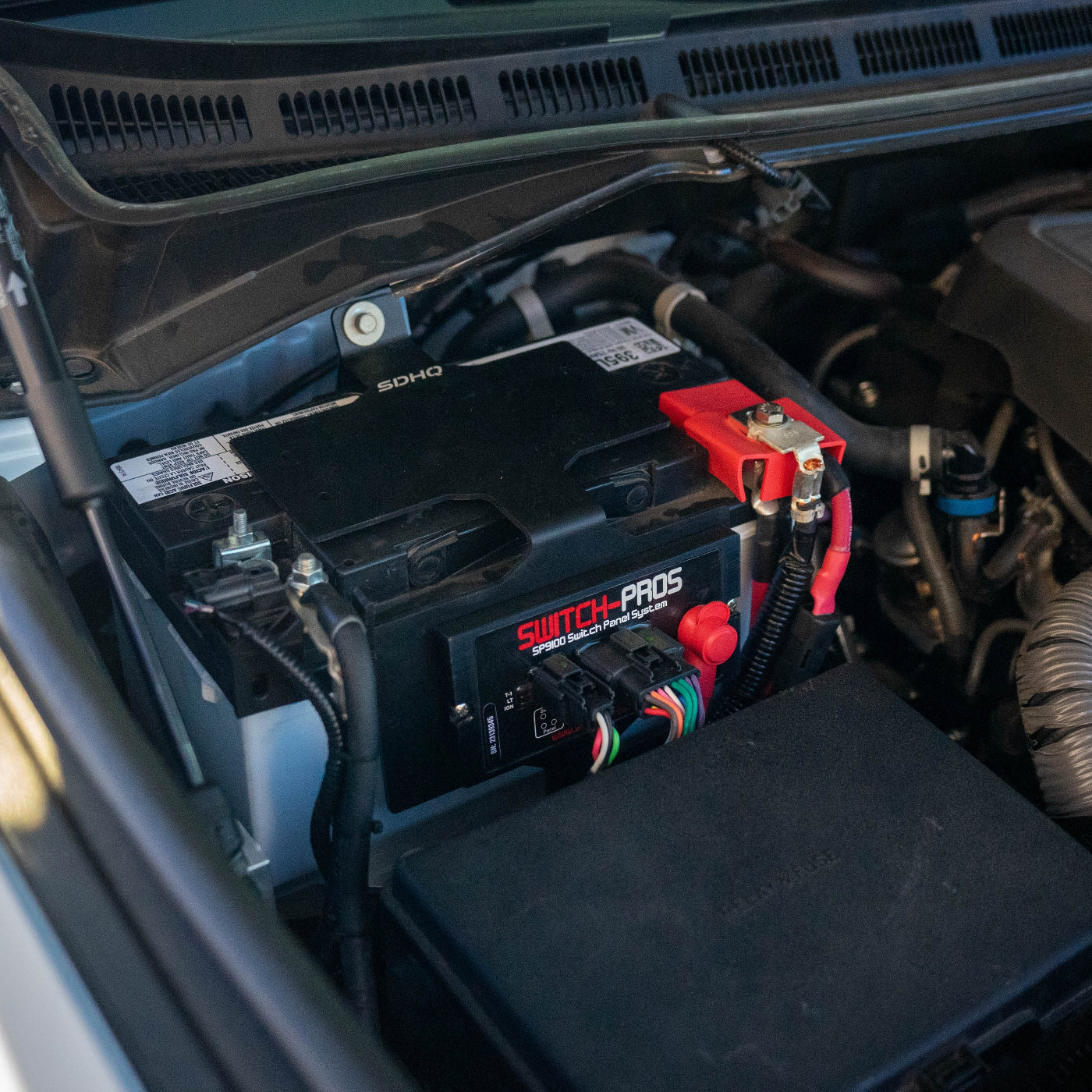

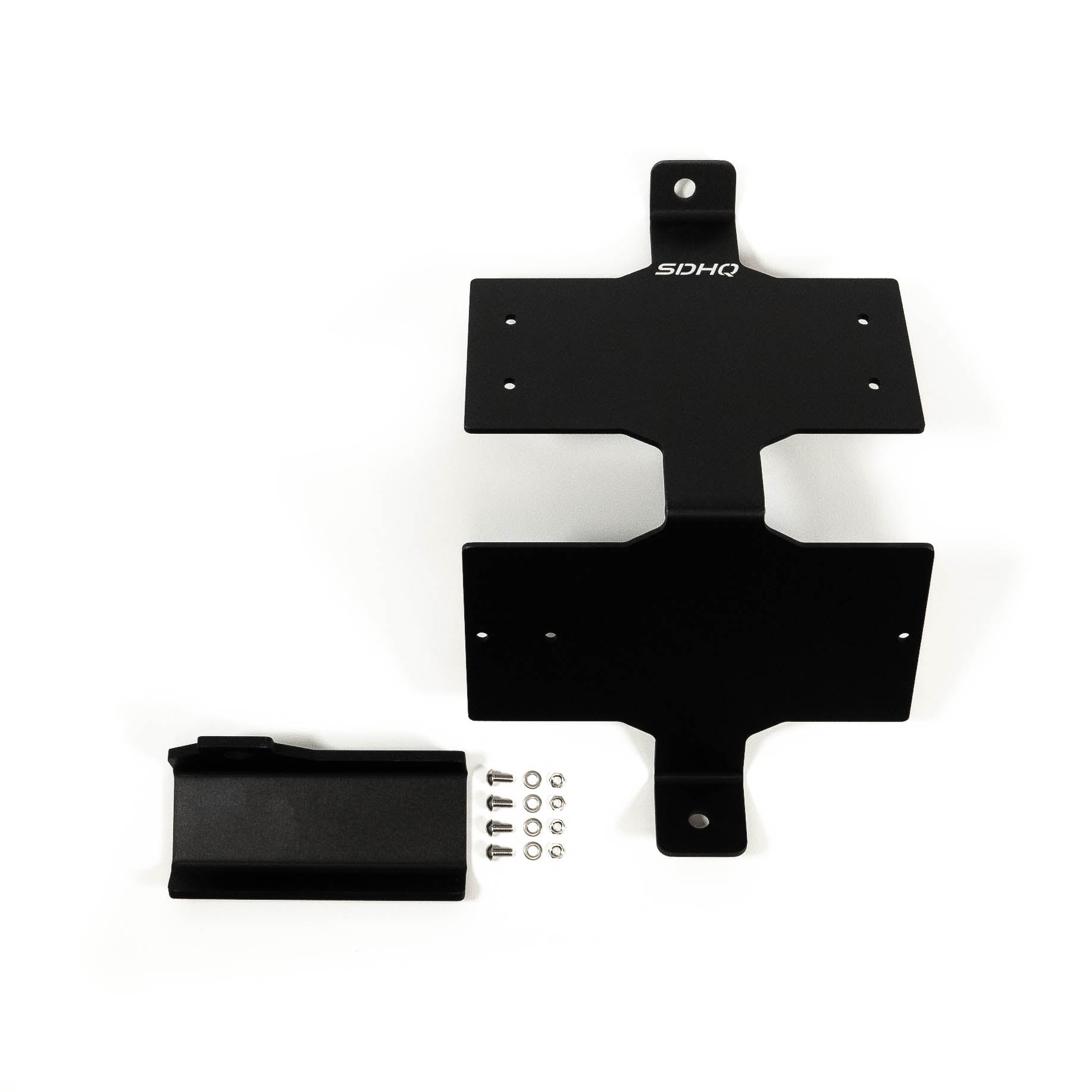

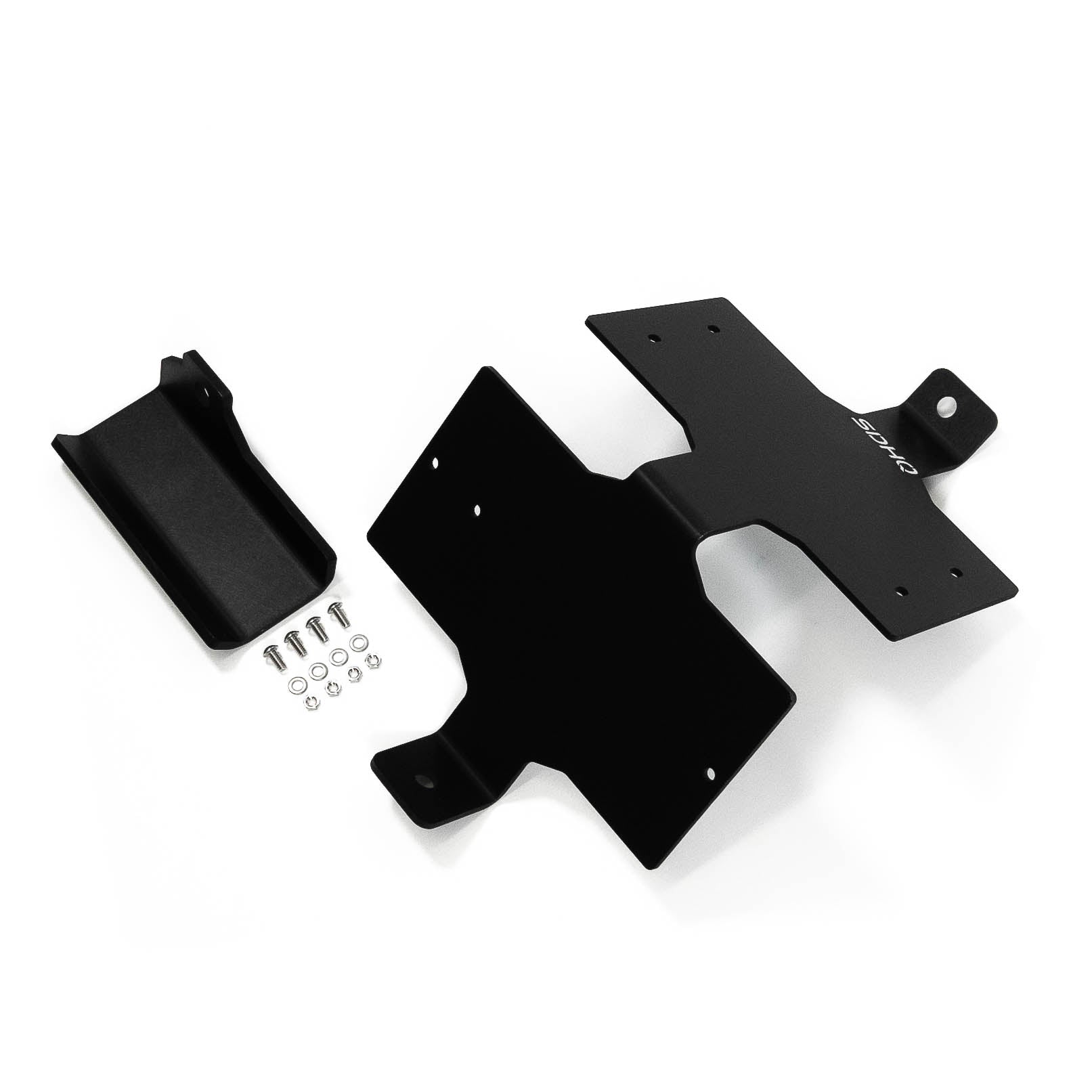

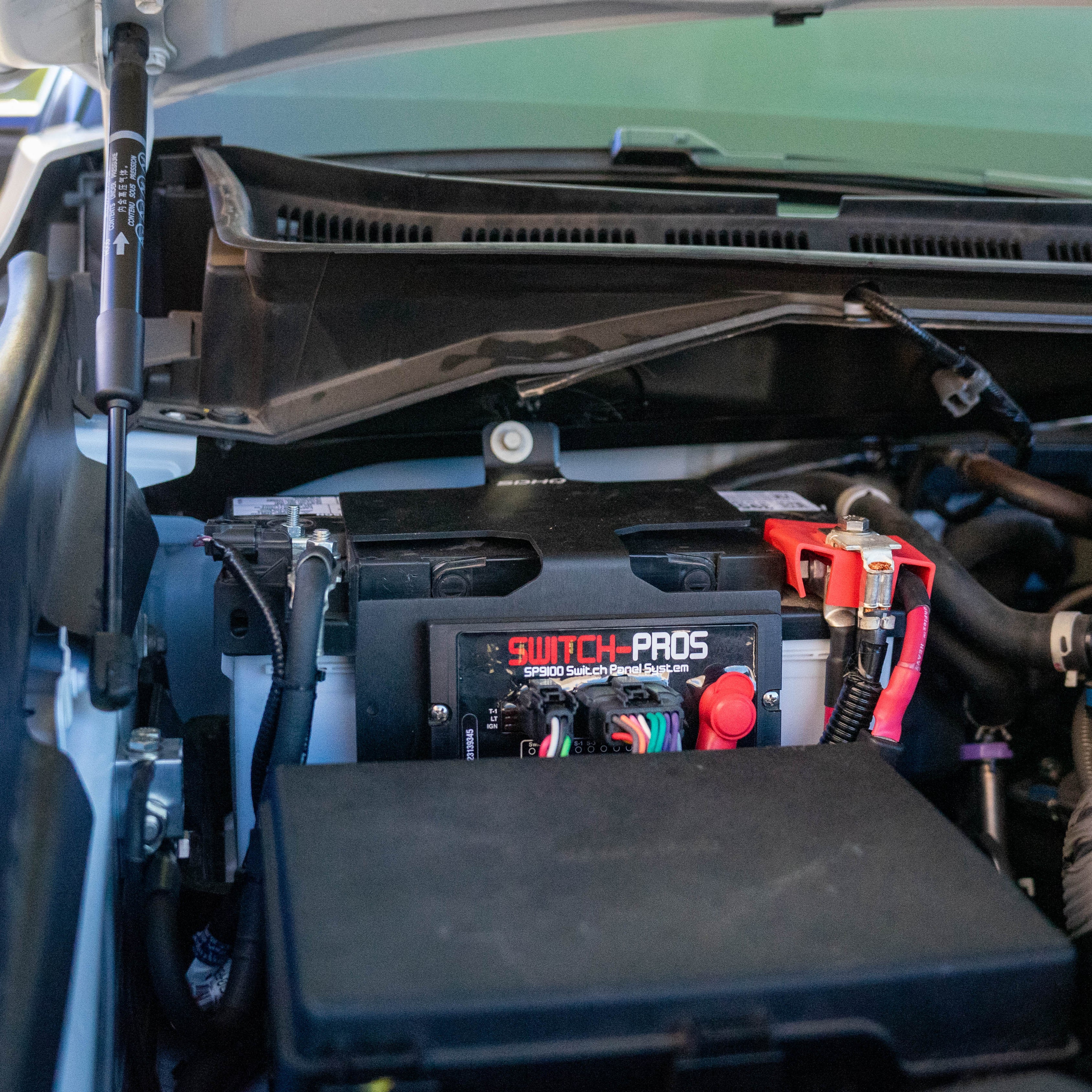

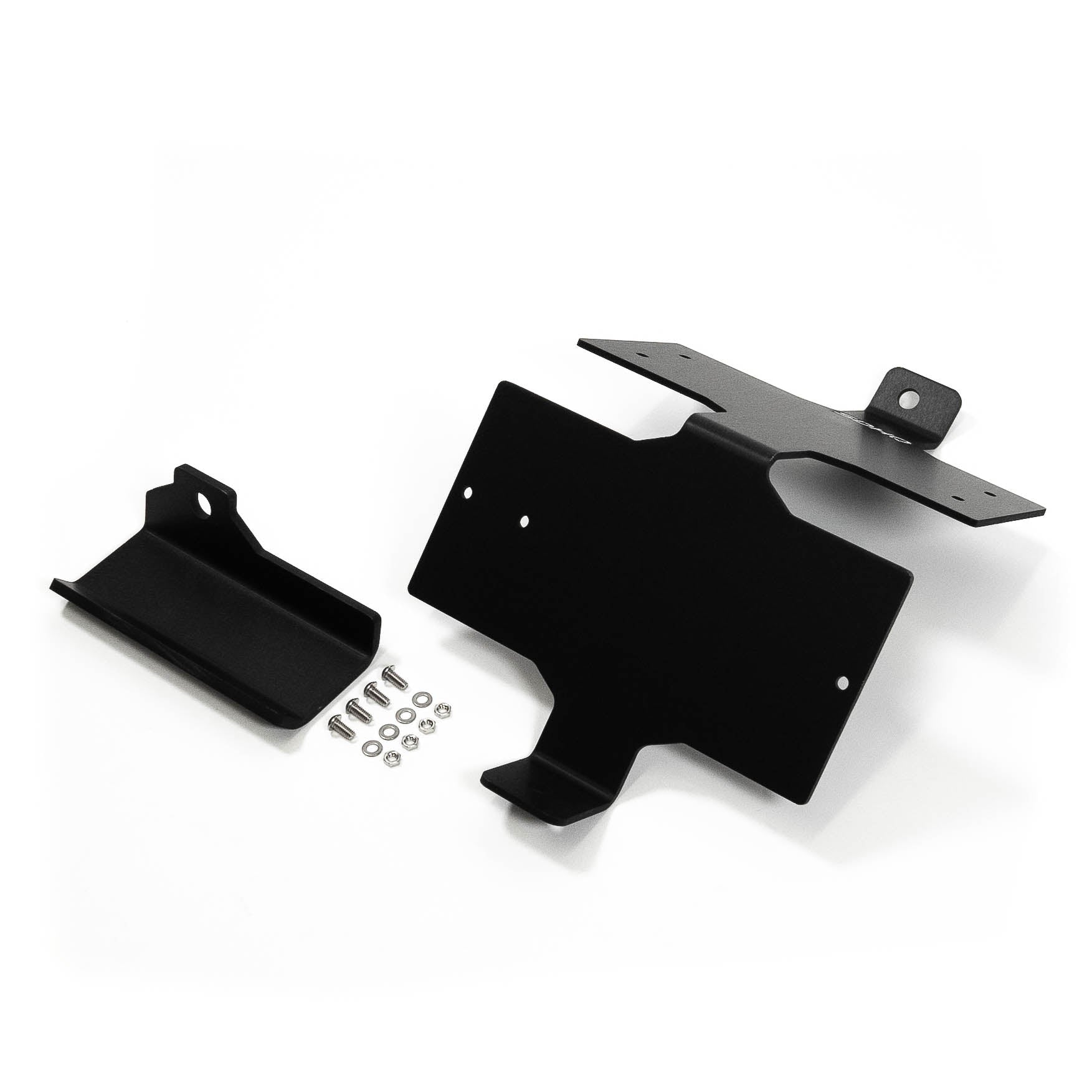

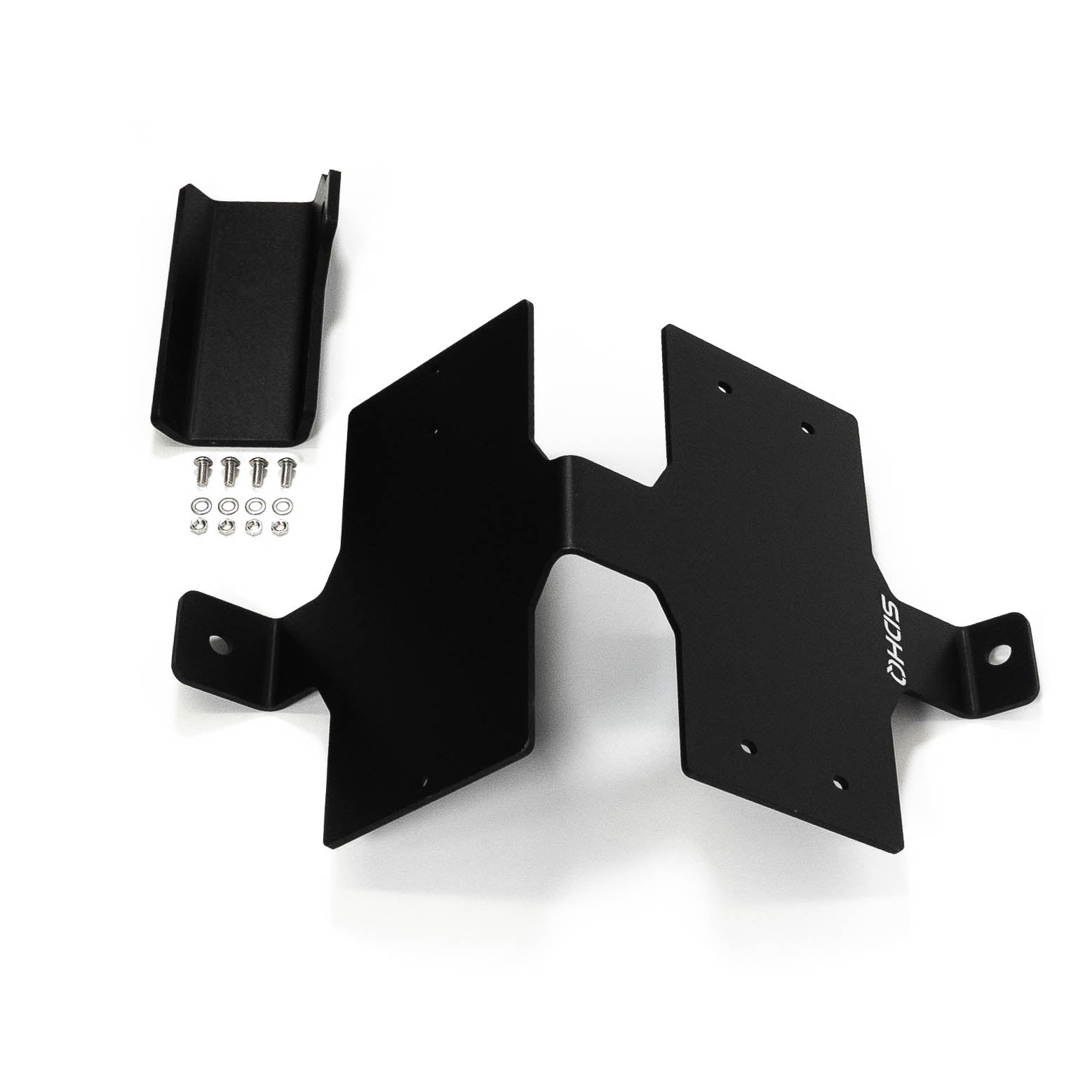

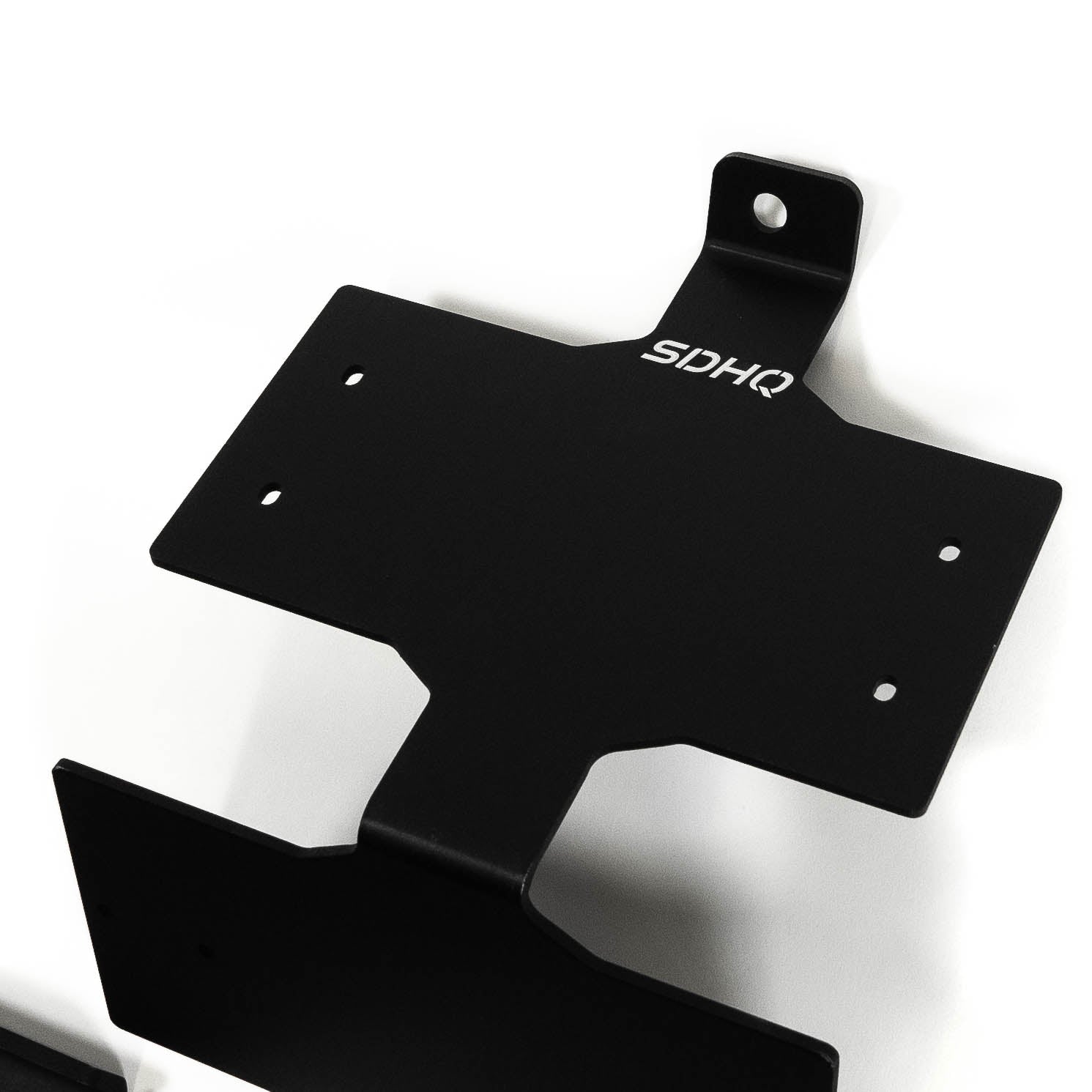

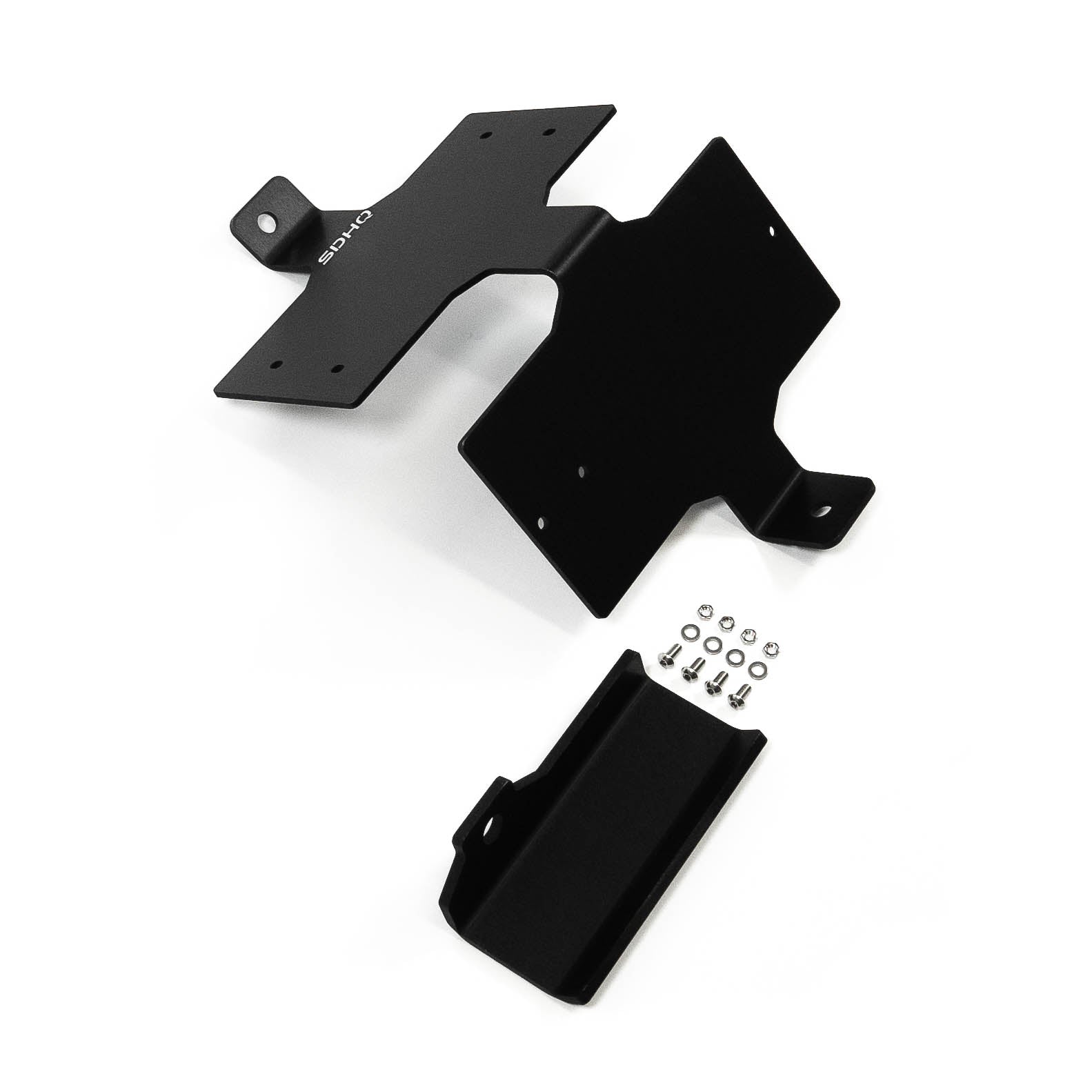

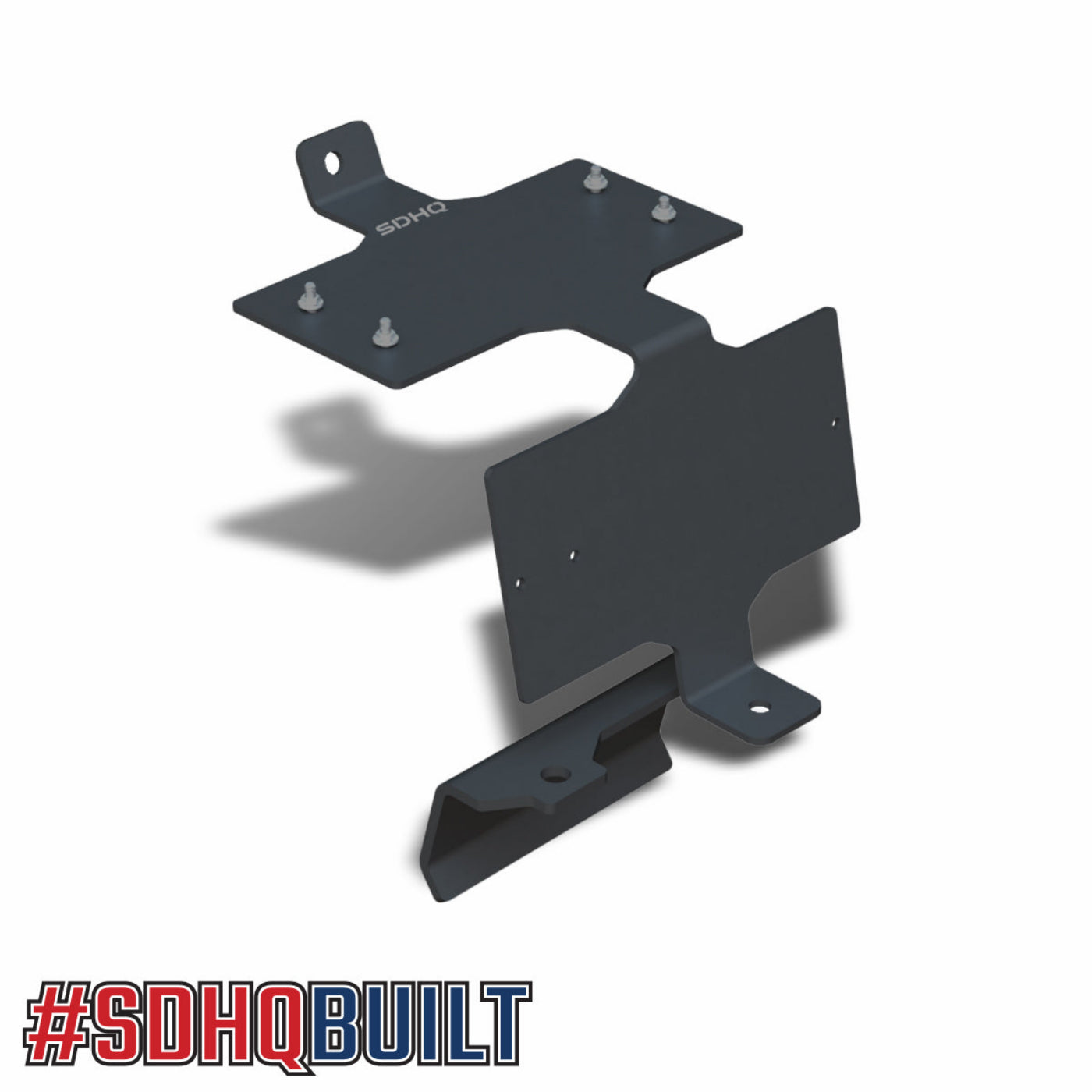

Our SDHQ Built Switch-Pros Power Module Mount for the 2022-Current Toyota Tundra allows you to mount the power module component of the Switch-Pros SP-9100 or RCR-FORCE-12 in your Tundra's engine compartment.
One unique feature of our power module mount is that it allows you to mount a REDARC Solar Regulator with your Switch-Pros Power Module. This mount also includes a low-profile battery hold down.
The mount is water jet cut and formed from 1/8” Aluminum. The battery hold-down is water jet cut and formed from 3/16” Aluminum.
- KEY FEATURES:
- 3D CAD designed, engineered & built in-house for our typical SDHQ Built quality, fit, and finish.
- Compatible with mounting a Switch-Pros SP-9100 or RCR-Force-12, and a REDARC Solar Regulator. Includes a low-profile battery hold down
- Locates the Switch-Pros SP-9100 or RCR-Force-12 to the front of the battery.
- Locates the REDARC Solar Regulator to the top of the battery.
- Bolt on installation, no modifications required
- The mount is Water Jet cut and formed from 1/8” Aluminum. The battery hold down is Water Jet cut and formed from 3/16” Aluminum
- Simple and clean solution for mounting the Switch Pros Power Module
- Anodized black and laser engraved SDHQ Logo
-

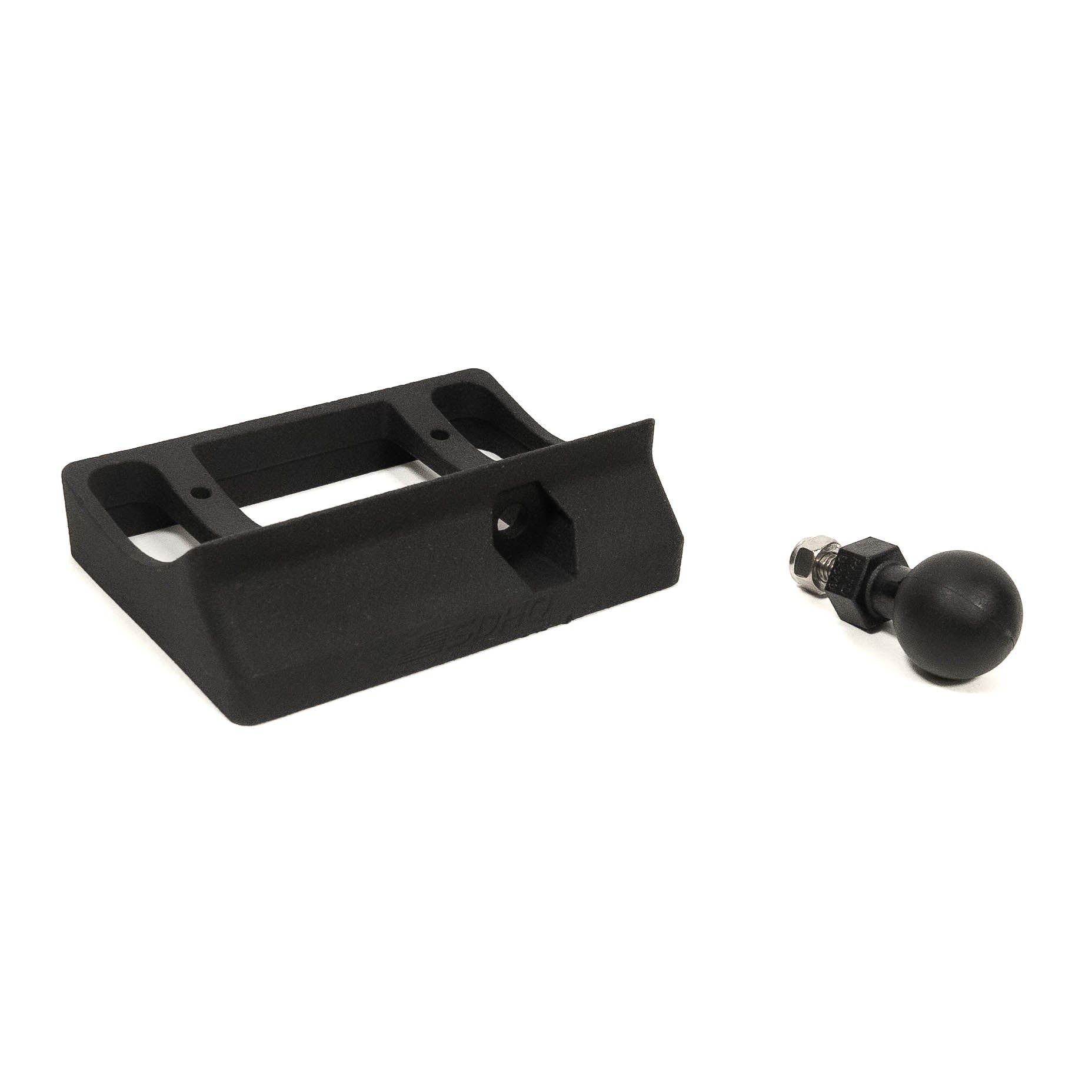

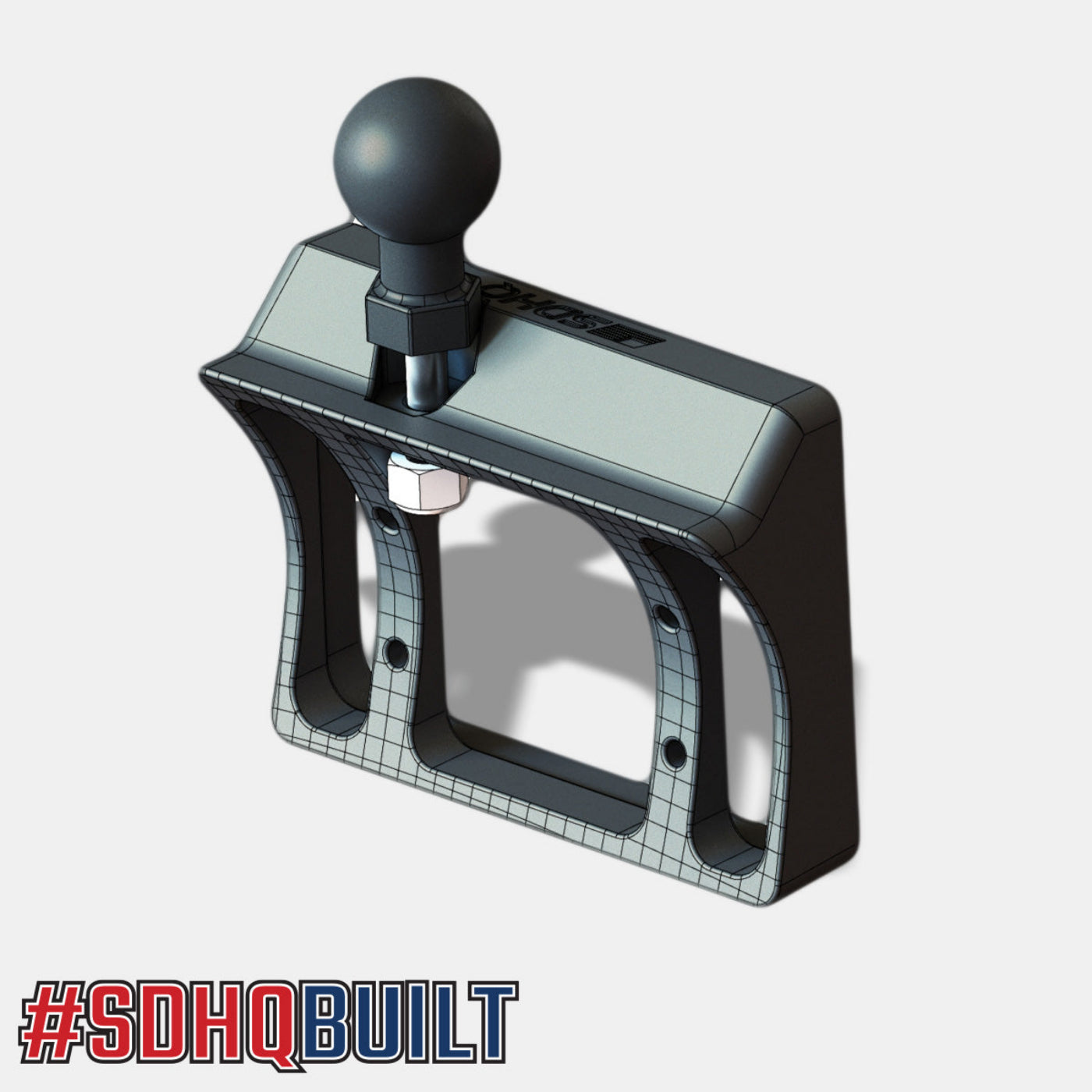

Our SDHQ Built Switch-Pros RCR-Force-12 Keypad Mount for the 2022-Current Toyota Tundra, allows you to mount the keypad component of the Switch-Pros RCR-Force-12 in a secure and convenient location.

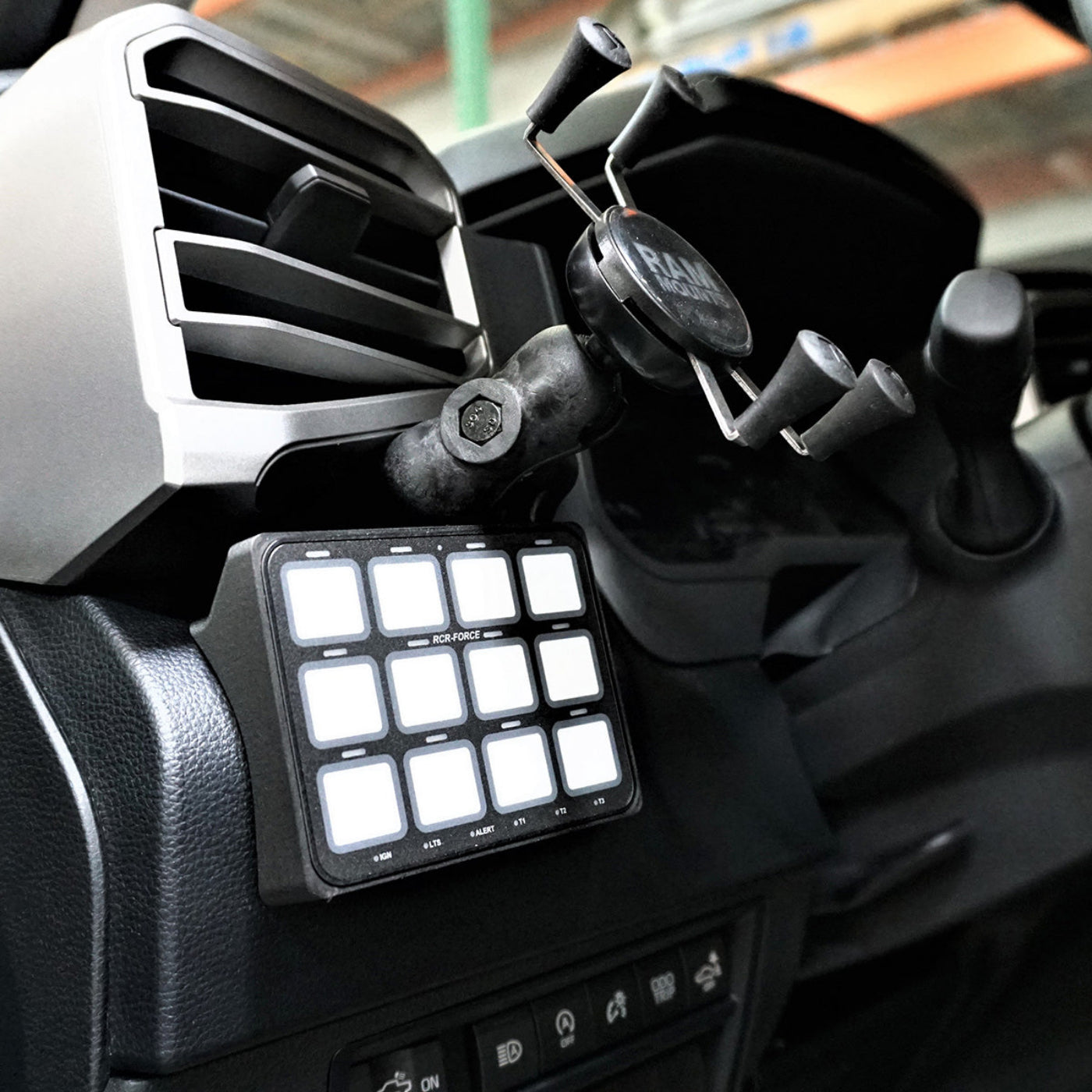

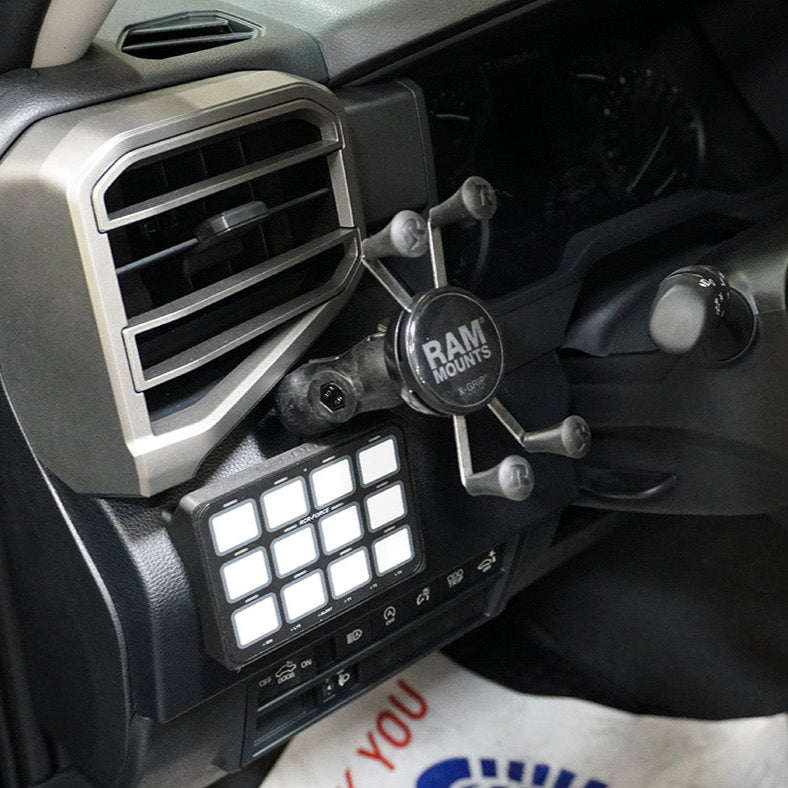

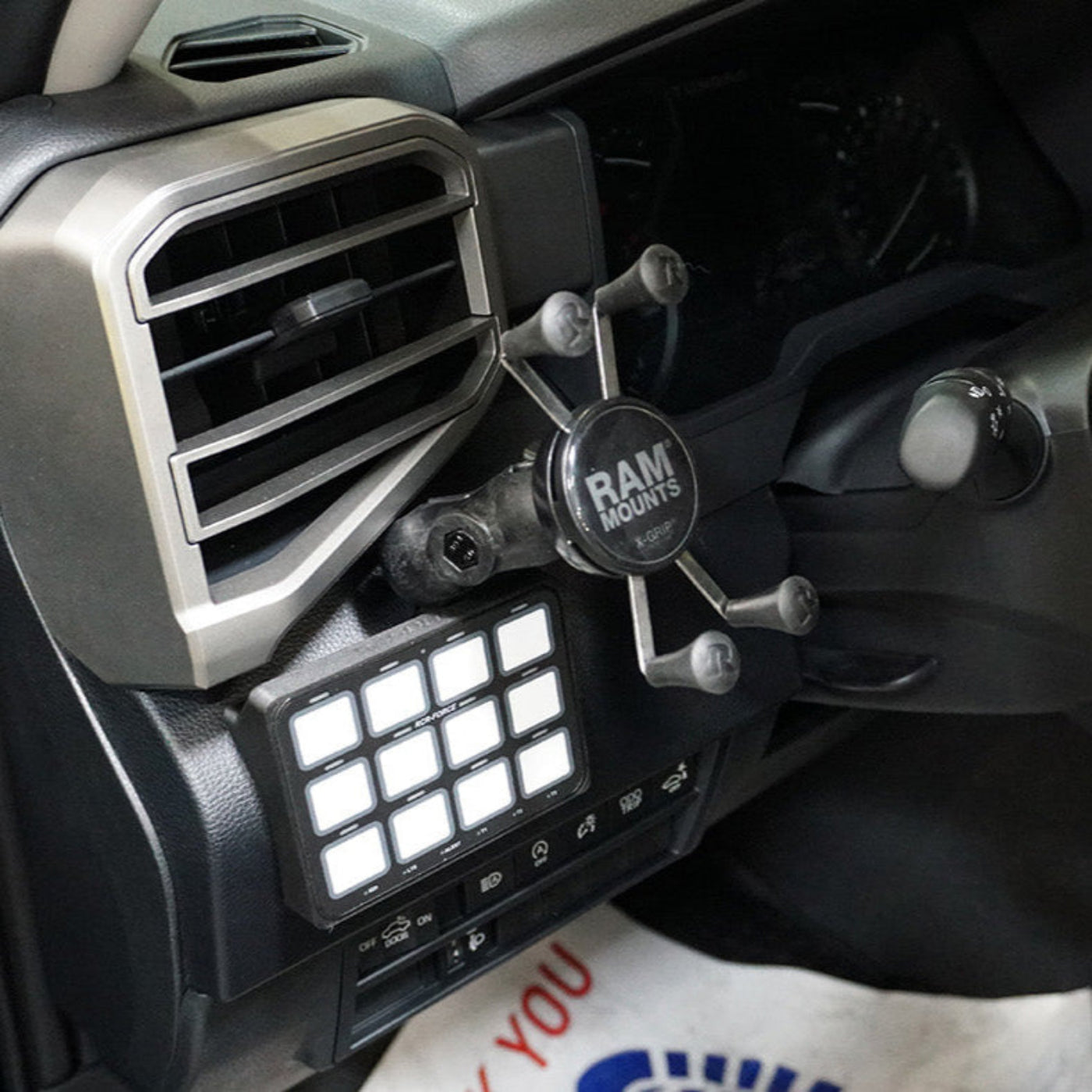

This mount is designed so that a Switch-Pros RCR-Force-12 can be securely installed on the driver's left-hand side of the steering wheel above your Tundra's OEM switch panel. Giving you the ability to control your aftermarket LED lights and accessories with ease.
- KEY FEATURES:
- 3D CAD designed, engineered & built in-house for our typical SDHQ Built quality, fit, and finish
- Securely mounts the keypad component of your Switch-Pros RCR-Force-12 in a easy to reach location
- 3D printed from carbon-fiber filled nylon, a high strength, tough and chemical resistant material
- Drilling into to the factory dash panel required for install
- Designed for a tight fit with Switch Pros RCR-Force-12 Keypads.
- DOES NOT FIT Switch-Pros RCR-Touch 12 Cover

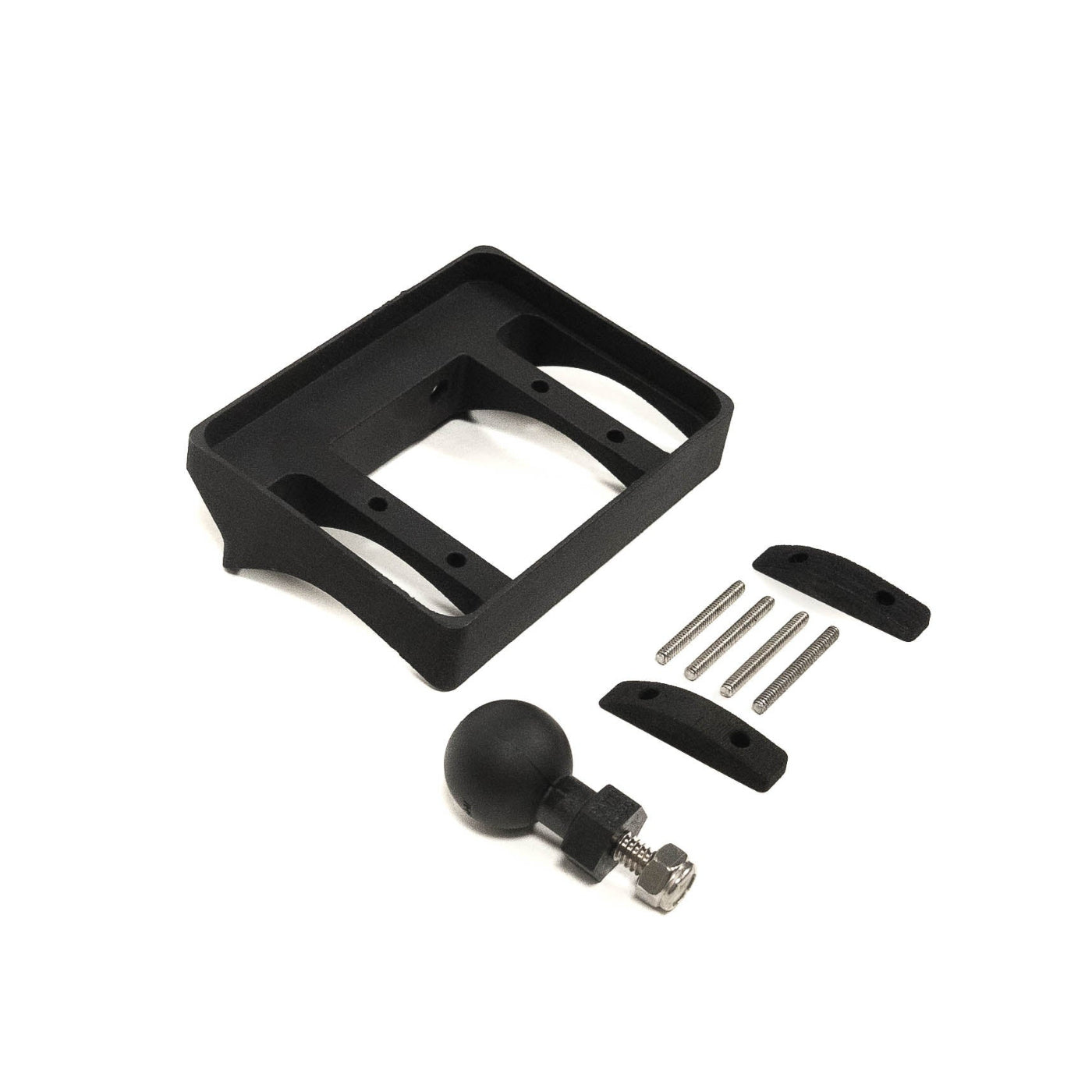

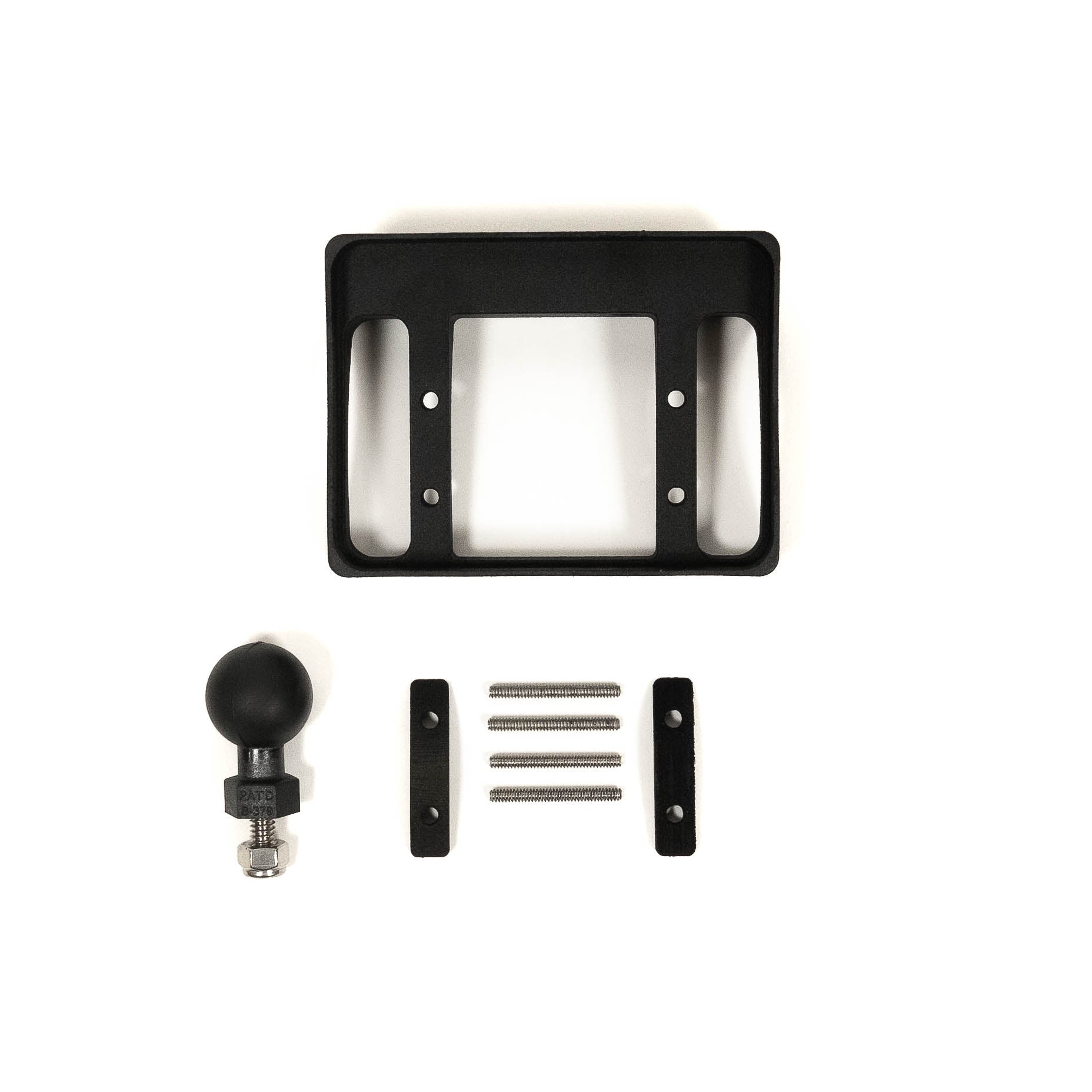

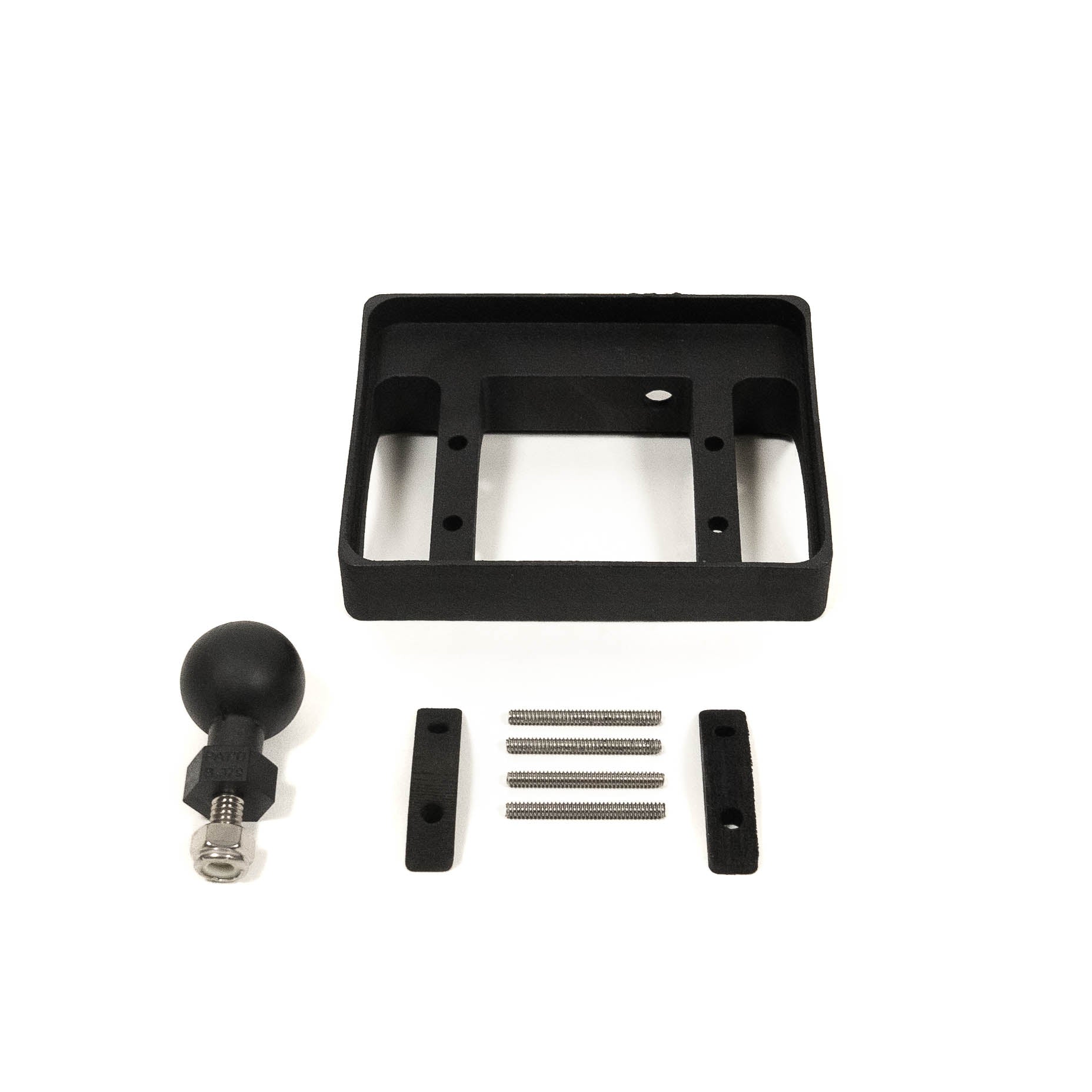

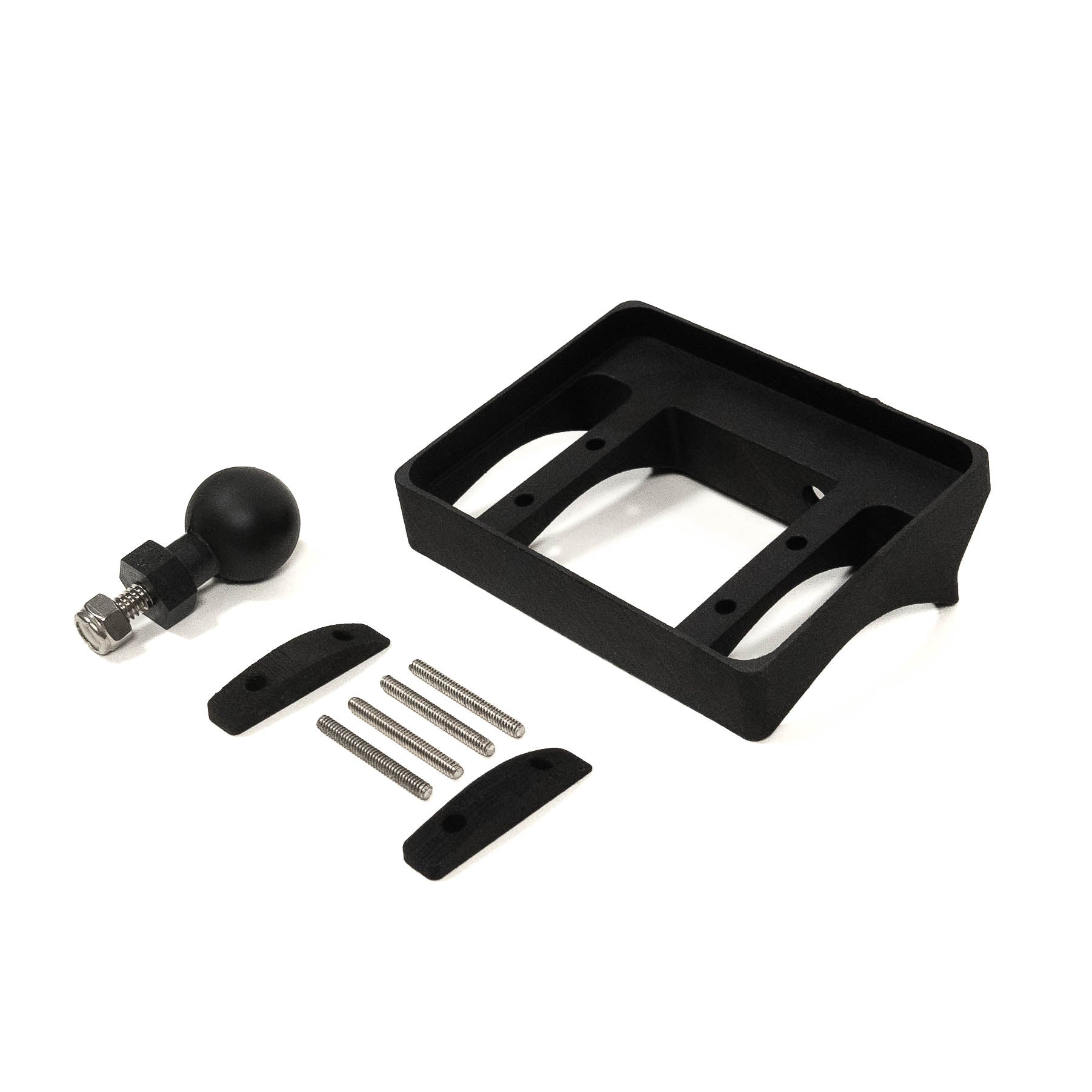

- WHAT'S INCLUDED:
- SDHQ 3D Printed RCR-FORCE-12 Dash Mount
- 1" RAM Tough-Ball
- Hardware Kit
