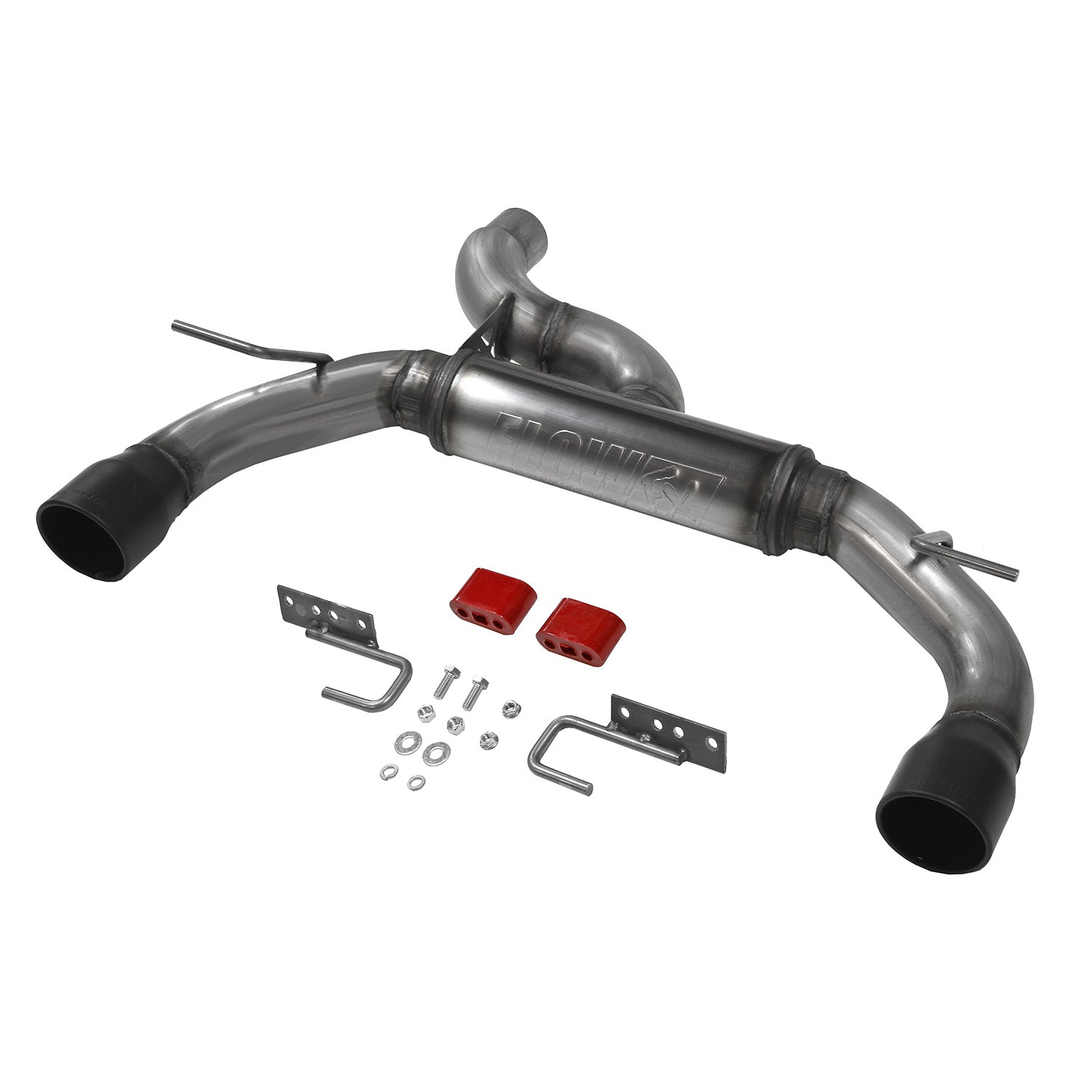

'21-23 Ford Bronco Flowmaster FlowFx Axle-Back Dual Exit Exhaust System
'21-23 Ford Bronco Flowmaster FlowFx Axle-Back Dual Exit Exhaust System
MCQUEEN
190 South McQueen Road
Suite 109
Gilbert AZ 85233
United States

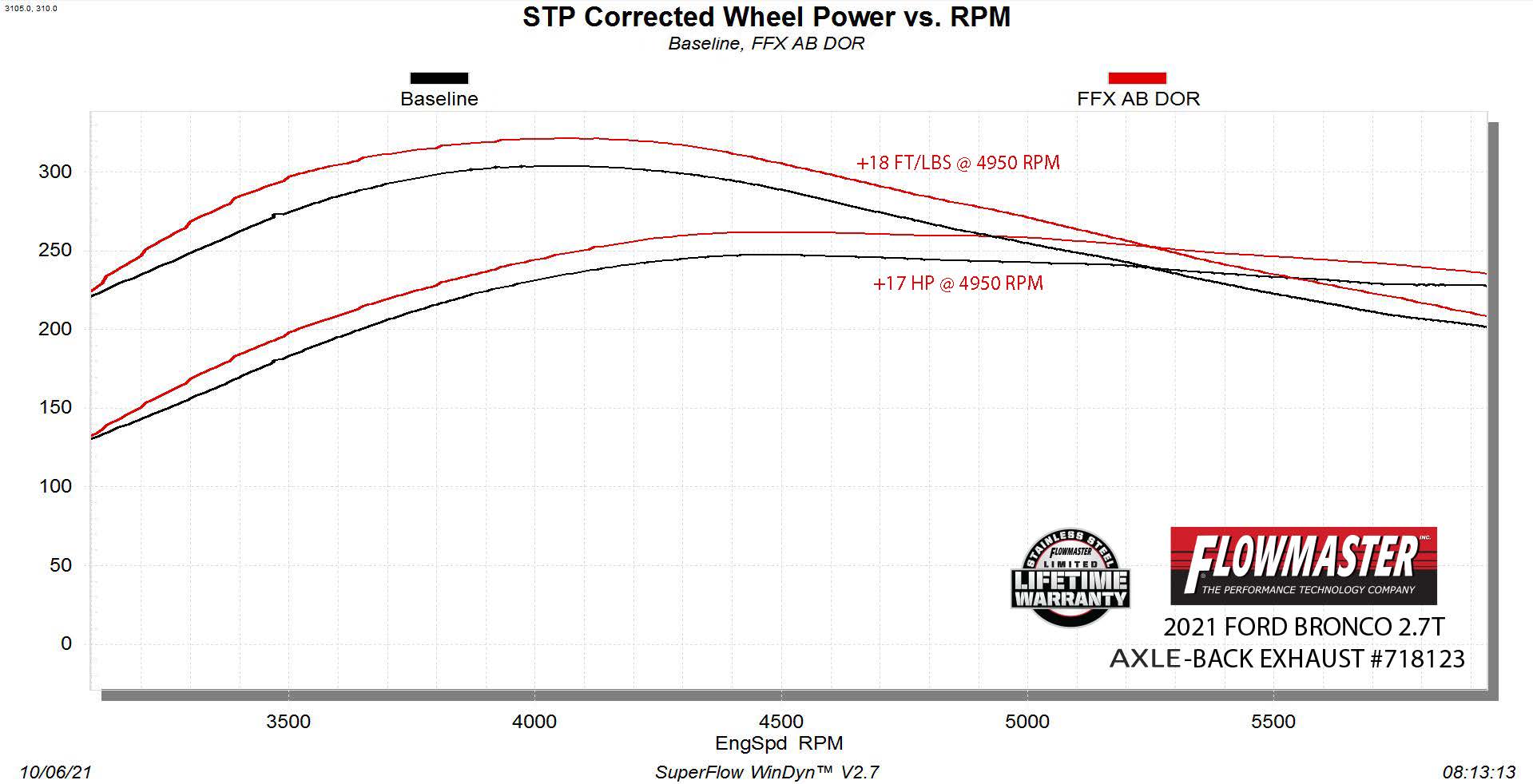

Flowmaster introduces the FlowFX axle-back exhaust system for the 2021-2023 Ford Bronco with the 2.3 or 2.7-Liter engine. This system uses a FlowFX style muffler for a deep exhaust tone and increased performance. Maximum dyno gains of 17 hp and 18 lb-ft. were measured at the rear wheels.

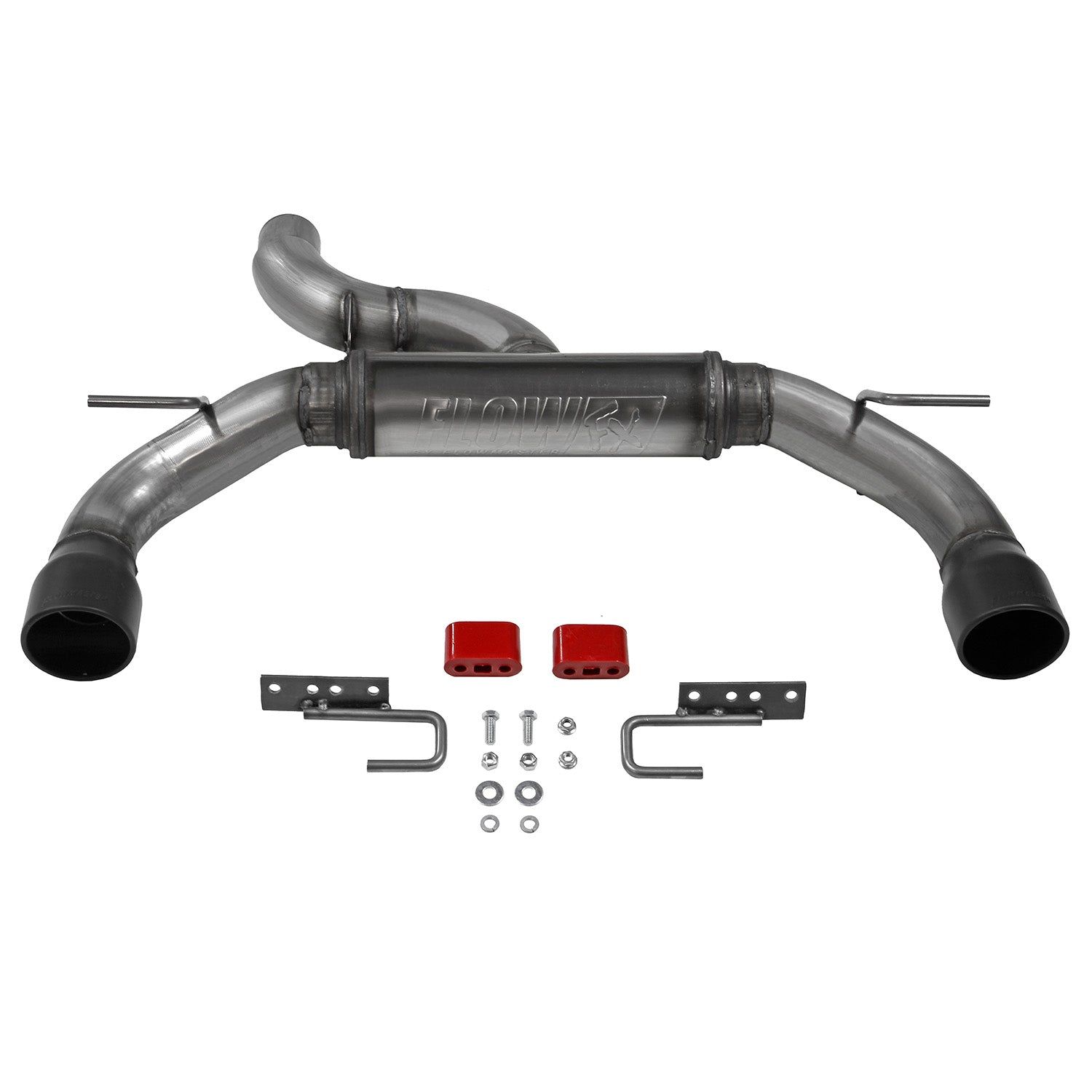

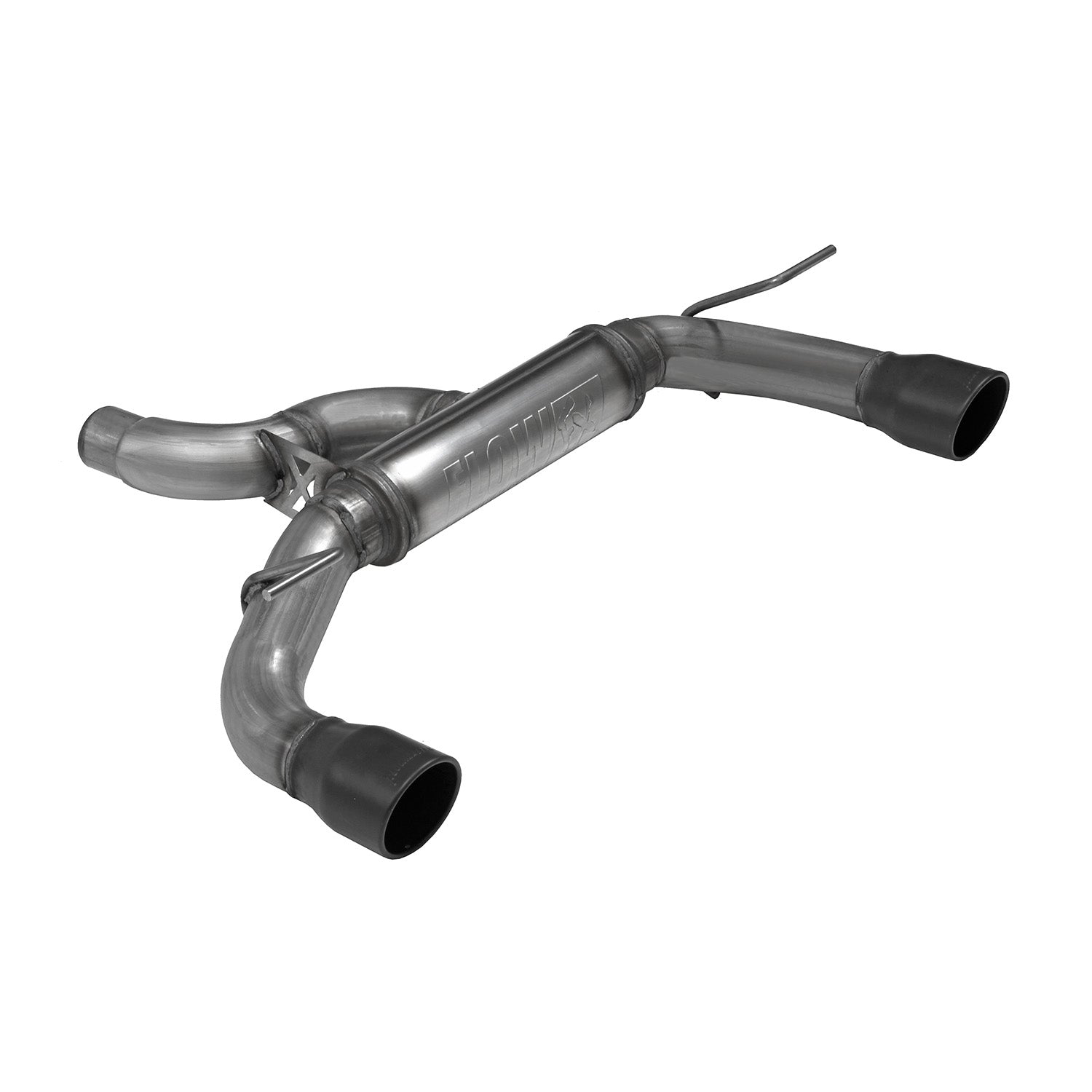

3.00-inch mandrel bent 409 stainless steel tubing is used to maximize exhaust flow and durability. Dual 4.00-inch black ceramic coated tips are used to to add a custom look to this iconic vehicle. All of the necessary hardware is included and factory mounting locations are used for an easy installation.
FITMENT:
Year | Make | Model | Submodel | Engine |
---|---|---|---|---|
2021 | Ford | Bronco | Badlands | 140/2.3L L4 |
2021 | Ford | Bronco | Badlands | 164/2.7L V6 |
2021 | Ford | Bronco | Base | 140/2.3L L4 |
2021 | Ford | Bronco | Base | 164/2.7L V6 |
2021 | Ford | Bronco | Big Bend | 140/2.3L L4 |
2021 | Ford | Bronco | Big Bend | 164/2.7L V6 |
2021 | Ford | Bronco | Black Diamond | 140/2.3L L4 |
2021 | Ford | Bronco | Black Diamond | 164/2.7L V6 |
2021 | Ford | Bronco | First Edition | 164/2.7L V6 |
2021 | Ford | Bronco | Outer Banks | 140/2.3L L4 |
2021 | Ford | Bronco | Outer Banks | 164/2.7L V6 |
2021 | Ford | Bronco | Wildtrak | 164/2.7L V6 |
2022 | Ford | Bronco | Badlands | 140/2.3L L4 |
2022 | Ford | Bronco | Badlands | 164/2.7L V6 |
2022 | Ford | Bronco | Base | 140/2.3L L4 |
2022 | Ford | Bronco | Base | 164/2.7L V6 |
2022 | Ford | Bronco | Big Bend | 140/2.3L L4 |
2022 | Ford | Bronco | Big Bend | 164/2.7L V6 |
2022 | Ford | Bronco | Black Diamond | 140/2.3L L4 |
2022 | Ford | Bronco | Black Diamond | 164/2.7L V6 |
2022 | Ford | Bronco | Outer Banks | 140/2.3L L4 |
2022 | Ford | Bronco | Outer Banks | 164/2.7L V6 |
2022 | Ford | Bronco | Wildtrak | 164/2.7L V6 |
KEY FEATURES:
- FlowFX series performance muffler offers a deep powerful sound and increased performance
- 409 stainless steel construction delivers extra durability and improved long-term corrosion resistance

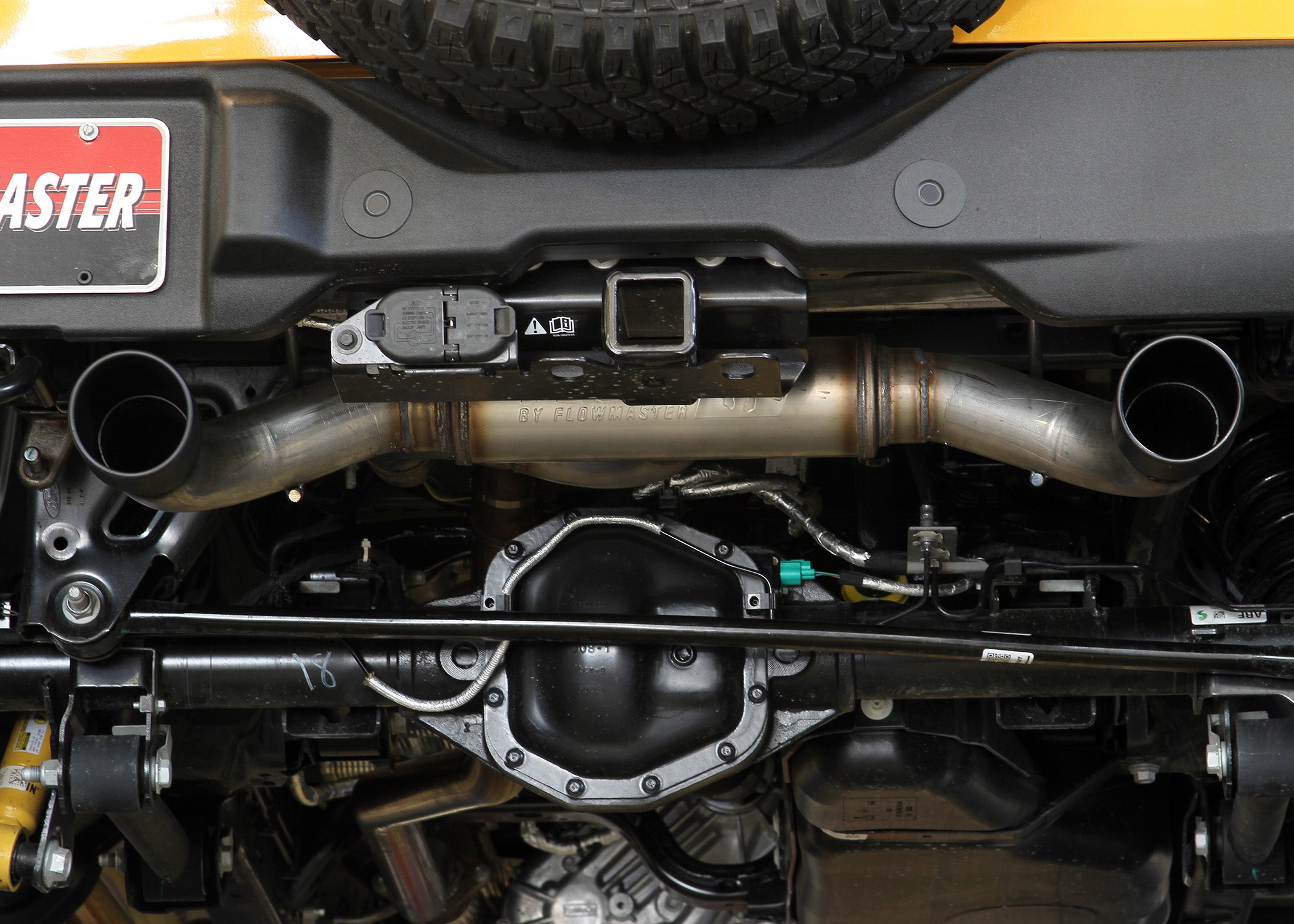

- Uses factory hanger locations for easy installation
- 3.0-inch 16-gauge mandrel bent stainless steel tubing helps maintain maximum exhaust flow for better power

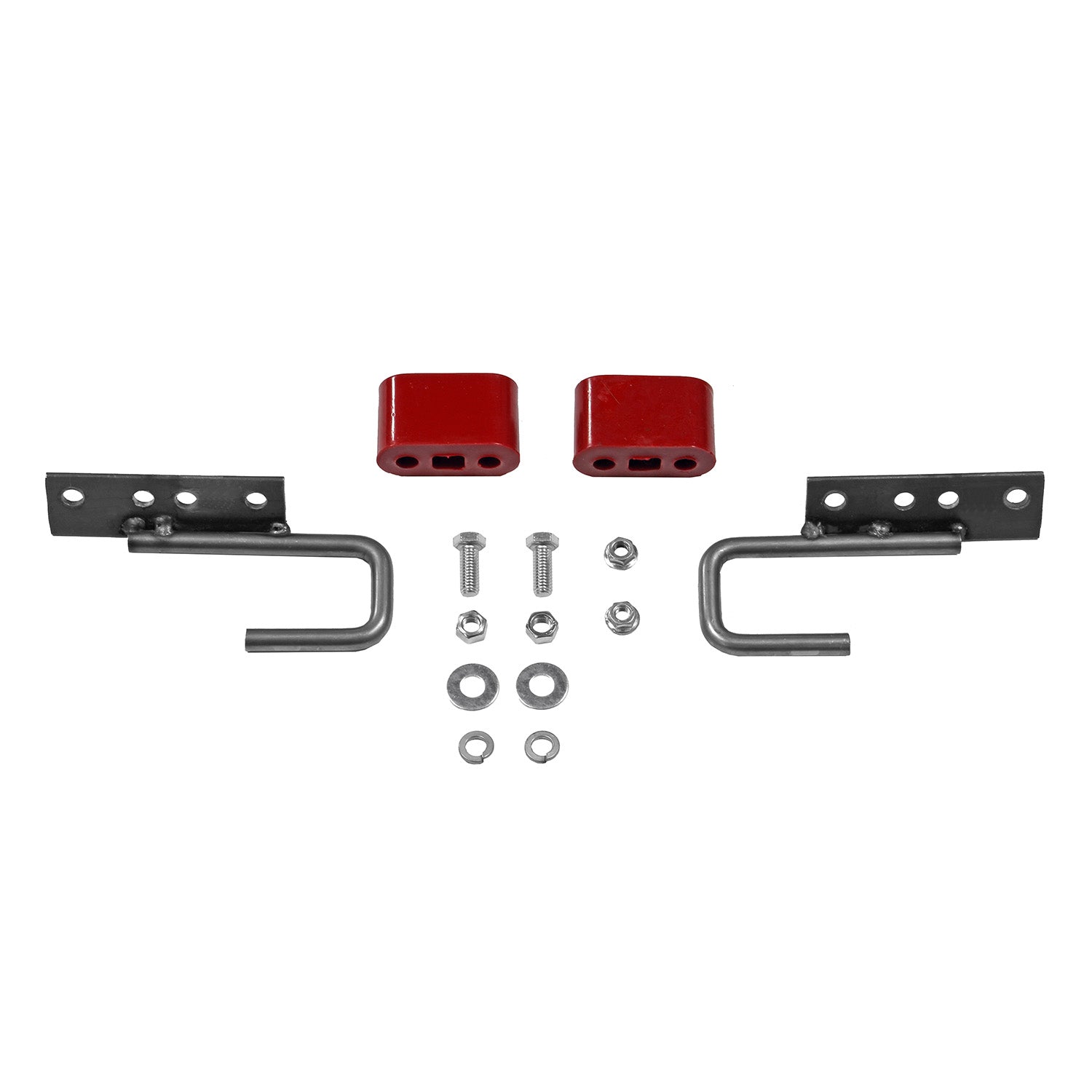

- Includes all necessary hardware for an at home installation

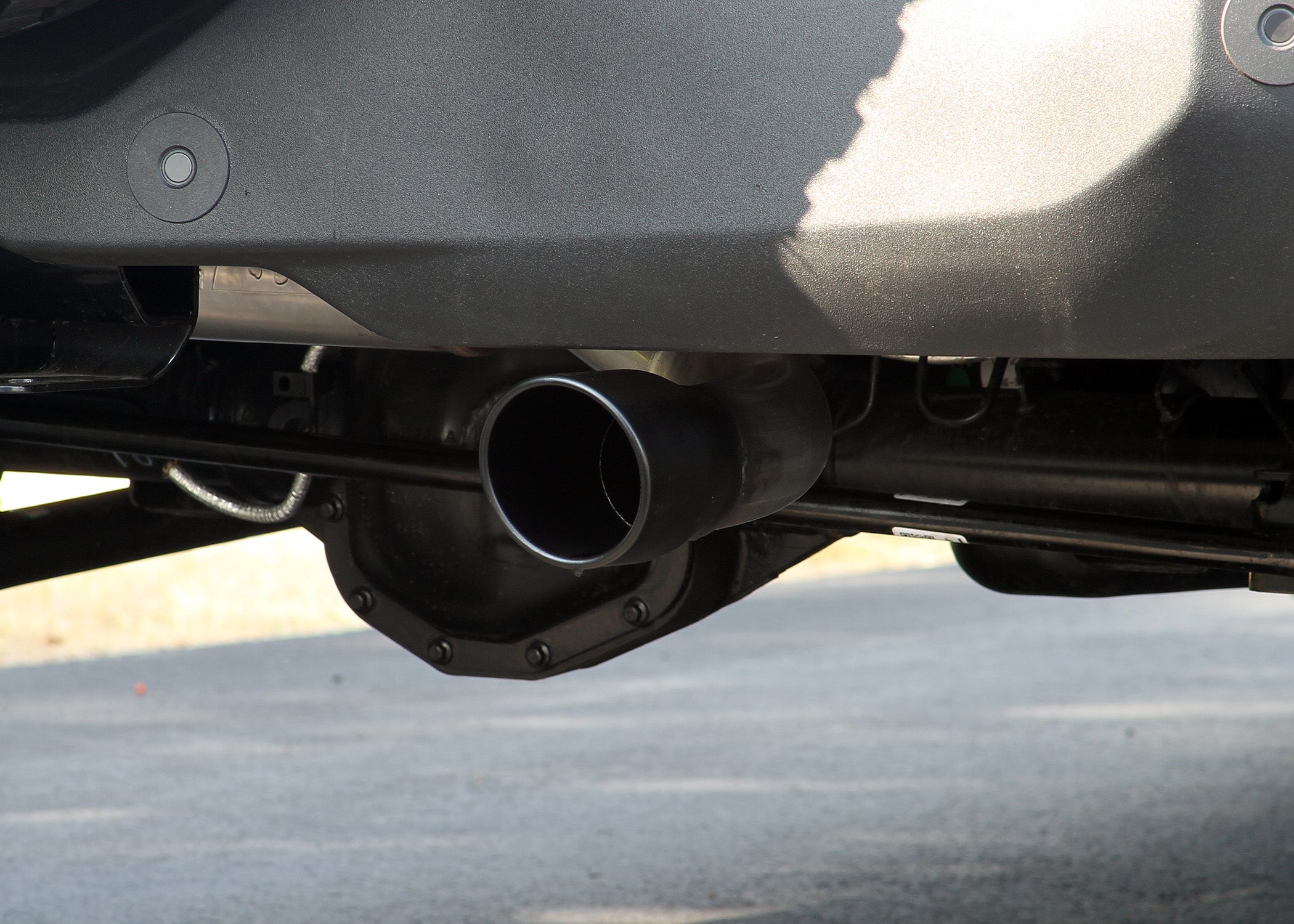

- Dual 4.00-inch black ceramic coated tips adds a custom look
SPECS:
Brand | Flowmaster |
---|---|
Emission Code | 5 |
Exhaust Series | FlowFX |
Exit Position | DOR |
Mount Type | Uses New Hangers (Included) |
Muffler Body Length (in) | 14 |
Muffler Color | Natural |
Muffler Finish | Brushed |
Muffler Inlet Diameter (in) | 3.00 |
Muffler Inlet Location | Body Side |
Muffler Material | 409S Stainless Steel |
Muffler Outlet Diameter (in) | 3.00 |
Muffler Outlet Location | Dual Outlet |
Muffler Overall Length (in) | 25 |
Muffler Part Number | Kit Only |
Muffler Quantity | 1 |
Muffler Series | FlowFX |
Muffler Shape | Round |
Muffler Type | Absorption |
Product Type | Exhaust System |
Single Dual | Dual |
Sound Level | Moderate/Aggressive |
System Type | Axle-back |
Tip Cut | Angle |
Tip Diameter | 4.00 |
Tip Edge Style | Rolled |
Tip Finish | Black Ceramic |
Tip Length | 5.25 |
Tip Logo | Embossed |
Tip Material | 304 Stainless |
Tip Quantity | 2.00 |
Tip Shape | Round |
Tip Style | Single Wall |
Tubing Diameter (in) | 3.00 |
Tubing Material | 409S Stainless Steel |
UPC | 090127140253 |
California Proposition 65 Chemical Name | Chromium (hexavalent compounds) |
Nickel (Metallic) | |
California Proposition 65 Required | Yes |
Part Number | 718123 |
