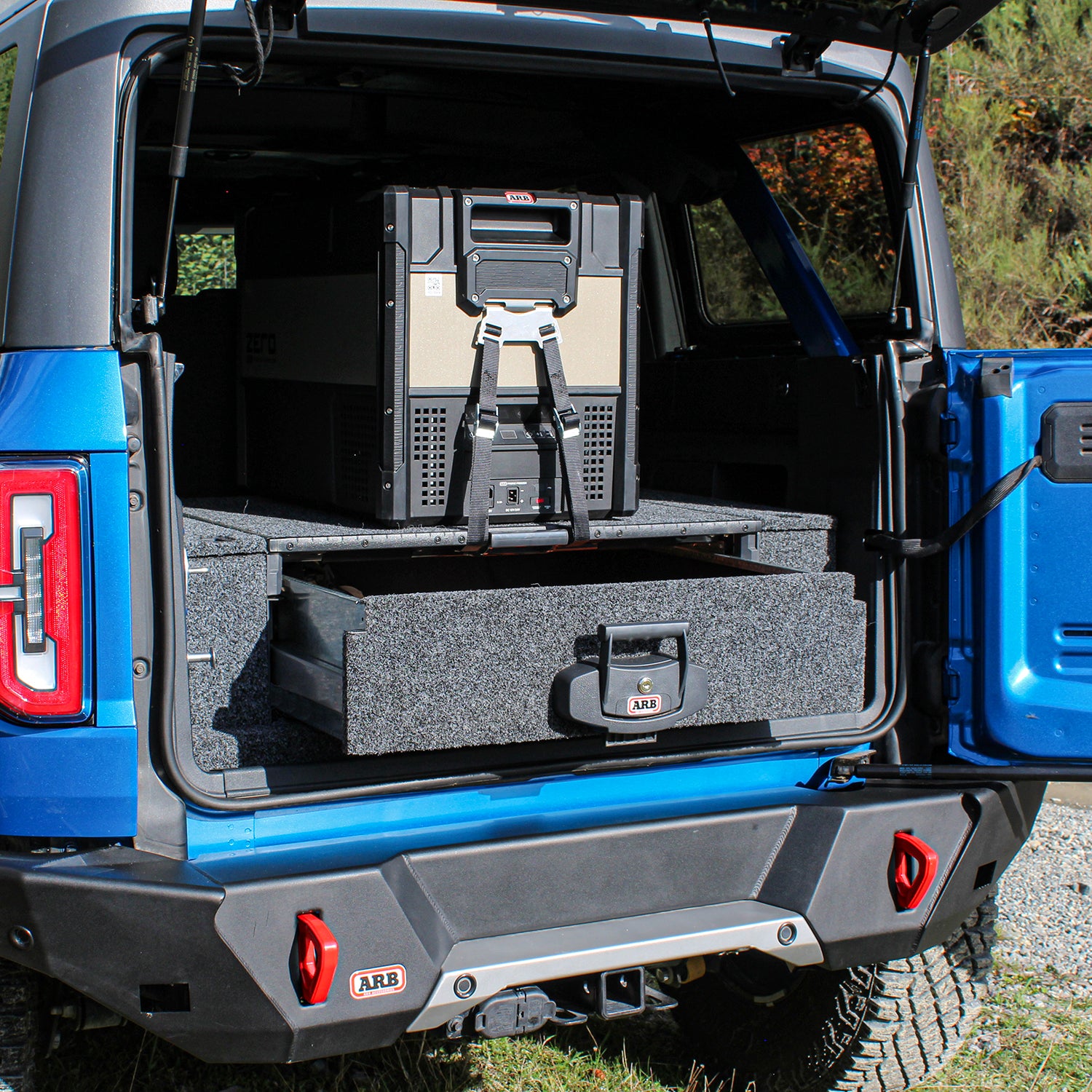

'21-23 Ford Bronco 4-Door ARB Outback Drawer Kit display in Vehicle (Rear Angled View)

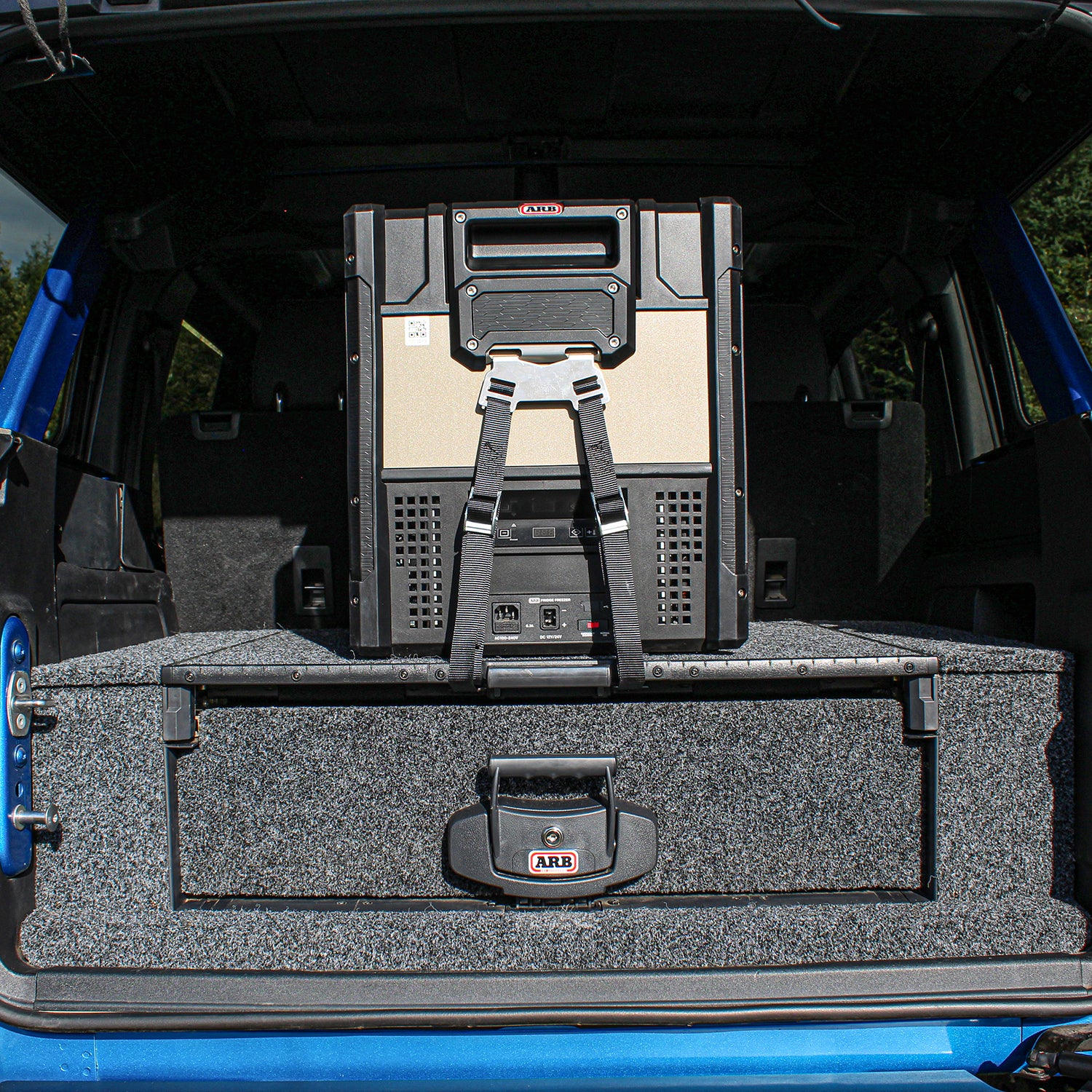

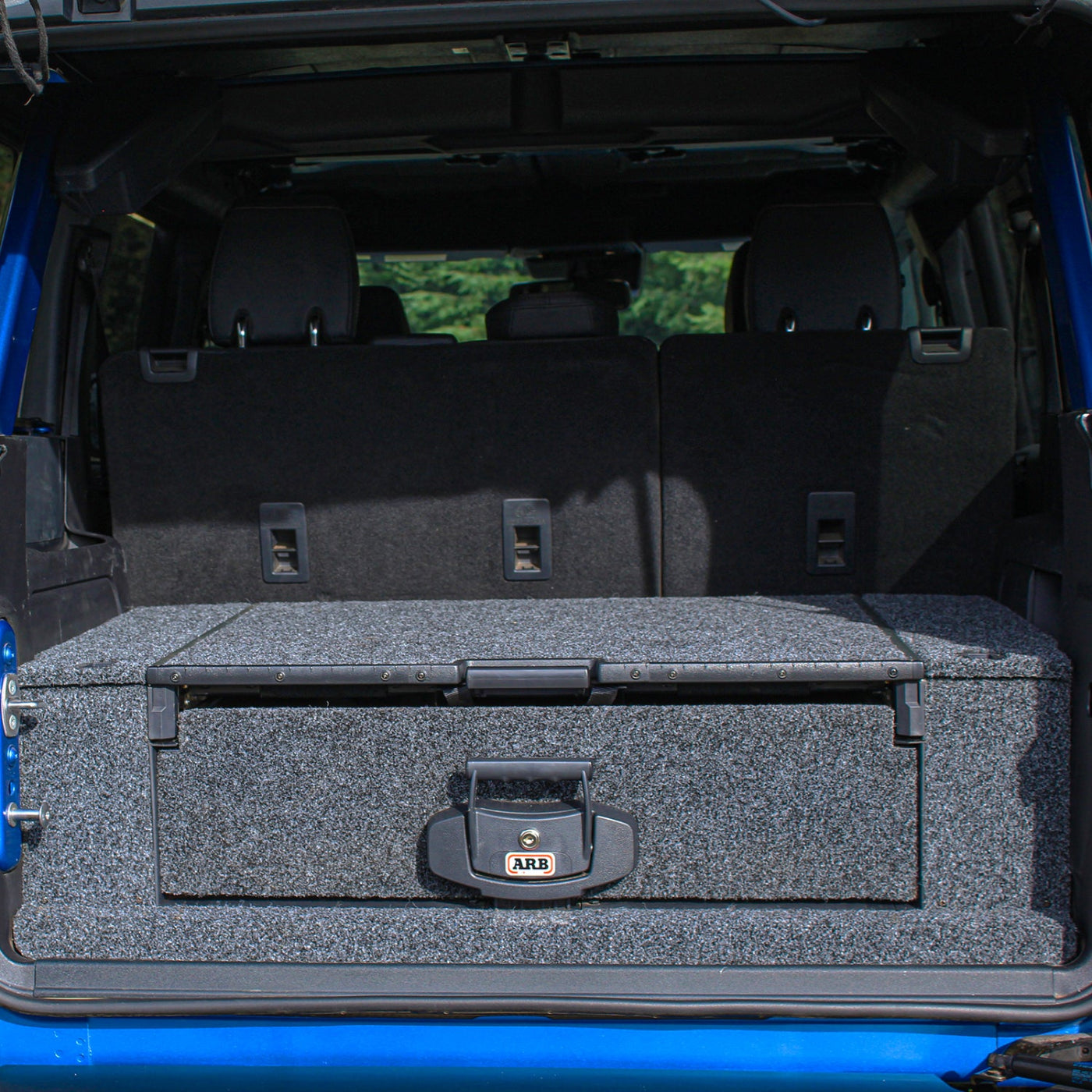

'21-23 Ford Bronco 4-Door ARB Outback Drawer Kit Close-up display in Vehicle (Rear View)

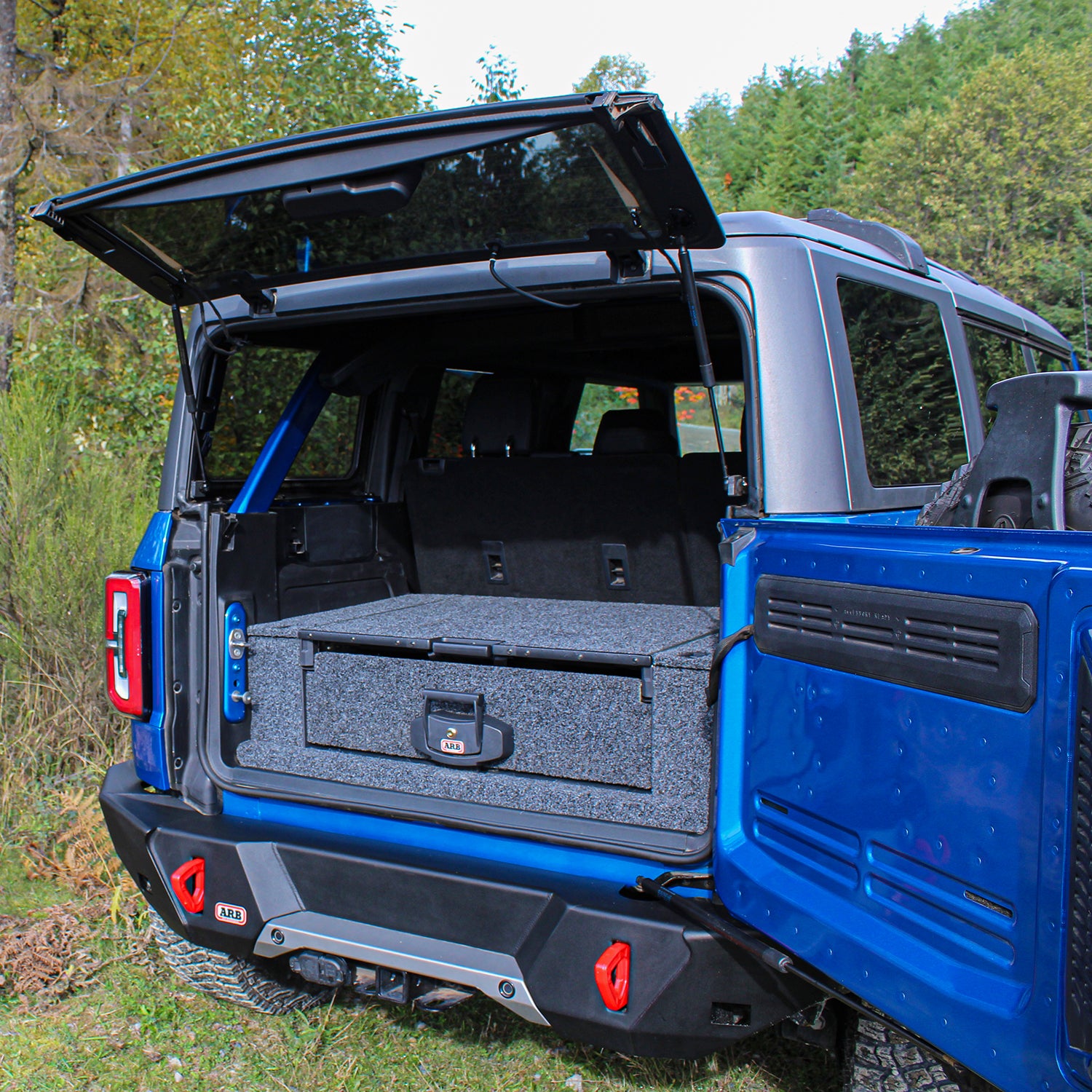

'21-23 Ford Bronco 4-Door ARB Outback Drawer Kit display in Vehicle (Rear Angled View)

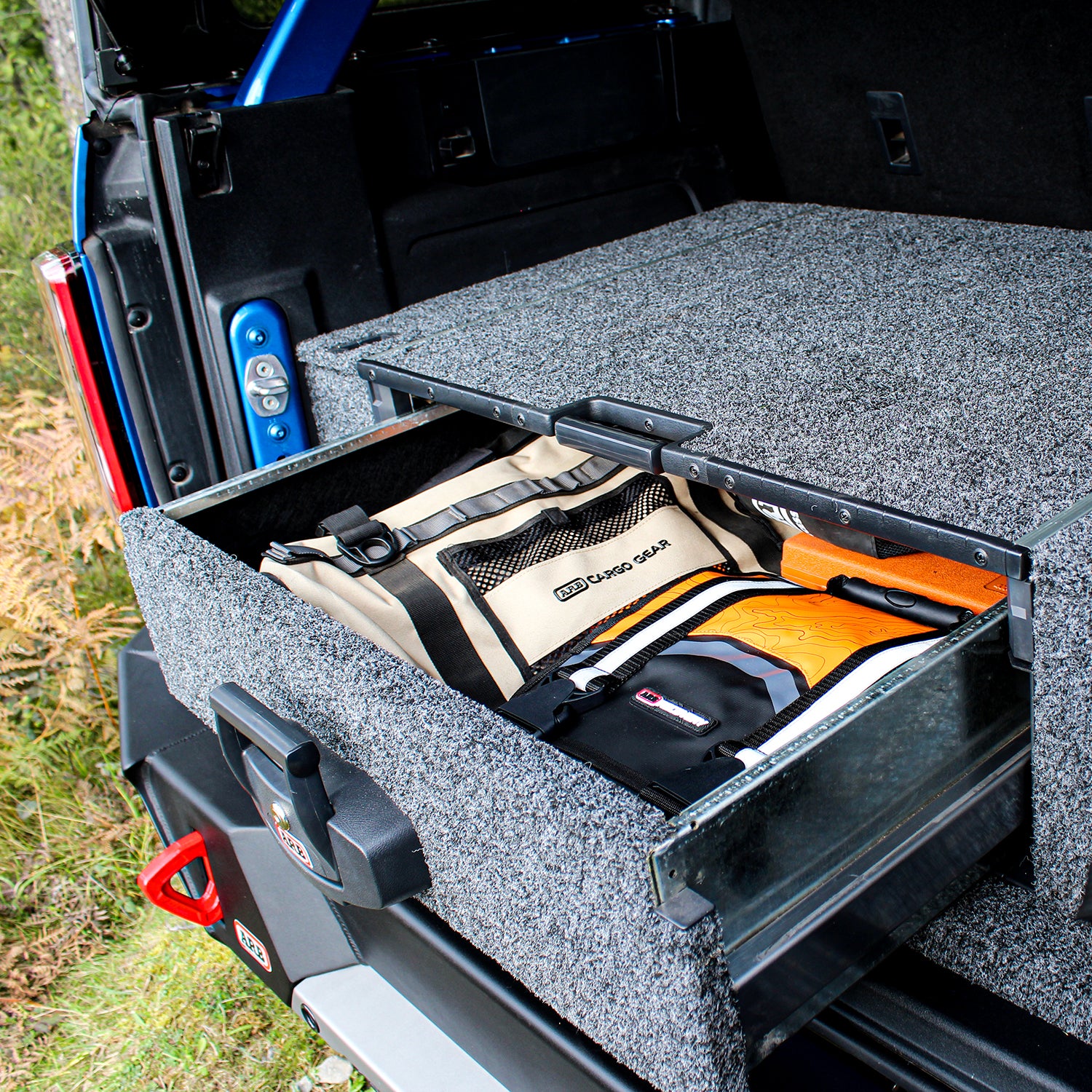

'21-23 Ford Bronco 4-Door ARB Outback Drawer Kit close-up Display in Vehicle (In Use)
'21-23 Ford Bronco 4-Door ARB Outback Drawer Kit display in Vehicle

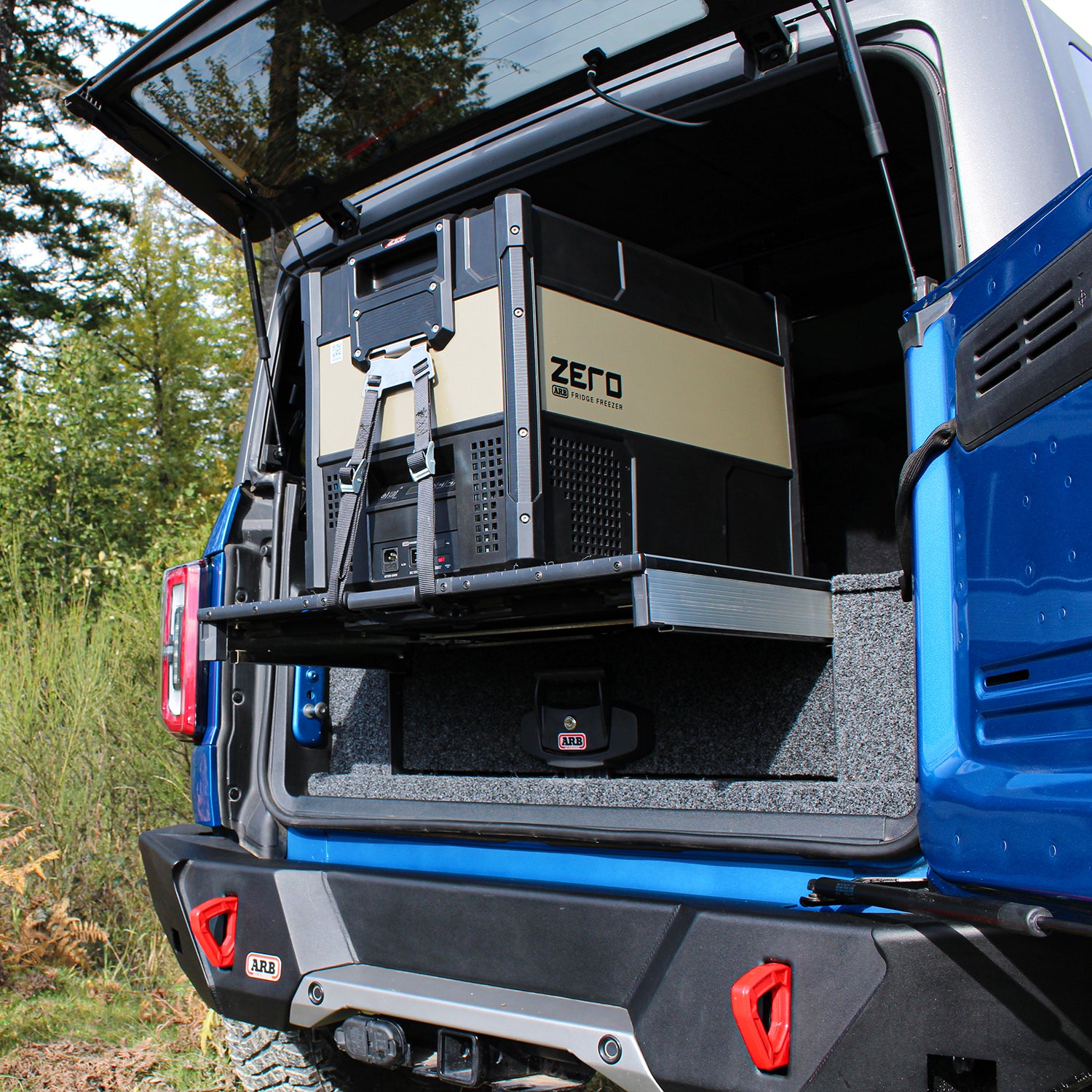

'21-23 Ford Bronco 4-Door ARB Outback Drawer Kit display in Vehicle (In Use)

ARB

'21-23 Ford Bronco 4-Door ARB Outback Drawer Kit

$1,857.00
SKU: RDK5400010
Quantity:

'21-23 Ford Bronco 4-Door ARB Outback Drawer Kit

MCQUEEN

190 South McQueen Road
Suite 109
Gilbert AZ 85233
United States

+14806332929

STATE OF CALIFORNIA CONSUMER WARNING

The ARB roller drawer kit for the 2021-2023 Ford Bronco (4-Door Models Only) is comprised of one ARB Outback Drawer and a Bronco-specific fit kit with side floors. In total, the kit adds 3.74 cubic feet of accessible, secure storage space to four-door Broncos.

The fit kit and side floors fill in the area between the outer edge of the drawer and the side of the rear cargo area with precision cut, matching carpeted pieces to create compartments with removable lids on each side. In doing so, they complete the floor and provide a larger, flat-top surface while maintaining access to the wheel arch storage areas. Side floor components include left and right-hand side floors with stainless steel locking tabs and a simple latch for easy removal. These thought-out details result in an easy-to-use storage area.

FITMENT DETAILS:
  • VEHICLE FITMENT: 2021-2023 Ford Bronco
  • 4-Door Models Only
  • INSTALL: Installation requires no drilling and uses existing factory mounts for a speedy and simple fit. Always follow local laws when mounting cargo that may reduce rear visibility.
  • For Bronco models with a subwoofer, the drawers partially block the speaker.
DRAWERS BUILT FOR 4x4:
  • Anti-Roll Back System locks drawer in open position, prevents unintentional closing
  • Locking mechanisms prevent rattle
  • Purpose folded stainless steel drawer runners for smooth, quiet operation
  • UV Stable carpet resists abrasion, conceals dirt
  • Robust finishes for longevity in harsh conditions
  • Slam shut/pull open handles make drawer operation easy and secure
  • Drawer handle is key lockable with built-in lock
BRONCO DRAWER FIT KIT FEATURES:
  • Easy, bolt-on installation via existing factory mounts; does not require drilling
  • Utilizes the current RDRF790 drawer module
  • Internal Dimensions: 28.7 x 25.7 x 8.6 in
  • Extension: 16 in
  • Drawers add 3.74 cubic feet of secure, organized storage space
  • ARB Zero 38qt and 47qt fridges may be fitted in front-to-back orientation
  • ARB Classic 37qt and 50qt fridges may be fitted in right-to-left orientation
  • Provides storage and a secure anchor point to tie down your fridge
FRIDGE FITMENT:

The drawer’s incorporated fridge slide allows the ARB Zero 38qt and 47qt fridges to be fitted front-to-back, but due to the limited length of the vehicle’s cargo area, larger fridges such as the ARB Classic 37qt and 50qt must be oriented left-to-right across the roller floor top and rolled rearwards for access. This provides storage and a secure anchor point for fridge tie down.

Vehicle Fitment:
  • 21-23 Ford Bronco Badlands/ Base/ Big Bend/ Black Diamond/ Outer Banks 4 Cylinder-2.3L
  • 21-23 Ford Bronco Badlands/ Base/ Big Bend/ Black Diamond/ Outer Banks/ Wild Trak V6-2.7L
  • 2023 Ford Bronco Everglades/ Heritage Edition 4 Cylinder-2.3L
  • 2021 Ford Bronco First Edition V6-2.7L
  • 2023 Ford Bronco Heritage Limited Edition V6-2.7L
