21-23 Ram TRX King Shocks Complete Package in Custom Color w/ Kibbetech Components

Complete King Shock Package

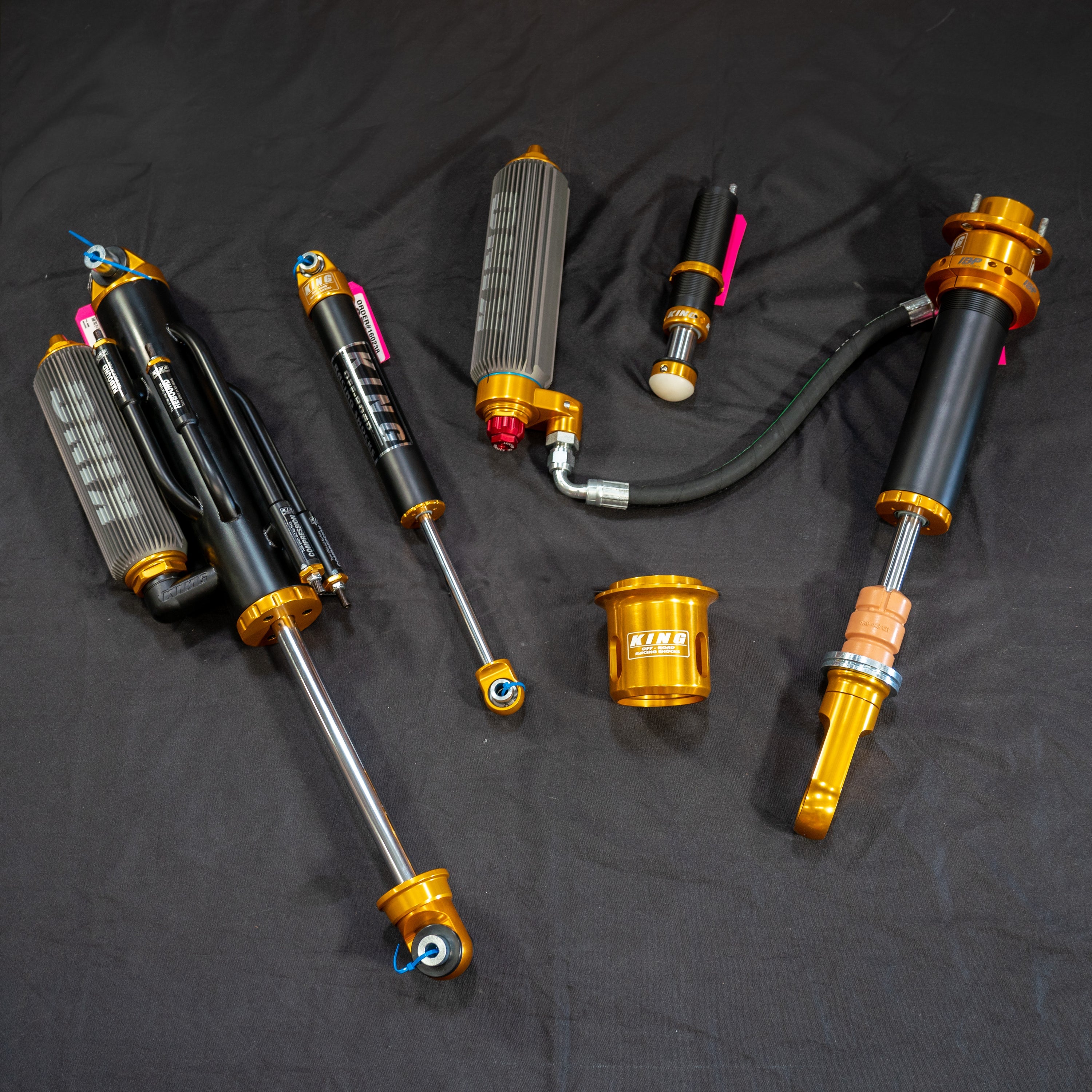

Introducing the Complete Custom Color King 3.0 Front Coilovers with Rear 3.5 4-Tube Bypass Shocks, Rear Bump Stop, and Axle Shock for the Ram TRX. This top-of-the-line suspension system is designed to take your off-road adventures to the next level.

Starting with the front coilovers, the King 3.0 shocks offer unmatched performance with 18 clicks of compression adjustability, allowing you to fine-tune your suspension for any terrain. These coilovers also feature an external reservoir with a large capacity for increased oil flow and better heat dissipation.

Moving to the rear of the vehicle, the 3.5 4-tube bypass shocks provide even more adjustability, with 24 clicks of compression and rebound adjustments, as well as 12 clicks of bypass adjustability. This allows you to dial in your suspension for maximum performance, whether you're cruising over sand dunes or crawling over rocks.

This kit also includes a bump stop and axle shock to enhance the rear suspension further. The bump stop helps prevent bottoming out, while the axle shock adds an extra layer of damping to ensure a smooth ride over rough terrain.

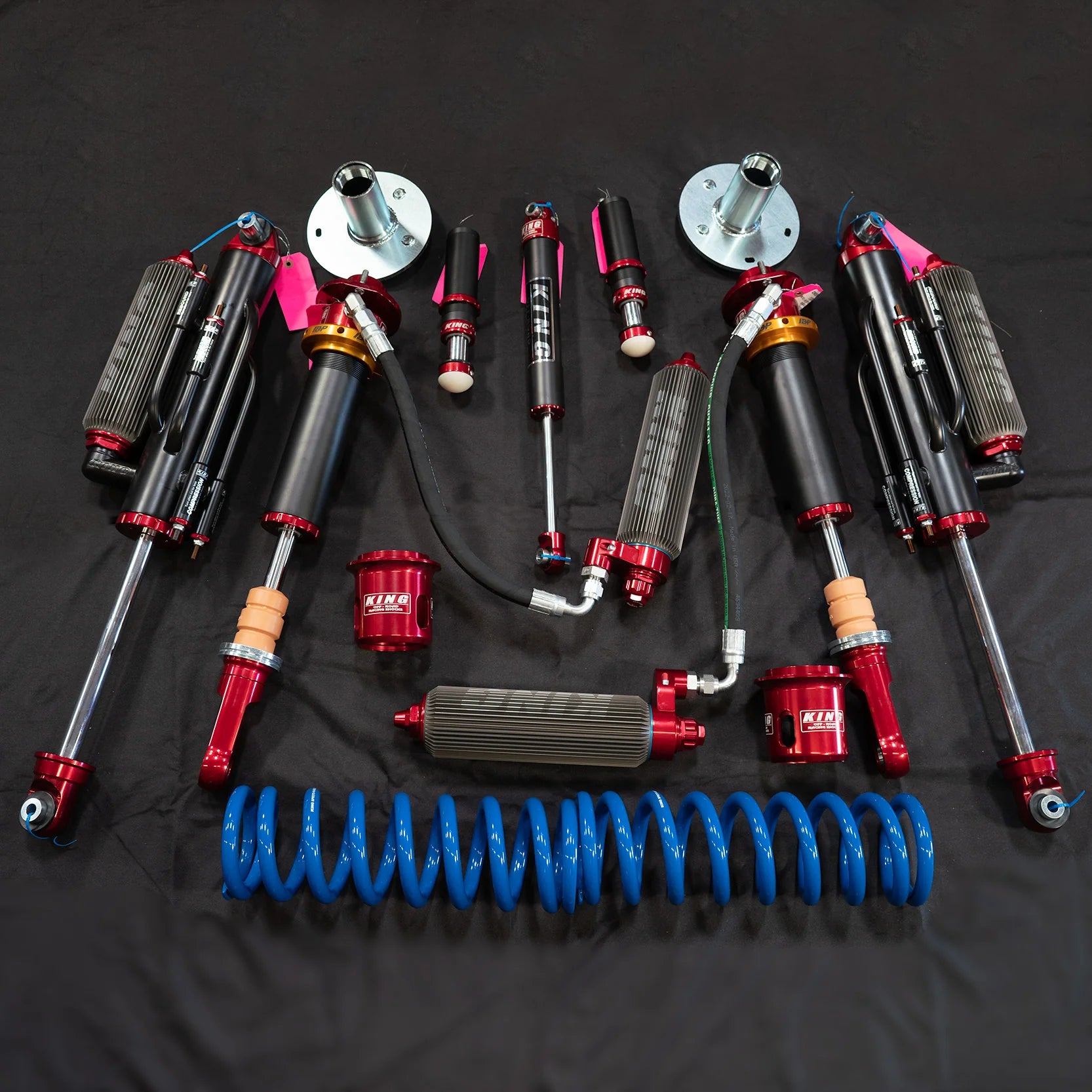

But what really sets this suspension system apart is the custom color options. You can choose from black on red, black on black, or black on gold to give your Ram TRX a truly unique look. The high-quality powder coating ensures that your suspension will look great for years to come.

Overall, the Complete Custom Color King 3.0 Front Coilovers with Rear 3.5 4-Tube Bypass Shocks, Rear Bump Stop, and Axle Shock is the ultimate suspension upgrade for any Ram TRX owner who demands the best in performance and style.

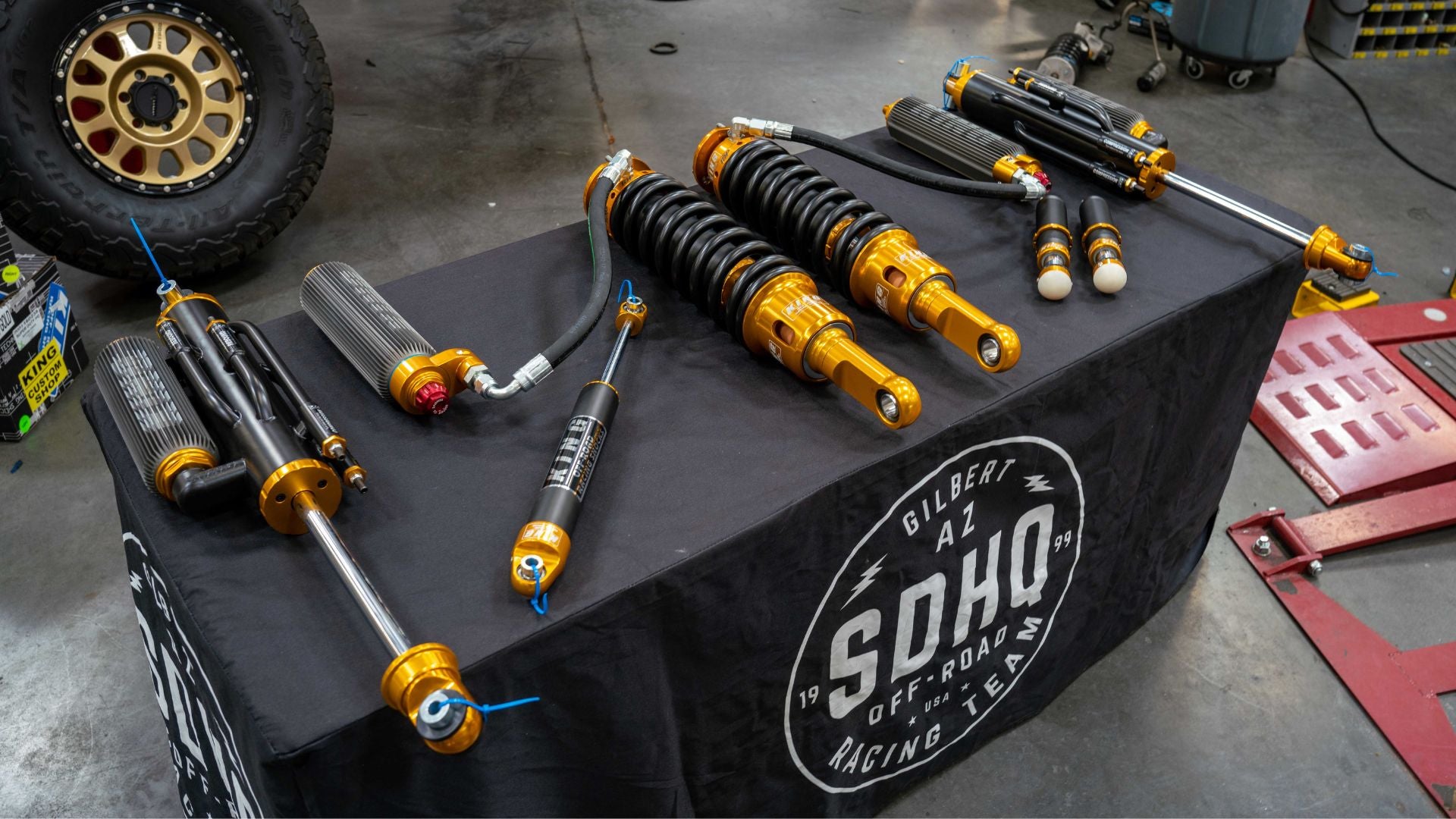

Complete King Shock Package Components:

• QTY 2. 2021-Current Ram 1500 TRX King 3.0 IBP Finned Remote Reservoirs Front Coilover Kit w/ Compression Adjusters-33700-391A
• QTY 2. 2021-Current Ram 1500 TRX King 3.5 IBP Finned Reservoir Rear Shocks w/ Compression Adjusters-37701-101A
• QTY 1. King Rear Axle Shock-20C001-391
• QTY 2. 2.0 King Bump Stops-20AB001-109

• Large 3.0 diameter shock bodies increase fluid capacity for smoother, cooler running shocks.
• King’s 3.0 IBP Internal Bypass Coilover shock delivers precisely tunable velocity-sensitive and position-sensitive damping as well as a hydraulic bump stop in a bolt-on monotube shock.
• King’s monotube design uses a full-diameter piston and standard, full-size valving.
• It’s built from the same quality materials and to the same precise tolerances as King’s top-of-the-line Pure Race series shocks.
• Factory tuned for optimal ride quality.
• Extensive dynamometer lab testing and punishing real-world testing to develop the optimal damping curves and spring rates for your TRX.
• Fully rebuildable, serviceable, and tunable.

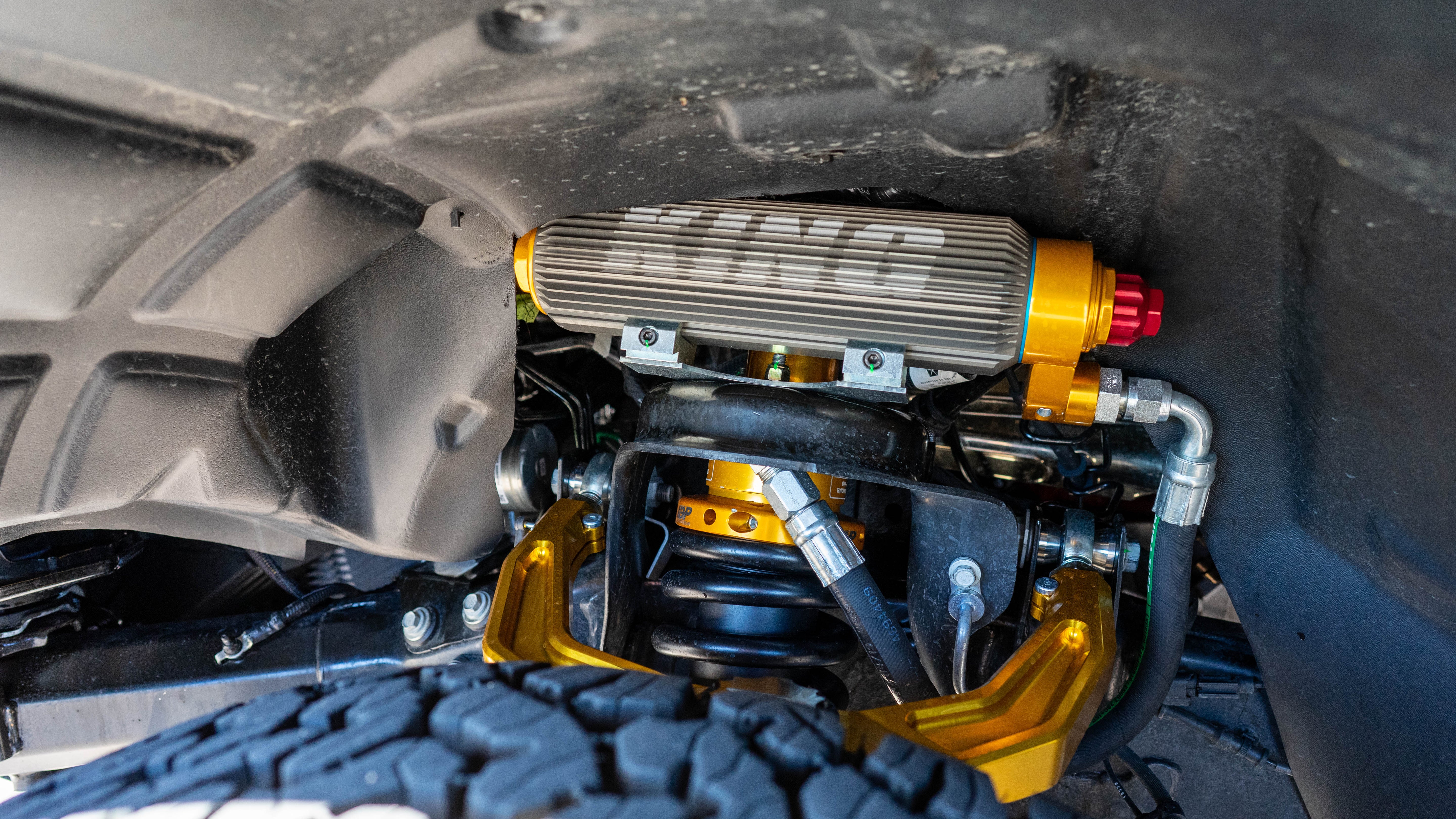

• Finned Reservoir With Compression Adjuster Features:
• 3.5” OD Pure Race Series External finned reservoirs dramatically increase fluid capacity, and heat dissipation and provide sustained damping performance even under the most punishing conditions.
• All new threaded end cap design with new Schrader valve protective cap.
• Made from extruded 6061-T6 aluminum.
• Improved reservoir mounts. No more hose clamps!
• Hose attachment at the reservoir allows swivel adjustment of the hose clocking.
• Comes standard with King’s 3.0 Wide Range
• Compression Adjuster which gives 30 precise clicks of compression damping adjustment to further refine your ride quality.
• Reduces shock cavitation.

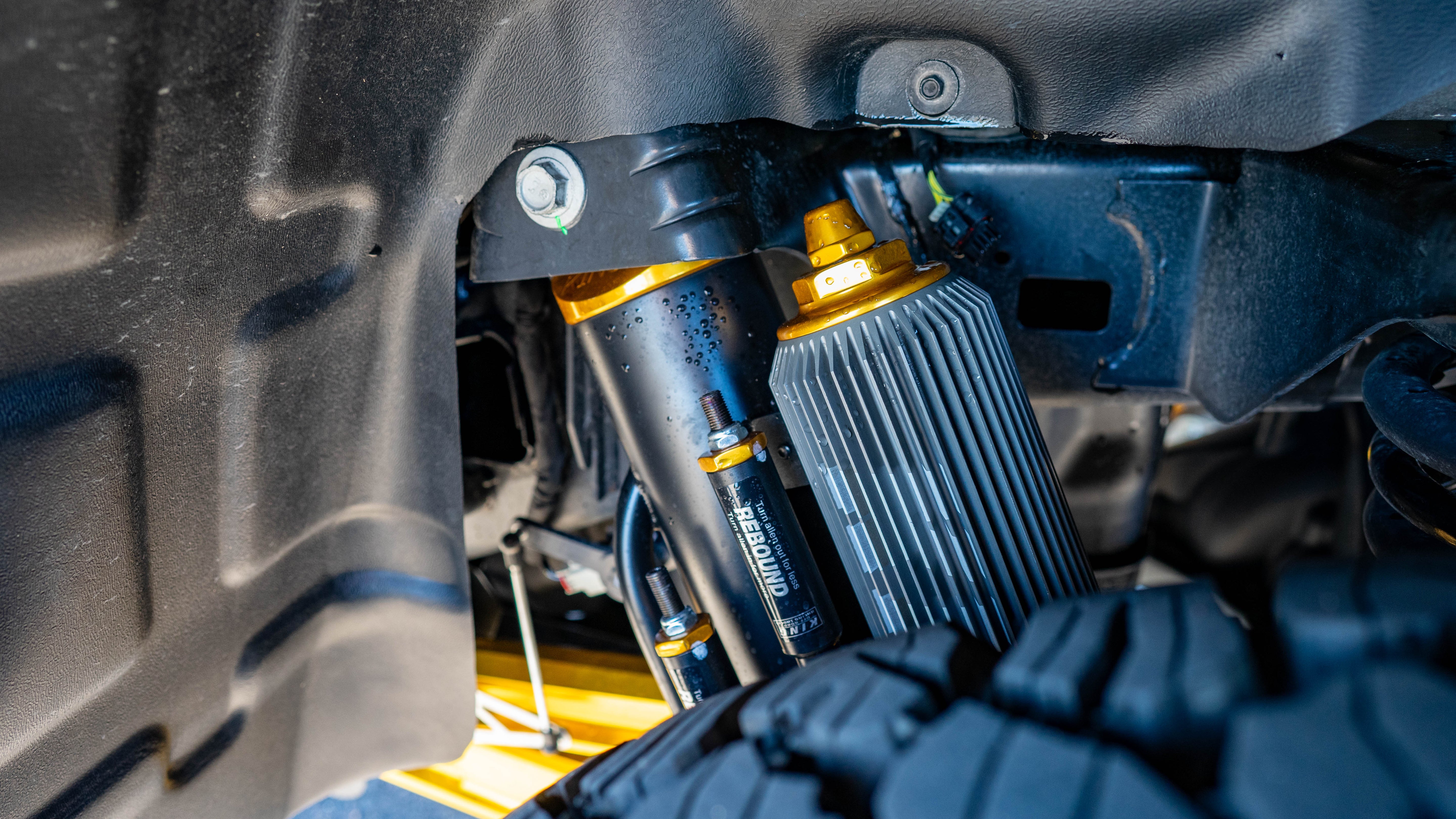

Key Features 2021-2023 Ram 1500 TRX King 3.5 4-Tube Bypass Finned Reservoir Rear Shocks w/ Compression Adjusters-37001-101:

• Large 3.5” diameter shock bodies increase fluid capacity for smoother, cooler running shocks.
• Fully adjustable 4 Tube Bypass Shock design allows you to adjust compression and rebound.
• Bypass shocks have a built-in bump zone for better bottoming control.
• 1” Diameter Shafts.
• Finned Reservoir Features:
• 3.5” OD Pure Race External Finned Reservoirs dramatically increase fluid capacity, and heat dissipation and provide sustained damping performance even under the most punishing conditions.
• Threaded end cap design with new Schrader valve protective cap.
• Made from extruded 6061-T6 aluminum.

King's 2.0 Rear Axle Shock for the 2021-2023 Ram 1500 TRX is a bolt-on suspension product that will reduce axle hop for increased traction.

KEY FEATURES:

• 100% Bolt-on Performance!
• Reduces axle hop for increased traction!
• 100% made in the USA from the highest quality materials obtainable.
• Replaces factory shock with a rebuildable shock which allows users to fine-tune valving.
• Easily tunable and serviceable with simple hand tools.
• Built with the same quality materials, precise tolerances, and advanced seal technology as our high-end race shocks.
• Contains a unique symmetrical piston design that offers superior flow characteristics.
• Includes all hardware and detailed instructions for a complete installation.

King bump stops for the 2021-2023 Ram TRX will help you use all the suspension travel you have to get the most out of your TRX.

KEY FEATURES:

• 100% Bolt-on Performance.
• Replaces factory foam bump stop.
• An additional level of bottoming control.
• 100% made in the USA from the highest quality materials obtainable.
• Easily tunable and serviceable with simple hand tools.
• Built with the same quality materials, precise tolerances, and advanced seal technology as our high-end race shocks.
• Contains a unique piston design that offers superior flow characteristics.
• A long-wearing nylon contact pad ensures quiet operation. Includes all hardware and detailed instructions for a complete installation.

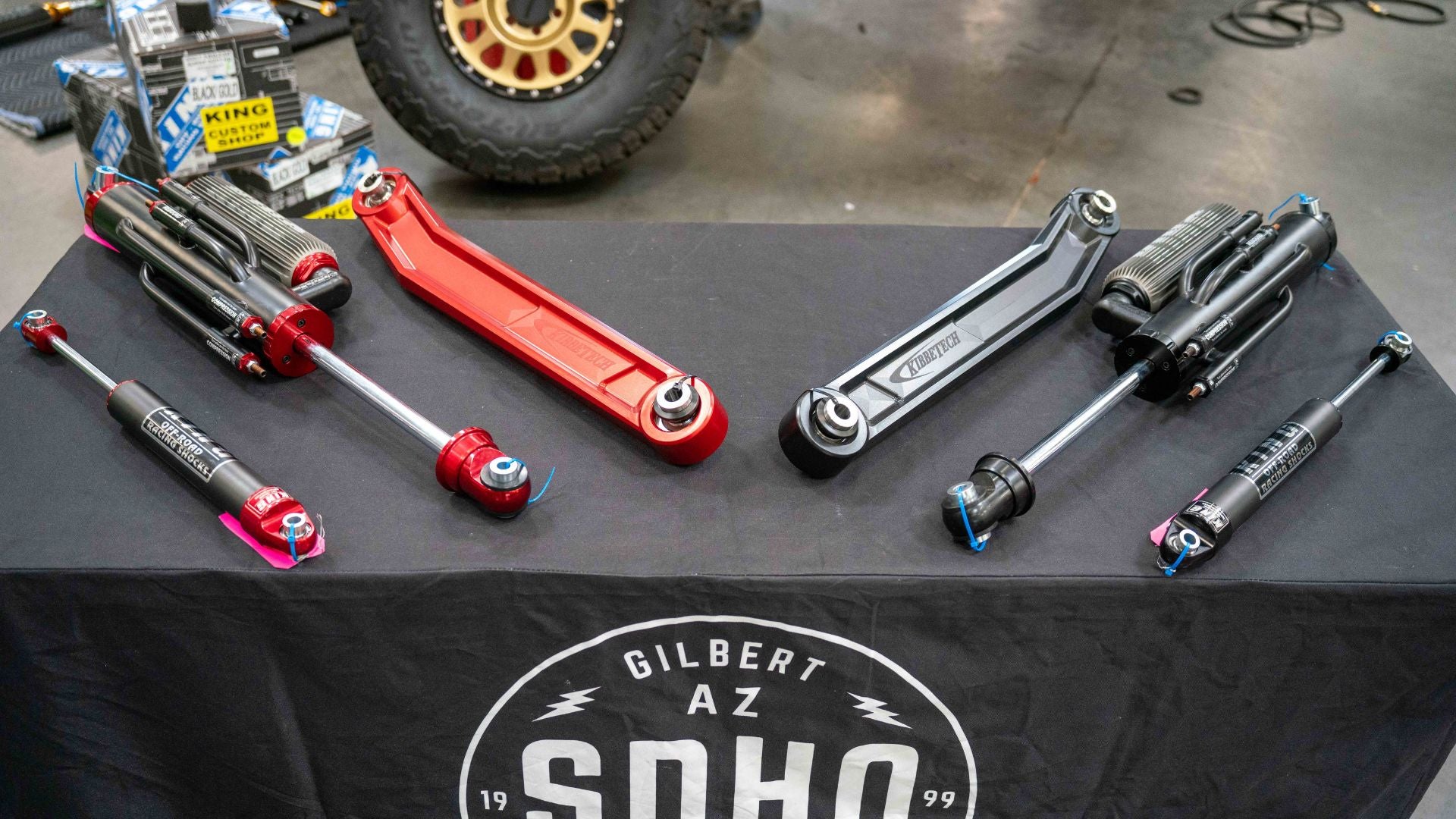

Key Features '21-23 Ram TRX Kibbetech Billet Aluminum Upper Control Arms:

Kibbetech's Billet Aluminum Upper Control Arms for the Ram TRX were developed specifically for the Ram TRX and provide increased strength, durability & geometry.

• 5-AXIS CNC Machined from 6061 Aluminum
• PTFE Lined FK COMH20T Spherical bearings
• PTFE Lined FK RSMX12T Rod-ends
• Stainless misalignment spacers
• Built in "kick" at uniball to provide maximum droop with out binding
• Re-uses OEM ball stud for ride height sensor
• Yields higher strength over oem while offering more adjustment over stock to correct caster/camber with leveled or lifted applications

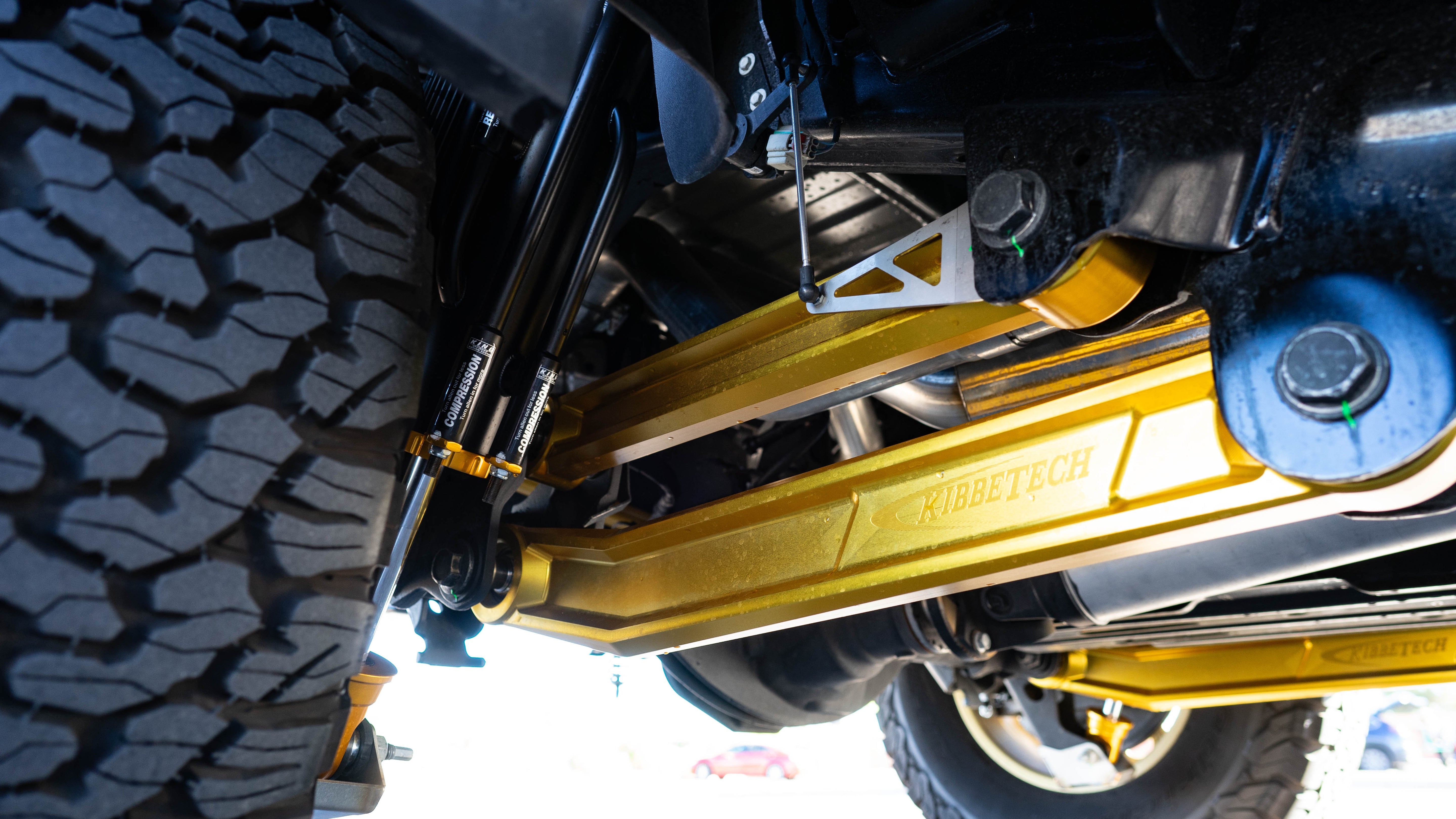

Key Features '21-23 Ram TRX Kibbetech Billet Aluminum Rear Suspension Kit:

Kibbetech's Billet Aluminum Rear Suspension Kit for the 2021-2023 Ram TRX uses uniball pivots that allow for a bind free suspension movement which eases articulation and travel up and down freely allowing the suspension to function better and eliminates the side to side slop you get with factory OEM bushings

This suspension kit is a direct bolt on replacement- no cutting or grinding or welding required

• CNC machined in house from 6061 aluminum
• Includes 2 lower arms, 2 upper arms and track bar
• Utilizes 1'' FK WSSX16T uniballs in each link pivot
• Utilizes 7/8'' FK JMX14T-770 rod ends in track bar and is fully adjustable to center rear end in vehicle perfectly
• Comes with cnc machined 17-4 stainless misalignment spacers with DELRIN anti-wobbles on chassis side pivots
• Axle side pivots utilize high misalignment spacers to achieve maximum articulation with zero bind
• Tremendous Increase in strength over stock
• Slight Decrease in weight over stock
• Uniball pivots allow for bind free suspension movement which will ease in articulation and travel up and down freely allowing the suspension to function better and eliminates the side to side slop you get with factory OEM bushings
• Uses factory hardware
• Incorporated bracket for live shock sensors, bracket can easily be removed if you don't need the sensor if you upgrade shocks
• Direct bolt on design- no cutting or grinding or welding required
• Spare tire plastic guard will need to be removed for track bar clearance

*Optional* Kibbetech Lower Control Arms + Sway Bar End Link Kit:

Fabricated Lower Control Arms:

• Direct fit to vehicle
• 4130 TIG welded plate construction
• Large 1.5'' uniball at spindle with 17-4 stainless misalignments and aircraft 12pt hardware
• Large 1'' uniball frame side pivots with 17-4 stainless misalignments
• Shock bolt adapter sleeve to run a 5/8'' 12pt aircraft bolt
• Double sheer sway bar attachment points built around utilizing our sway bar end links
• Kibbetech Sway Bar End Links are needed for installation, OEM end links do not work
• Added limit strap tab
• Built in steering stops
• Works with OEM or KING shocks
• Powdercoated black
• SOLD as pair

Billet Aluminum Sway Bar End Links:

• CNC machined from high-grade aluminum
• Teflon lined high misalignment FK uniballs in each end
• Includes hardware
• Replaces weak joints with stronger, more appealing unit

Additional Notes:

• *Custom color kits from King and Kibbetech may have an additional lead time. Place an order for your desired kit and you will be contacted with an estimated lead time if it is not in stock at the time*
• King does not allow cancelations of custom-colored kits. If the product is not in stock our processing team will contact you. If you agree to the lead time, the order cannot be canceled.
