'20-24 Jeep JT Gladiator Bumper 30" ONX6+ LED Light Kit
Wiring Style
'20-24 Jeep JT Gladiator Bumper 30" ONX6+ LED Light Kit
Toggle Switch
MCQUEEN
190 South McQueen Road
Suite 109
Gilbert AZ 85233
United States

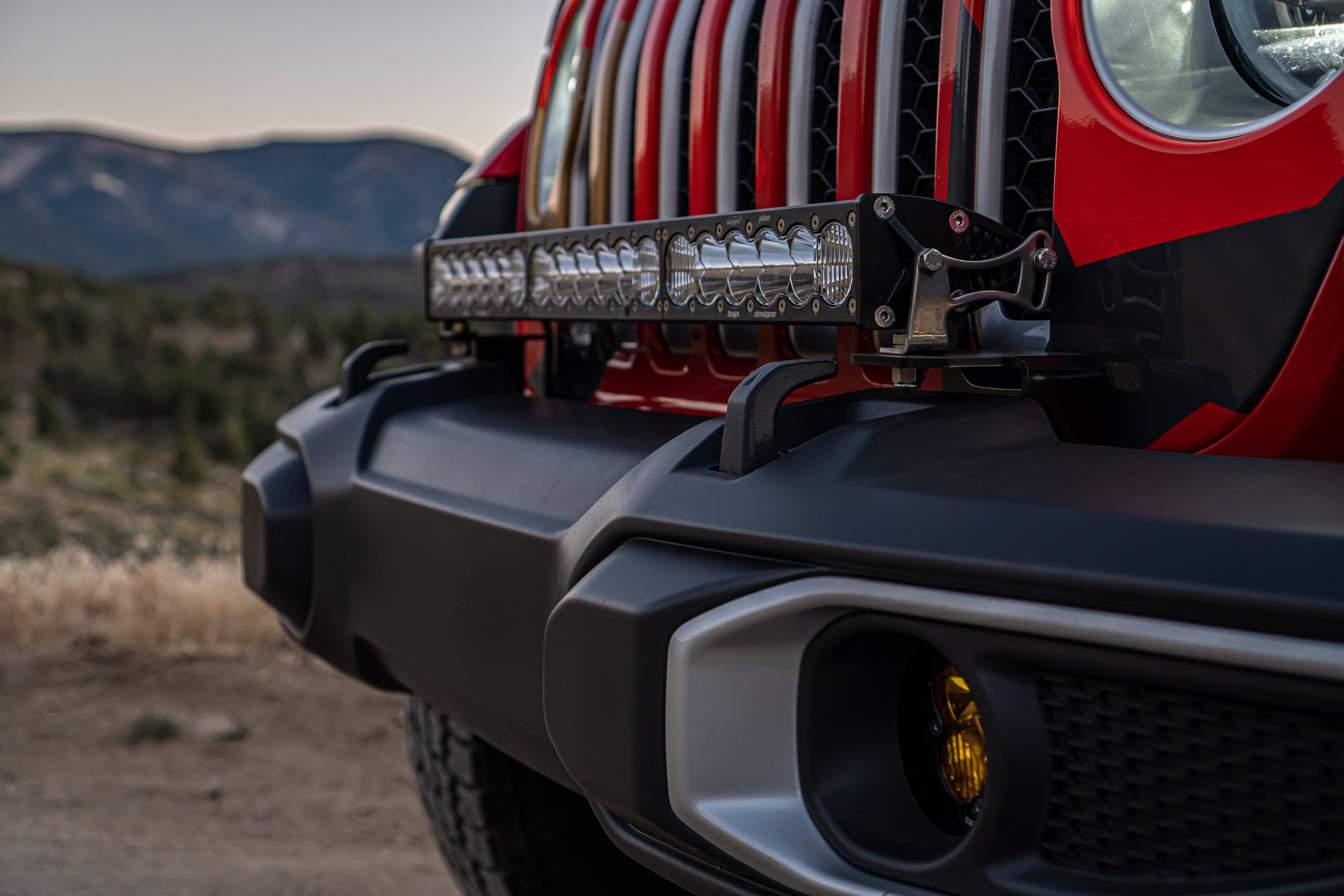

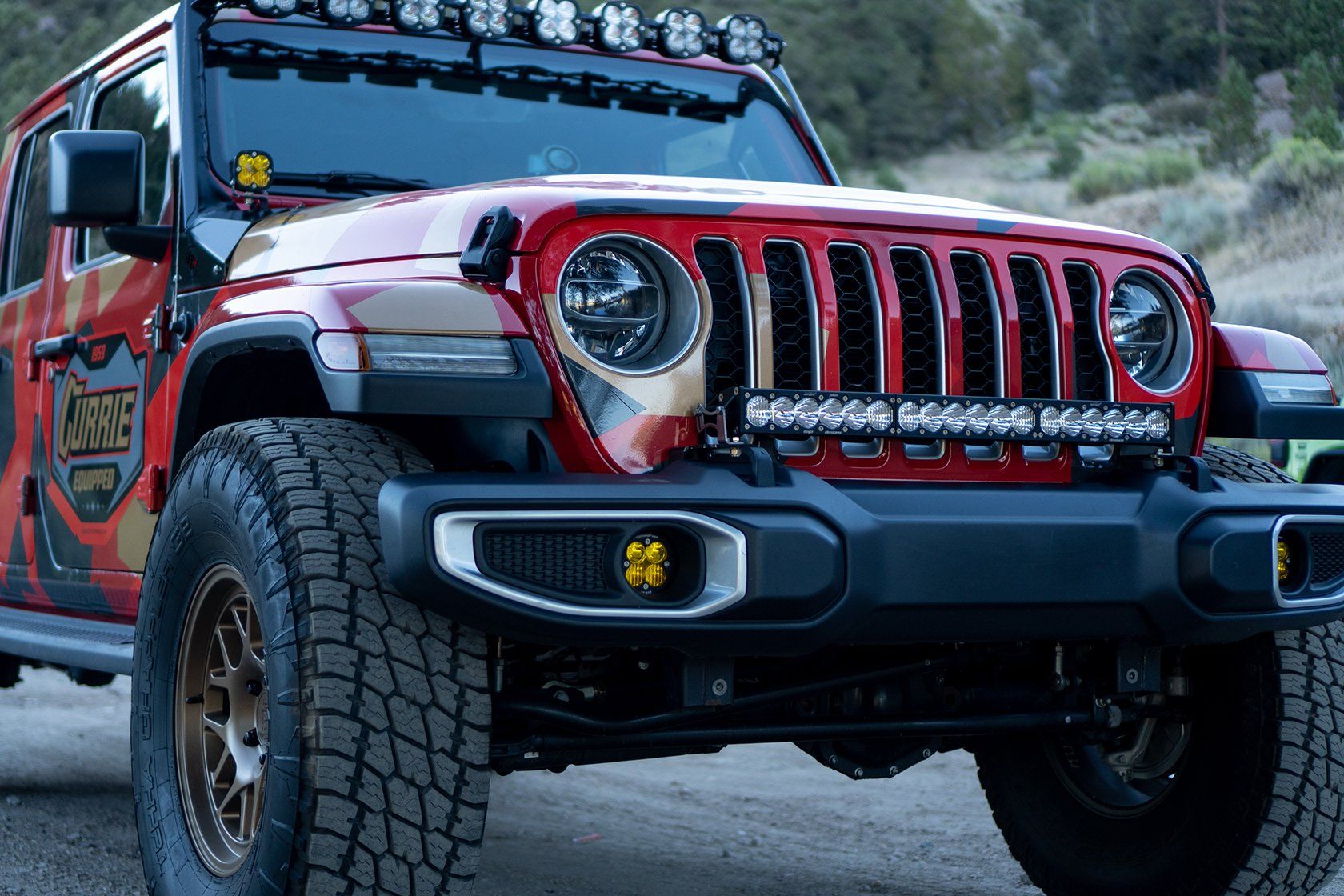

Baja Designs' 2020-2024 Jeep JT Gladiator Bumper 30" ONX6+ LED Light Kit:
This lighting and wiring setup has been tested on the 2020-2024 Jeep JT with the plastic bumper to take the guesswork out of installation! At an impressive 31,910 lumens, the brightest got up to 69% brighter. The OnX6+ LED light bar also integrates Baja Designs’ trademarked High-Speed Spot™ reflector, the same one used by our Team Enlightened racers, to give you the guaranteed furthest projecting LED Light Bar on the planet. In addition, the OnX6+ LED light bar adopts industry standard sizing and is now compatible with aftermarket mounting systems.
30" ONX6+ SPECS:
- Lumens: (High) 31,910 (Low) 25,450 Utilizing 18 Cree LEDs
- Wattage/Amps: (High) 281W / 21.7A (Low) 225W / 17.1A
- Dimensions: 30" x 4.29" x 2.69" LED Life Expectancy: 49,930 Hours
- Front Lens: Hard Coated Polycarbonate
- Housing: Aircraft Grade Aluminum w/Mil-Spec Hard Anodize Bezel: Billet Machined Aluminum
- Hardware & Bracket Material: Stainless Steel
- Exceeds MIL-STD810G (Mil-Spec Testing)
- Built-In Overvoltage Protection
- IP69K (Waterproof up to 9ft & Pressure Washable)
- IK10 Compliant (Mechanical Impact Testing)

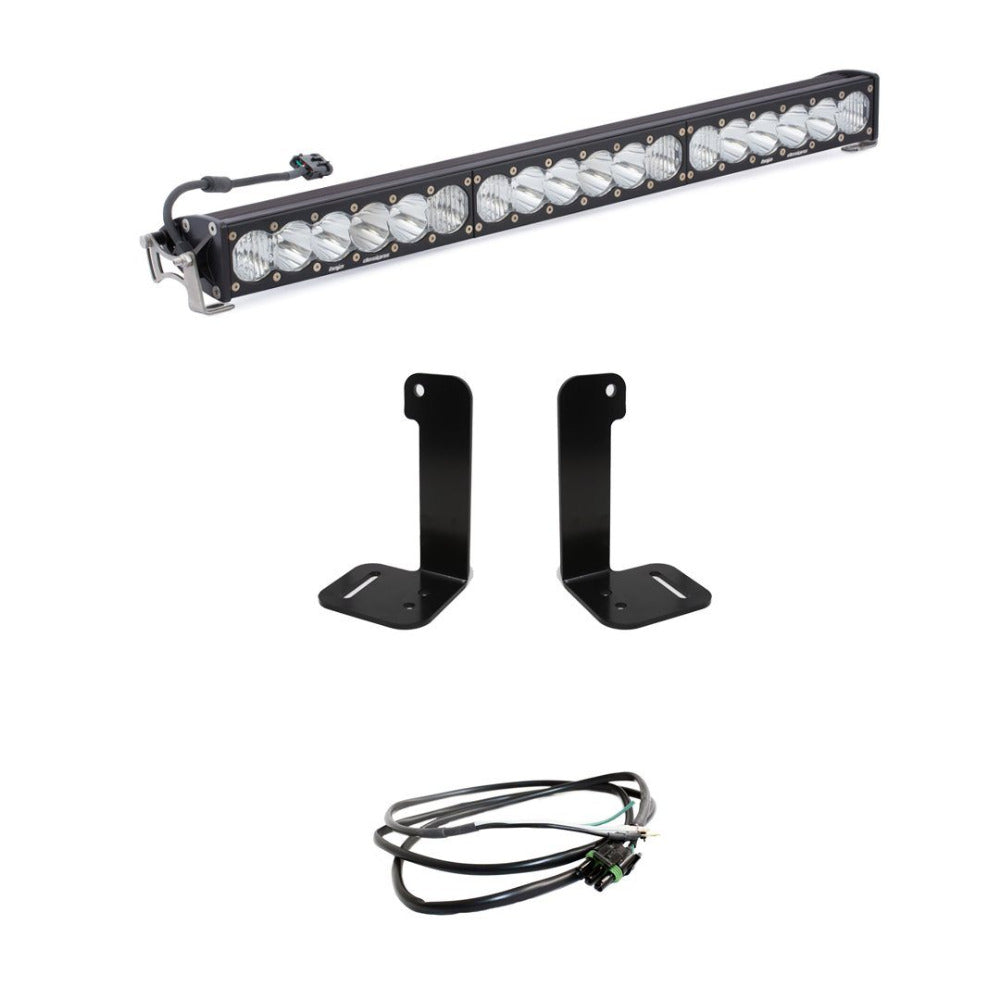

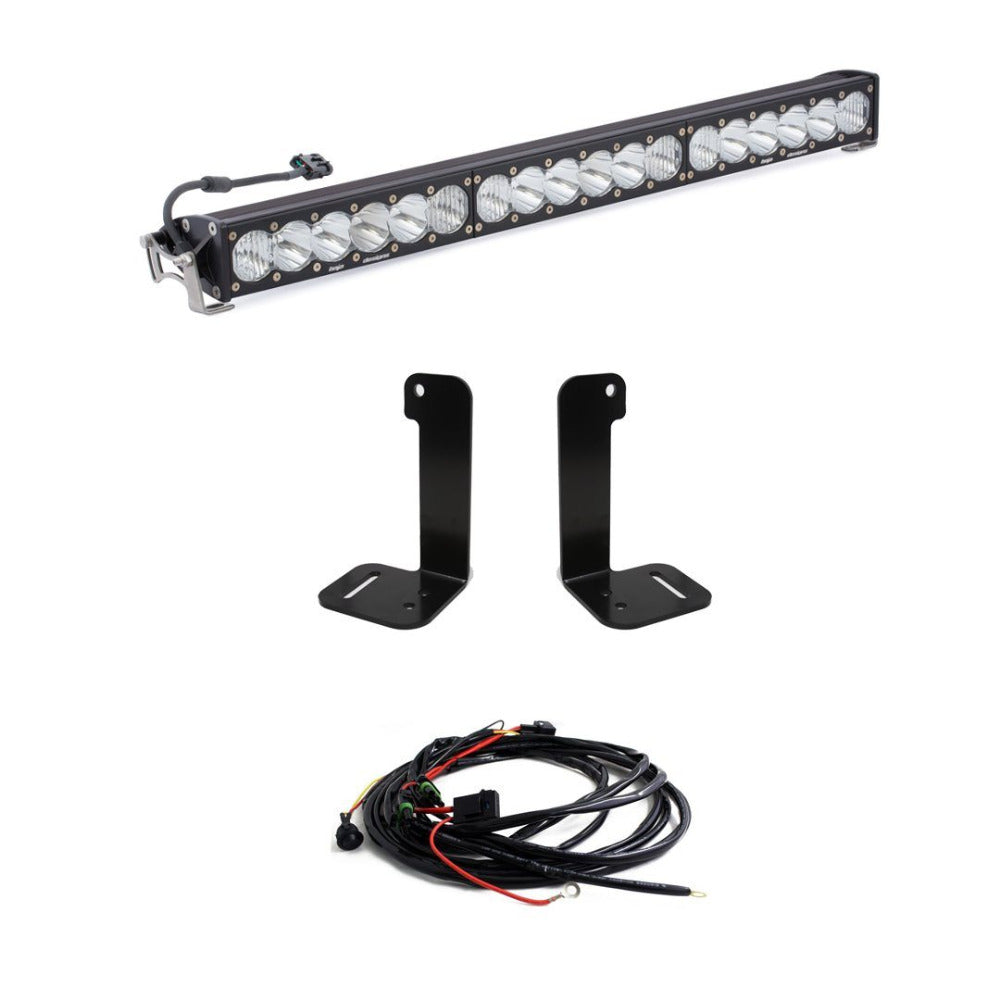

WHAT'S INCLUDED:
- OnX6+ 30” LED Light Bar
- QTY (1) Wiring Harness
- Upfitter Wiring harness for models with factory Upfitter switch provisions.
- Toggle-switch style wiring allows you to pick the location of the switch
- Mounting Brackets
- Hi-Low Dongle
BEAM PATTERNS:
Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Wide Driving (42°) and spot (6°) optics to provide you with a smooth blend of light for both near-field applications and distance
