'13-24 Ram 3500 Carli 2.5 Pintop System-3.25" Lift

Sale price$4,940.00
SKU: CS-DPT25-1319-D
Sway Bar Options:

Sway Bar Options

Rear Leaf Options:

Rear Leaf Options

Quantity:

'13-24 Ram 3500 Carli 2.5 Pintop System-3.25" Lift

None / None

MCQUEEN

190 South McQueen Road
Suite 109
Gilbert AZ 85233
United States

+14806332929
QUALITY ON AND OFF-ROAD:

Carli's most popular suspension system for the Ram 3500, the Pintop kit boasts 2.5″, Remote Reservoir King Shocks. Designed and tuned in house for the customer looking for substantial on-road and off-road performance improvement. Customers can expect a softer ride with more control and bottom-out resistance than the Backcountry.

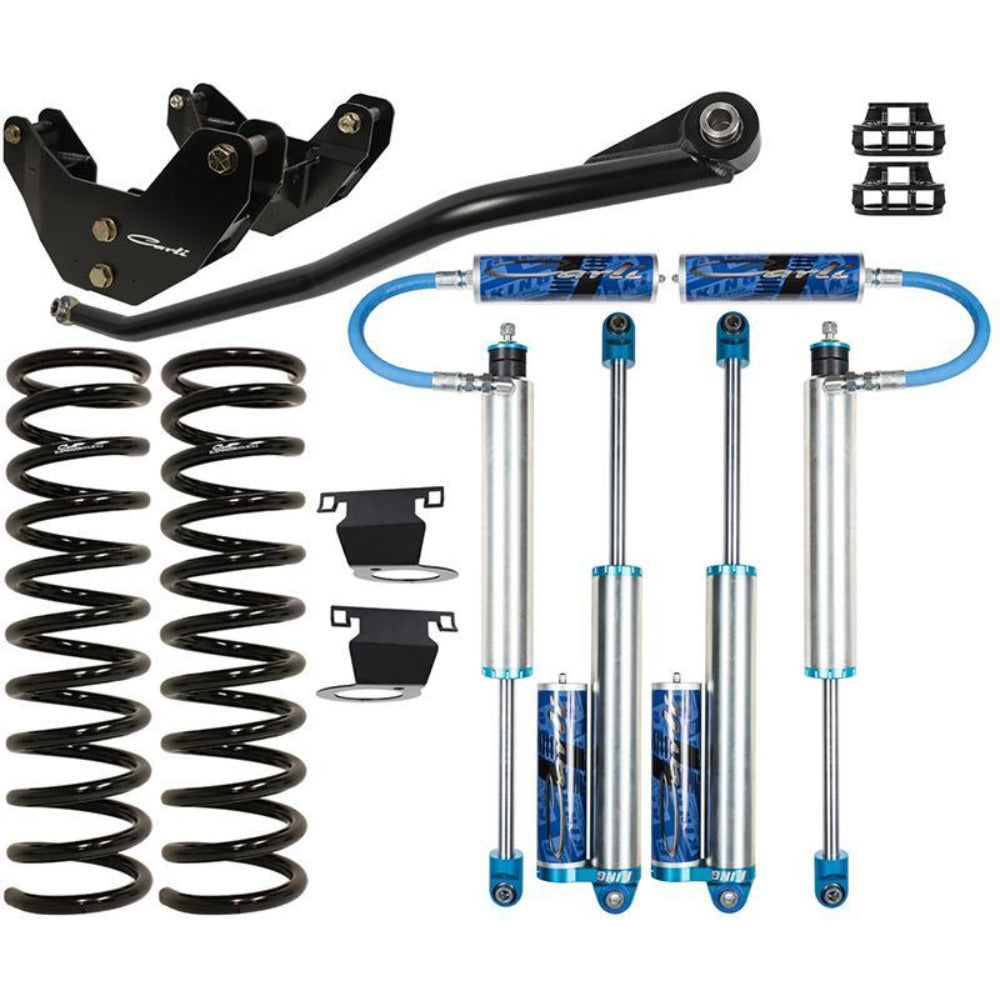

BASE KIT INCLUDES:
  • CS-DFBD-1: Front Bump Drops
  • CS-DLRC-14-D: Front Linear-Rate Coil Springs
  • CS-DATB-1419: Front Track Bar
  • CS-DRAD-14: Radius Arm Drops
  • CS-DPT25SPKG-13-D: Carli Tuned King 2.5" Remote Reservoir Pintop Shock Package with Reservoir Mounts, Stainless Shafts
KIT SPECS:
Front Lift Rear Lift Front Travel Rear Travel Shock Diameter Tire Fitment
3.25″ – 3.5″ 2″ – 3″ 9.3″ 13″ 2.5″ 37″ x 12.5″


PRODUCT OPTIONS:

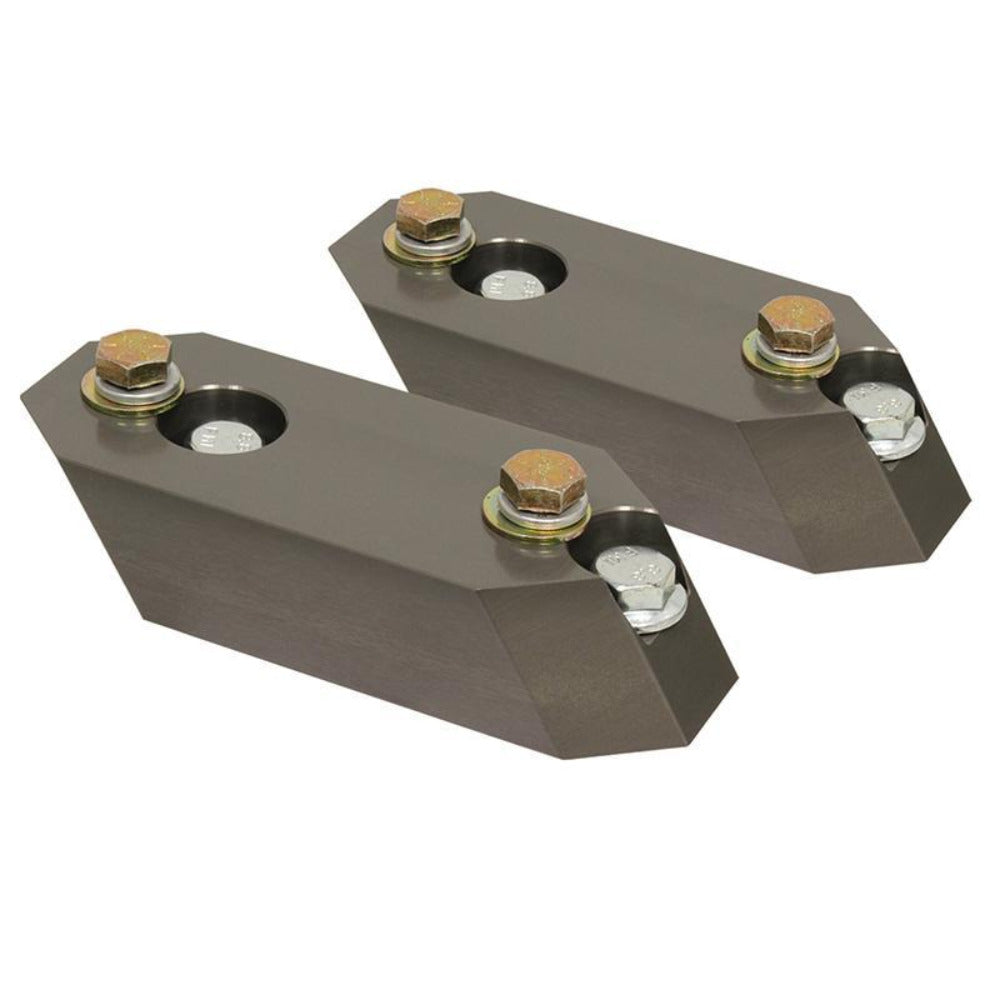

SWAY BAR DROPS: CS-DSBD-14

  • In-house machined billet aluminum
  • Hard-Anodized for corrosion resistance
  • Correct factory sway bar geometry on 3" Lift

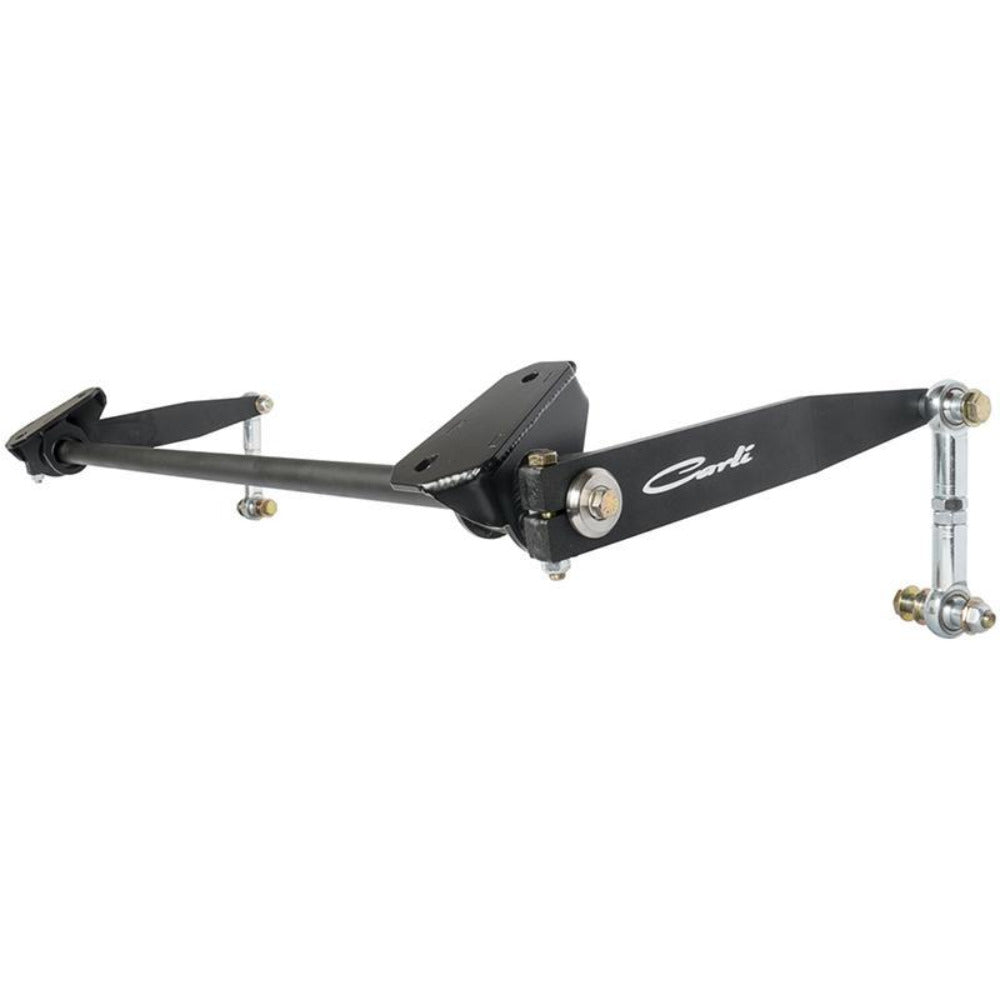

TORSION SWAY BAR: CS-DTSB3-1419

  • Easily the best "bang for the buck" upgrade for ride quality
  • Allows front suspension to move freely without giving up control
  • Requires removal of electronic sway bar on Power Wagons
  • Compatible with 2.5"-4" Front Lift

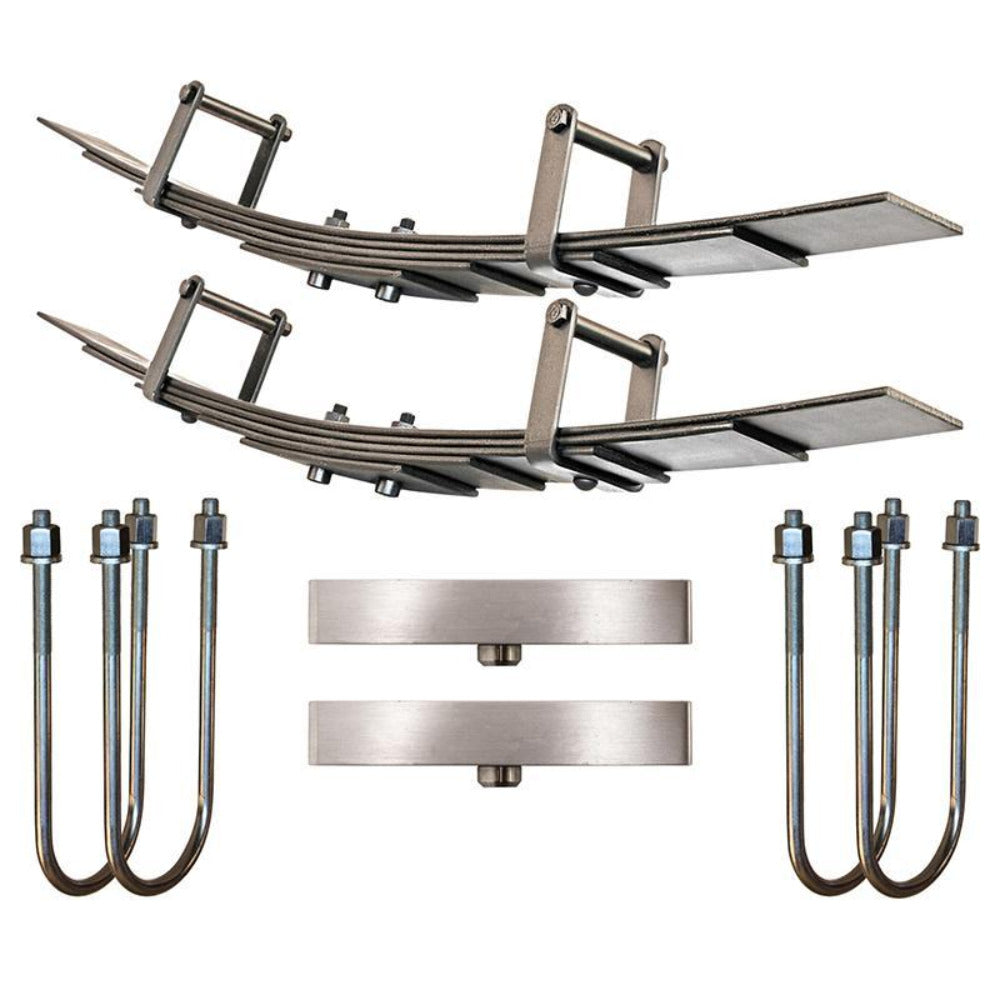

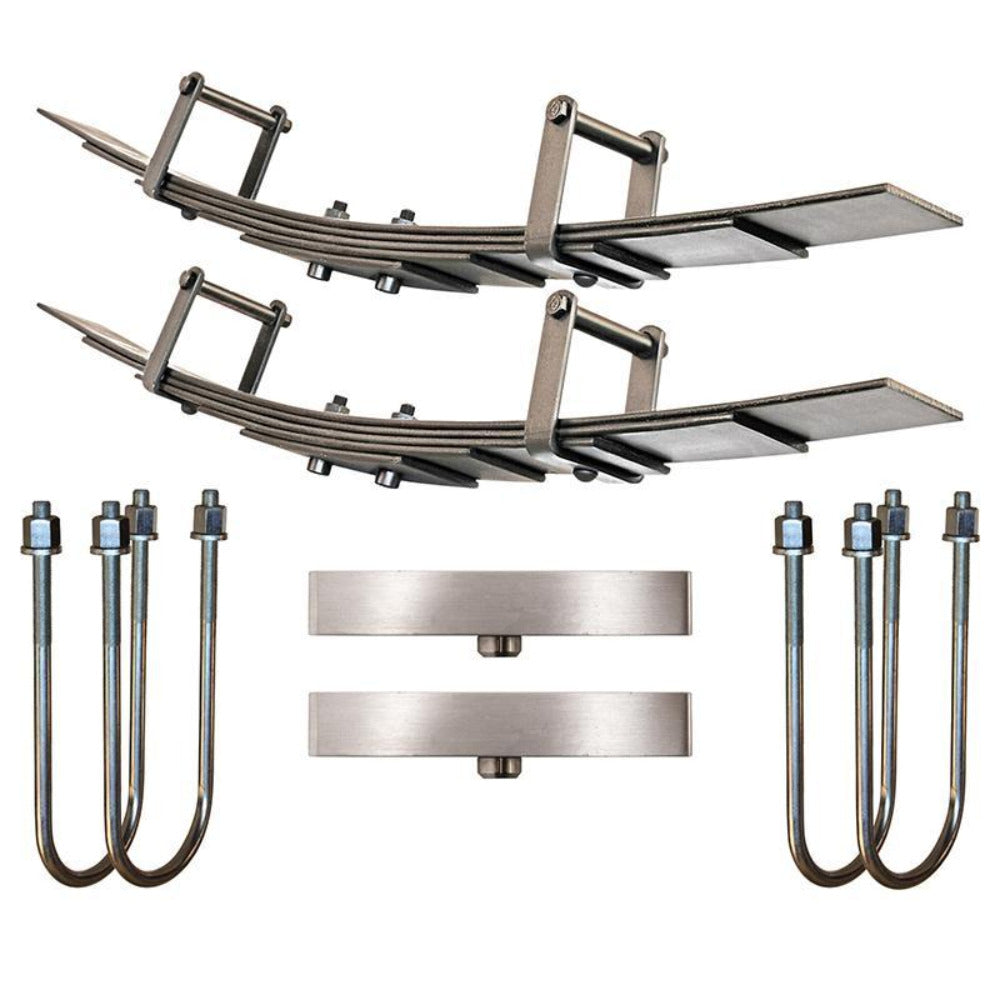

ADD-A-PACK & BILLET BLOCK: CS-DPAP3-19-4.25

  • Add-A-Pack Replaces lower overload spring More predictability and Spring Progression Keeps Tires Planted
  • 1" Block included to match our 3" Suspension Systems
  • 2"-2.5" Total lift with Add-a-Pack and Block Combination
  • Includes U-Bolts and Center Pins
  • Fitment: 2019+ Ram 3500 4x4, With 4.25" Axle Tube
  • Will NOT fit 2019+ 3500 with Factory Air-Assist

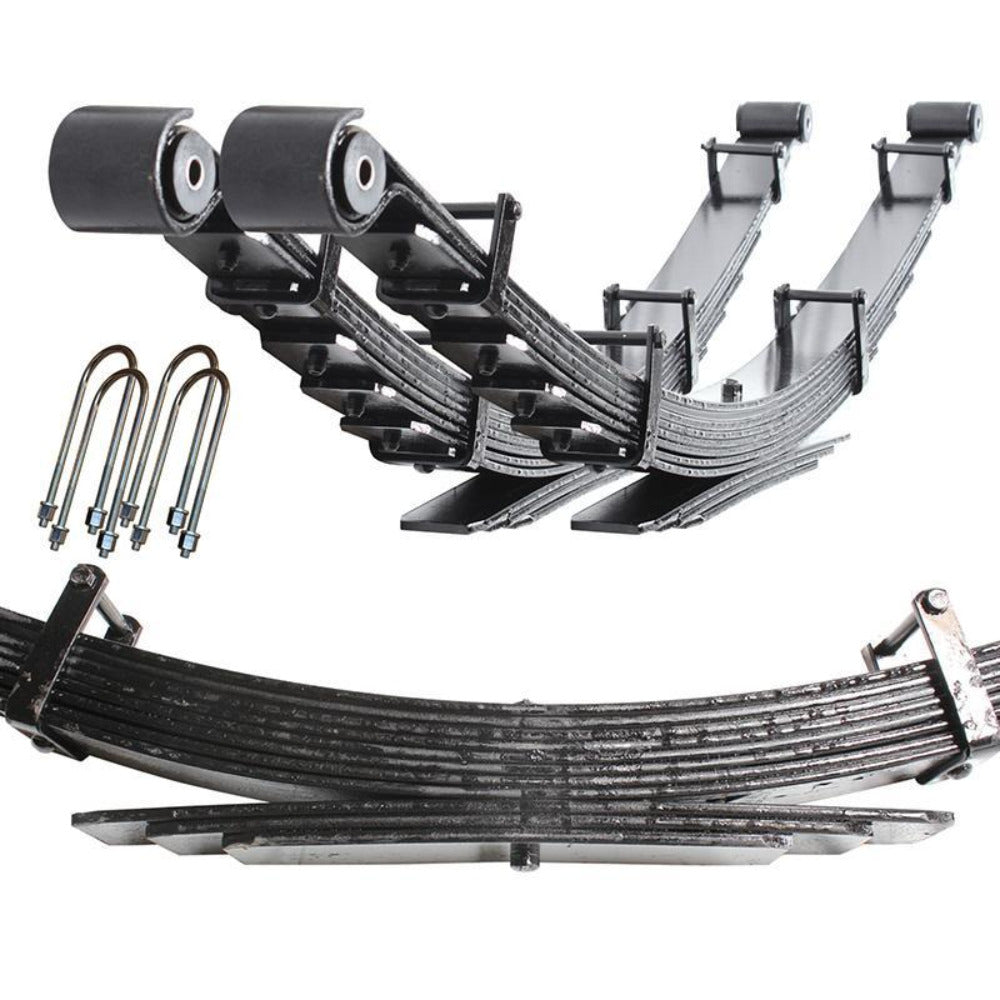

PROGRESSIVE LEAF SPRINGS: CS-DFSP3-19-4.25

  • 3" rear lift maintains slight rear-high stance with Carli 3" Systems
  • Softens initial spring rate at ride height
  • Minimizes axle wrap/wheel hop
  • Reduces payload to "light" 3/4-ton capacity
  • Capable of 15" of suspension travel with factory shackle
  • Fitment: Ram 2019+ 3500 4x4, Diesel with 4.25" Axle Tube
  • Will NOT fit trucks that have factory air-assist
