Dirt King Fabrication

'19-Current Chevy/GMC 1500 Prefab Bedcage

  • VENDOR: Dirt King Fabrication
  • PART#: DK-636828
  • MSRP: Regular price $1,595.00
  • YOUR PRICE: $1,563.10

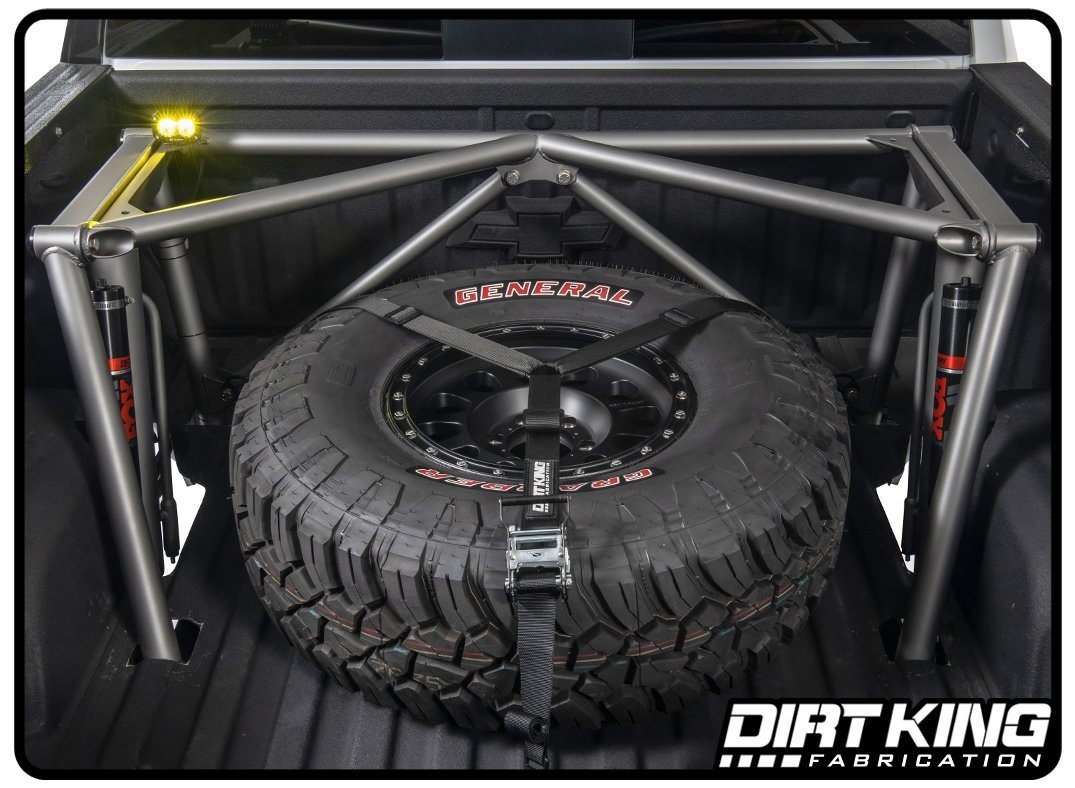

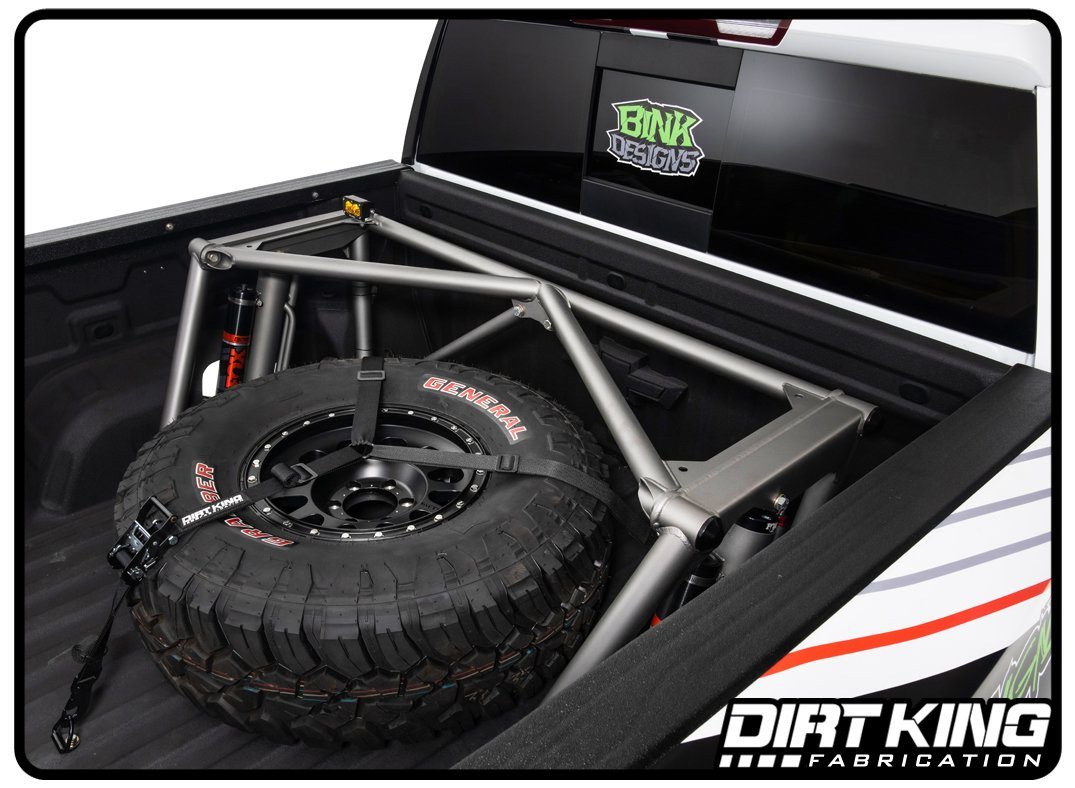

The Dirt King Fabrication Prefab Bedcage for the 2019-Current Chevy and GMC 1500 is easy to install and designed to maximize travel.

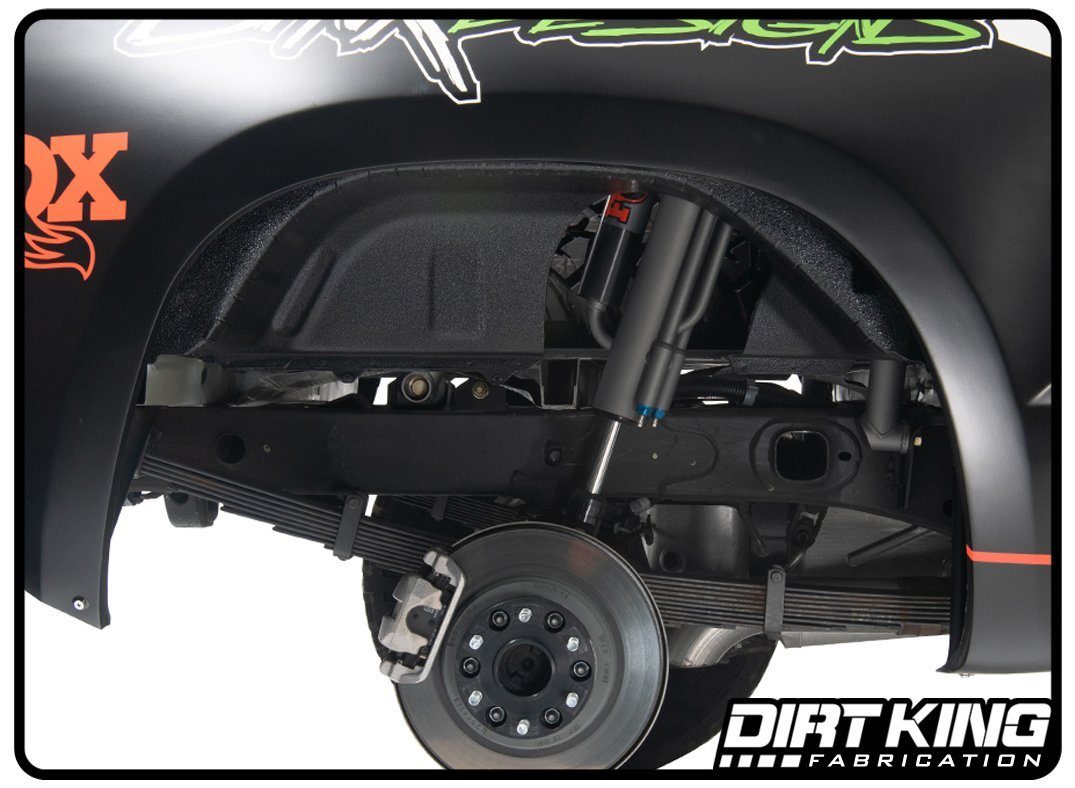

The bedcage takes up minimal bed space while not compromising strength. Accessory mounting holes are incorporated into the center section of the cage to mount dust lights and flag whips. The entire kit bolts together and mounts to the frame after four brackets are welded on. It can be installed with leaf over or leaf under spring packs. This suspension system is superior to a cantilever suspension system for two major reasons. The first reason is the shock mounts on the bedcage are outside the frame rails vs inside the frame rails for increased stability. The second reason is the shocks are mounted vertically with a motion ratio close to 1:1 allowing for proper dampening through the suspension travel. The cantilever suspension has a higher motion ratio resulting in smaller shocks, difficult to valve shocks properly, and heating up the shocks faster since they have less fluid.


  • 2019-Current Chevy Silverado 2WD / 4WD
  • 2019-Current GMC Sierra 2WD / 4WD


  • CAD designed

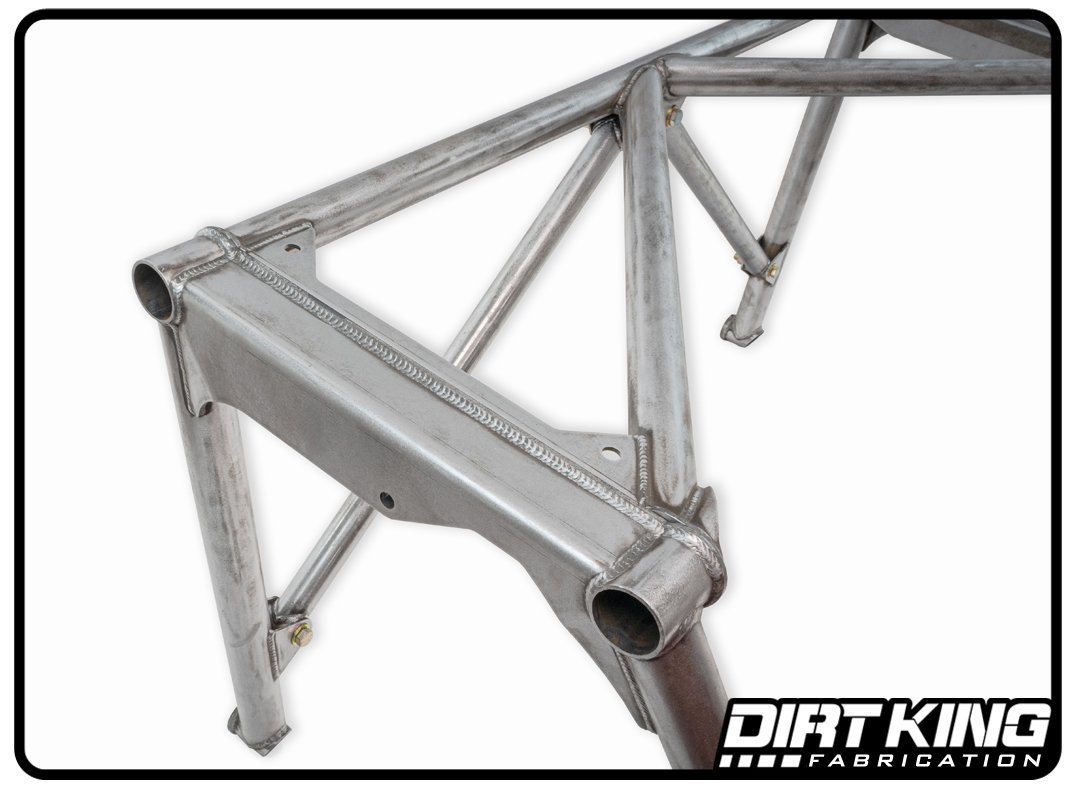

  • Boxed plate and tube construction
  • 2"x.120" tubing
  • 1/4", 3/16", and 1/8" plate
  • Professionally MIG welded
  • Proudly made in the USA


  • Recommend Leaf Pack: Deaver M27
  • Recommend Shocks: Fox or King (works with all shock manufactures)
  • Recommend Shock Length: 16" (26" collapsed, 42" extended)
    - Works with 14" shocks with extended rod ends but will limit travel.
  • Recommended Shock Diameter: 3.0" (works with 2.5"-3.5" shocks)
  • Bypass Tube Layout: Bypass tubes on front and back of shocks
  • Bedcage Shock Mounting Width: 1.5"
  • Axle Width: Requires 1.5"-2" wheel spacers or 1.5"-2" wider per side axle
  • Accessory Mounting Hole Size: 1/2"

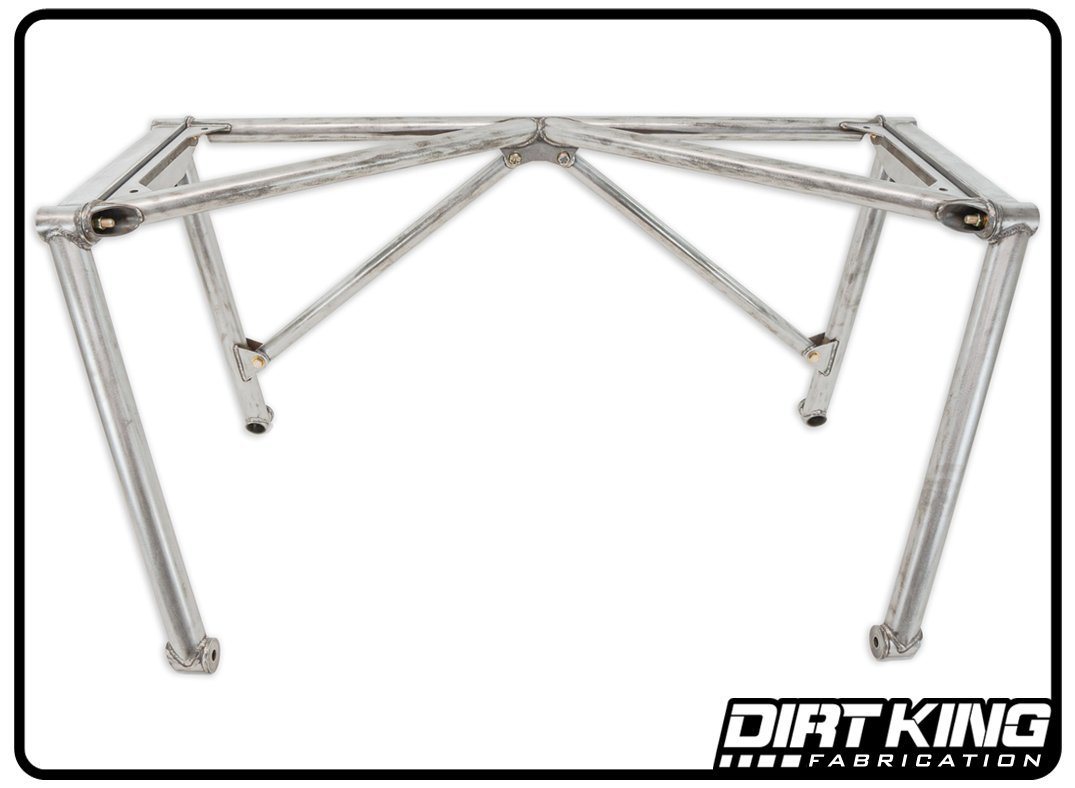

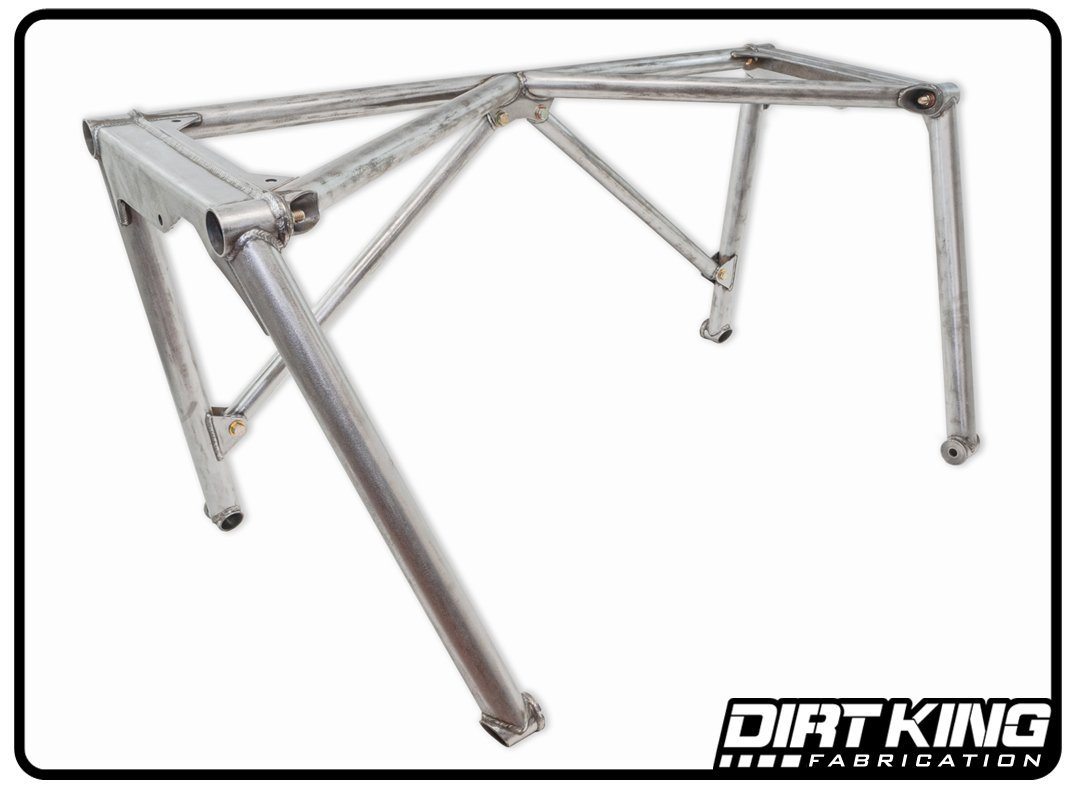

  • Prefabbed bedcage structure
  • Grade 8 mounting hardware
  • Installation instructions
