Fox
'17-18 Ford Raptor 3.0 Fox Factory Series Internal Bypass RR Coilover
'17-18 Ford Raptor 3.0 Fox Factory Series Internal Bypass RR Coilover
MCQUEEN
190 South McQueen Road
Suite 109
Gilbert AZ 85233
United States

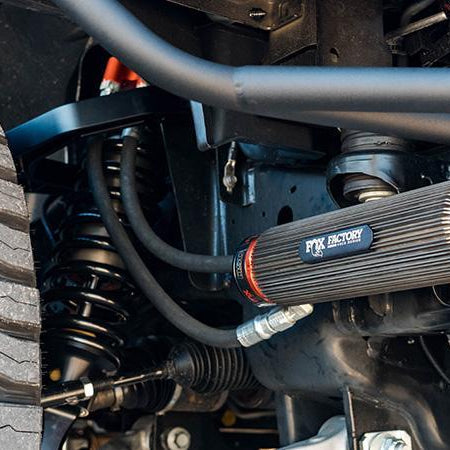

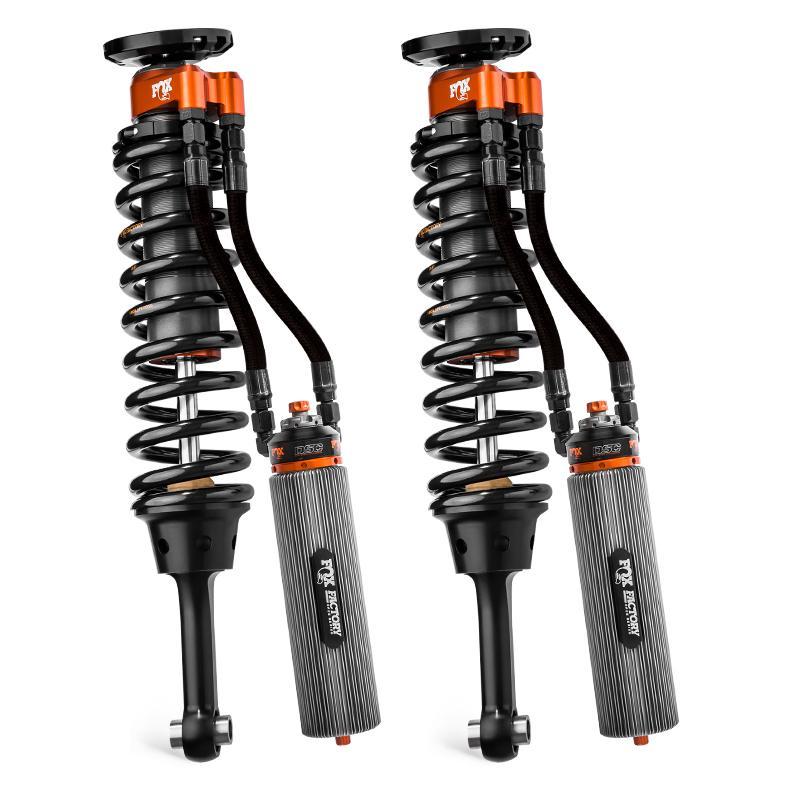

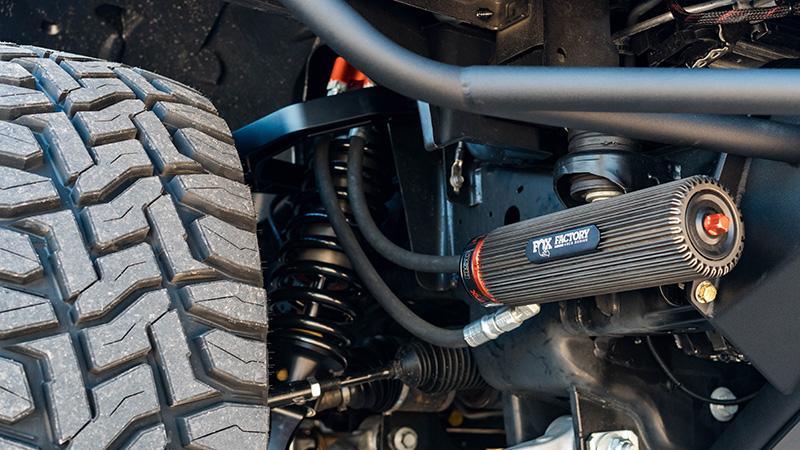

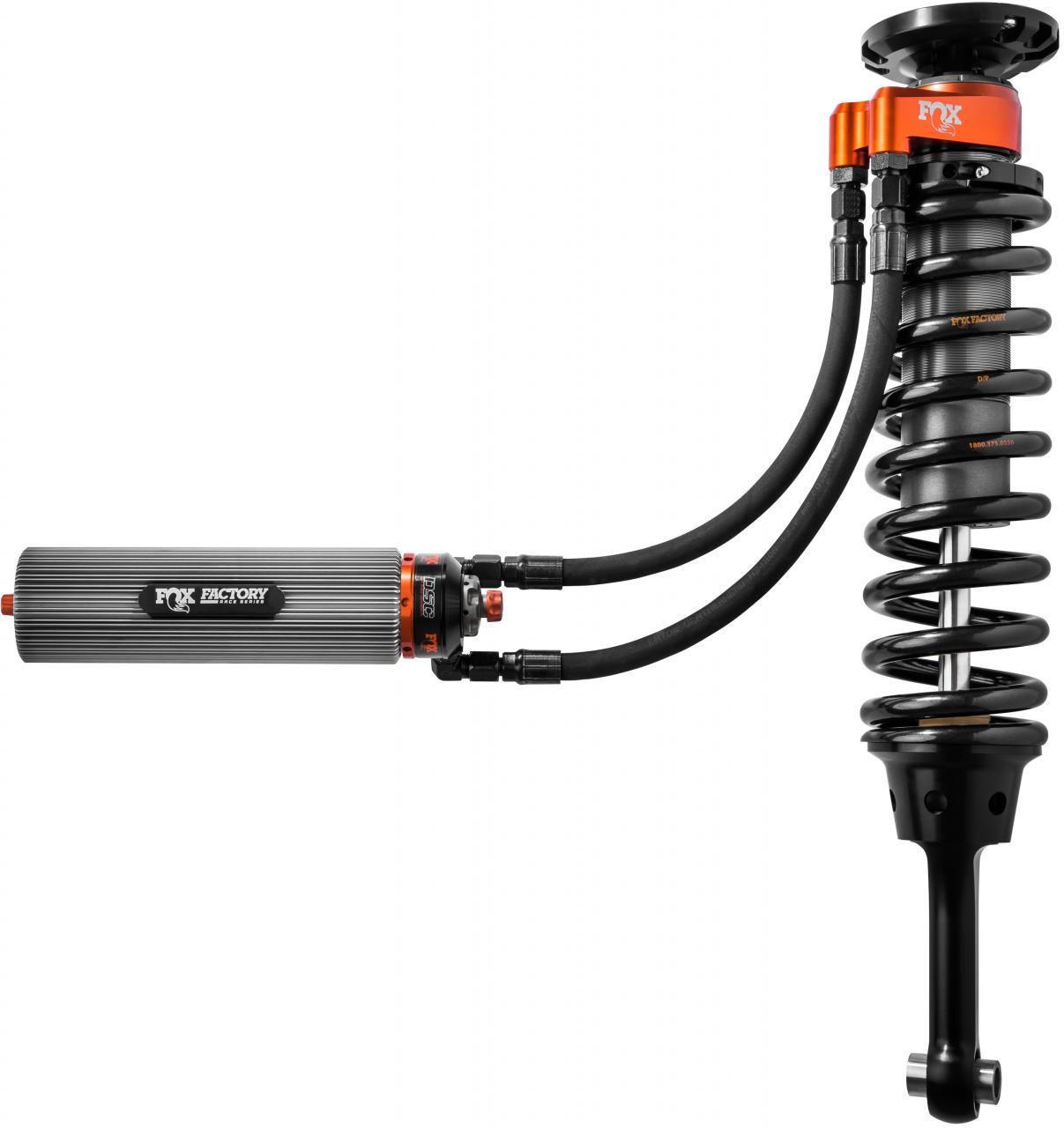

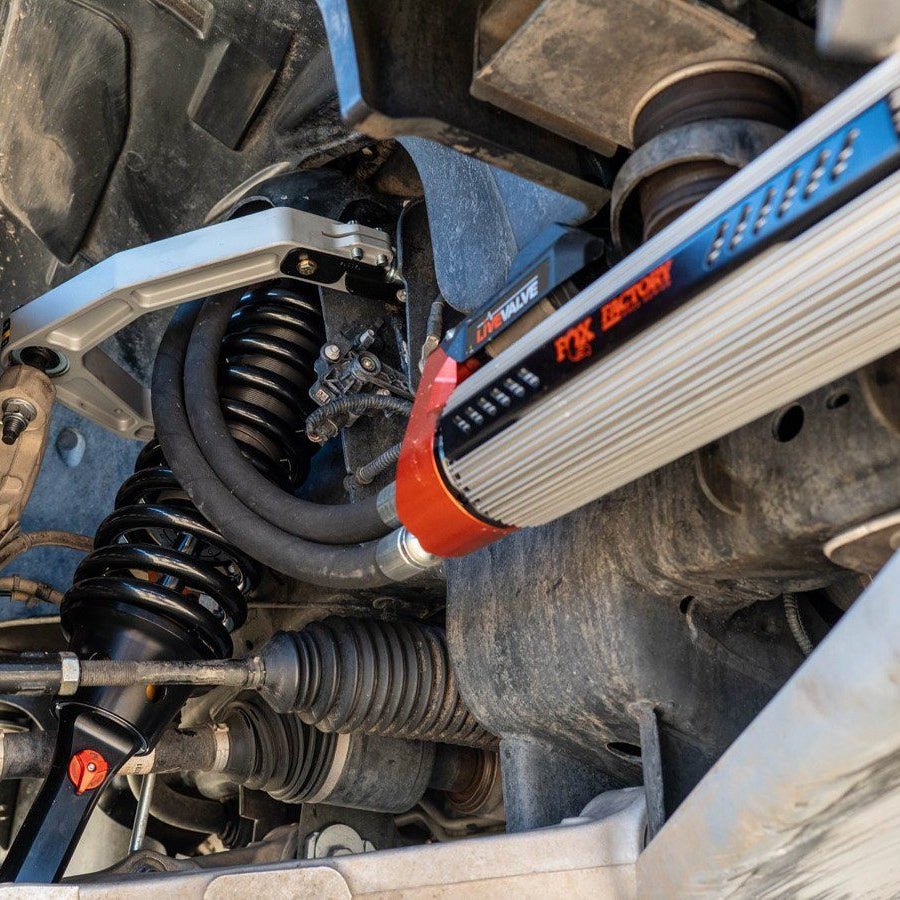

Take your 2017-2018 Gen 2 Ford Raptor to the next level with Fox's Factory Race Series front coilover kit. This aftermarket suspension kit is designed to deliver a high level of adjustability via Dual Speed Compression (DSC) adjusters and improved cooling efficiency through an all-new Recirculating Reservoir Bridge and finned remote reservoir.
This kit delivers the next level of off-road performance without sacrificing every day ride quality and comfort.
KEY FEATURES:
- Body: 3.0" Hard anodized aluminum
- Reservoir: NEW, hard anodized extruded aluminum finned remote reservoir with NEW Recirculating Reservoir Bridge
- Components: Hard anodized, CNC-machined 6061-T6 billet aluminum
- Spring: 3.75" racing spring selected specifically for the Gen 2 Raptor, preset to level your stock Raptor front-to-rear
- Shaft: 7/8" 17-4 H900 hard chrome plated stainless steel
- Piston: Hard anodized 6061-T6 billet aluminum high flow race piston
- Valving: Specific for Gen 2 Raptor to maximize performance and comfort
- Oil: JM92 Advanced Suspension Fluid
- Bearing: Spherical, PFTE-lined, heat-treated steel
- Adjustments: Dual Speed Compression (DSC) adjuster Ride-height/spring preload ring
- Adjuster Type: DSC - Dual Speed Compression
- Extended: 29.080
- Compressed: 21.180
- Travel: 7.900
- Top Mount: OEM
- Bottom Mount: Eyelet
