Baja Designs
'15-19 Chevy/GMC 2500/3500 SAE Fog Light Kit
Lense Color
STATE OF CALIFORNIA CONSUMER WARNING: Some products may contain chemicals such as DEHP, which can cause cancer, birth defects or other reproductive harm.
Baja Design's SAE Fog Light Kit for the 2015-2019 Chevy/GMC 2500 and 3500 is based on the Baja Designs Squadron series. While many visual characteristics stayed the same, the pattern and circuitry are optimized to give our SAE light a street-legal punch! We’ve put this light through rigorous tests to ensure that it would be an upgrade from most LED, HID, and Halogen factory fog lights.
Baja Designs Features:
- Limited Lifetime Warranty – Complete Purchase Protection
- ClearView® – All The Light, Right Where You Need It.
- MoistureBlock™ – Waterproof, Rain Proof, Submersible
- CopperDrive® – Only LED Driven At 100%
- 5000K Daylight – Less Driver Fatigue, Natural Color
Specifications (Per Light):
- Lumens: 2,480 Utilizing 4 Cree LEDs
- Wattage/Amps: 22W / 1.6A
- Dimensions: 3.07" x 2.77" x 3.07"
- Weight: 12 ounces
- LED Life Expectancy: 49,930 Hours
- Front Lens: Hard Coated Polycarbonate
- Housing: Hard Anodized & Powder Coated Cast Aluminum Bezel: Billet Machined Aluminum
- Hardware & Bracket Material: Stainless Steel
- Exceeds MIL-STD810G (Mil-Spec Testing)
- Built-In Overvoltage Protection
- IP69K (Waterproof, Submersible to 9ft)
- IK10 Compliant (Mechanical Impact Testing)
Application:
- Sierra 2500/3500 (15-19)
- Silverado 2500/3500 (15-19)

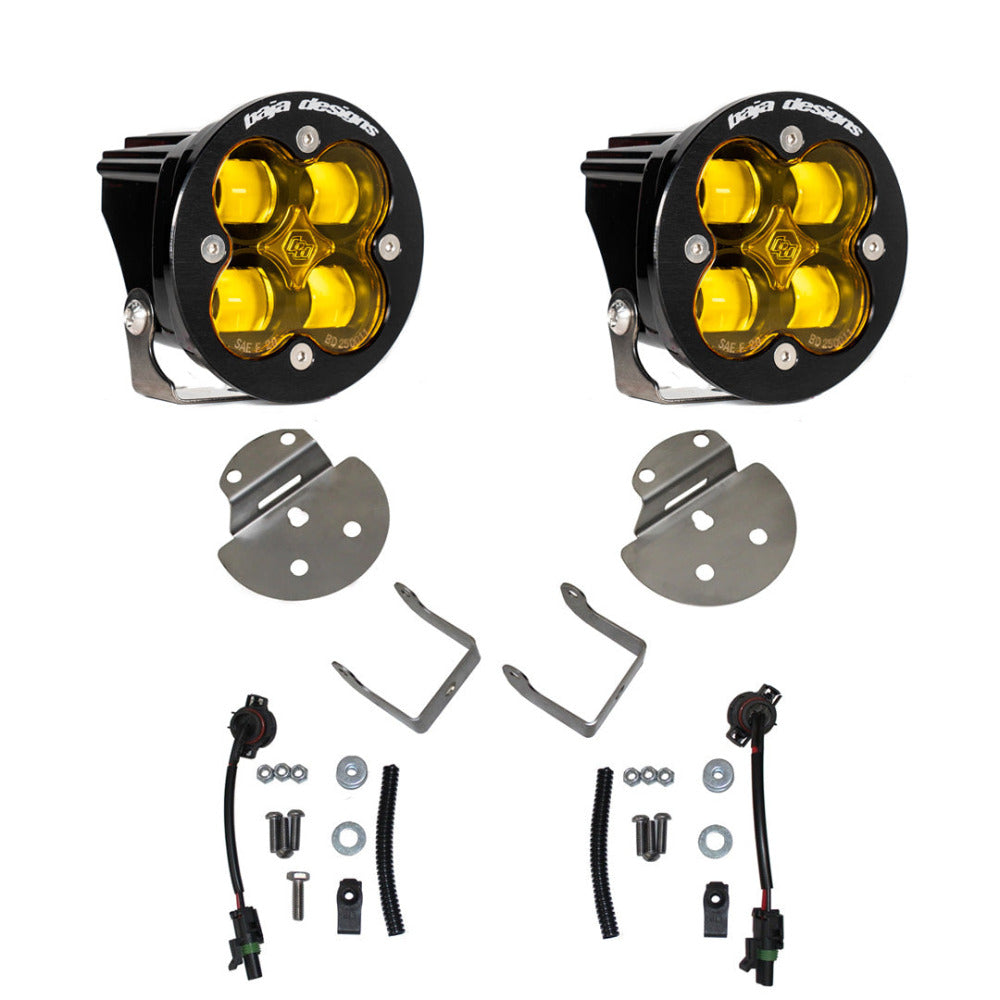

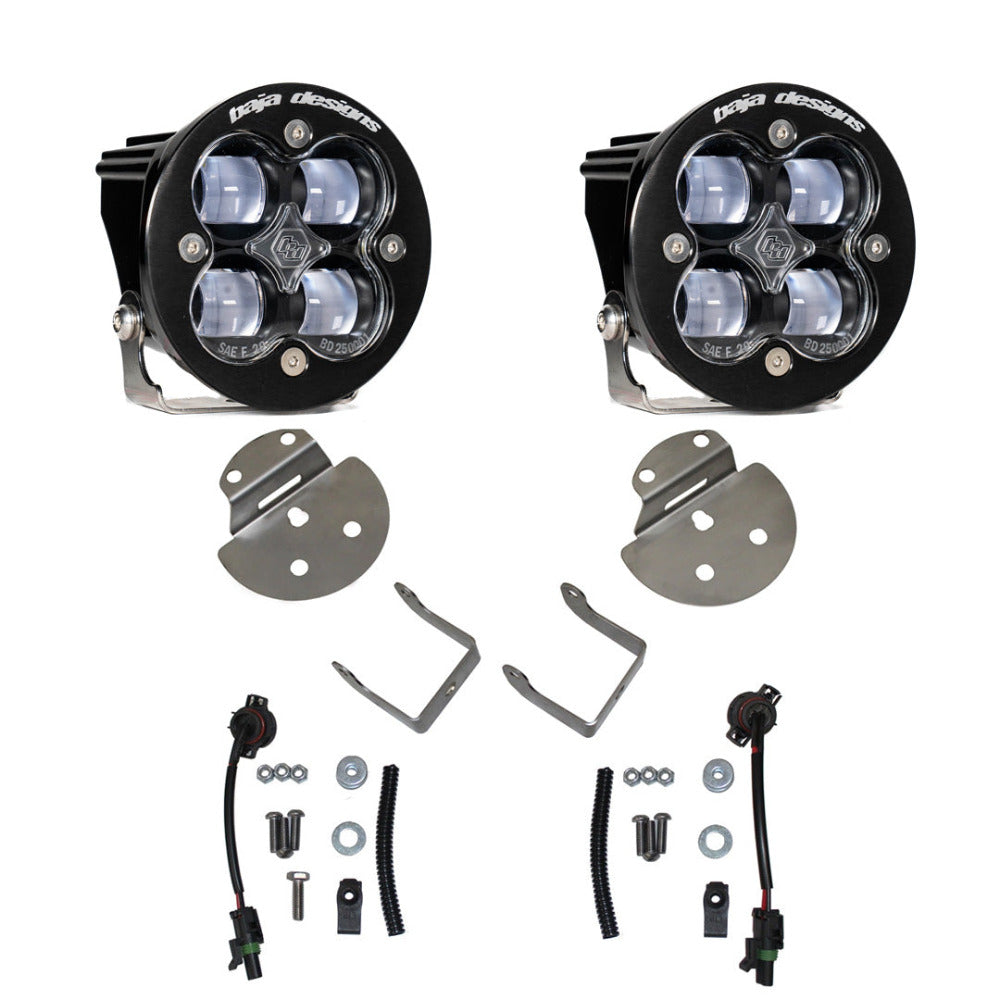

Included:
- Brackets / Hardware
- SAE Squadrons
- Plug and Play Adapter
