PRODUCT OVERVIEW:

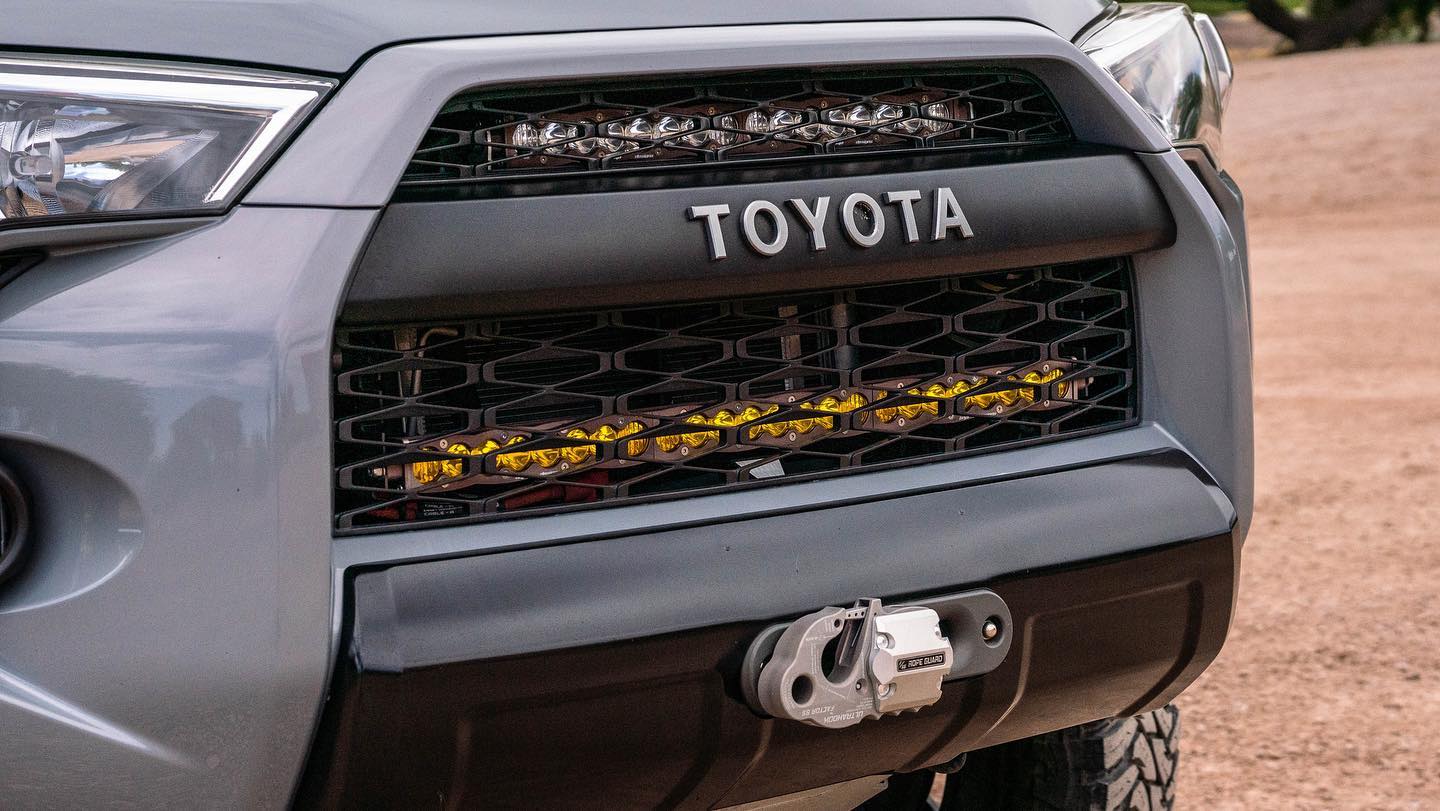

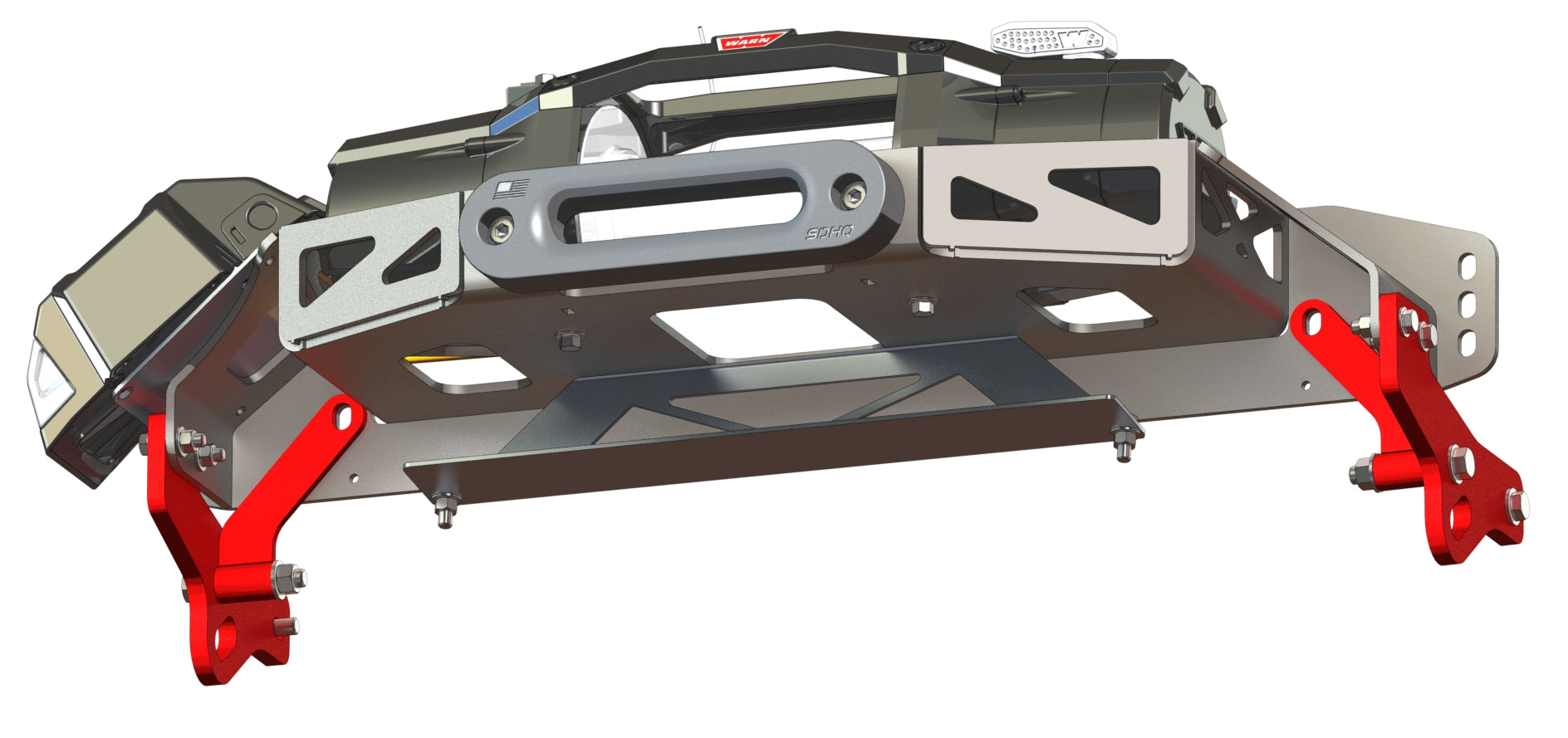

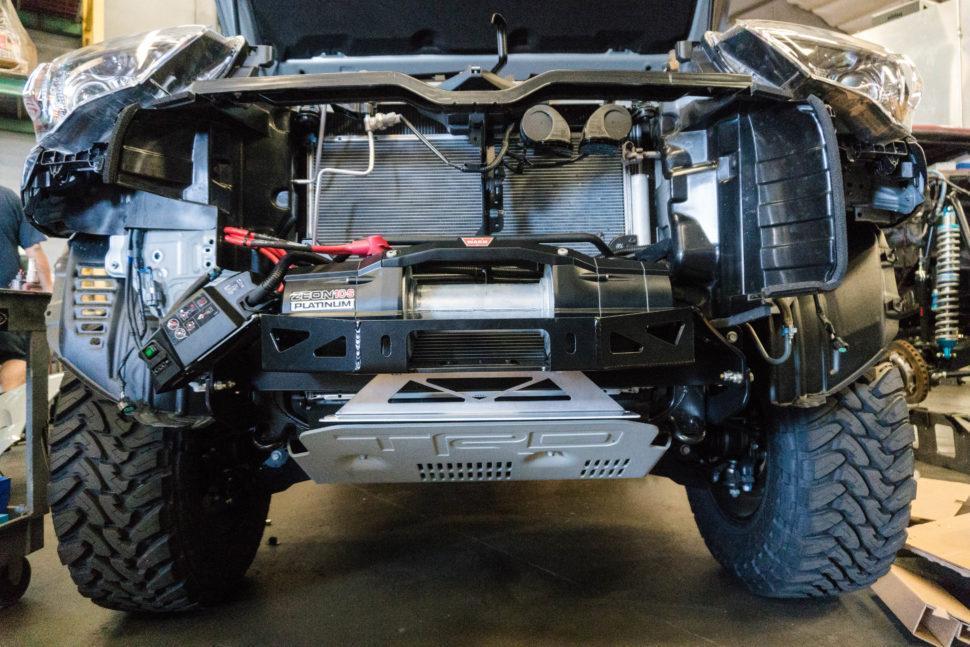

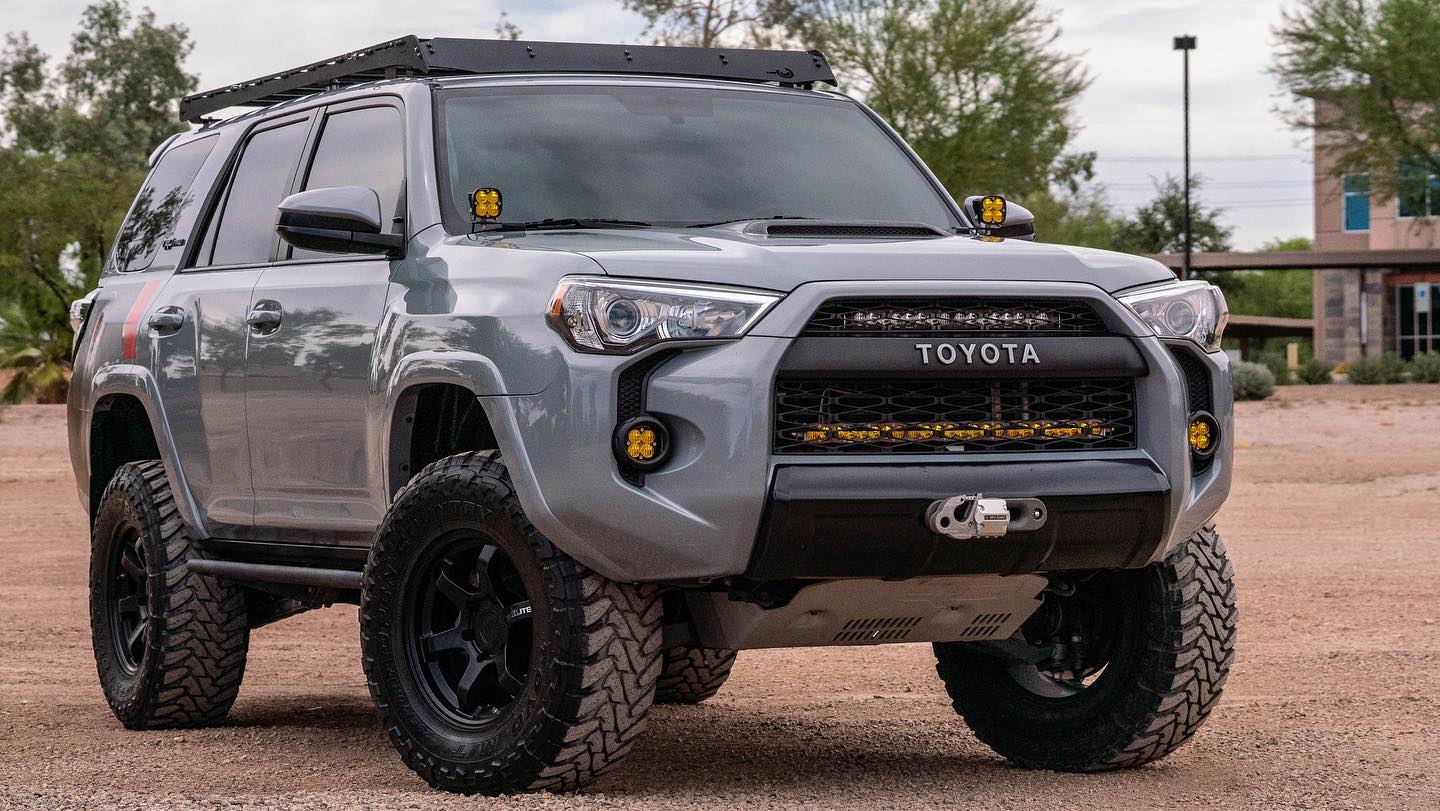

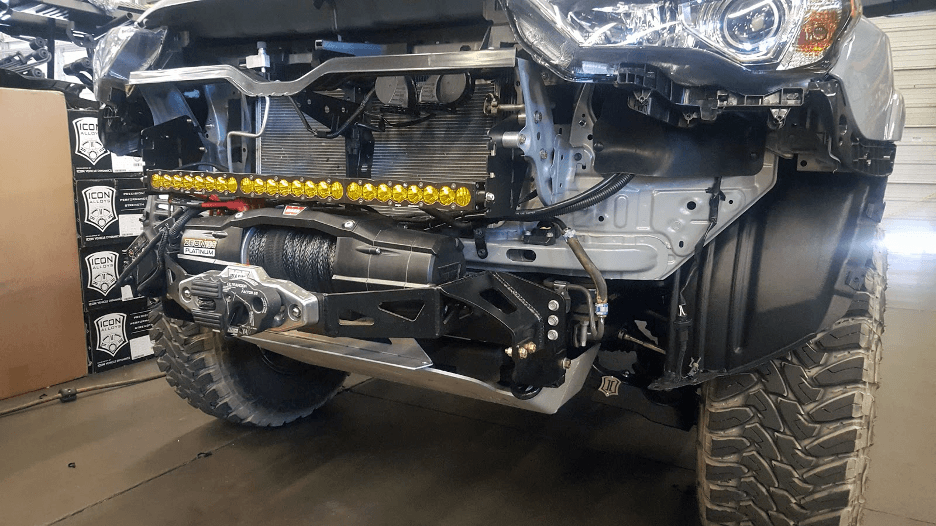

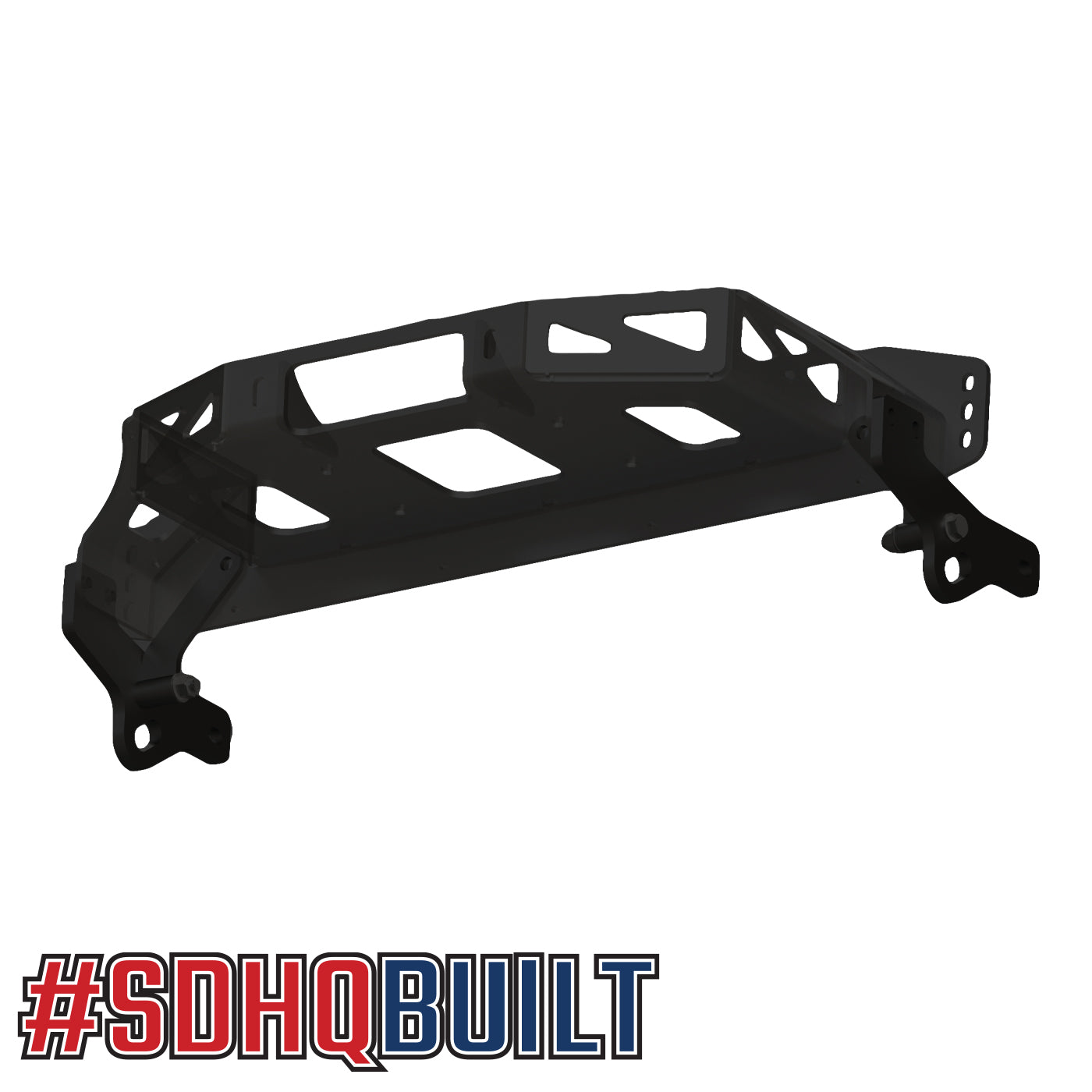

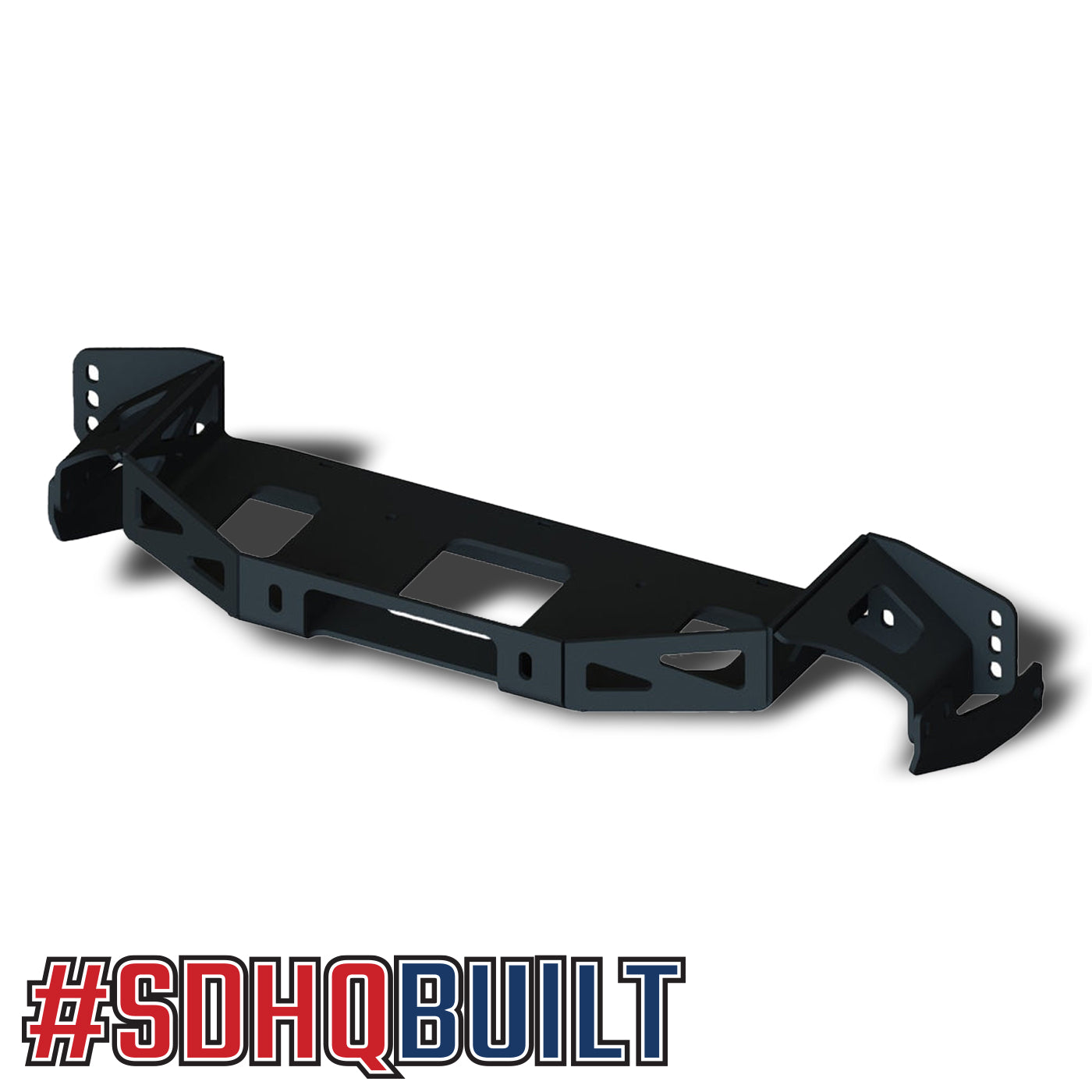

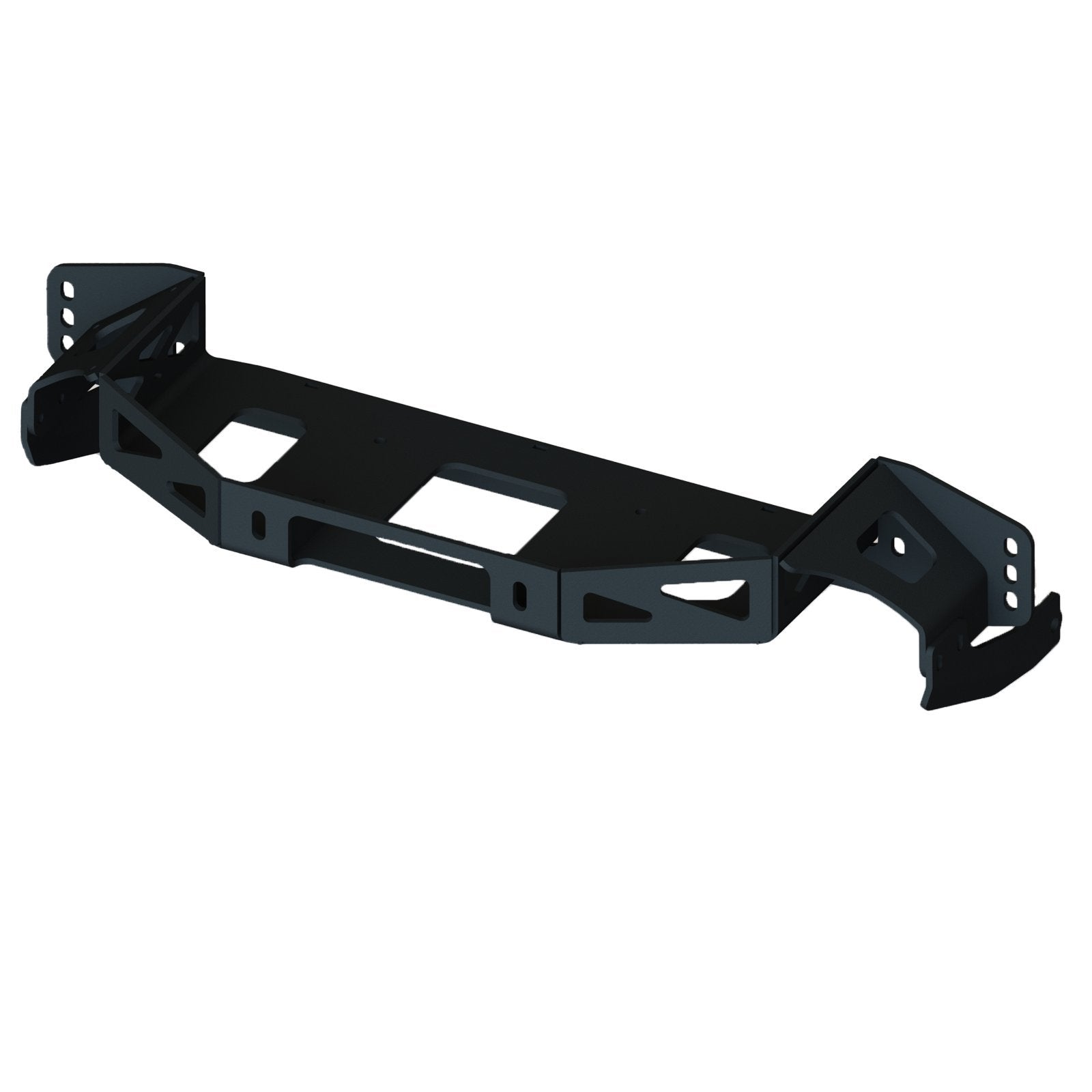

The SDHQ Built Winch Mount for the 2010-Current Toyota 4Runner allows you to mount a winch while maintaining the OEM front bumper.
Our 4Runner winch mount is constructed out of ¼" thick mild steel, precision bent, MIG welded and finished in our standard SDHQ textured black powder-coat. This winch mount also includes two integrated recovery points. With our #SDHQBuilt winch mount you can be ready for whatever the trail throws at you!
FITMENT DETAILS:
- VEHICLE FITMENT: 2010-Current (5th Gen) Toyota 4Runner
- WINCH FITMENT: Fits Warn Zeon series and Warn VR Evo Series winches
- Limited Model Bumper Trimming:
- Trimming of the Lower Limited Grille and bumper is required for proper fitment, depending on your fairlead
KEY FEATURES:
- 3D CAD designed, engineered & built in-house for our typical SDHQ Built quality, fit, and finish
- Triangulated mounting locations create unmatched strength and durability
- ¼" thick steel plate construction for durability
- Included lower bumper support
- Slight modification / trimming of stock bumper is required

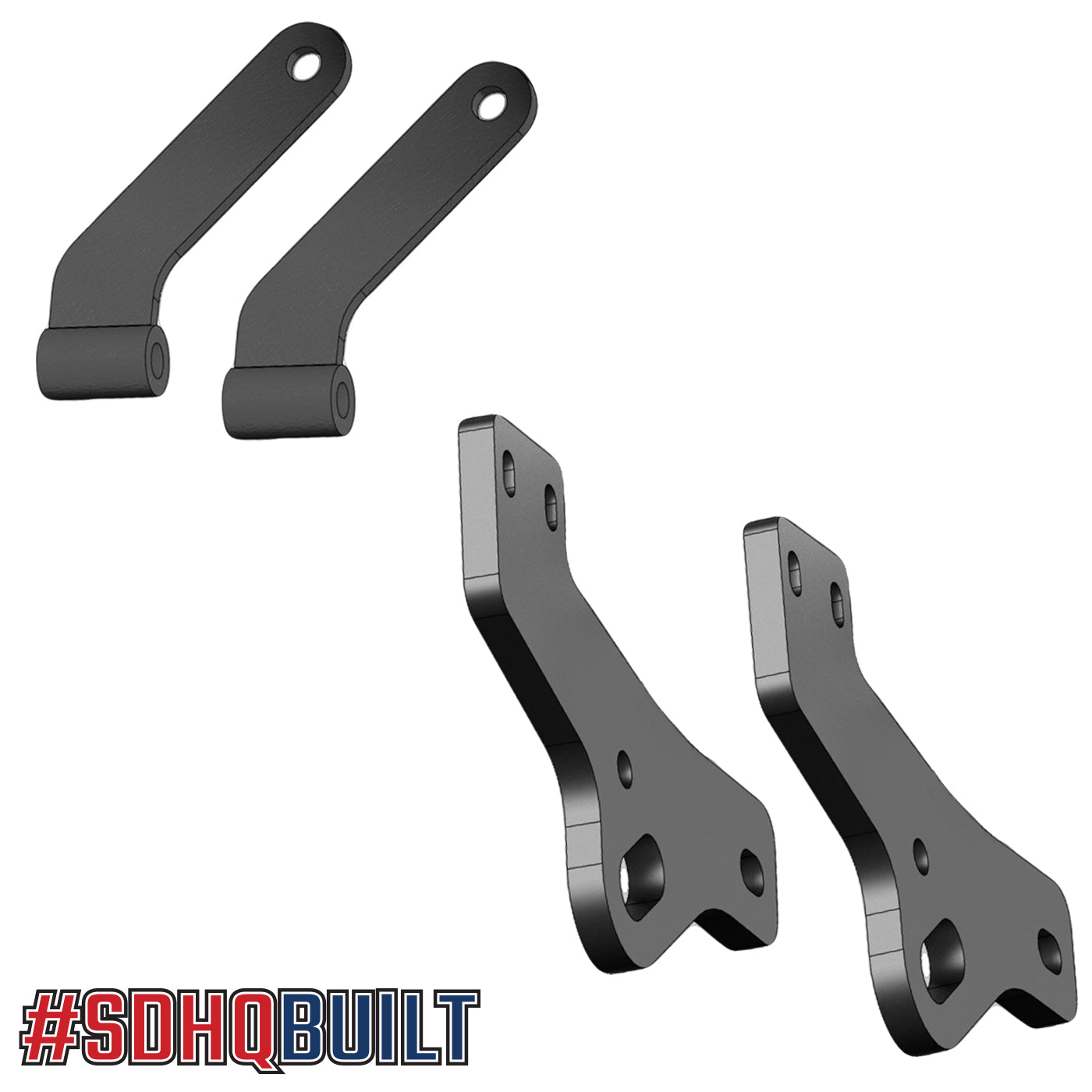

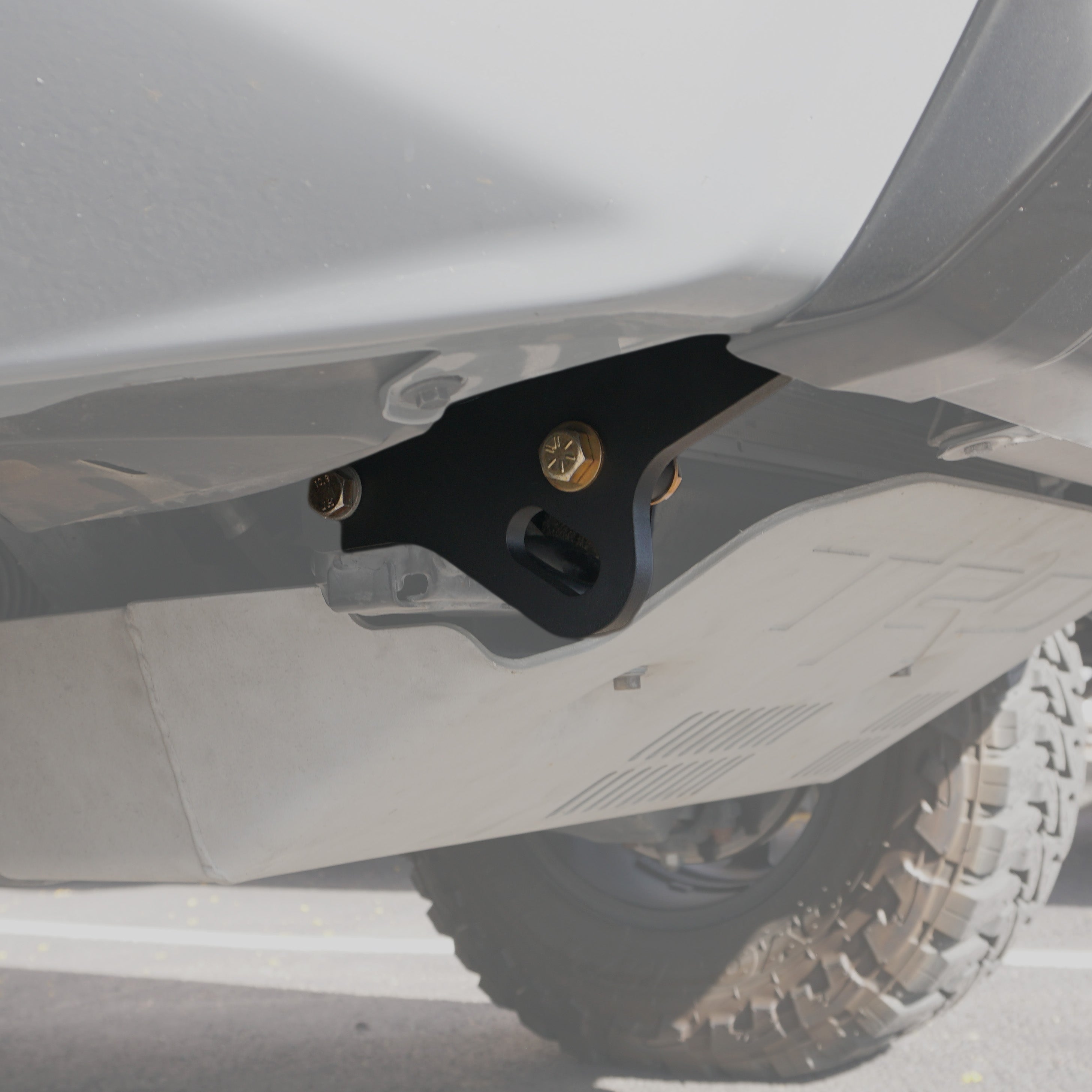

- ½” thick steel plate support brackets with integrated recovery points

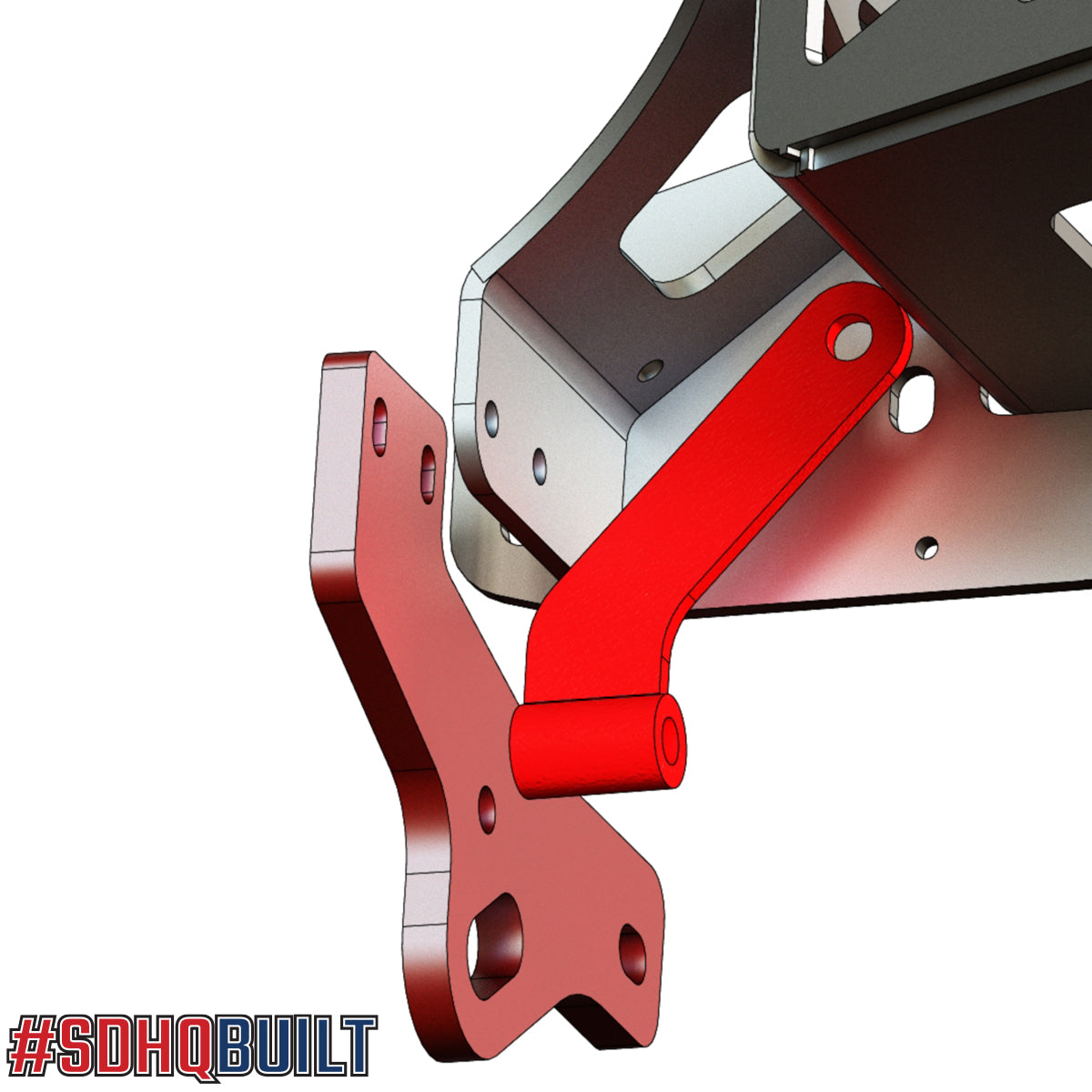

- ¼” thick steel plate side load brackets strengthen the support brackets by triangulating and including another frame attachment location
- Made in the USA
- Fits Warn Zeon series and Warn VR Evo Series winches
WHAT'S INCLUDED:

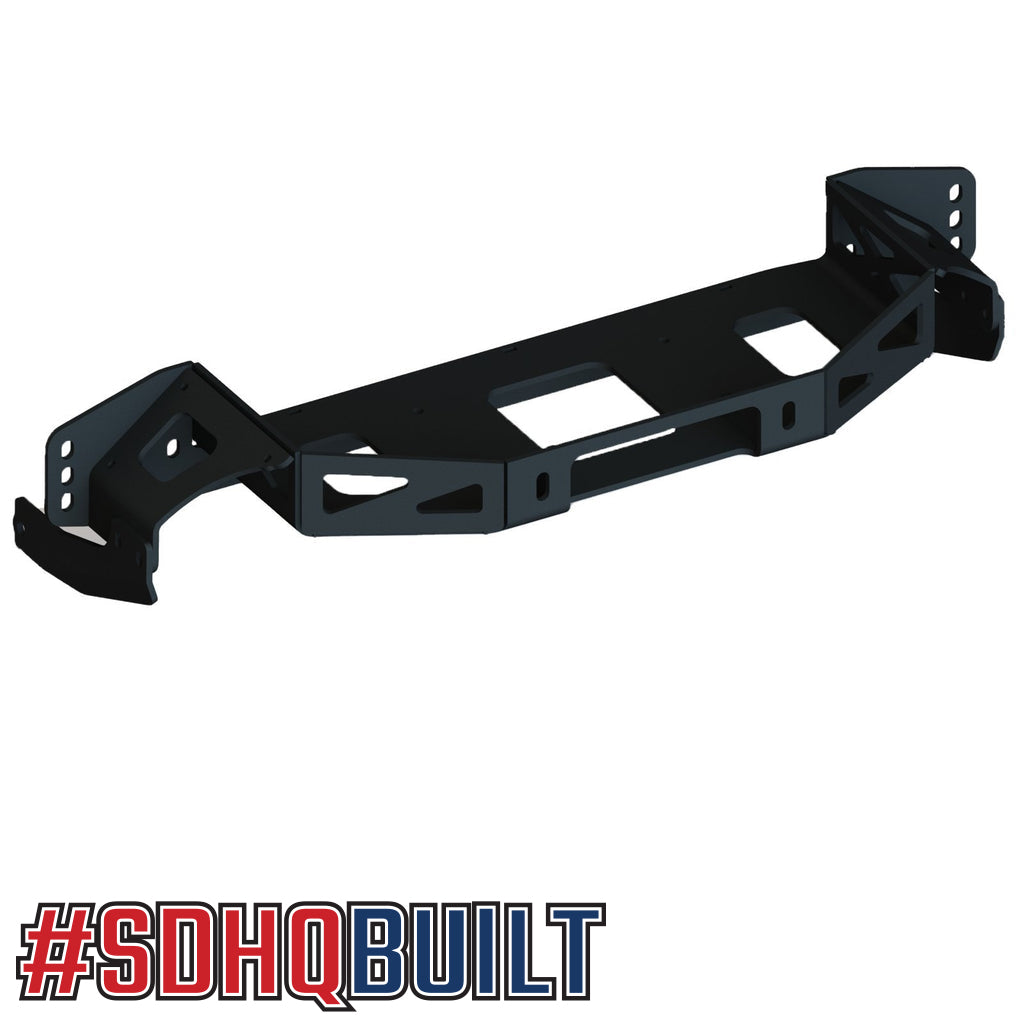

- 4Runner Winch Mount
- Lower Support Brackets
- Lower Bumper Bracket
- - Support Brackets w/ Recovery Points
- - Side Load Support Brackets
- Hardware Package
- Hawse and Roller Fairlead Cut Template
TECH INFO:
- Our Winch Mount was designed around the Warn Zeon series and Warn VR Evo Series winches.
- SDHQ Built Warn Control Pack Relocation Kit Relocating the control box for a warn winch is possible without our kit; however, the end-user will need to source their own wires and hardware.
- PART #: SDHQ-54-1660-G3-A
- MOUNTING KIT INSTRUCTIONS
Limited Model Bumper Trimming:
- Trimming of the Lower Limited Grille and bumper is required for proper fitment, depending on your fairlead
WINCH FITMENT OVERVIEW:
The SDHQ winch mount has been designed to fit the Warn Zeon and Warn VR Evo Series Winches.
WINCH NOTES:
- Relocating the winch control box on the Warn Zeon and VR Evo Series Winches is necessary due to clearance issues.
- We have an optional kit that contains all the wiring and hardware needed to relocate the Zeon series control box.
- Fits Warn Zeon series and Warn VR Evo Series winches
