'10-21 Toyota Tundra SDHQ Built Hidden Winch Mount

  • VENDOR: SDHQ Off Road
  • PART#: SDHQ-53-1650-G3
  • YOUR PRICE: Regular price $789.95
Availability: In Stock Ready to Ship!
Relocating the control box for a warn winch is possible without our kit; however, the end-user will need to source their own wires and hardware.
SDHQ Built Warn Control Pack Relocation Kit - SDHQ-53-1660-G3 (+$74.95)

Customizations Total: $0.00

SDHQ Built Winch Mounts purchased before March 19th, 2021, require a slight modification (included in the install instructions) to fit 2020-2021 Toyota Tundras.
This modification will allow you to take an older winch mount and install it on your 2020-2021 Tundra.
If you purchased your winch mount after March 19th, 2021 then no modification is required.

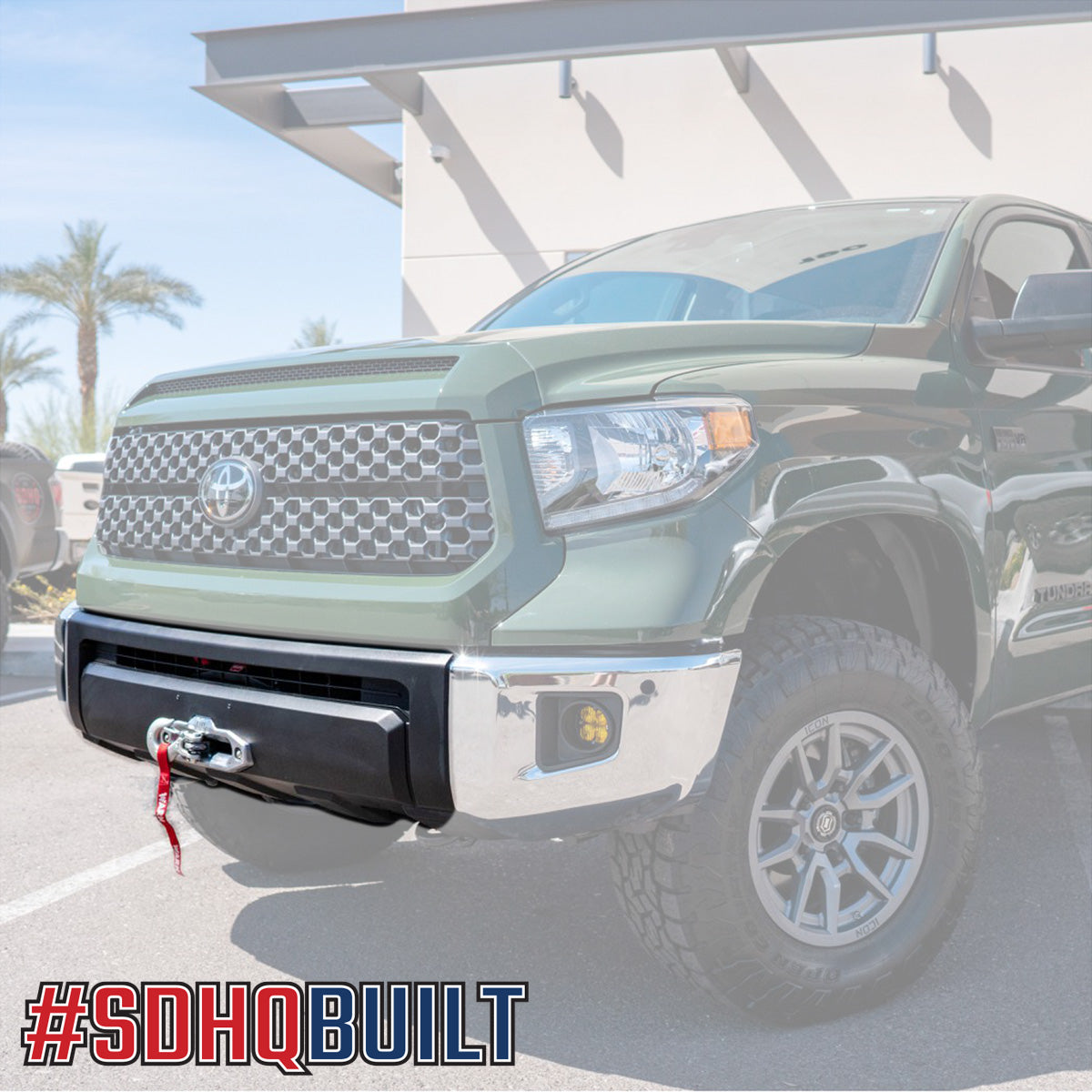

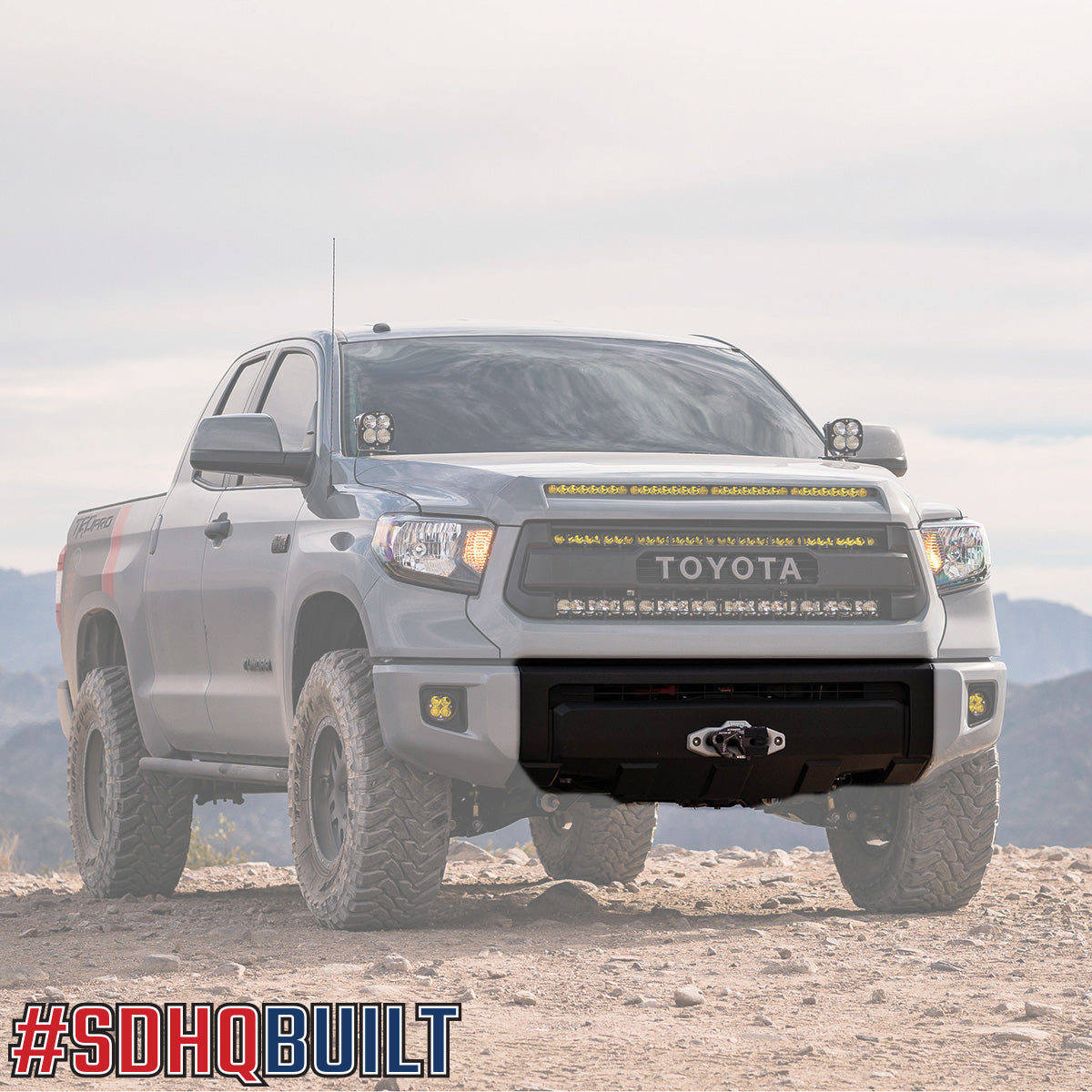

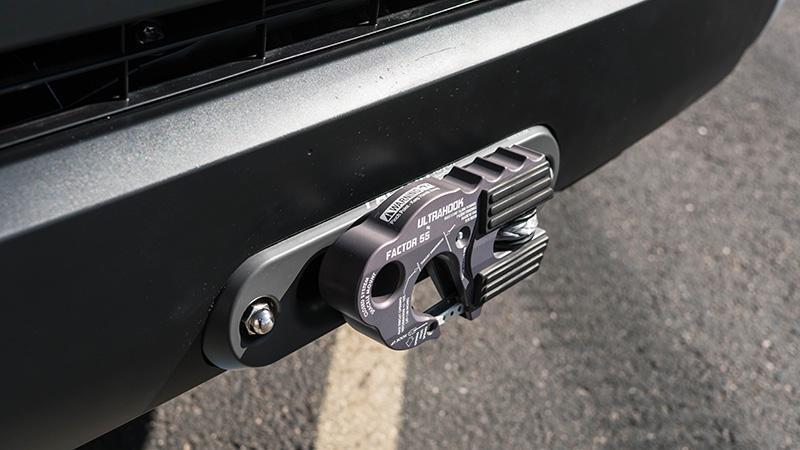

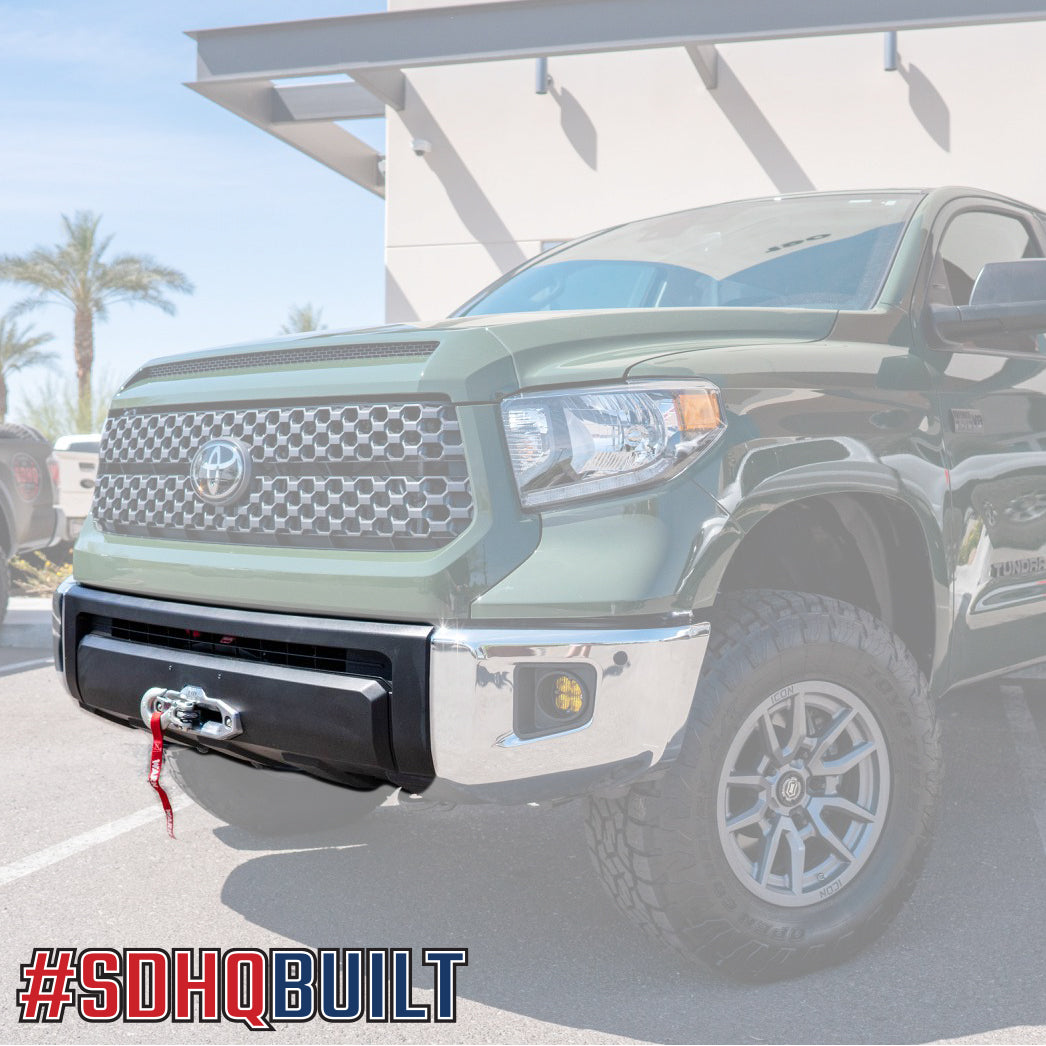

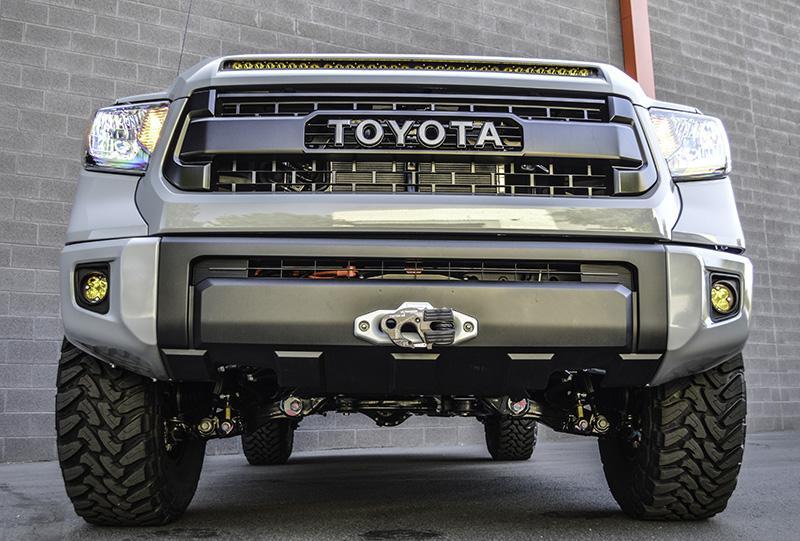

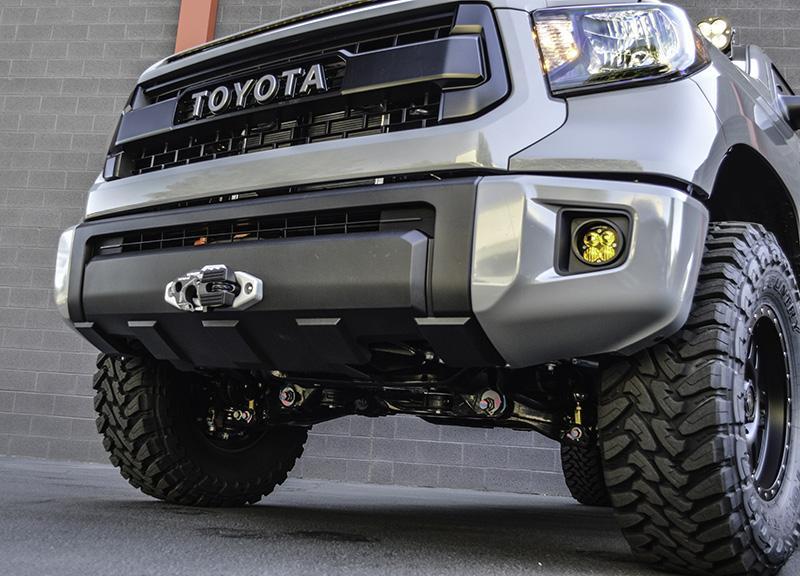

SDHQ presents an easy way to mount a winch on your 2010-2021 Toyota Tundra while maintaining the stock front bumper. Slight modification and trimming to the stock bumper plastic is required to allow access to the winch line and fairlead.

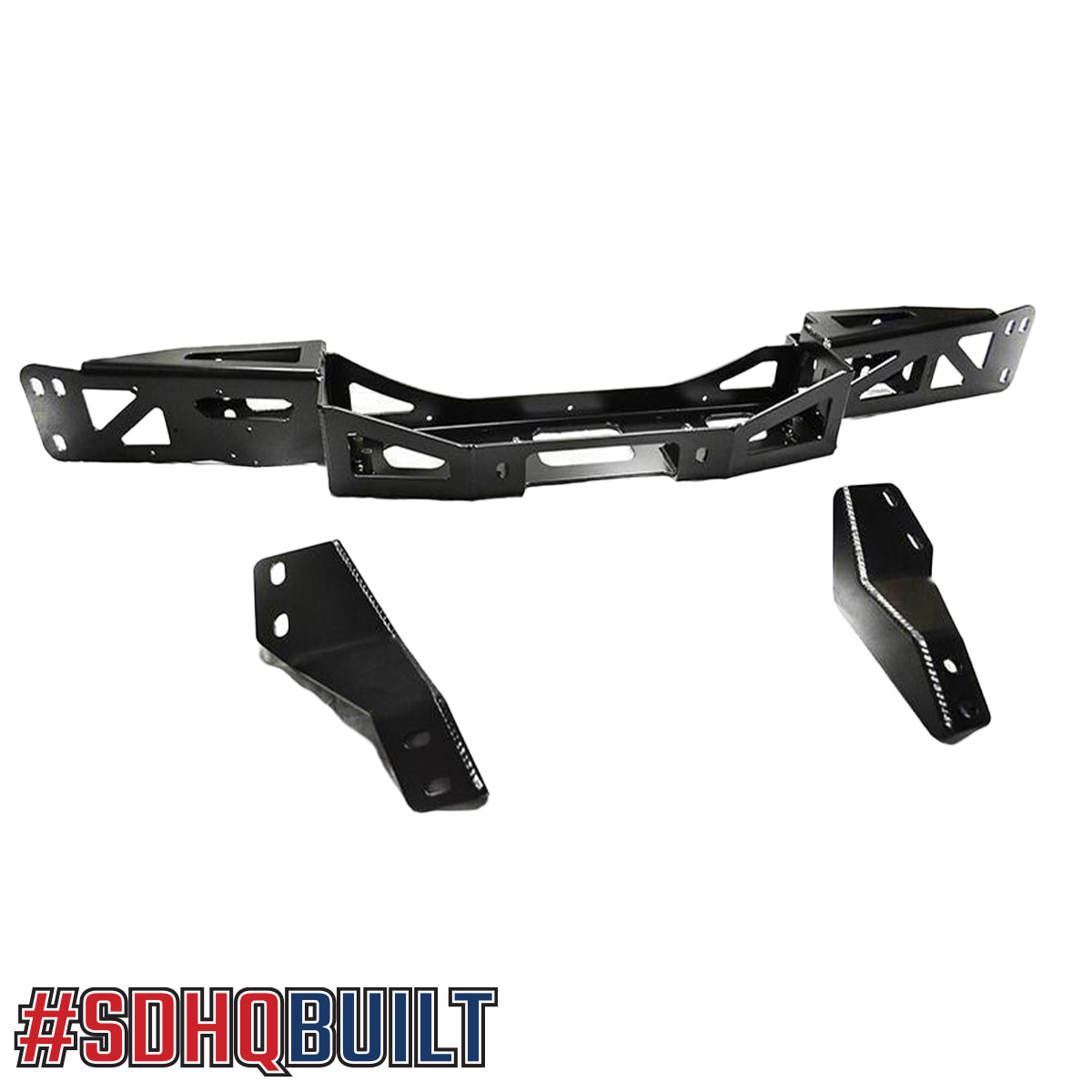

Our winch mount is CAD designed for a precise fit and is constructed out of 1/4" thick mild steel. Precision bent and MIG welded for strength and durability. After initial construction, the winch mount is powder-coated matte black for a subtle, long-lasting finish that will withstand anything you can throw at it!


  • 2010-2021 Toyota Tundra


  • 3D CAD designed, engineered & built in-house for our typical SDHQ Built quality, fit, and finish
  • Bolts directly into the frame and adds support to bumper/frame horns
  • ¼” thick steel plate construction for durability
  • Designed initially for the Warn Zeon 10 & 10-S Platinum with wireless control
  • Fits Warn Zeon Series winches
  • 26” x 7.15” x 8” maximum winch dimensions
  • Integrated relocation of Zeon Control Box
  • All mounting hardware is included
  • 3D CAD Designed
  • Manufactured in the USA.


The SDHQ winch mount has been designed to fit the Warn Zeon 10 Platinum and Warn Zeon 10-S Platinum series of winches with a wireless controller. We recommend the Zeon Platinum series winches because they have a wireless controller which allows full functionality of the winch. Winches with a manual clutch will not have the ability to "free-spool" unless a device is built to access the winch's clutch release.

Relocating the winch control box on the Zeon series is necessary due to clearance issues.

We have an optional kit that contains all the wiring and hardware needed to relocate the Zeon series control box.

SDHQ Built Warn Control Pack Relocation Kit
Relocating the control box for a warn winch is possible without our kit; however, the end-user will need to source their own wires and hardware.
PART #: SDHQ-53-1660-G3-A
