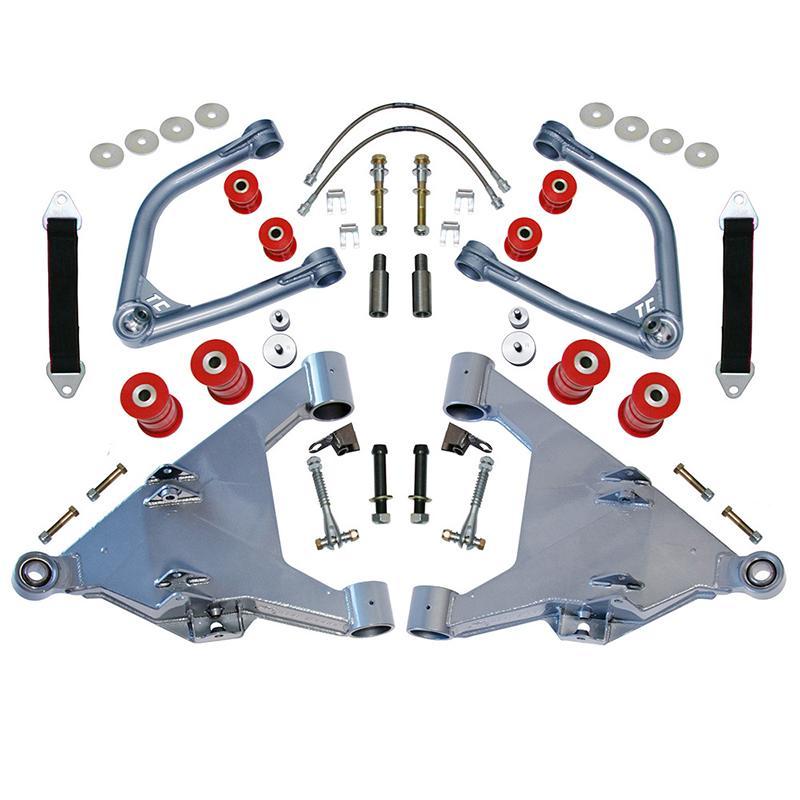

PRODUCT OVERVIEW:
Total Chaos Fabrication's +2.5" Boxed Long Travel Kit is designed to give your 2007-2021 Toyota Tundra 16" of travel and features boxed lower control arms.
SPECS:
| Lift (in.) | Travel | Tire Size | Track Width Increase |
| 3-4" | 16" w/ 4WD | 35" or 37" | 5" |
KEY FEATURES:
- 2.5" extended 4130 chromoly tubular upper arms bolt to factory control arm mounting locations.
- Boxed and plated lower control arms are designed for dual 2.5" shock capability.
- Upper and lower control arms eliminate factory ball joints and incorporate 1" uniballs for maximum wheel travel and component strength.
- TOTAL CHAOS includes 1" I.D. uniballs that feature a heat treated stainless steel ball & heat treated stainless steel race for maximum corrosion resistance and component longevity. These uniball's also features a military grade PTFE woven fabric liner that helps prevent noise.
- A secondary external bypass shock can be installed to increase dampening and tune-ability.
- Adjustable limit strap clevis' are included so that you can properly limit the suspensions droop wheel travel and make necessary adjustments during the life of the limit strap.
- 2 stage powder coat process includes a durable clear coat to provide a long lasting finish.
- TC 4340 custom extended axles reuse factory inner and outer CV's to retain 4wd. (axles are sold separately and not included with the kit)
- Stainless steel DOT braided brake lines, hi-misalignment spacers and all grade 8 mounting hardware is included.
- Hand crafted in the U.S.A.

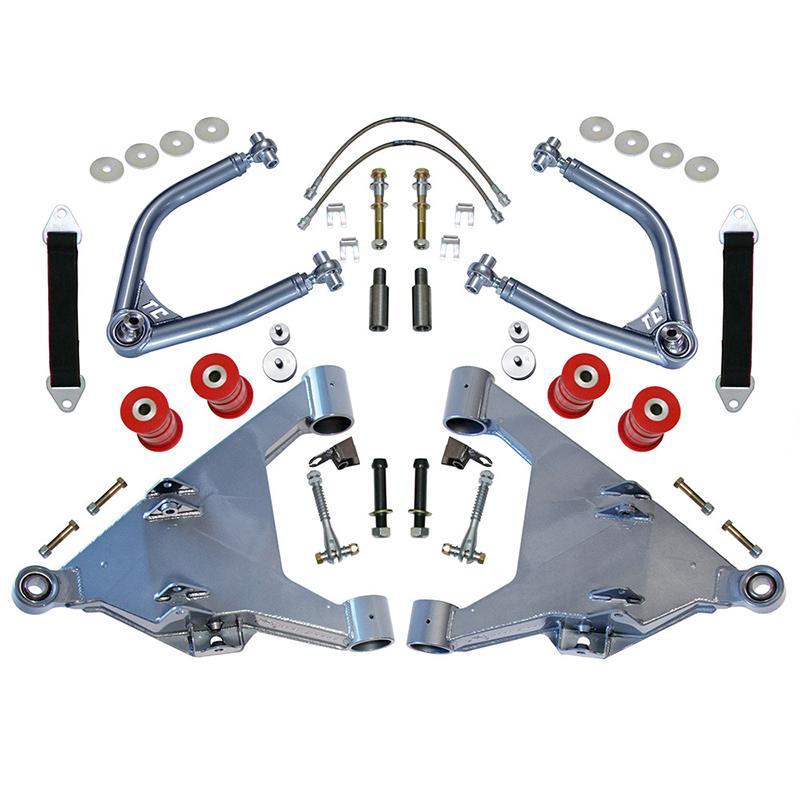

OPTIONAL HEIM PIVOT UPGRADE:
- TC includes 3/4" chromoly heim joints for the pivots.
- 4130 chromoly tubing heim upper control arms are fully adjustable to allow maximum tuning of caster and camber.
- Zero bushing deflection.
TECH NOTES:
- Fiberglass fenders are required to install this system.
- TC 4340 custom extended axles reuse factory inner and outer CV's to retain 4wd. (axles are sold separately and not included with the kit)

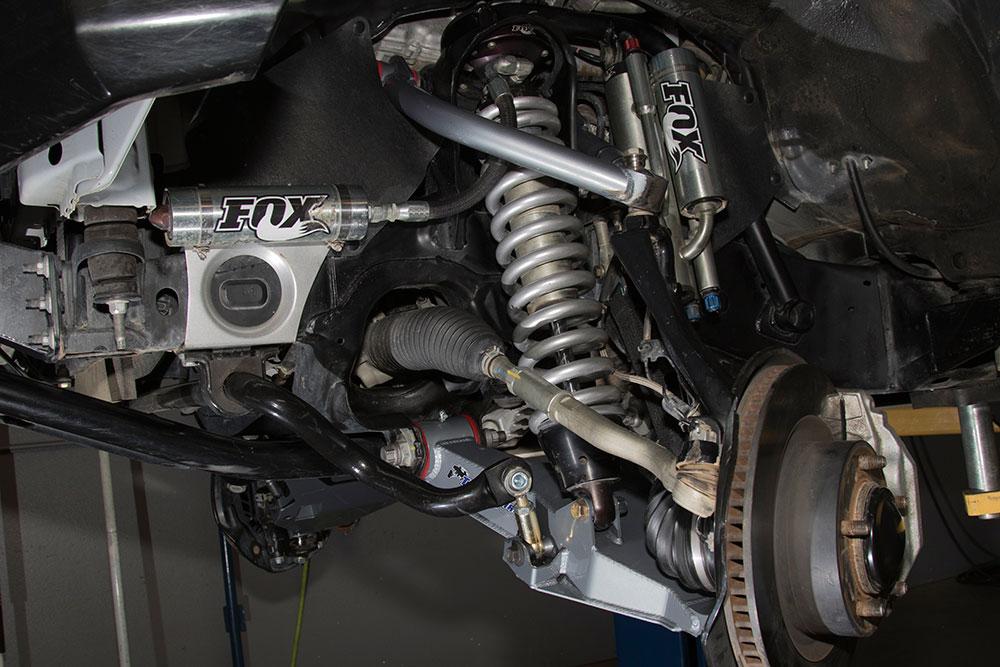

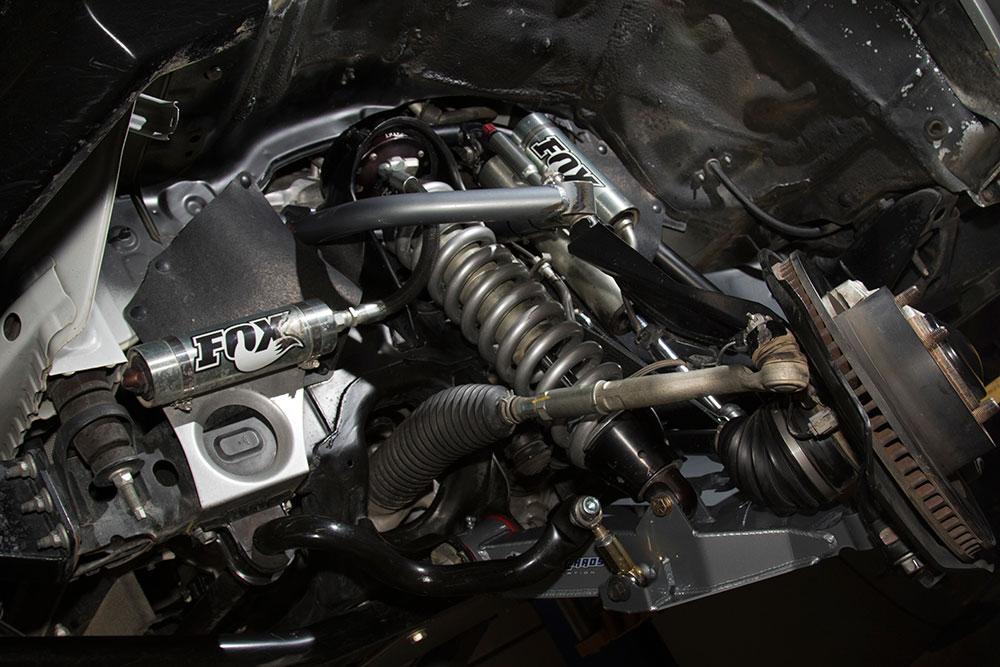

- 2.5" long travel specific coil over shocks bolt into the factory coil bucket location. Extended travel shocks are too short and will not work.
BRAND COILOVER PART# BYPASS PART# FOX 880-02-949 982-02-950 KING TC5143-03 TC1143-34 - TC boxed lower arms feature sway bar mounting tabs to retain the factory sway bar for better cornering. TC Heim sway bar link kit is NOT INCLUDED. PT# 87250 is required to retain the sway bar.
