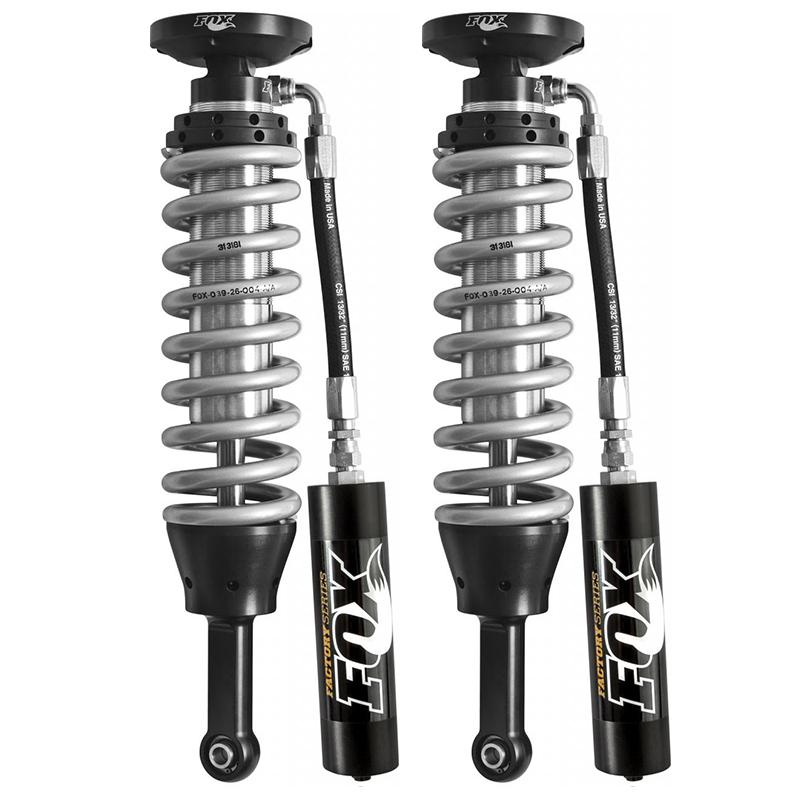

'07-18 Chevy/GM 1500 2.5 Factory Series Remote Reservoir Coilovers

  • VENDOR: Fox
  • PART#: Fox-883-02-121
  • YOUR PRICE: Regular price $1,849.95

These shocks are sold in pairs


Fox's bolt-on Factory Race Series Coil-over Reservoir shocks for the 2007-2018 Chevy/GMC 1500 provide improved damping in any terrain.Coil-over shocks provide suspension damping and suspend the weight of the vehicle. The integrated coil spring can be adjusted for preload and ride height and come pre-set to level your vehicle right out of the box. Experience for yourself the incredible performance and precise control that Factory Series Coil-over Reservoir shocks deliver.


  • Body: 2.5” smooth bore zinc plated seamless steel body
  • Body Plating: Zinc-plated and double-clear coated for long lasting finish
  • Reservoir: 2.5" Smooth bore and honed seamless alloy reservoir
  • Components: Black-anodized, CNC-machined 6061-T6 billet aluminum
  • Spring: Application specific, adjustable 3.0 Eibach® racing springs
  • Shaft: 7/8" hard chrome plated steel shafts
  • Piston: 6061-T6 hard-anodized, high flow aluminum piston
  • Valving: Application specific valving to maximize performance
  • Seals: Redundant sealing pack system main seal, wiper seal, scraper seal
  • Oil: JM92 Advanced Suspension Fluid for improved performance at variable temperatures
  • Bearing: PTFE-lined, heat-treated, alloy steel spherical
  • Adjustments: Ride height preload ring
  • Top Mount: OEM
  • Bottom Mount: Eyelet

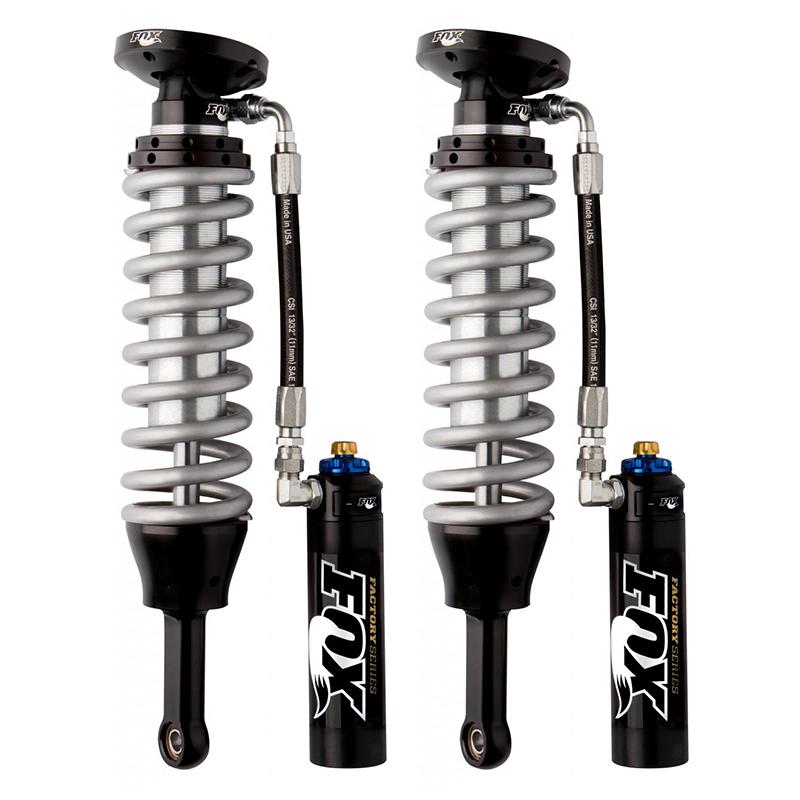

Add remarkable versatility and precise tuning with new DSC. A simple twist of either two adjuster knobs allows 10 separate low-speed and 12 high-speed compression levels. Included new black anodized aluminum reservoir increases cooling efficiency.


Lift Height (in.) Travel (in.) Compressed (in.) Extended (in.)
0-2" 4.440" 14.900" 19.340"
0-3" 5.355" 14.980" 20.335"
