Carli Suspension

05-Current Ford F250/350 Leveling (2.5" Lift) Pintop 2.5 Shock Package

  • VENDOR: Carli Suspension
  • YOUR PRICE: Regular price $3,090.00


The Pintop is a Jack-of-all-trades shock package from which every Super Duty owner would benefit. Raising the Super Duty Platform then adding the 2.5” diameter shocks (55% more piston surface area than a 2.0” shock) will support the argument that these trucks should come equipped with 2.5” shocks from the factory. The higher end systems will get you more off-road capability, yes, and even a bit more on-road. The premium paid for these systems, however, doesn’t compare to the on and off-road ride quality per dollar spent on the Pintop. For these reasons, it will likely remain our best seller for years to come.


  • Carli Custom Pistons and Tuning

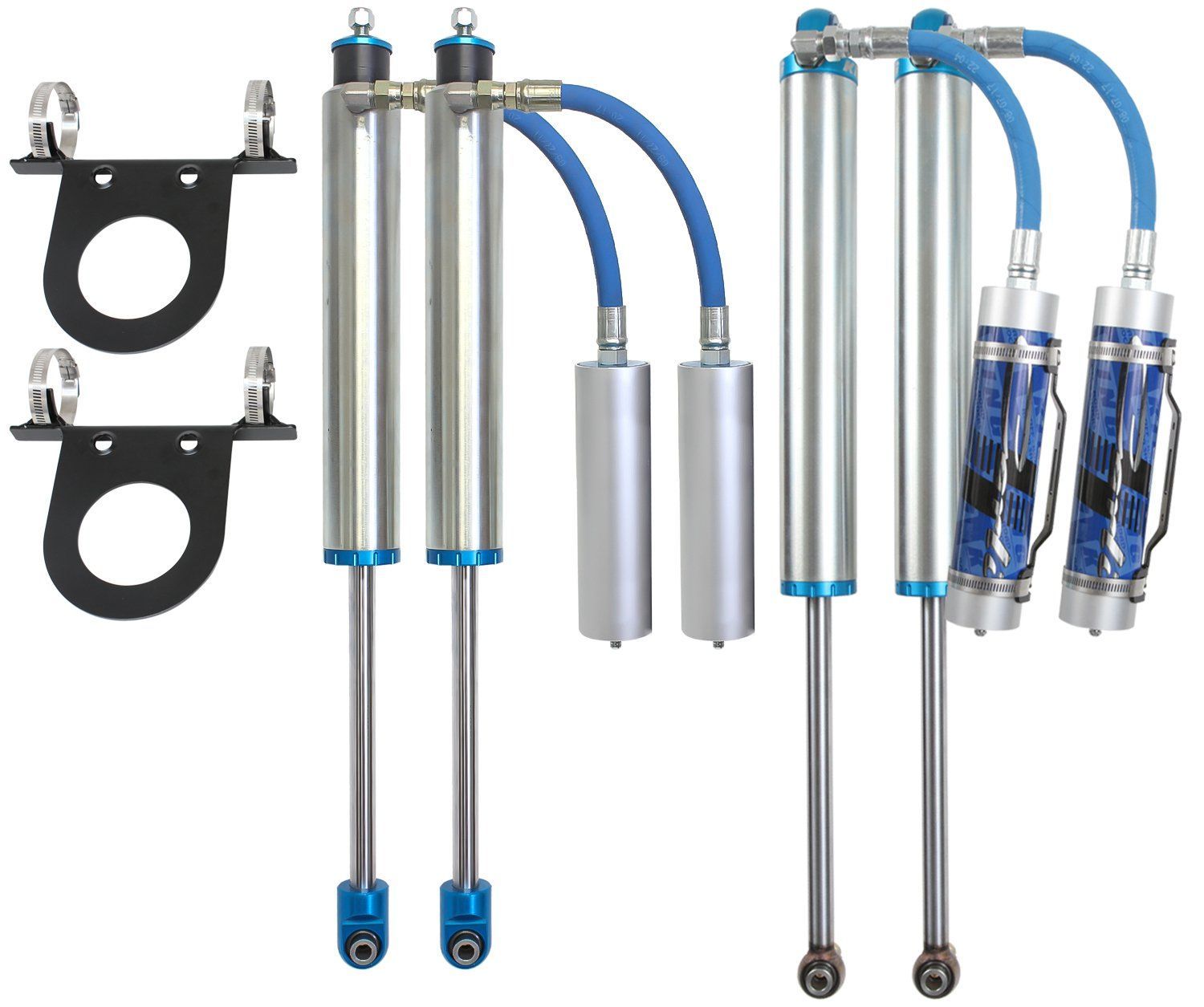

  • King 2.5″, Remote-Reservoir Shocks Front and Rear
  • 17-4 Stainless Shock Shafts
  • Includes Reservoir Mounts front and Rear
  • 9″ Front Wheel Travel, 12″ Rear
  • Fitment: 2005-16 F250/350 4×4, Diesel with 2.5″ Carli Lift
  • Ftiment: 2017+ F250/350 4×4, Diesel with 2.5″ Carli Lift

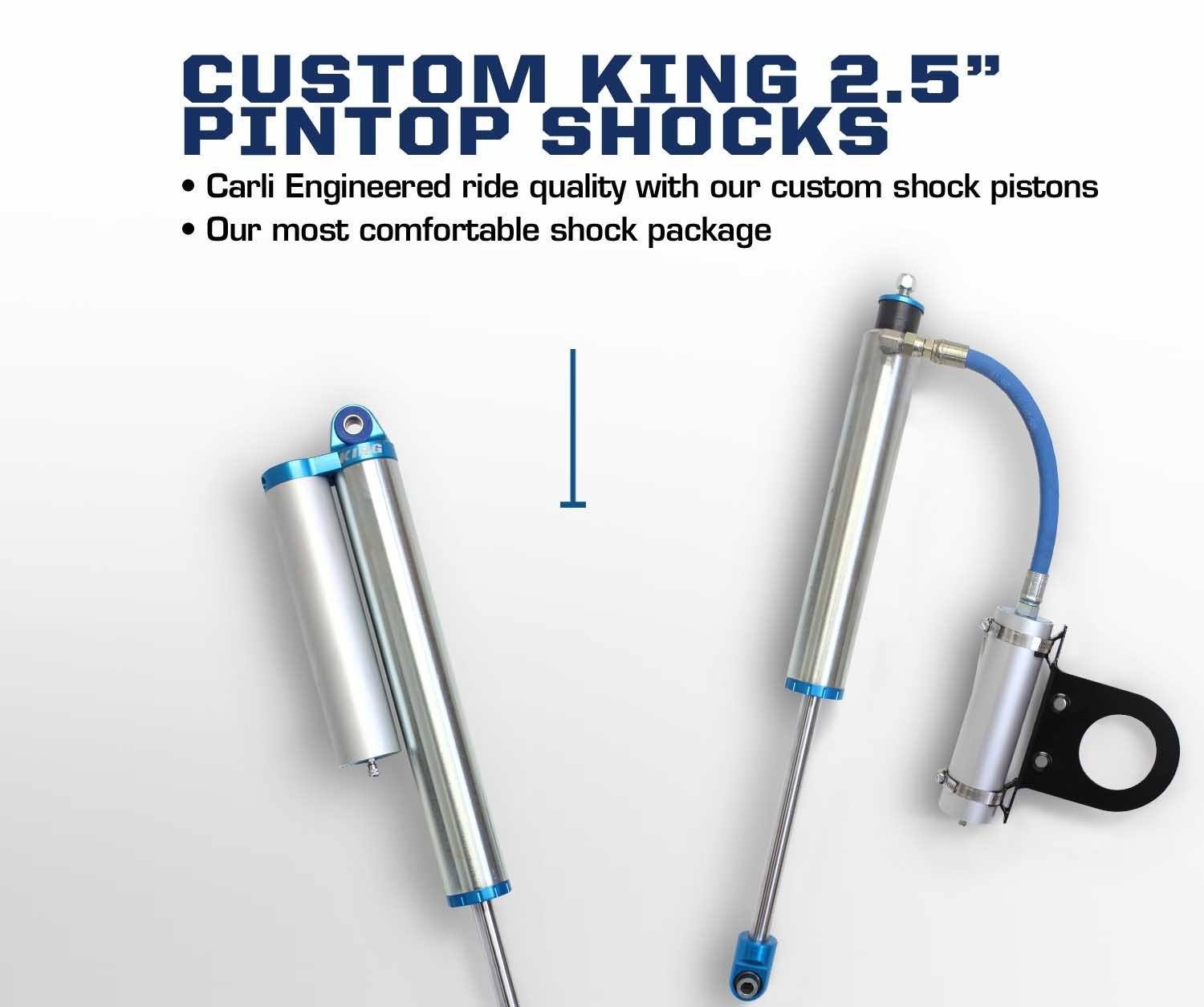

The Pintop system boasts Carli specific, blueprinted, King 2.5” shocks on all four corners. In an effort to provide customers with the best product, we designed a custom piston to determine proper base flow rates to ensure the shock works well in the heavy duty truck platform; we then tuned the shocks around the custom pistons based on the only thing that matters to us, seat-of-the-pants feel. We round off ALL our King shocks with shafts machined and polished from a solid piece of 17-4 Stainless. Unlike King’s standard shafts, there is no coating to wear off, weather can’t hurt them and if there is a small chip, you can round the edges with emery cloth to ensure the seal housing isn’t damaged as they’re not brittle like the stock, hardened shafts. The shocks are finished with King oil good to -55° F. Note that all King shocks are built with a plated steel body. If subjected to inclement weather for extended periods, we recommend wrapping your shocks in 3M to provide a moisture barrier that’s replaceable.
