'05-16 Ford F250/350 2.0 Leveling Kit-2.5" Lift Display of Included Parts

Carli Suspension

'05-16 Ford F250/350 2.0 Leveling Kit-2.5" Lift

$880.00
SKU: CS-FLVL-SIG-05
Quantity:

'05-16 Ford F250/350 2.0 Leveling Kit-2.5" Lift

MCQUEEN

190 South McQueen Road
Suite 109
Gilbert AZ 85233
United States

+14806332929

STATE OF CALIFORNIA CONSUMER WARNING

Level your truck the correct way

Level the front of your 2005-2016 Ford F250/350 with a Carli Suspension system that delivers 50% more front suspension travel than the stock Super Duty. Shot peened, pre-set, and powder-coated coil springs paired with extended travel shocks backed by a lifetime warranty increase control and comfort without breaking the bank.

SPECS:
  • Front Lift: 2.5"
  • Rear Lift: 0"
  • Front Travel: 9"
  • Rear Travel: Stock
  • Shock Diameter: 2.0
  • Tire Fitment: 35″ x 12.5″

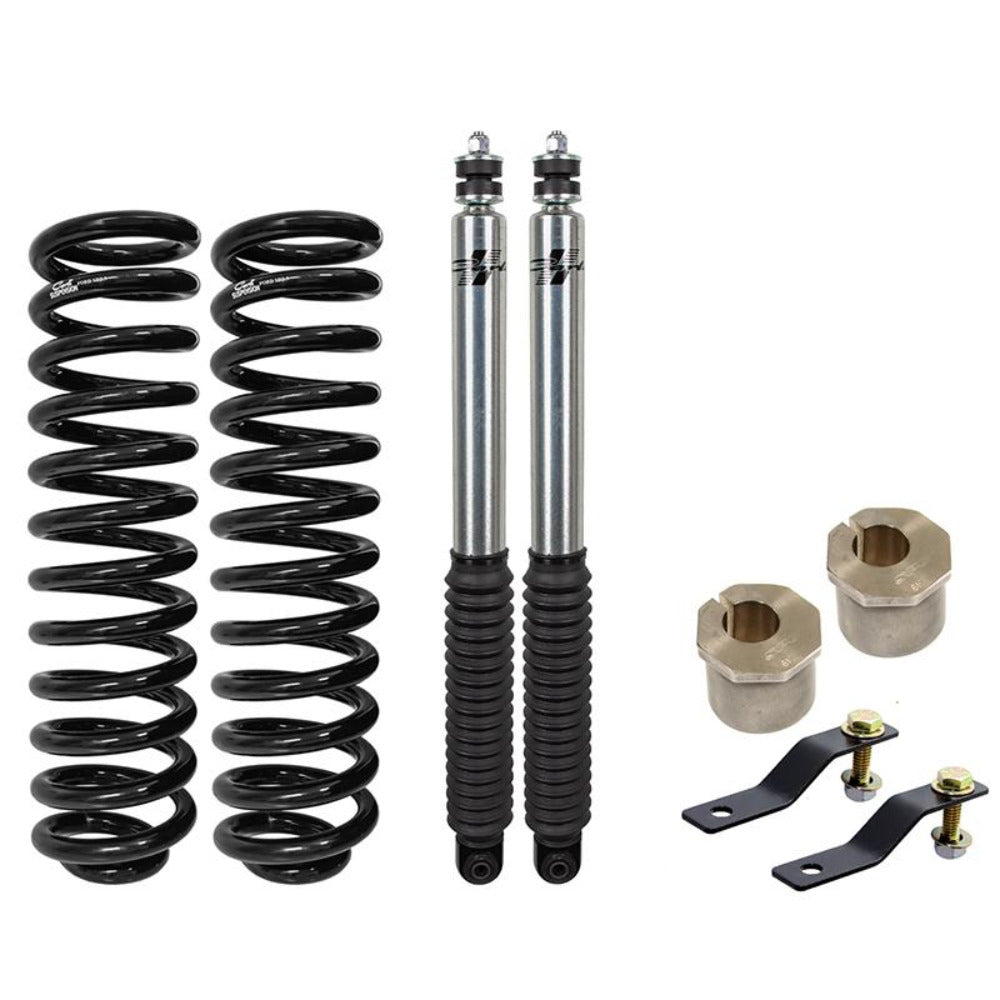

BASE KIT INCLUDES:
  • CS-FLC-05: Front Leveling Coils
  • CS-FSIG20SPKG-FRONT-LVL-05: Ford Signature Series FRONT Shock Package, LVL
  • CS-FBLT-05: Brake Line Tab
  • CS-FCASTERSHIM-2.5: 2° Caster Shims
additional KIT DETAILS:

The Leveling System was designed for people seeking a leveled vehicle with more performance and ride quality than a generic spacer lift. The included, front, Carli Signature Series Shocks are longer to accommodate the extended travel. When designing the shocks, Zinc plating, Clear Coat for corrosion resistance, and quality bushings were a must; finished off with boots to protect the shafts, we back them with a limited lifetime warranty to ensure their quality is as unbeatable as their ride quality at this price point.

Your truck will sit 2.5” higher in the front with 50% more suspension travel than the factory platform thanks to the taller, lighter rate coil springs. Front custom-tuned Signature Series shocks increase the suspension control while the brake line tabs ensure you can make the most of your newfound suspension down-travel.

The axle will be off-center toward the driver’s side 3/4″ unless the optional Adjustable Track Bar is purchased. Caster Shims round off the front-end geometry while improving the stock handling.

As this system does not include anything for the rear, factory towing, and payload capacity are maintained. This is an entry-level system that only requires an upgrade to one of our many signature-tuned shock packages and an Add-a-Pack or full progressive leaf spring pack to be converted to one of the higher-end systems.

The Leveling System will level the front of the truck to the rear on Super Duties equipped with the factory, 3-5/8” rear block. Super Duties equipped with a 2″ tall block from the factory will require the factory 3-5/8″ tall Block to achieve a leveled stance.
