These shocks are sold individually
PRODUCT OVERVIEW:

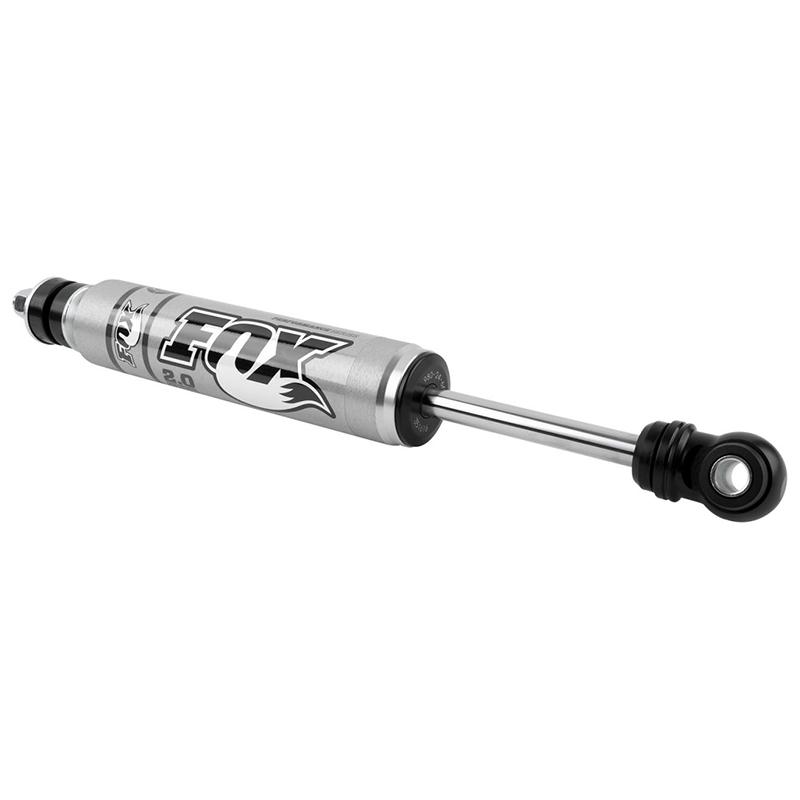

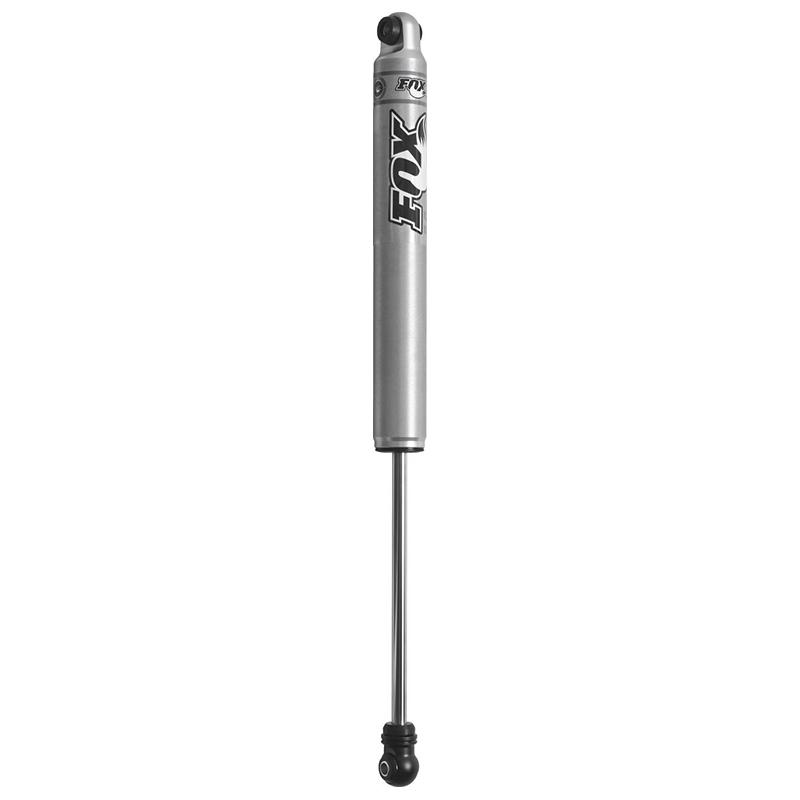

The Performance Series 2.0 IFP smooth body shocks contains the latest in shock technology to transform the performance of your 2001-2010 Chevy/GMC 2500HD. They use our race-proven damping control to provide a comfortable on-road ride and predictable off-road handling in even the toughest conditions.
The precision metal impact aluminum body increases cooling capacity and will never rust. Inside you will find our race-proven performance valving technology Our Internal Floating Piston (IFP) mono-tube design separates the shock oil from the high-pressure, nitrogen-charged gas chamber. The IFP eliminates oil aeration allowing maximum performance from the factory-tuned precision valving. The race developed high flow damping piston matched with application specific valving provides the Performance Series 2.0 IFP shock a predicable ride quality capable of handling the roughest road conditions.
KEY FEATURES:
- Body: 2.0” Impact extruded and CNC machined 6061-T6 clear anodized aluminum one-piece body resists rust over time
- Body Plating: Clear-anodized for a durable finish
- Reservoir: Internal IFP mono-tube reservoir design
- Components: Black-anodized, CNC-machined 6061-T6 billet aluminum
- Shaft: 5/8" hard chrome plated heat-treated alloy steel
- Piston: Race-developed high-flow piston design
- Valving: Application specific valving to maximize performance
- Seals: Redundant sealing pack system main seal, wiper seal, scraper seal
- Oil: JM92 Advanced Suspension Fluid for improved performance at variable temperatures
- Bushings: Quiet nitrile rubber allows for increased suspension articulation
- Top Mount: Stem Top
- Bottom Mount: Eyelet
SPECS:
| Lift Height (in.) | Travel (in.) | Compressed (in.) | Extended (in.) |
| 0-1" | 5.1" | 10.950" | 16.050" |
| 4-6" | 7.6" | 13.850" | 21.450" |
| 7-9" | 9.1" | 14.950" | 24.050" |
