'04-15 Nissan Titan 2WD Long Travel Race Kit Suspension Dirt King Fabrication parts
'04-15 Nissan Titan 2WD Long Travel Race Kit Suspension Dirt King Fabrication parts
'04-15 Nissan Titan 2WD Long Travel Race Kit Suspension Dirt King Fabrication parts

Dirt King Fabrication

'04-15 Nissan Titan 2WD Long Travel Race Kit

$5,487.02 $5,599.00
Save $111.98
SKU: DK-701909
Quantity:

STATE OF CALIFORNIA CONSUMER WARNING: Some products may contain chemicals such as DEHP, which can cause cancer, birth defects or other reproductive harm.

The Dirt King Fabrication long travel suspension system for the 2004-2015 Nissan Titan was developed for the most extreme off-road terrain. The long travel race kit is capable of 17” of travel and can accept up to a 37” tire. We have perfected the suspension geometry by modifying the outer pivot locations on the spindle. With these changes we were able to achieve twice the amount of travel compared to stock and eliminate bump steer throughout the suspension cycle. The kit accepts 2.5 x 10” coil overs, 2.5 x 10” bypasses, and 2.0 x 2.0 bump stops for superior suspension dampening. This kit is CAD designed, thoroughly tested, and 100% made in America. The result is a suspension system with reliable performance and off road handling that will exceed all expectations.

FITMENT:

  • 2004-2015 Nissan Titan 2WD
  • 2016+ Nissan Titan (Non-XD) 2WD
  • *This suspension will not work with the 2016 or newer Titan XD models.

KEY FEATURES:

  • 4130 chromoly uniball cups
  • ¾” heims for the UCA’s
  • Delrin bushings for the LCA’s
  • Zinc plated inner bushing sleeves
  • Grease fittings for easy servicing
  • 3/16" & 1/8” boxed plate construction
  • Internally ribbed with extrusions for weight reduction
  • Limit strap tabbing
  • Bump stop plating

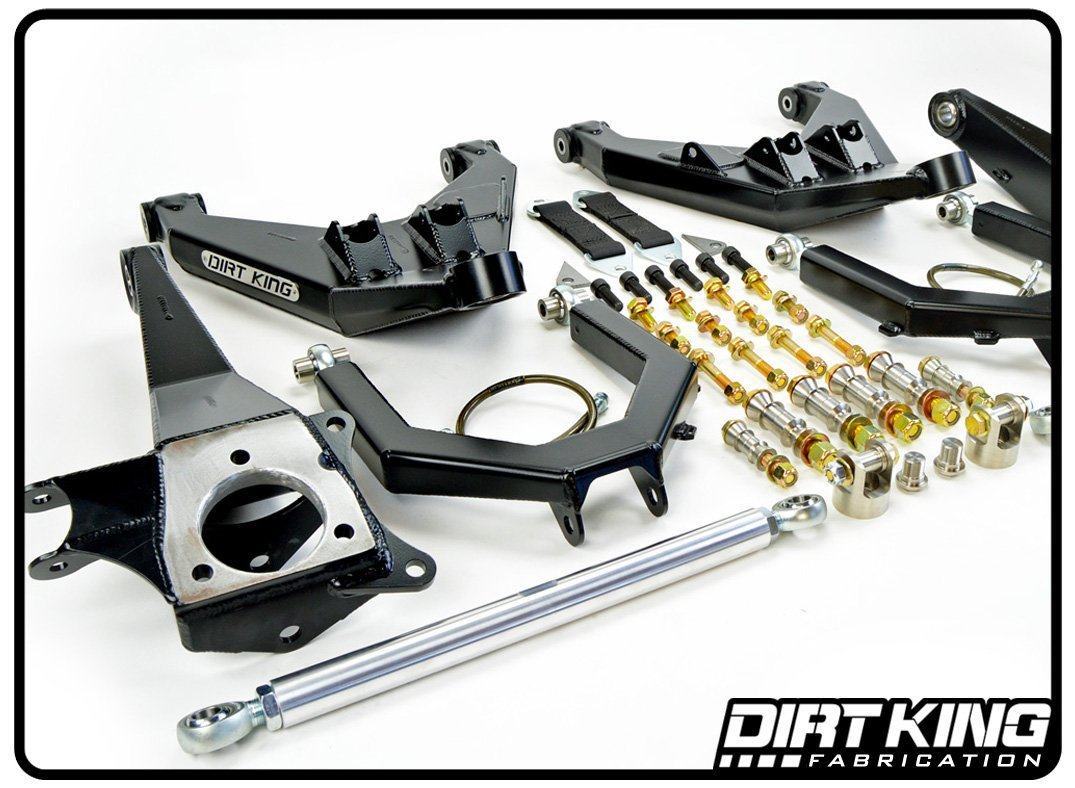

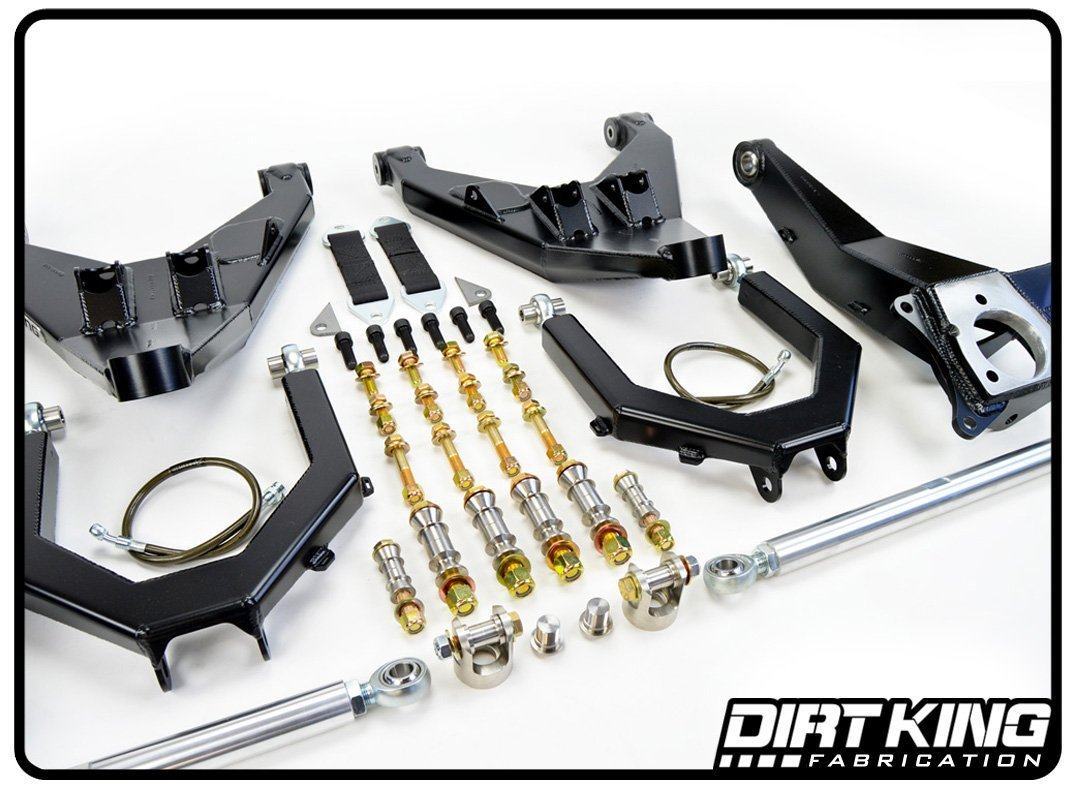

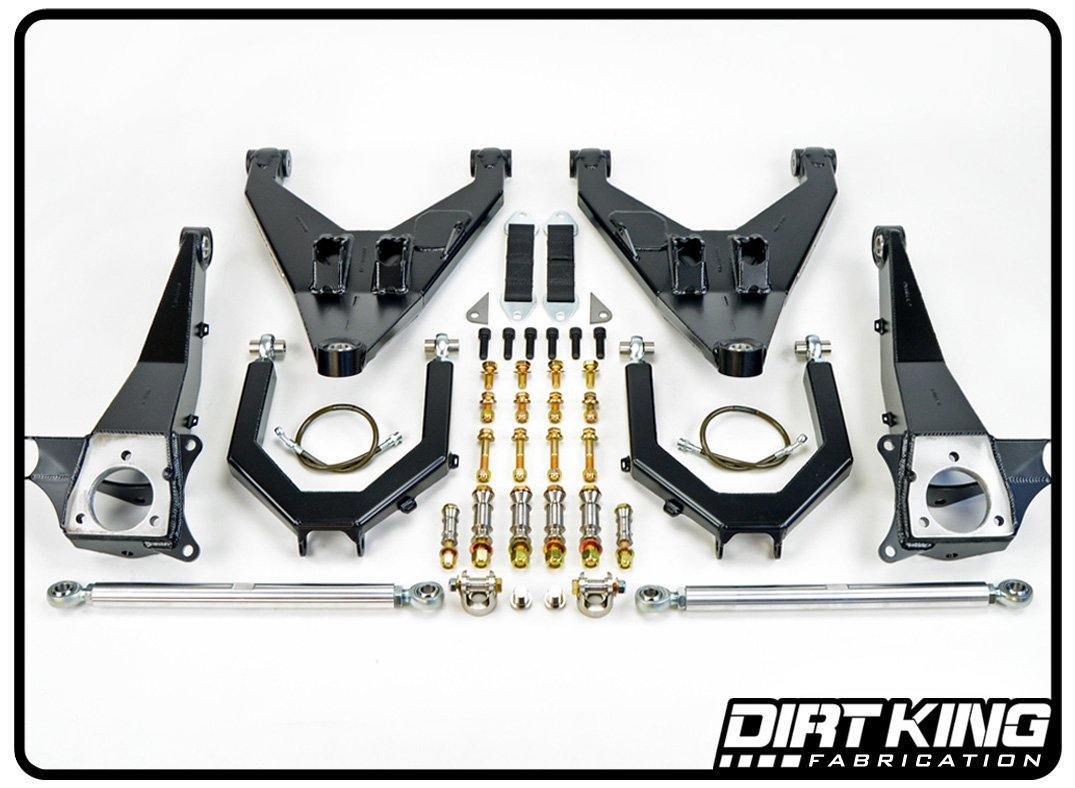

WHAT'S INCLUDED:

  • Boxed plate upper control arms
  • Boxed plate lower control arms with pocketed shock mounts
  • 9" quad wrapped limit straps
  • Weld on adjustable limit strap mounts
  • 17-4 stainless steel misalignment spacers
  • 17-4 stainless steel steering clevis’s
  • Billet aluminum heimed tie rods
  • DOT approved extended brake lines
  • Grade 8 mounting hardware
  • Durable black powder coat finish

SPECS:

  • Wheel Travel: 17”
  • Amount of Lift: 0-4”
  • Track Width: 4.25” wider per side
  • Maximum Tire Size: 37”
  • Maximum Backspacing: 4.5”
  • Minimum Rim Size: 17”
  • Coil Over Shock Size: 2.5 x 10”
  • Bypass Shock Size: 2.5 x 10”
  • Bump Stop Size: 2.0 x 2.0
