8-Switch Power Panel with Concealed Mounting Hardware

Product Options

Backlight Color:
Price: $499.00
Manufacturer: Switch-Pros
Bookmark and Share

Product Description

Eight user-programmable switches
User-selectable switch legends
Illuminated switches with user-adjustable brightness
Programming and control via panel or smart phone
Bluetooth interface
100A solid state power module, engine compartment rated
Automatic shutdown for overcurrent and low voltage
Programming options are: On/Off or Momentary, Ign. or Batt., Flash and Strobe functions, Low Voltage Disconnect, and Switch Memory
Plug and play installation

Switch Panel Specs:

4”L x 2”W x .5”H (excluding tabs)
Enclosure:  Anodized Aluminum
Orange LED switch indicators
Green backlighting

Power Module Specs:

6”L x 3”W x .5”H (excluding connectors)
Enclosure: Anodized aluminum
8 Outputs, 7 rated @ 18A, 1 rated @ 30A
100A maximum rating 125°C to -40°C

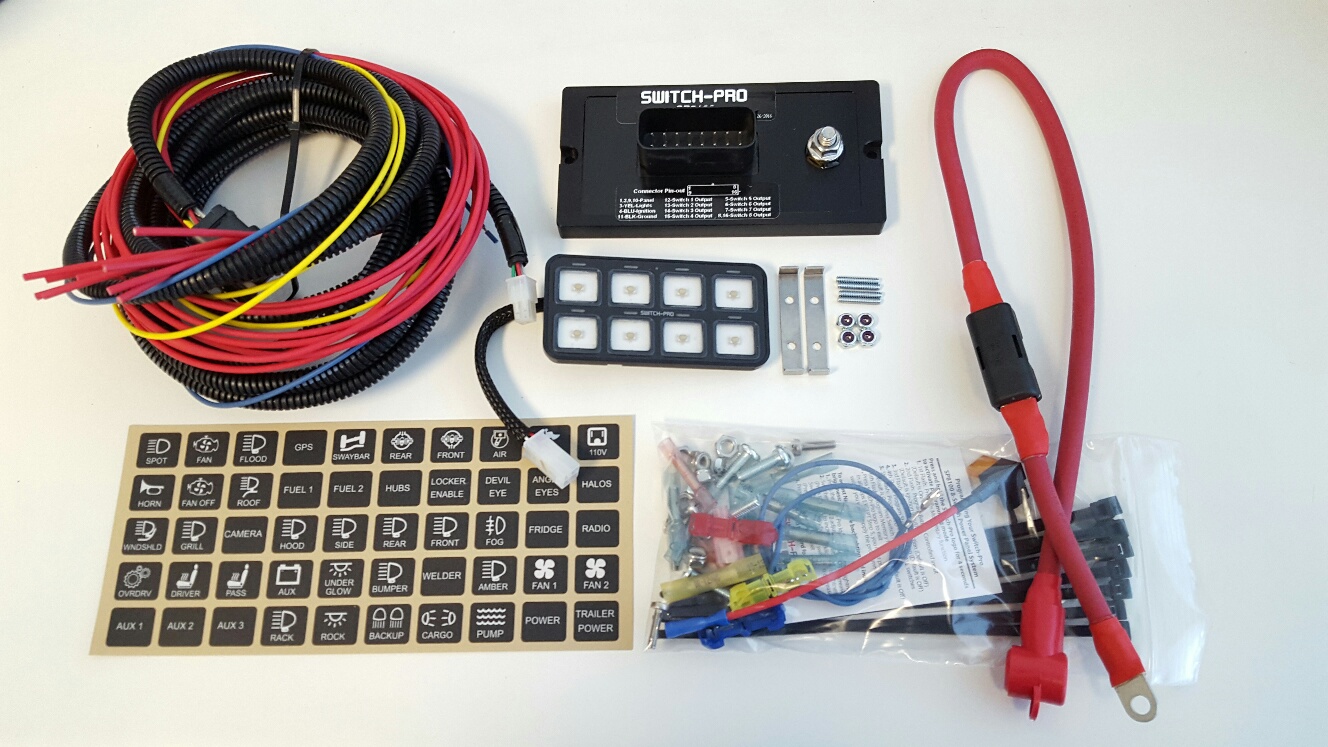

16-pin, sealed automotive connector, wire harness w/100A fused power cable, light and ignition input wires, and eight 3’long output wires
11" of communication cable between switch panel and power module

Switches can be programmed to be: On/Off or Momentary, ignition or battery powered, flash, strobe, low voltage disconnect, and memorize previous settings.  There is also a programming function to adjust the brightness of backlighting and indicator LEDs.
